Z128 Marathon 2HP General Purpose Farm Duty Electric Motor, 1800RPM
Click Image to Expand
Previous
Next
Product ID: Z128

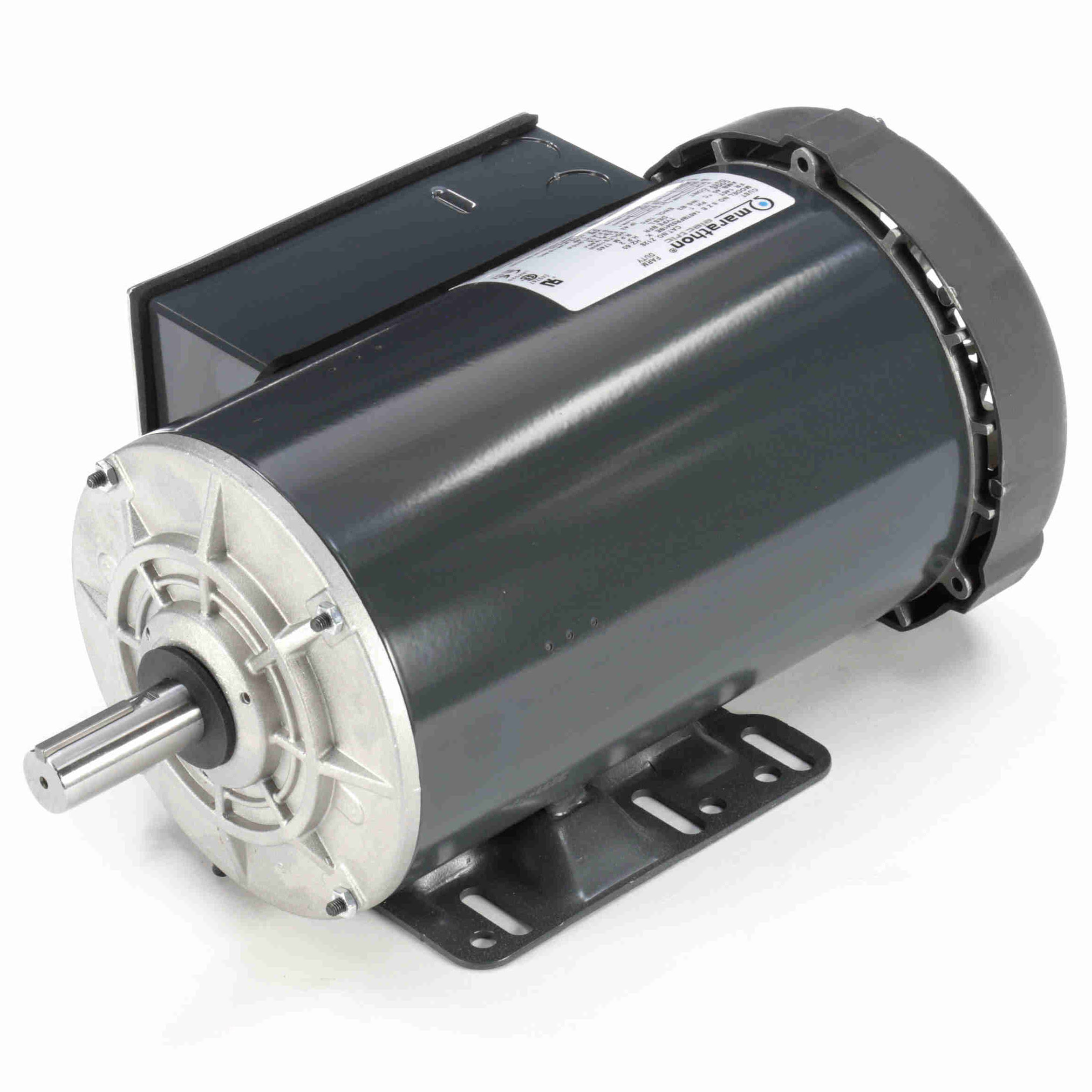

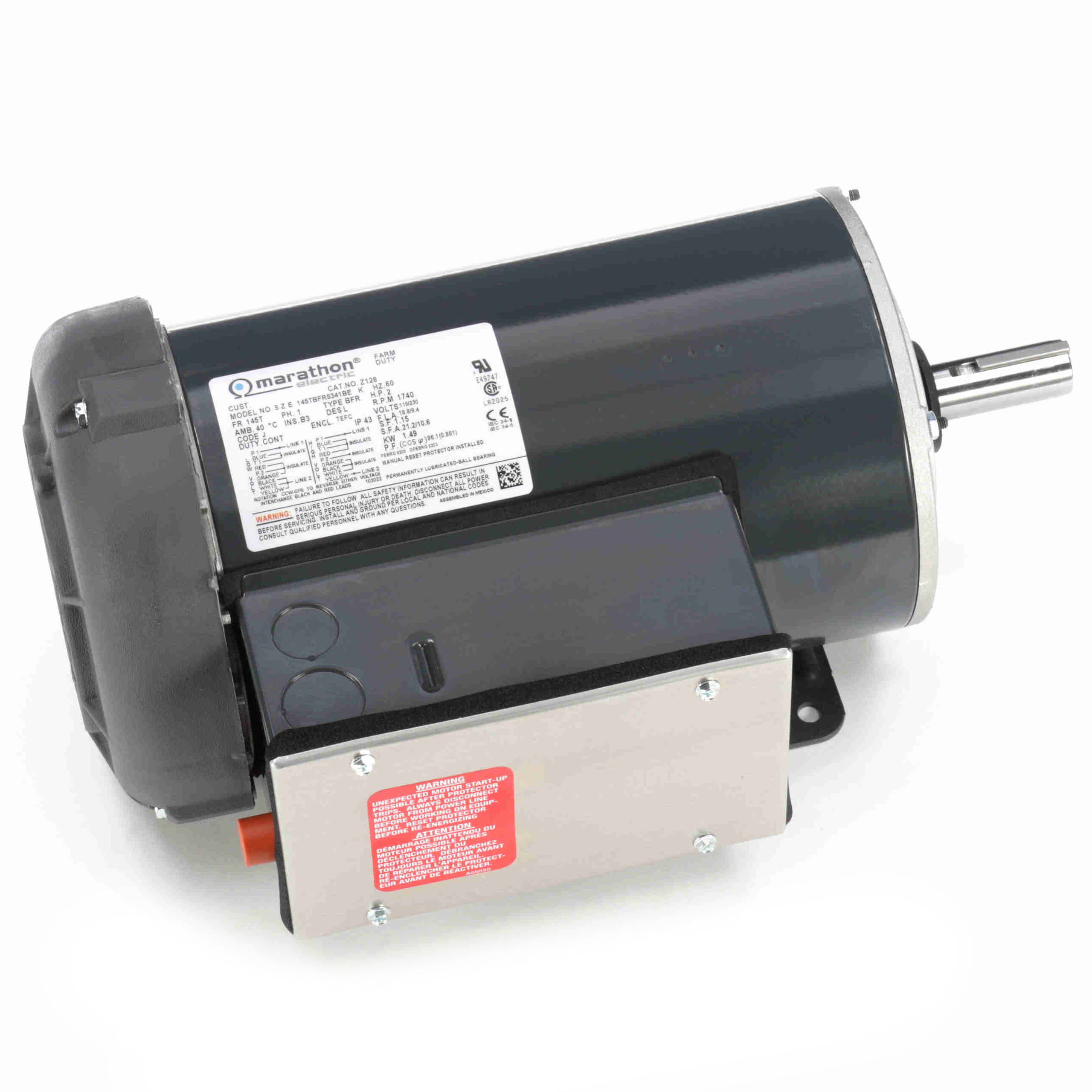

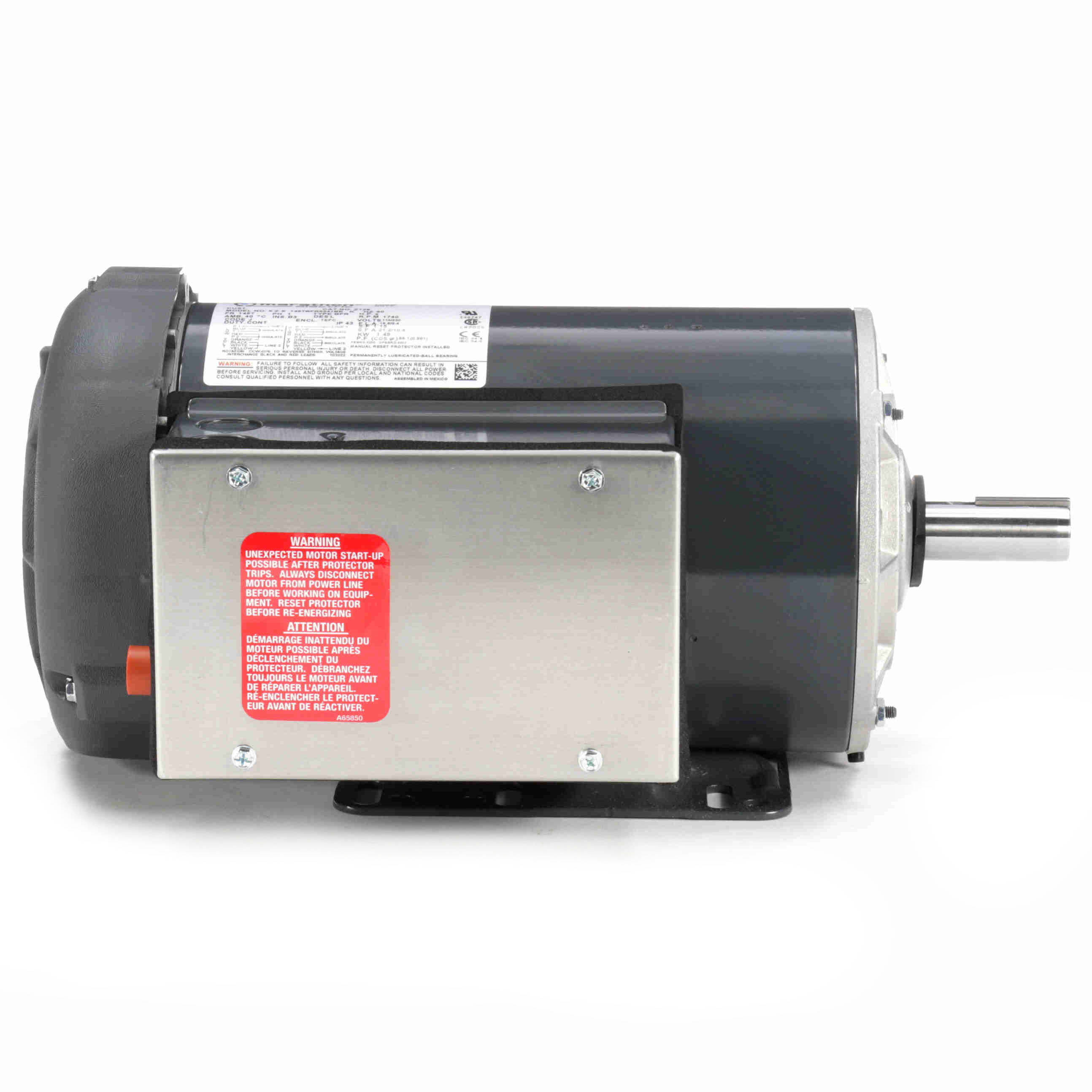

Z128 Marathon 2HP General Purpose Farm Duty Electric Motor, 1800RPM
MFG: Marathon Electric
MFG Part Number: Z128
Selected accessories will also be added to cart
$999.97 / Each
Quantity:
TEFC, 145T Frame, 115/230VAC Single Phase 60Hz
Details
Specs
Features
Shaft end mechanically locked on C-face models
Capacitor start design for high starting torque
Capacitor start/capacitor run design for higher efficiency
Low temperature manual reset thermal protector
Totally enclosed and fully gasketed construction for dirty environments
Condensate drains
Shaft slinger
General Specifications
UPC:
722856027863
Weight:
50.00 LB
Packaged Length:
19.88 IN
Packaged Width:
10.25 IN
Packaged Height:
8.12 IN
Nameplate Specifications
Output HP:
2 Hp
Output KW:
1.5 kW
Frequency:
60 Hz
Voltage:
115/230 V
Current:
18.8/9.4 A
Speed:
1740 rpm
Service Factor:
1.15
Phase:
1
Efficiency:
81.5 %
Power Factor:
86.1
Duty:
Continuous
Insulation Class:
B
Design Code:
L
KVA Code:
J
Frame:
145T
Enclosure:
Totally Enclosed Fan Cooled
Thermal Protection:
Manual
Ambient Temperature:
40 ?C
Drive End Bearing Size:
6205
Opp Drive End Bearing Size:
6203
UL:
Recognized ( Not Protector)
CSA:
Y
CE:
Y
IP Code:
43
Technical Specifications
Electrical Type:
Capacitor Start Capacitor Run
Starting Method:
Across The Line
Poles:
4
Rotation:
Selective Counterclockwise
Resistance Main:
0 Ohms
Mounting:
Rigid Base
Motor Orientation:
Horizontal
Drive End Bearing:
Ball
Opp Drive End Bearing:
Ball
Frame Material:
Rolled Steel
Shaft Type:
T
Overall Length:
14.87 in
Frame Length:
9.56 in
Shaft Diameter:
0.875 in
Shaft Extension:
2.25 in
Assembly/Box Mounting:
F1 Only
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
(%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Break-Down
32.30
344.0
14.90
248.0
1,486
6.09
0.0
2.00
Full Load
9.40
100.0
6.02
100.0
1,740
1.84
0.0
2.00
Pull-Up
62.80
668.0
14.30
238.0
164
11.60
0.0
2.00
Locked-Rotor
63.50
676.0
15.90
264.0
0
11.60
0.0
2.00
Load Characteristics
% of Rated Load
0 %
25 %
50 %
75 %
100 %
115 %
120 %
125 %
150 %
175 %
Current (Amps)
3.90
4.60
5.90
7.48
9.40
10.60
11.10
11.60
14.40
17.95
Rated Output (KW)
0.24
0.60
1.00
1.41
1.84
2.15
2.25
2.40
2.95
3.67
Efficiency (%)
0.0
62.2
74.3
79.2
81.5
79.8
78.2
77.7
75.9
71.5
Power Factor (%)
26.8
56.7
73.7
82.0
86.1
88.2
89.2
90.0
89.1
88.9
Speed (RPM)
1,800
1,786
1,774
1,758
1,740
1,731
1,725
1,722
1,698
1,665
Temp. Rise @ FL
0.0
0.0
0.0
0.0
80.0
110.0
115.0
0.0
0.0
0.0
Torque (ft-lbs)
0.00
1.47
2.95
4.47
6.02
6.98
7.20
7.62
9.28
11.10
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Application
Farm Duty
Enclosure
TEFC
Horsepower
2HP
Frame
145T
Input Voltage
115VAC
Input Voltage
230VAC
