/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/B2235 Century 4HP,1/3HP Pool Pump Motor, 3450/1725RPM
Click Image to Expand

Product ID: B2235

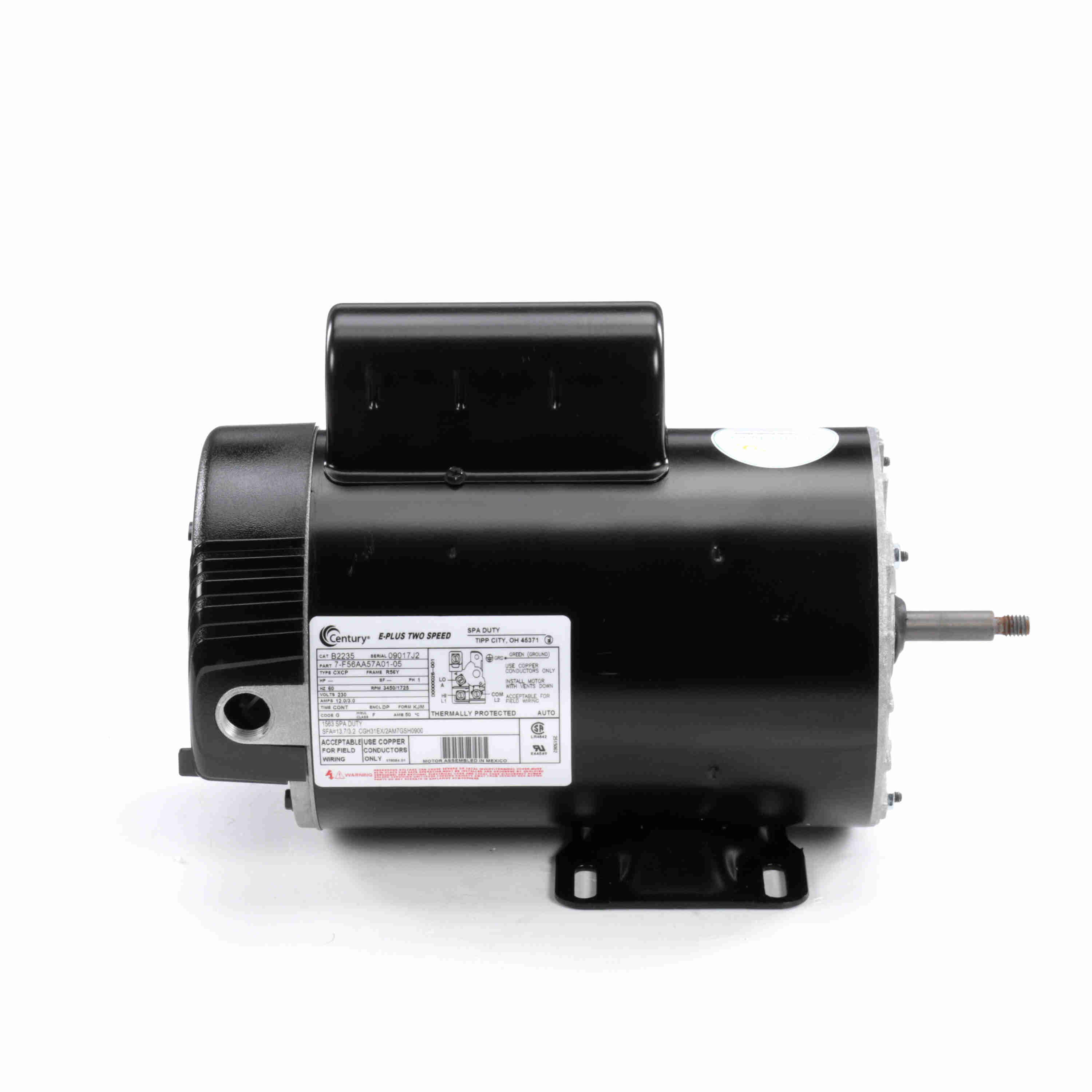

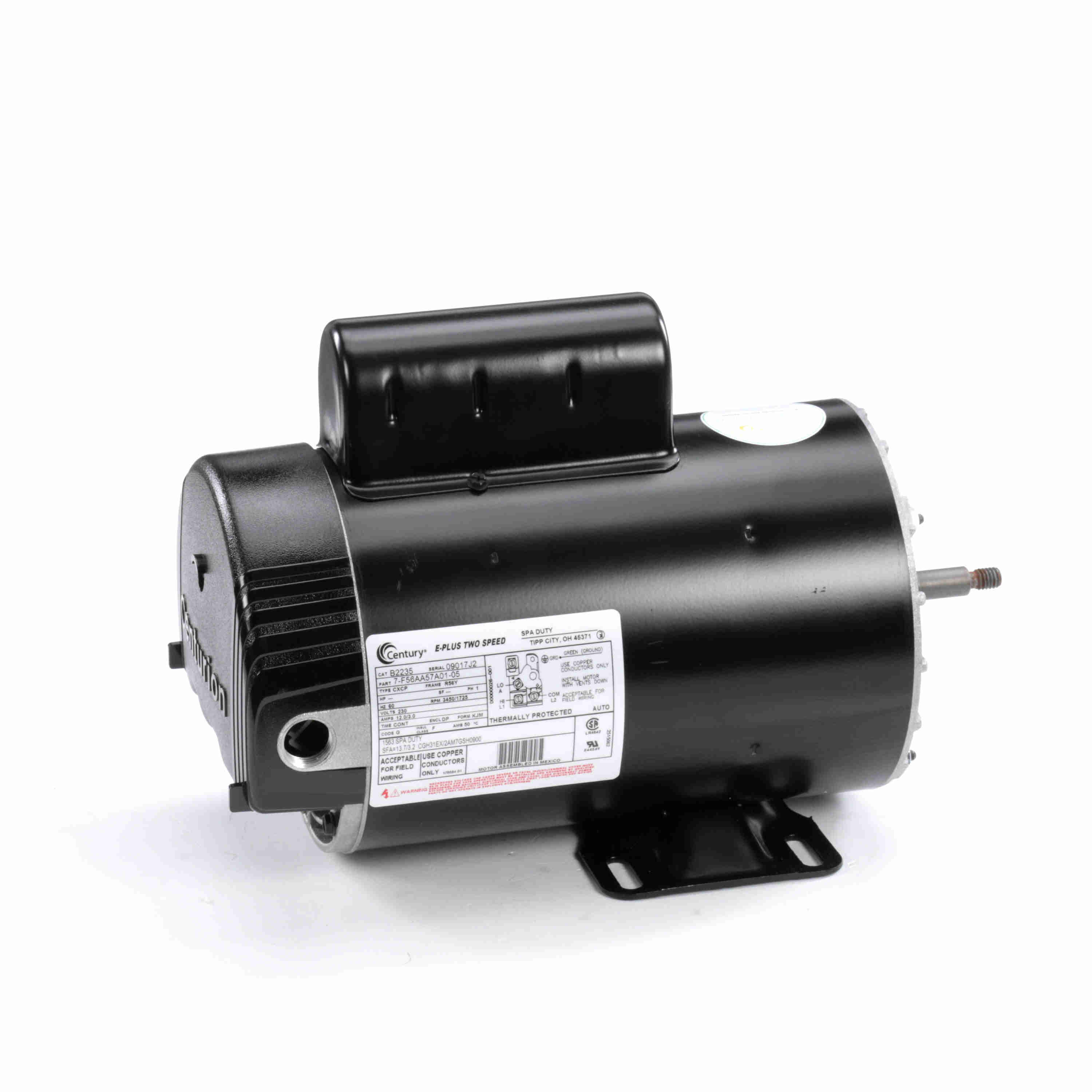

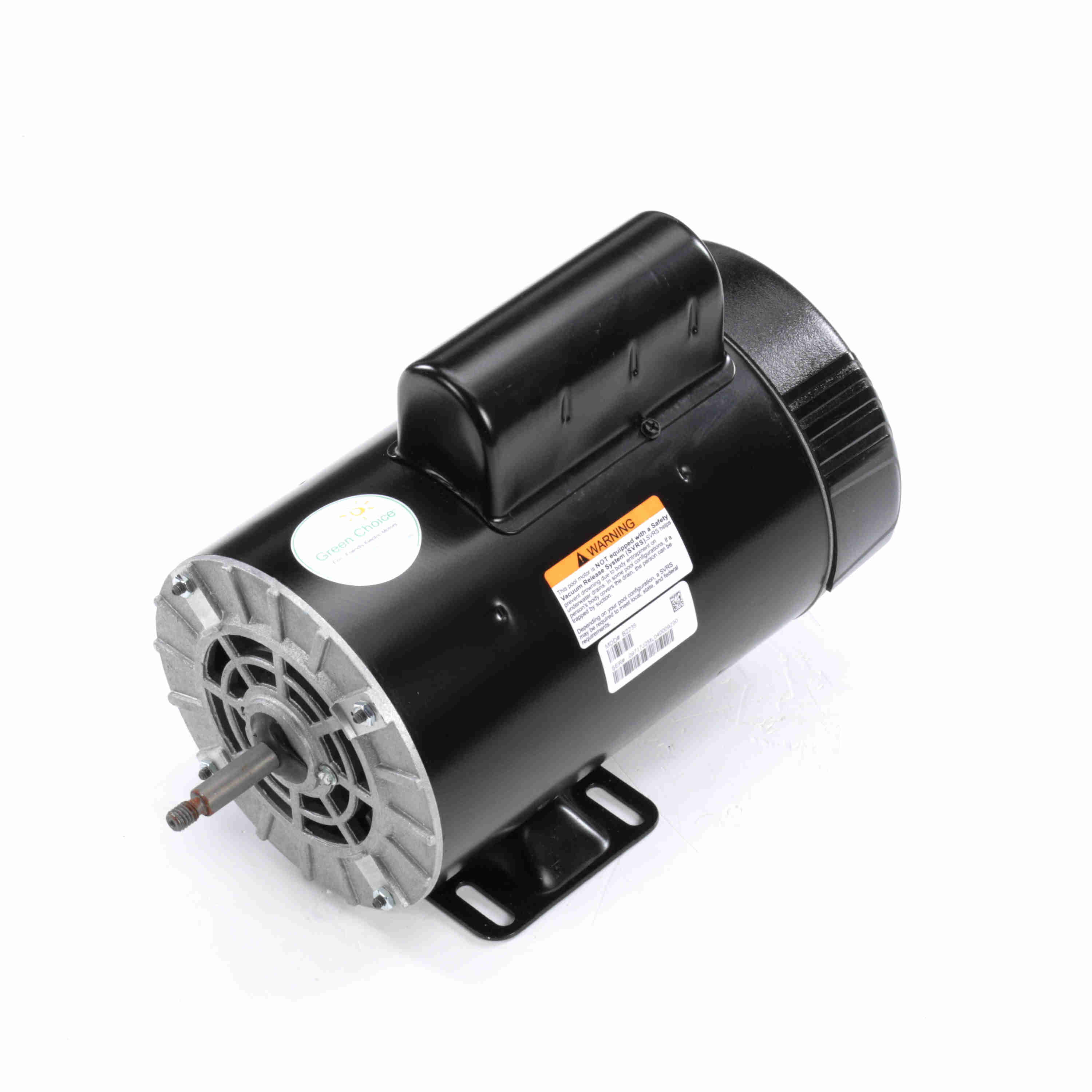

B2235 Century 4HP,1/3HP Pool Pump Motor, 3450/1725RPM

MFG: A.O.Smith (Century/RegalRexnord)
MFG Part Number: B2235

Selected accessories will also be added to cart
$594.97 / Each
Quantity:
Drip Proof, R56Y Frame, 230V 1-Phase 60Hz

Features

Features
  • Two Speed
  • PSC on High Speed
  • Cap Start/Cap Run on Low Speed
  • Rigid Base
  • 50°C Ambient
  • Four Thru Bolts on a 5.812 Bolt Circle
  • Open Dripproof
  • Meets California Energy Commission Appliance Regulations 2008

General Specifications

General Specifications
Model :B2235 Catalog No :B2235
Part Description :MODEL-PFHP-56FR Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :4, 1/3 Hp Output KW :3.0 kW
Frequency :60 Hz Voltage :230 V
Current :12.0/3.0 A Speed :3450/1725 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :F
Frame :R56Y Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Psc Low Speed, Cap Start/Cap Run High Speed Poles :2/4
Rotation :Counterclockwise Pump End Mounting :Rigid Base
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :13.49 in
Frame Length :8.75 in Shaft Diameter :0.500 in
Shaft Extension :2.37 in UPC :786674054791
Weight :38.00 LB
Type
Electric Motor
Input Phase
Single Phase
Application
Pool Pump
Enclosure
DP
Horsepower
4HP
Horsepower
1/3HP
Frame
R56Y
Speed
3450RPM
Speed
1725RPM
