/Products/Electric Motors/Single Phase/Century/Pool / Spa Pumps/B2982 Century 1/0.12HP Pool Pump Electric Motor, 3450/1725 RPM
Click Image to Expand

Product ID: B2982

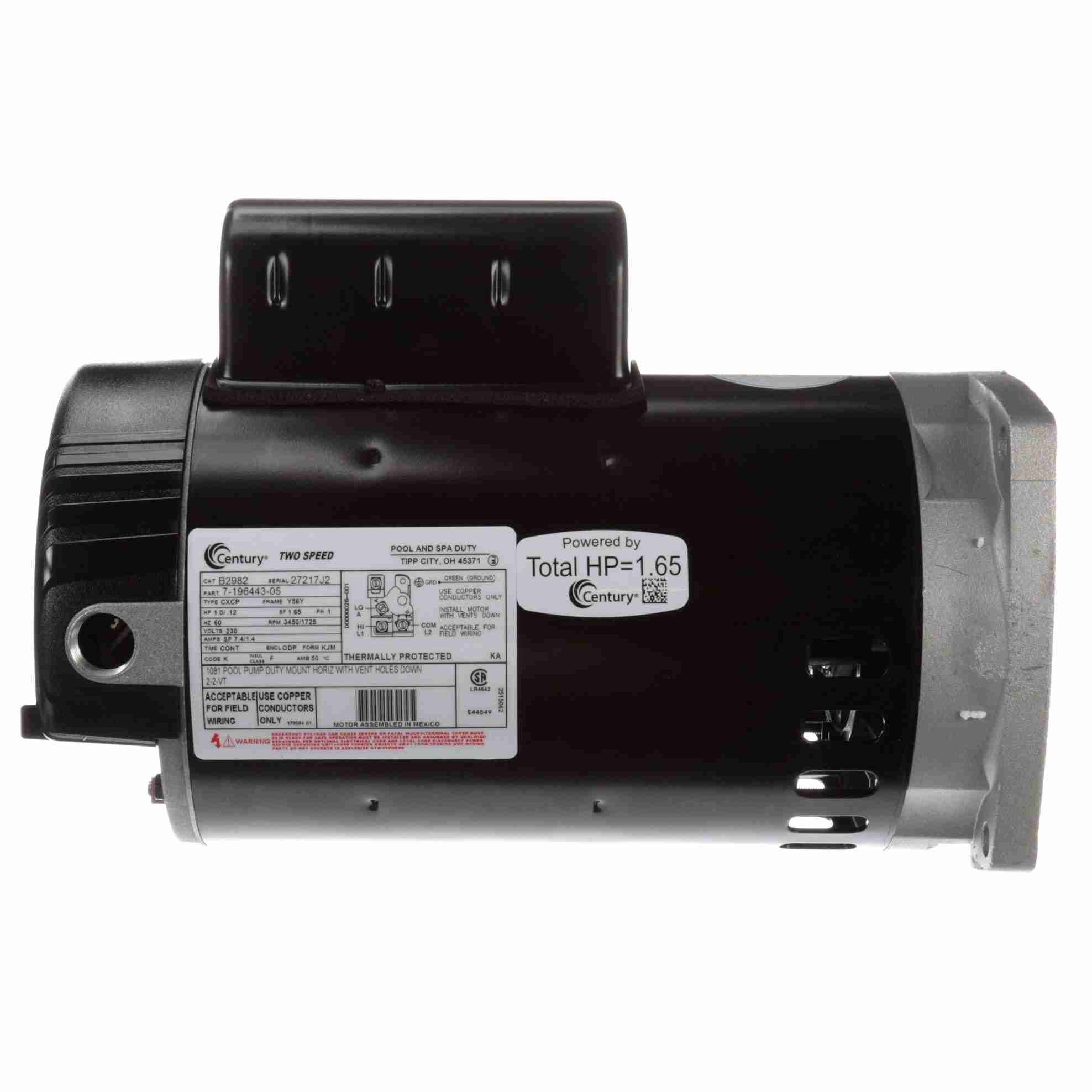

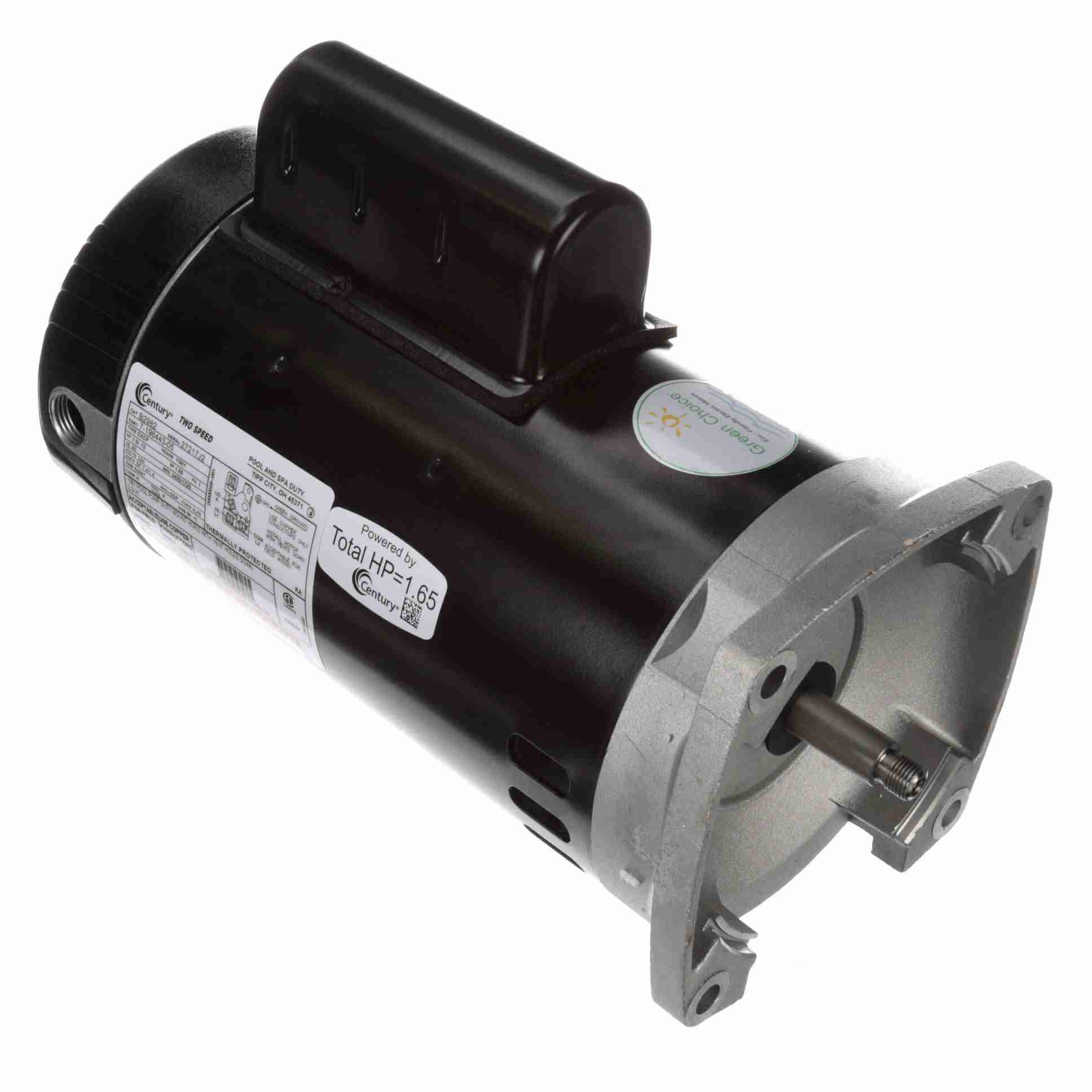

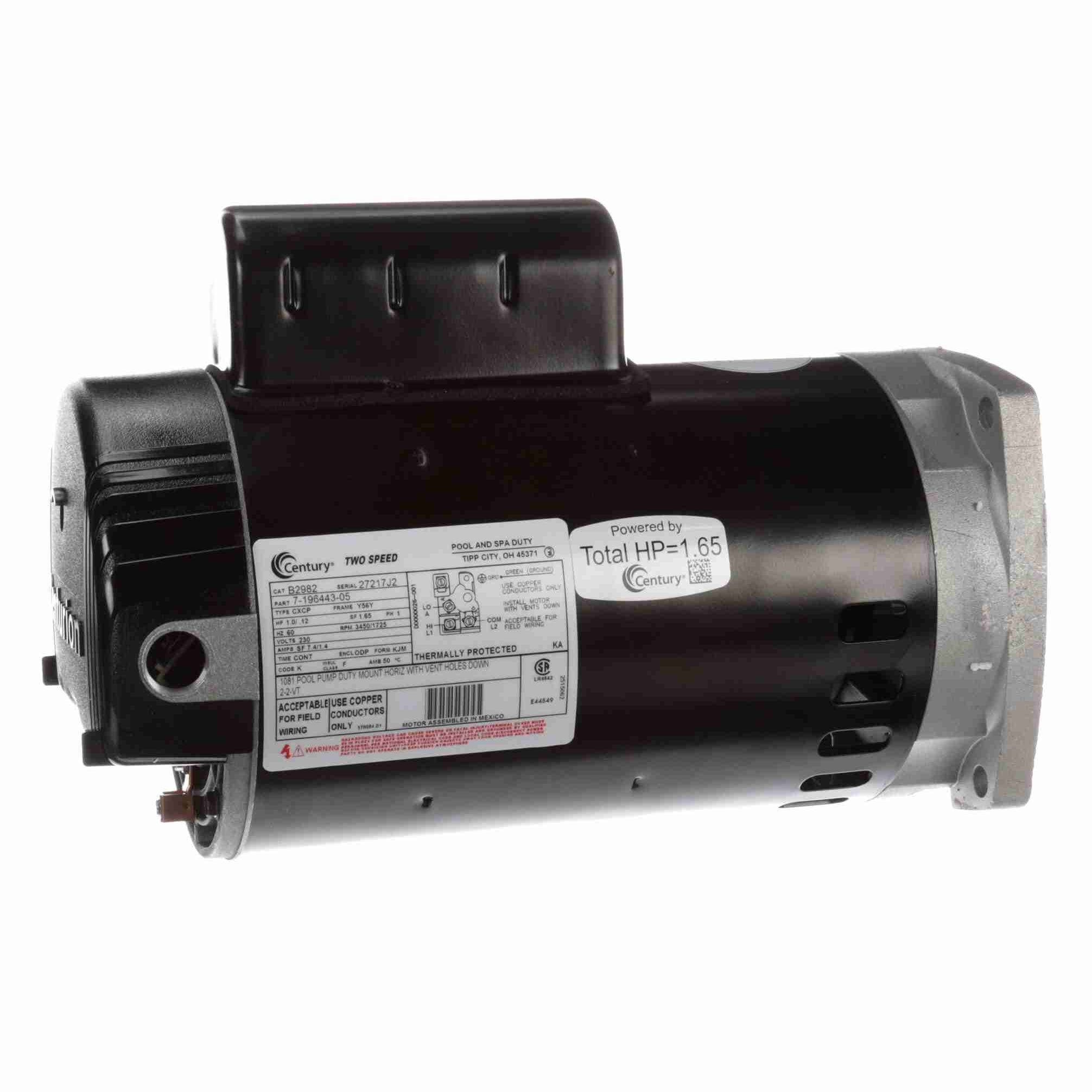

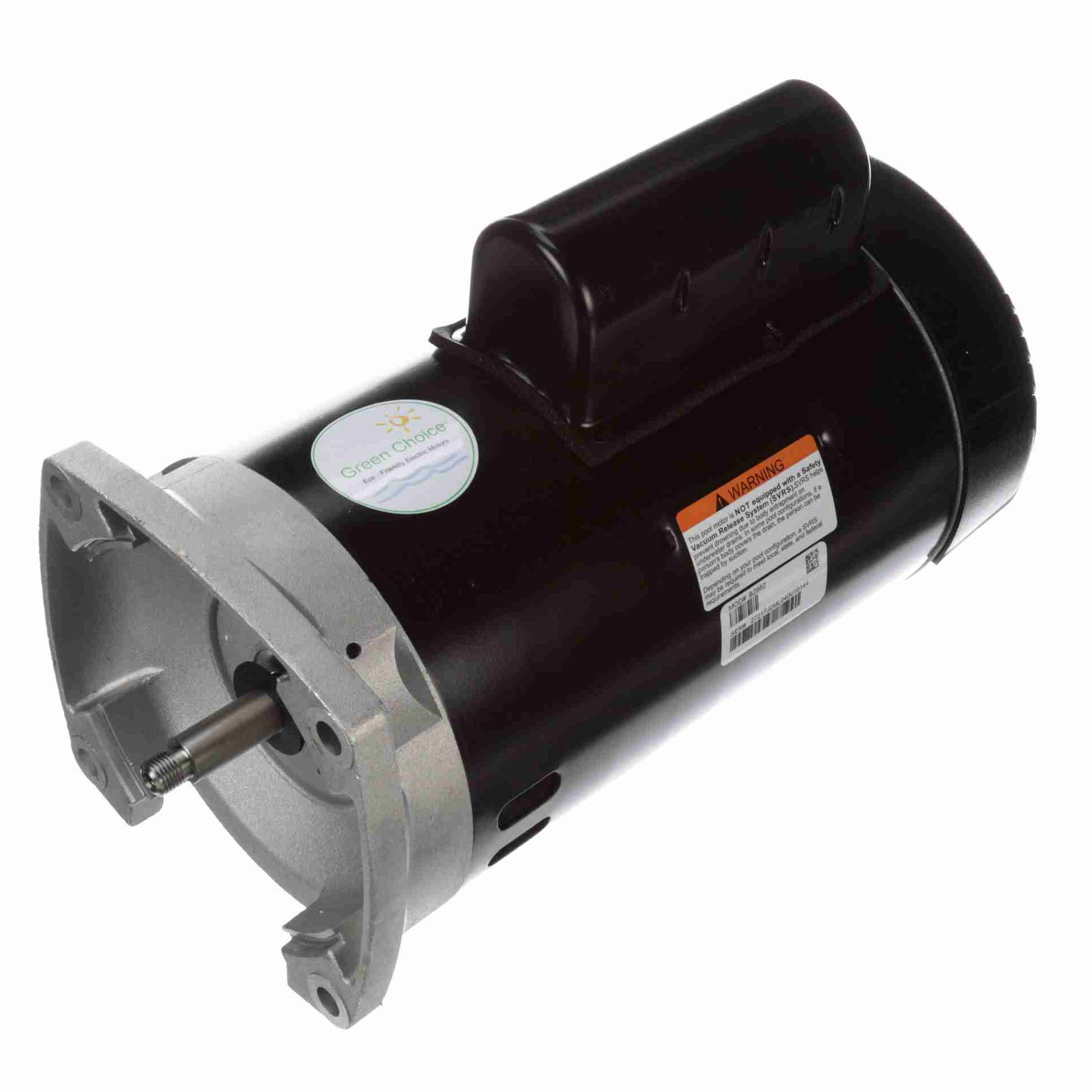

B2982 Century 1/0.12HP Pool Pump Electric Motor, 3450/1725 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B2982

Selected accessories will also be added to cart
$554.97 / Each
Quantity:
ODP, Y56Y Frame, 230VAC Single Phase 60Hz

Features

Features
  • Two Speed
  • Sealed Ball Bearings
  • 50°C Ambient
  • Energy Efficient High and Low Speed
  • Open Dripproof
  • Permanent Split Capacitor on High Speed
  • Cap Star/Cap Run Low Speed
  • 303 Stainless Steel Shaft
  • Threaded Shaft
  • Meets California Energy Commission Appliance Regulations 2008

General Specifications

General Specifications
Model :B2982 Catalog No :B2982
Part Description :MODEL-PFHP-56FR Category :Induction Motors
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.0/ .12 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230 V
Current :SF 7.4/1.4 A Speed :3450/1725 rpm
Service Factor :1.65 Phase :1
Duty :Continuous Insulation Class :F
Frame :Y56Y Enclosure :Open Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :50 °C
UL :Recognized CSA :Y

Technical Specifications

Technical Specifications
Electrical Type :Psc Low Speed, Cap Start/Cap Run High Speed Poles :2/4
Rotation :Counterclockwise Pump End Mounting :Round
Motor Orientation :Horizontal Drive End Bearing :BALL
Opp Drive End Bearing :BALL Frame Material :Rolled Steel
Shaft Type :Threaded Overall Length :13.40 in
Frame Length :9.00 in Shaft Diameter :0.625 in
Shaft Extension :0.91 in UPC :786674012340
Weight :34.00 LB
Type
Electric Motor
Input Phase
Single Phase
Enclosure
ODP
Application
Pool Pump
Horsepower
0.12HP
Horsepower
1HP
Frame
Y56Y
Speed
3450RPM
Speed
1725RPM
