$560.97 / Each

Quantity:

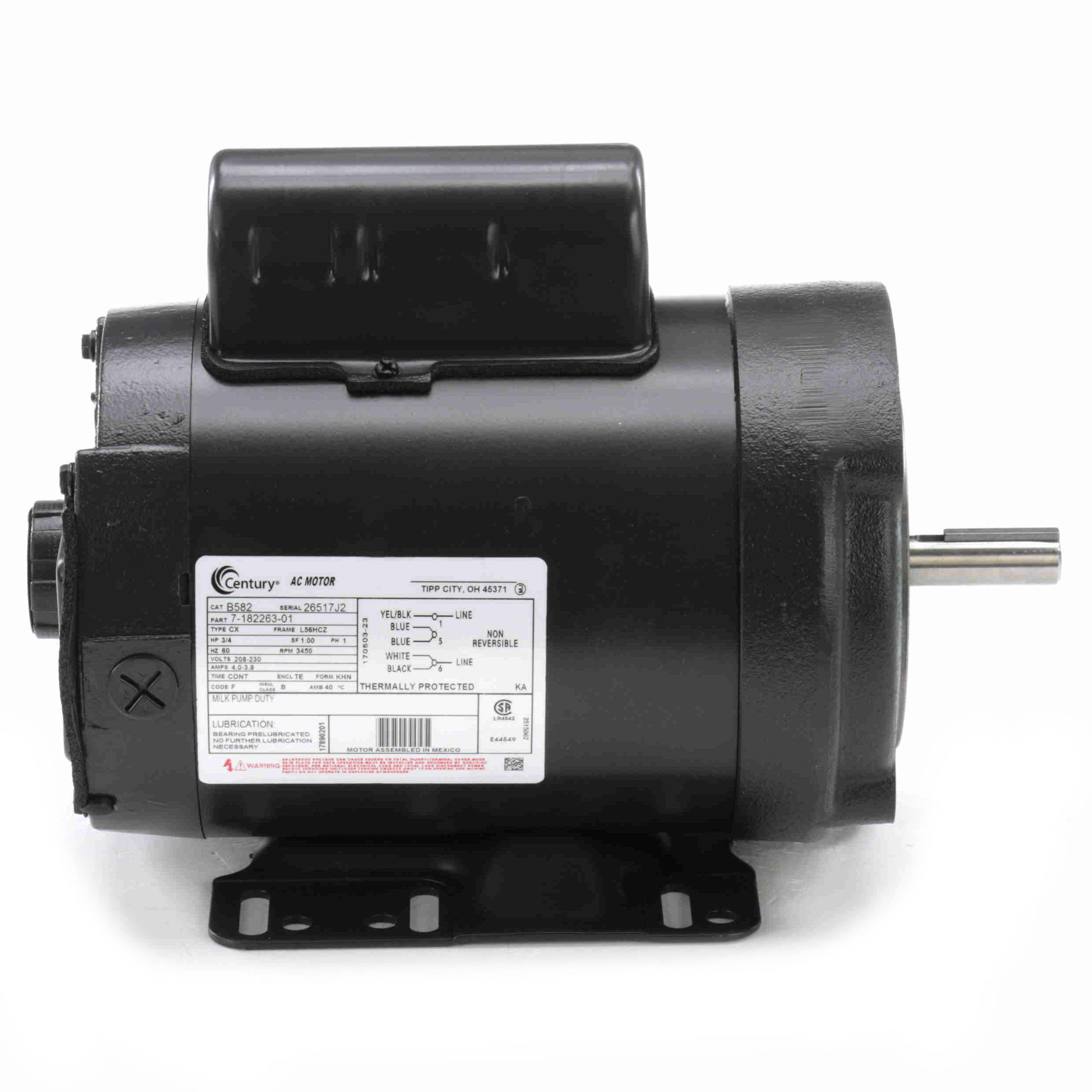

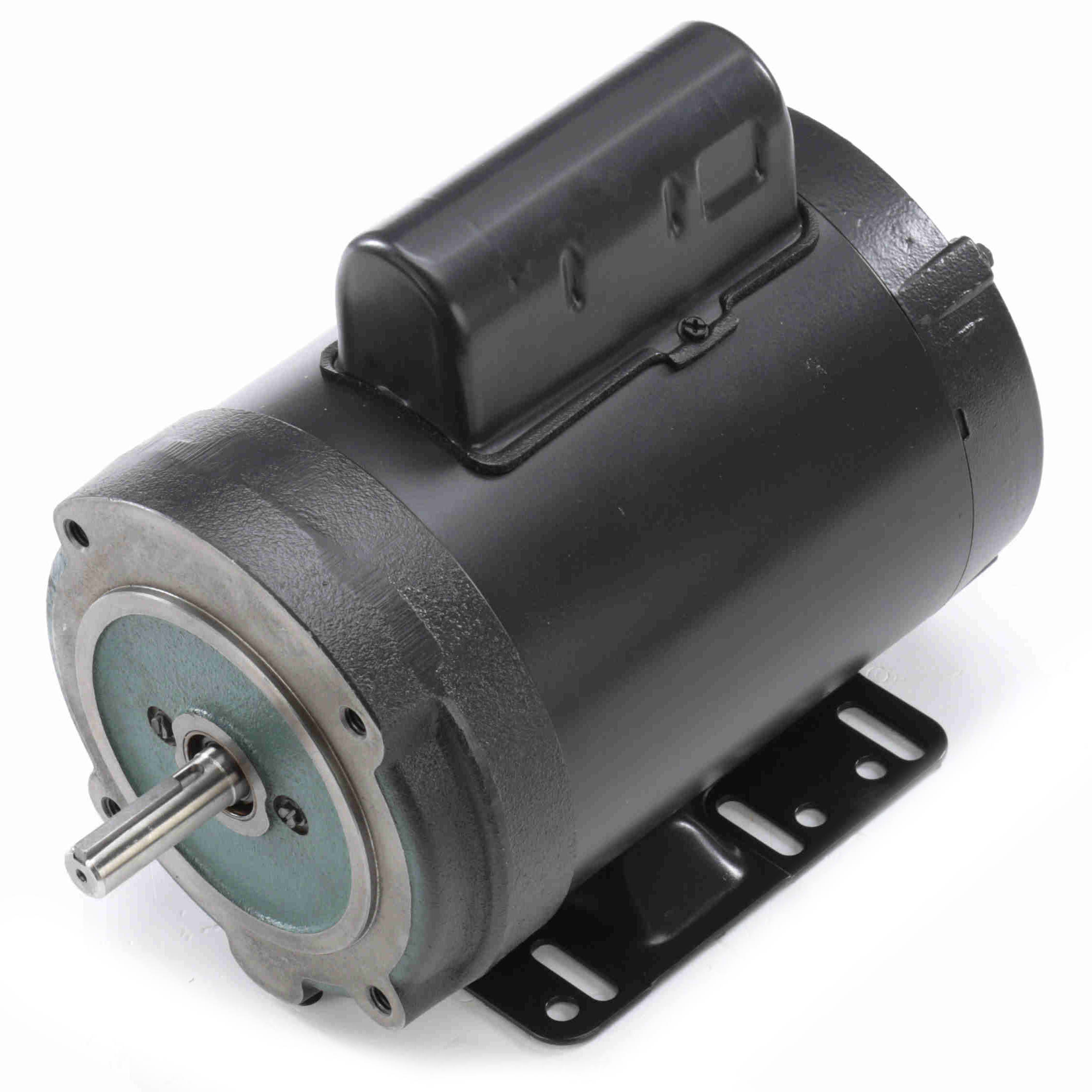

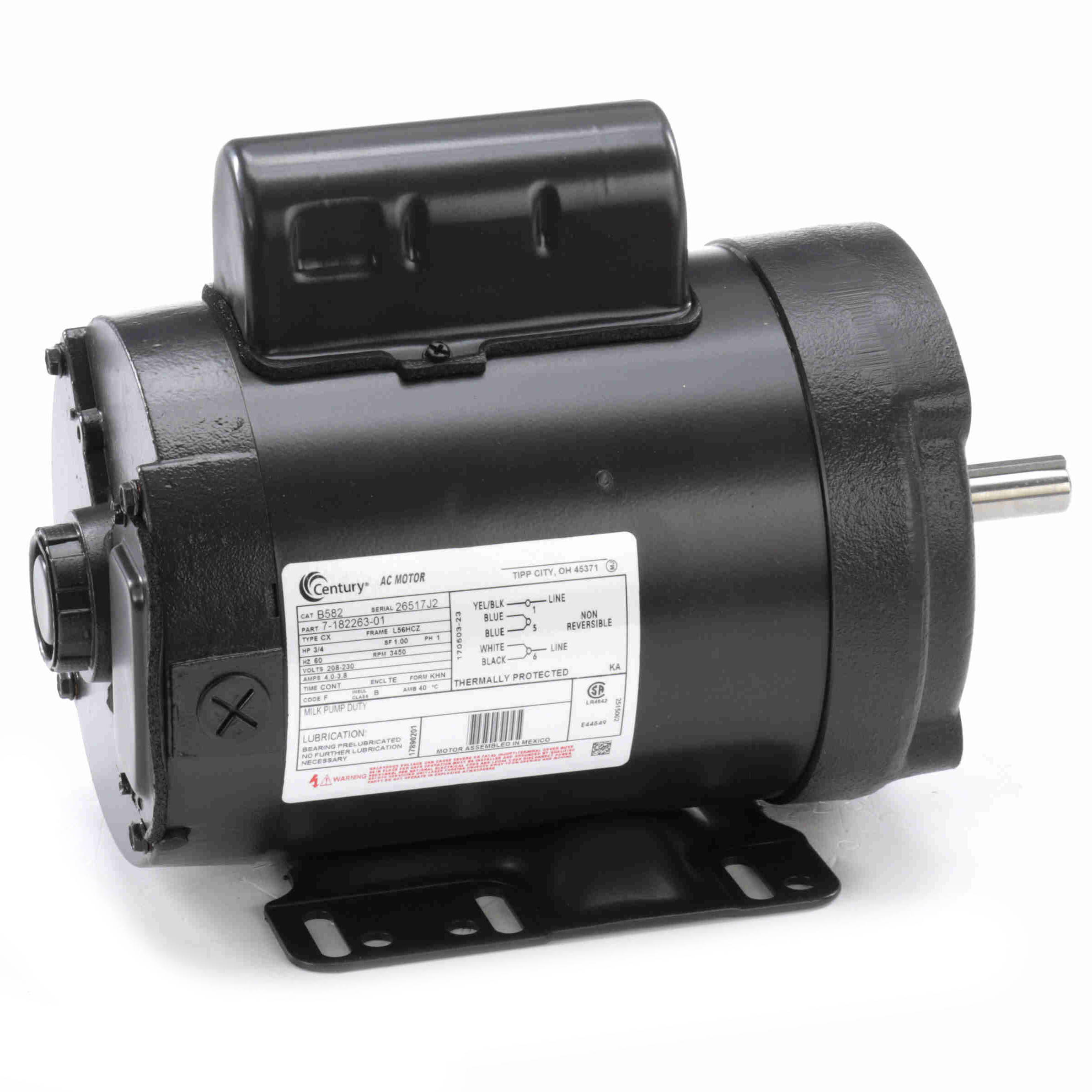

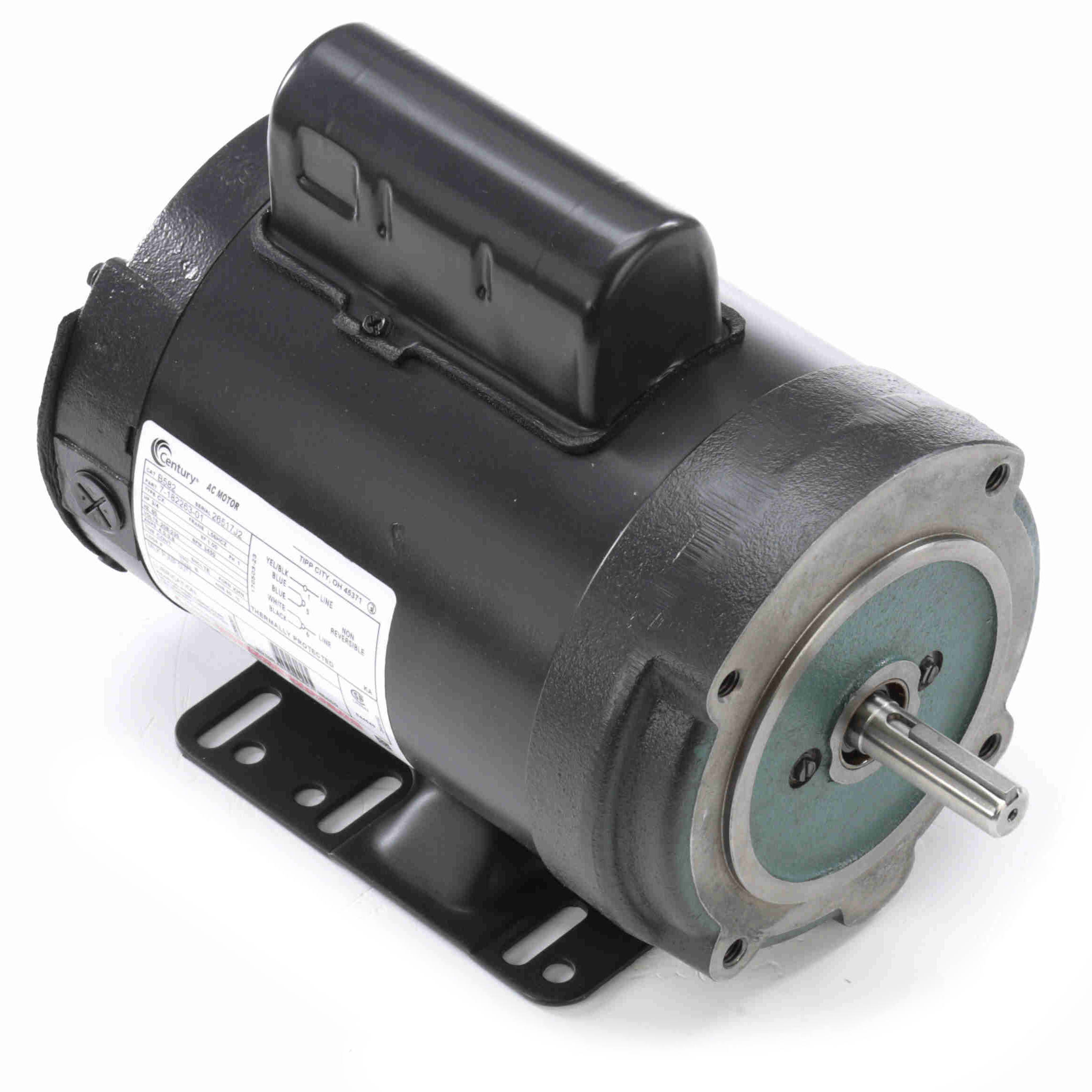

TENV, L56HCZ Frame, 208-230V 1-Phase 60Hz

Output HP :	3/4 Hp	Output KW :	0.56 kW
Frequency :	60 Hz	Voltage :	208-230 V
Current :	4.0-3.8 A	Speed :	3450 rpm
Service Factor :	1	Phase :	1
Duty :	Continuous	Insulation Class :	B
Frame :	L56HCZ	Enclosure :	Totally Enclosed Non Ventilated
Overload Protector :	Thermally Protected	Ambient Temperature :	40 °C
UL :	Recognized	CSA :	Y
CE :	N

Electrical Type :	Permanent Split Capacitor, Single Or Dual Voltage	Starting Method :	Across The Line
Poles :	2	Rotation :	Clockwise
Mounting :	Rigid Base	Drive End Bearing :	Ball
Opp Drive End Bearing :	Ball	Frame Material :	Rolled Steel
Shaft Type :	Keyed	Overall Length :	12.20 in
Frame Length :	6.25 in	Shaft Diameter :	0.625 in
Shaft Extension :	2.17 in	UPC :	786674012500
Weight :	36.00 LB

Type

Electric Motor

Input Phase

Single Phase

Enclosure

TENV

Horsepower

3/4HP

Frame

L56HCZ

Speed

3450RPM
