/Products/Electric Motors/Single Phase/Century/Farm Duty/Milk Pump/B583 Century 1HP Milk Pump Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: B583

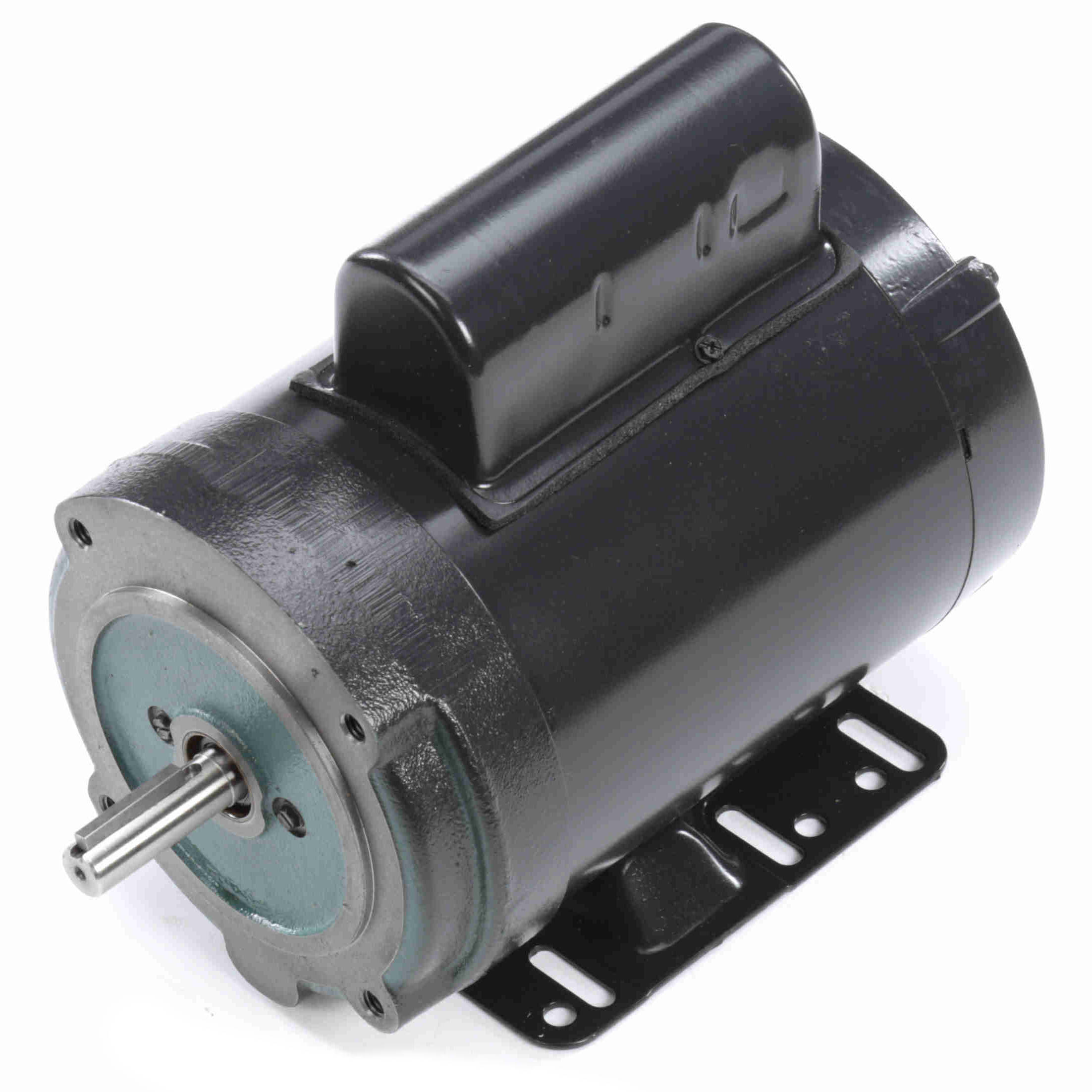

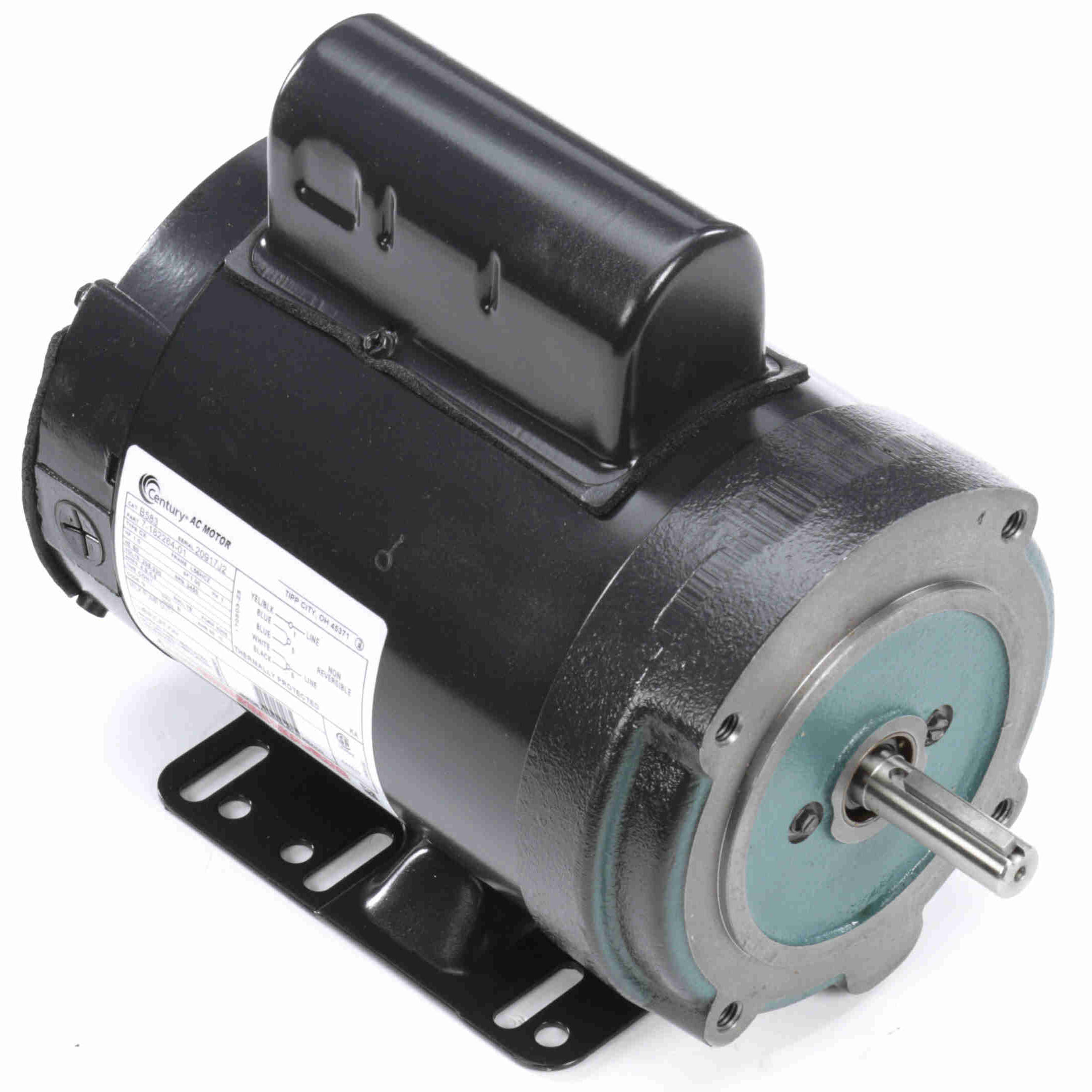

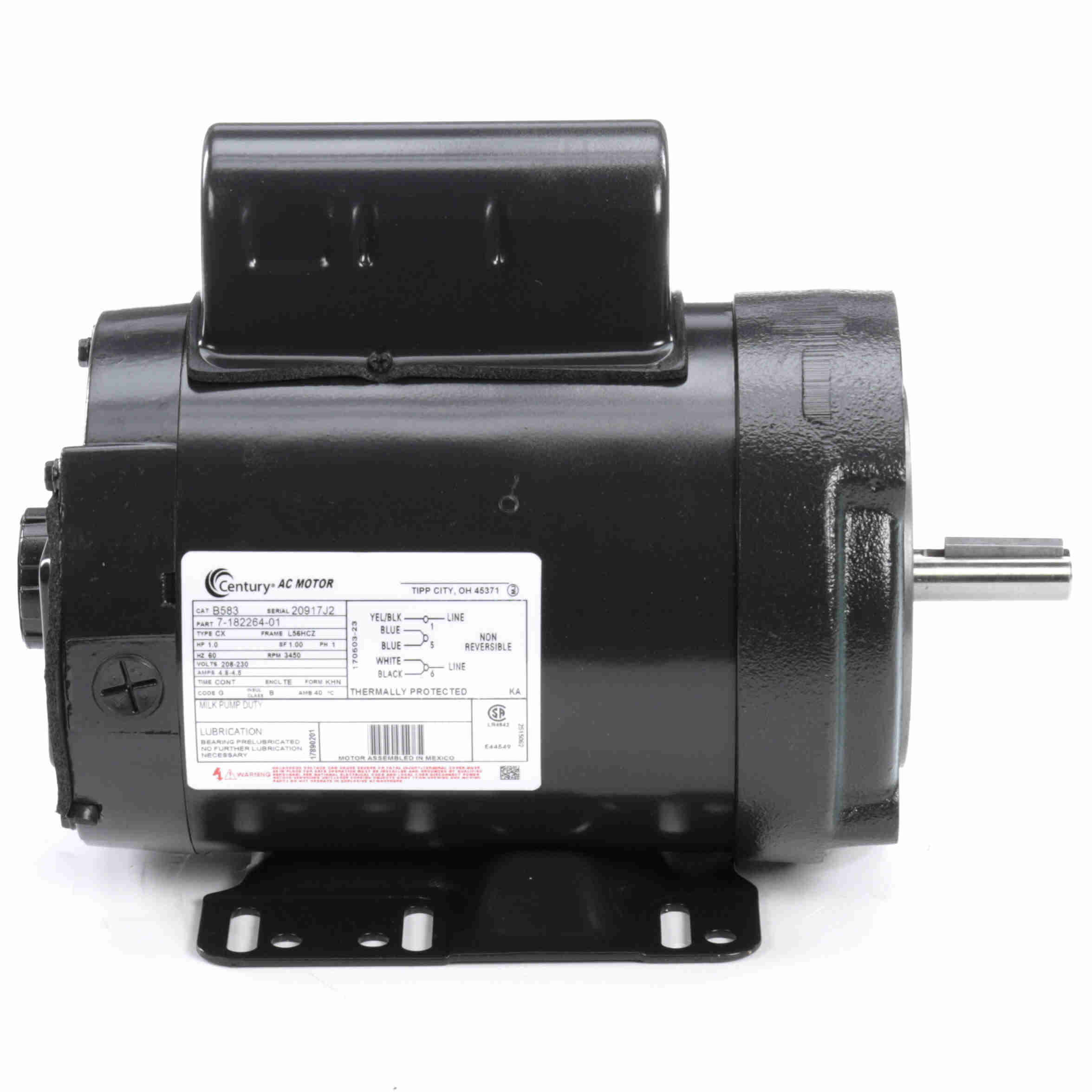

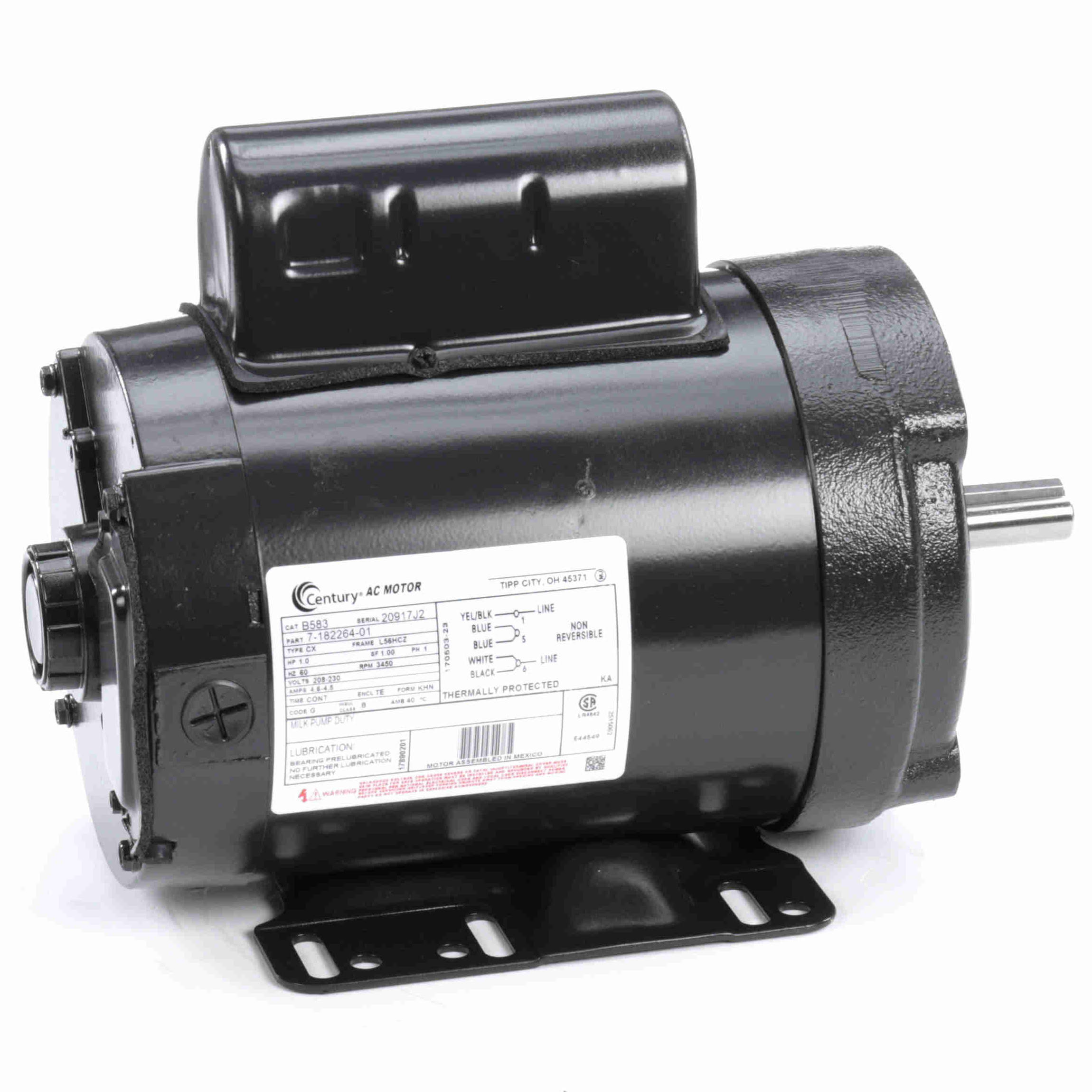

B583 Century 1HP Milk Pump Duty Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B583

Available Stock: 2
Selected accessories will also be added to cart
$488.97 / Each
Quantity:
TENV, 56HCZ Frame, 208-230VAC 60Hz Single Phase, C-Face, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Weatherproof features for washdown
  • Cast iron NEMA "C" end bracket
  • Stainless steel shaft
  • Auto overload protector

General Specifications

UPC: 786674012517 Weight: 37.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 4.8-4.5 A Speed: 3450 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: L56HCZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Clockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 11.97 in
Frame Length: 6.25 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
Type
Electric Motor
Input Phase
Single Phase
Speed
3600RPM
Horsepower
1HP
Enclosure
TENV
Frame
56HCZ
