/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Farm Duty/Milk Pump/B596 Century 1/2HP Milk Pump Duty Electric Motor, 3600RPM
Click Image to Expand

Product ID: B596

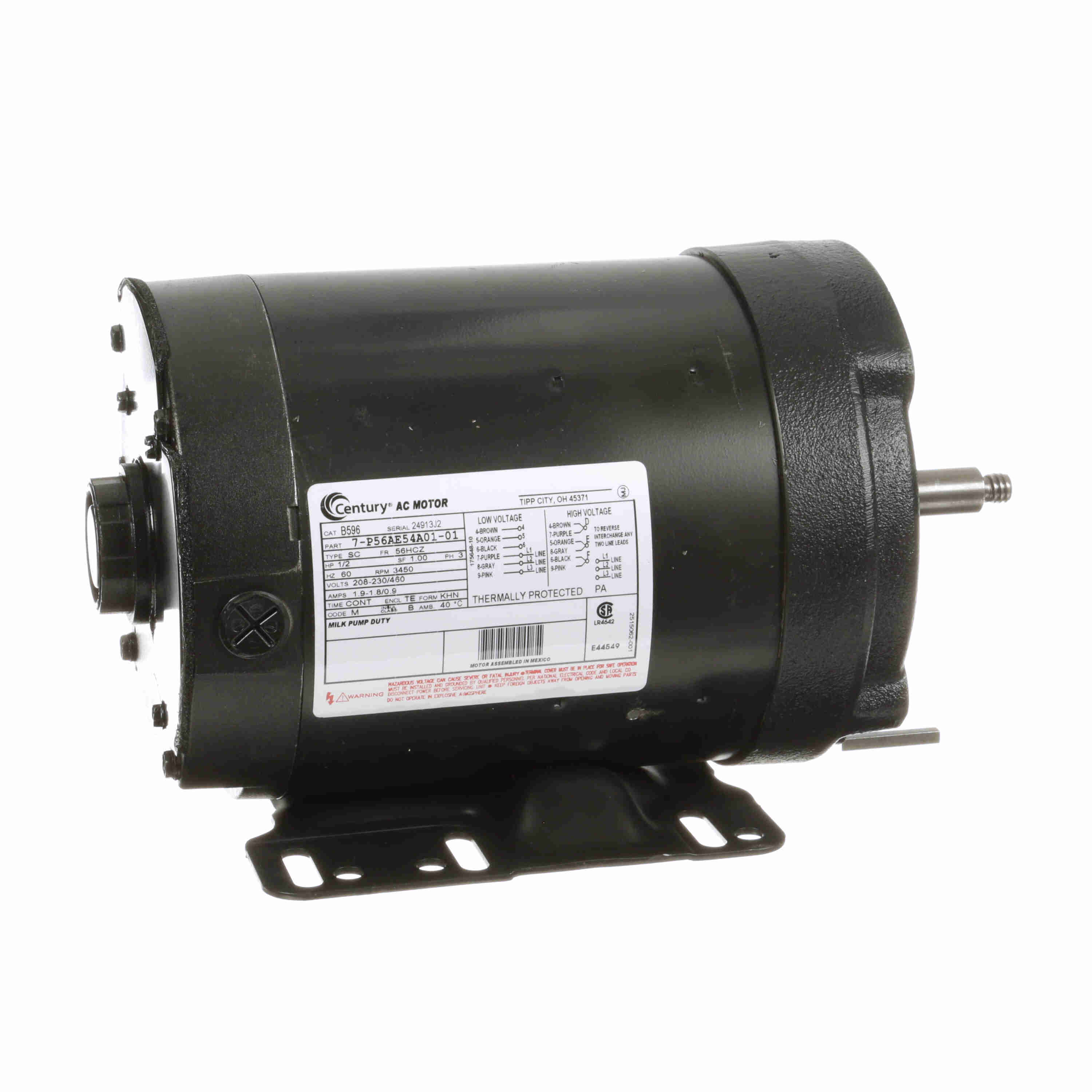

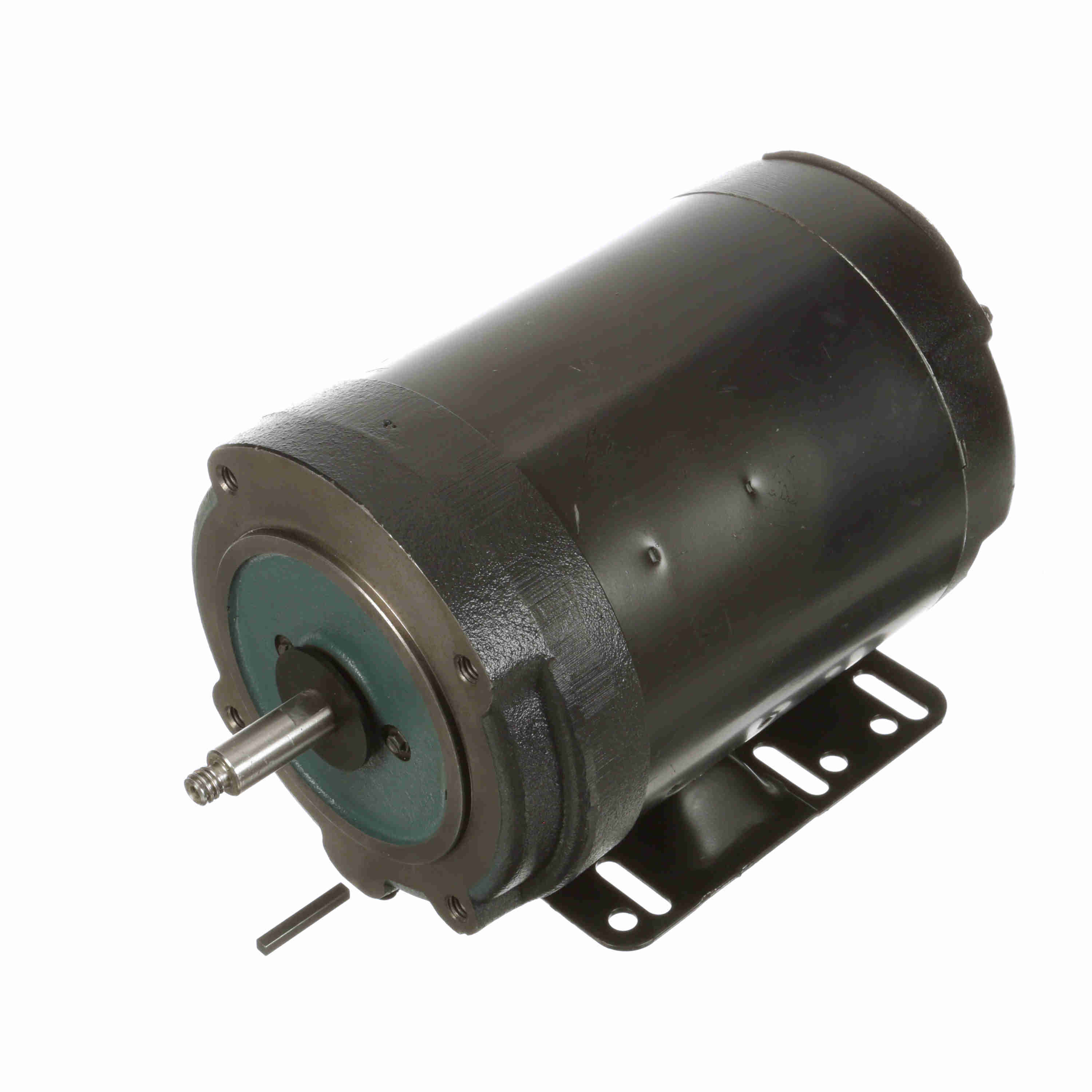

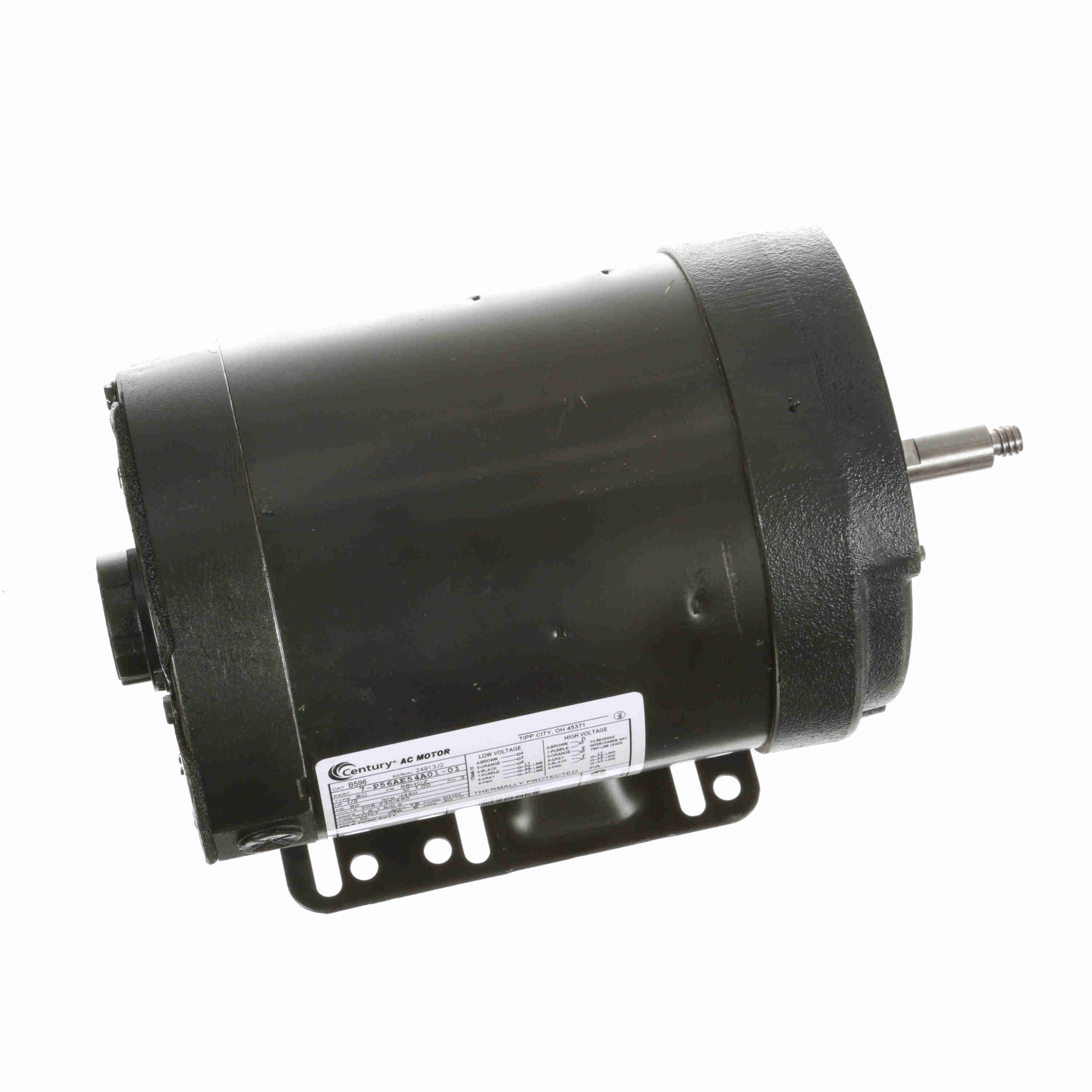

B596 Century 1/2HP Milk Pump Duty Electric Motor, 3600RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: B596

Selected accessories will also be added to cart
$129.97 / Each
Quantity:
TENV, 56HCZ Frame, 208-230/460VAC 60Hz 3-Phase, 7-P56AE54A01-01, Rolled Steel, Rigid Base, 1/2" Threaded Shaft

Features

  • Weatherproof features for washdown
  • Cast iron NEMA "C" end bracket
  • Stainless steel shaft
  • Auto overload protector
  • ACME right hand threads

General Specifications

UPC: 786674060570 Weight: 26.00 LB
Packaged Length: 15.5 IN Packaged Width: 10.5 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 1.9-1.8/0.9 A Speed: 3450 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56HCZ Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage Starting Method: Across The Line
Poles: 2 Rotation: Clockwise/Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Threaded Overall Length: 11.93 in
Frame Length: 5.75 in Shaft Diameter: 0.500 in
Shaft Extension: 2.30 in
Type
Electric Motor
Speed
3600RPM
Enclosure
TENV
Horsepower
1/2HP
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
56HCZ
