/Products/Start Capacitors/220-250 VAC Start Capacitors/BC-400M-250 Vanguard Capacitor, Mfd 400-480 uF
Click Image to Expand

Product ID: BC-400M-250

BC-400M-250 Vanguard Capacitor, Mfd 400-480 uF

MFG: Vanguard Capacitors
MFG Part Number: BC-400M-250

Available Stock: 11
Selected accessories will also be added to cart
$44.17 / Each
Quantity:
220-250 Vac, 50/60 Hz., 61B8D250400NCSX

Product Specifications

BrandVanguard
Part NumberBC-400M-250
61B8D250400NCSX
TypeStart Capacitor
MFD/uF400-480 uF
Voltage220-250 Vac
Frequency50/60 Hz
Temperature Range-40°C to +65°C
-40°F to 149°F
Country of OriginMexico
Weight0.70 lbs

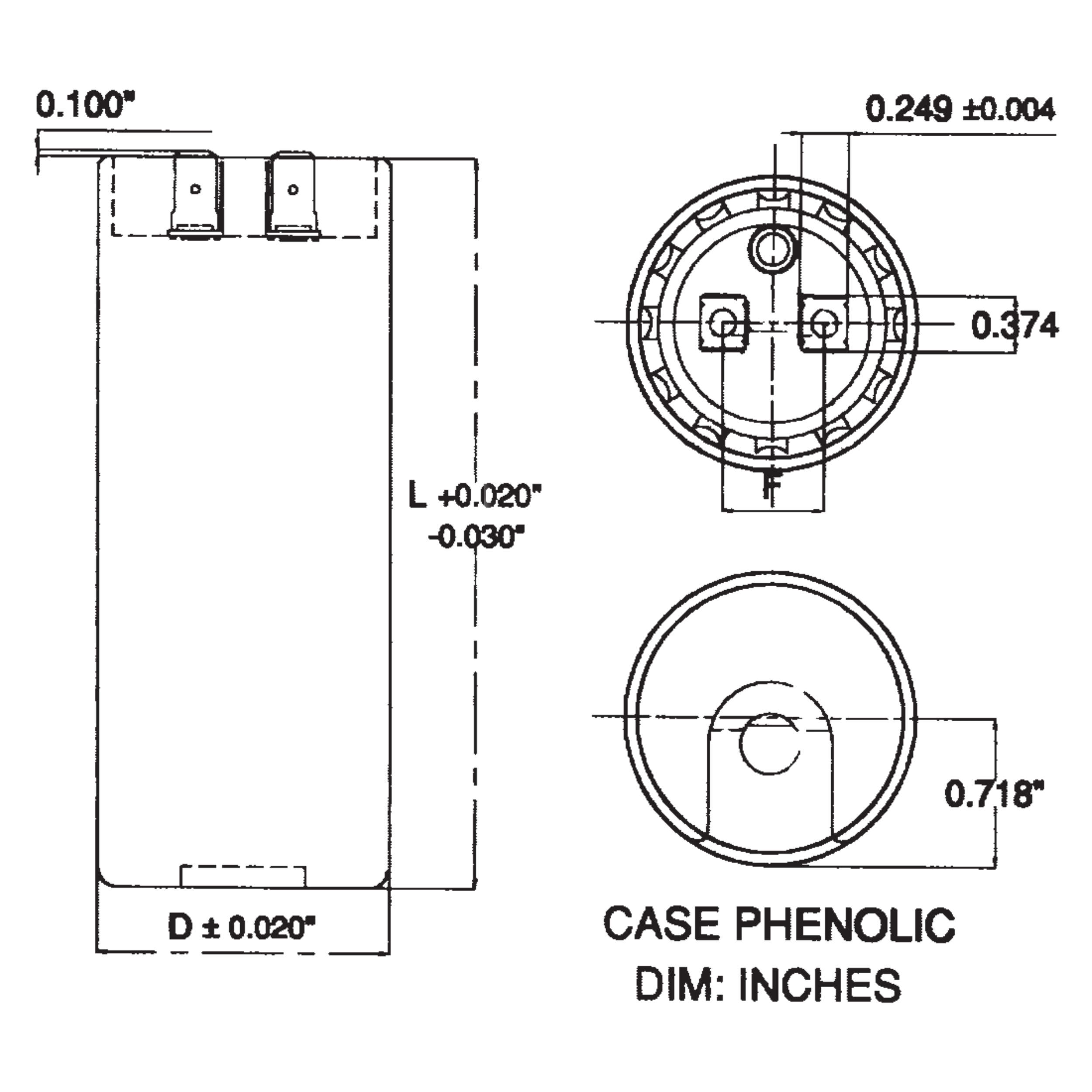

Diameter2-9/16” ±.02”
Length4-3/8” +.02”/-.03”
CaseRound Phenolic
Connection TypeFour 1/4” Spade Terminals
ResistorNone
UPCN/A
CertificationsUL Recognized
Input Voltage
250 VAC
