/BCA4-40V56 Weg Contactor Coil, 600VAC
Click Image to Expand

Product ID: BCA4-40V56

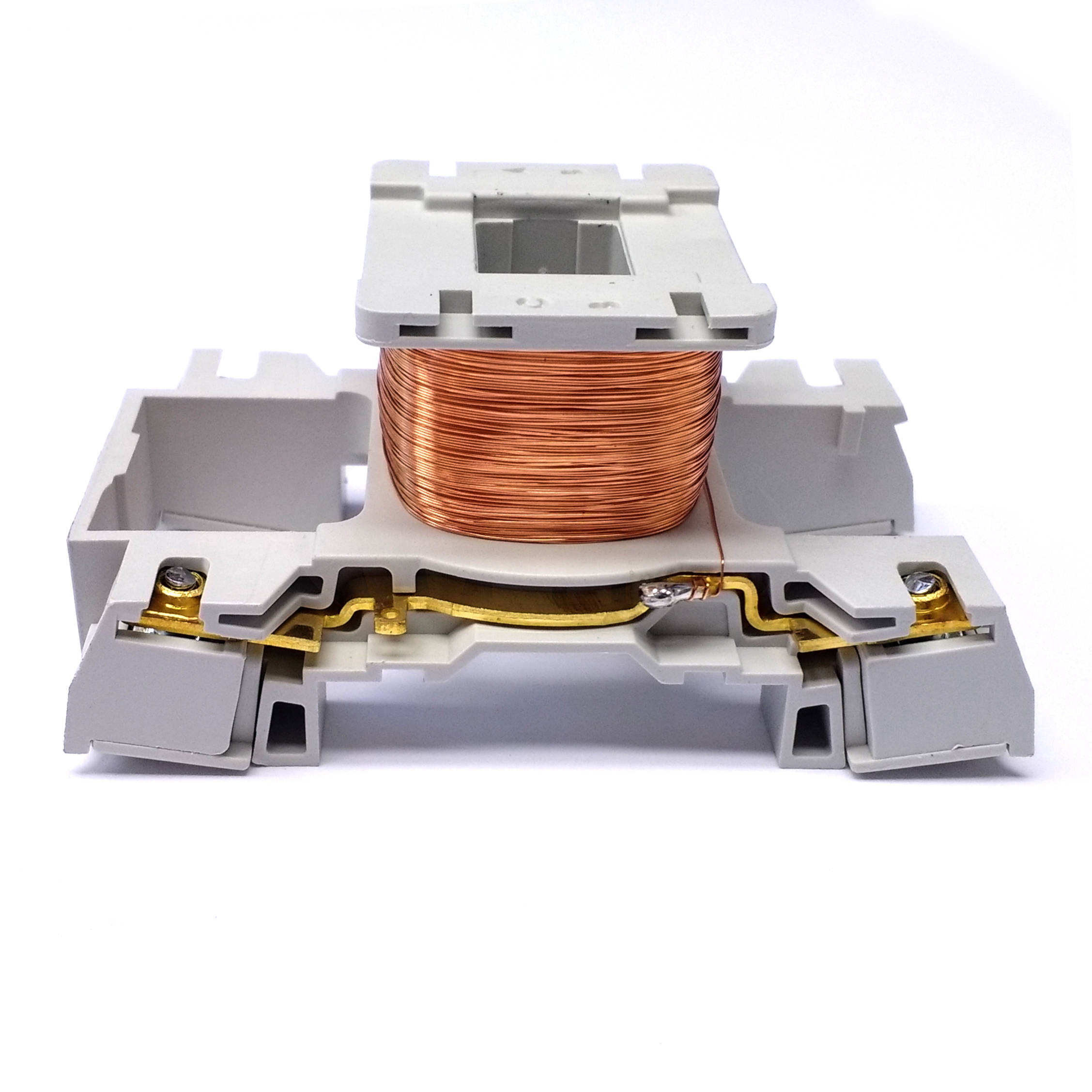

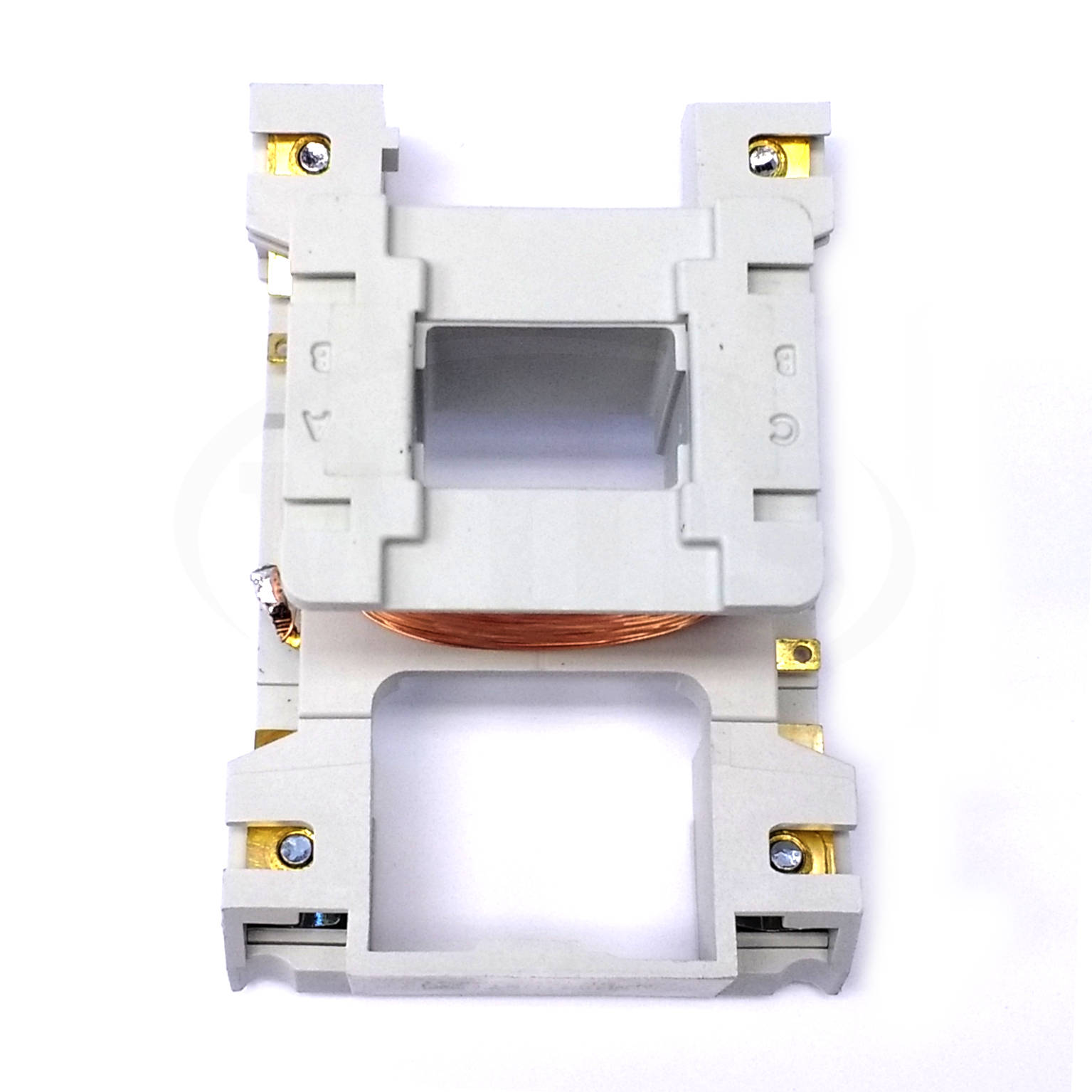

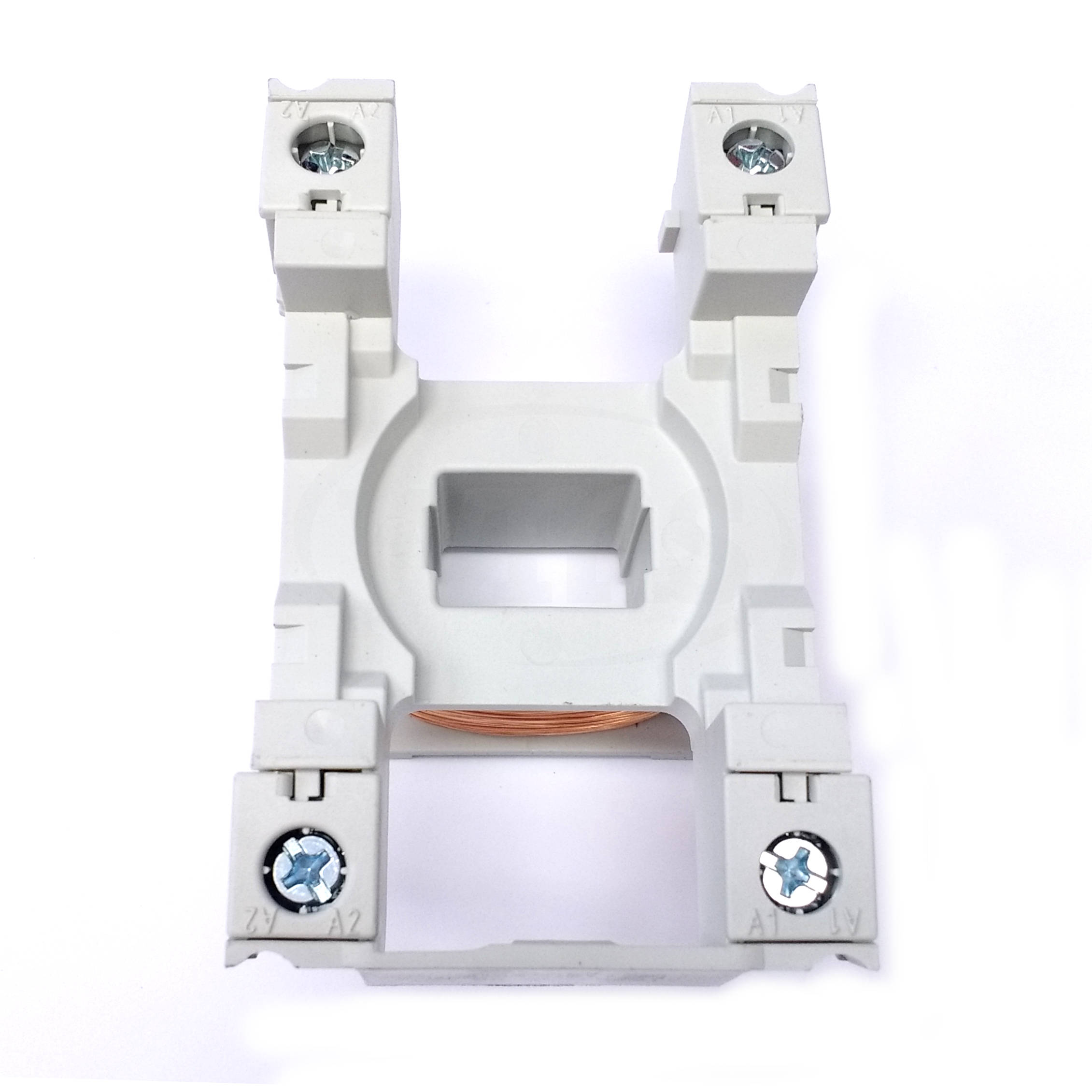

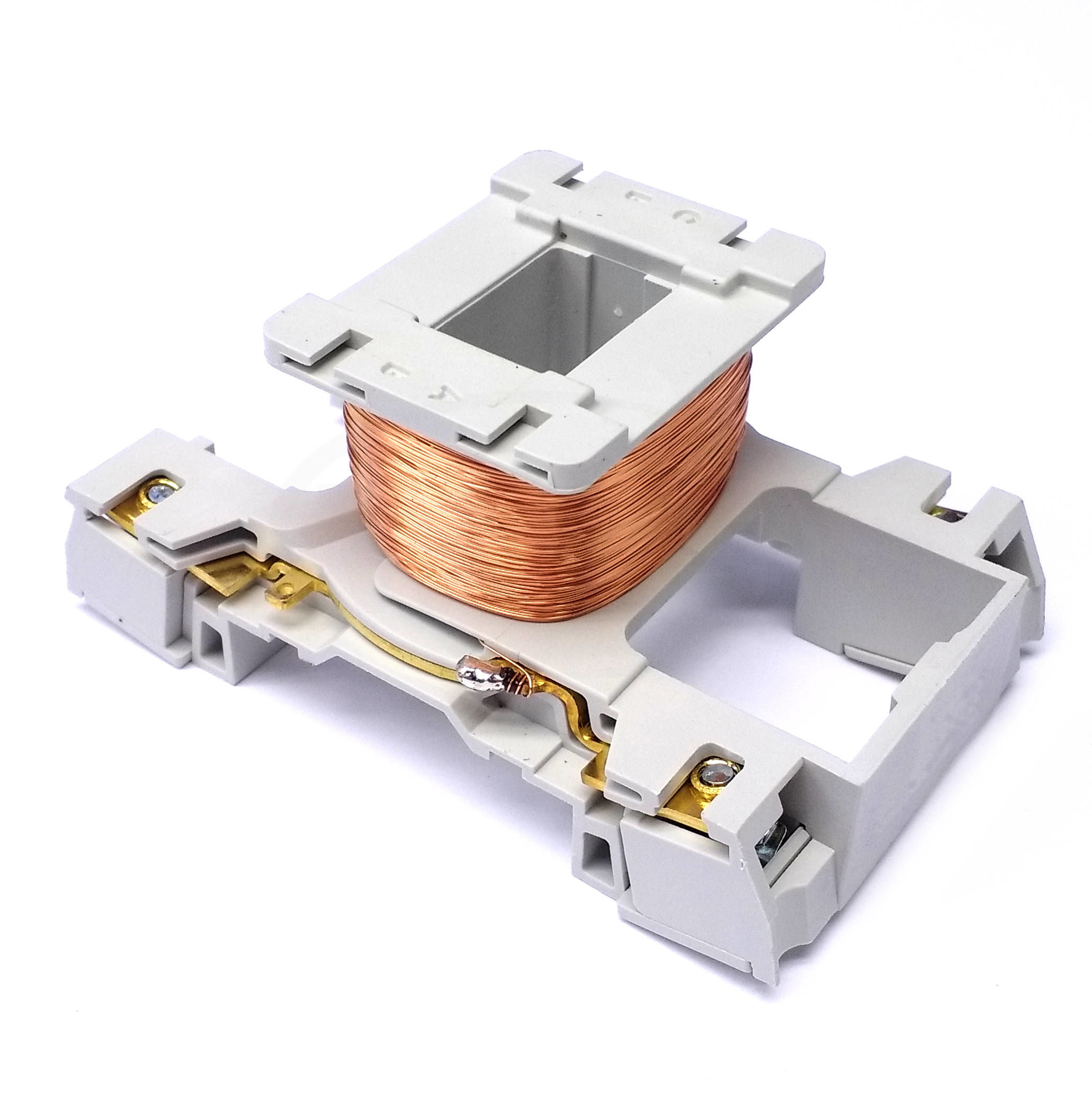

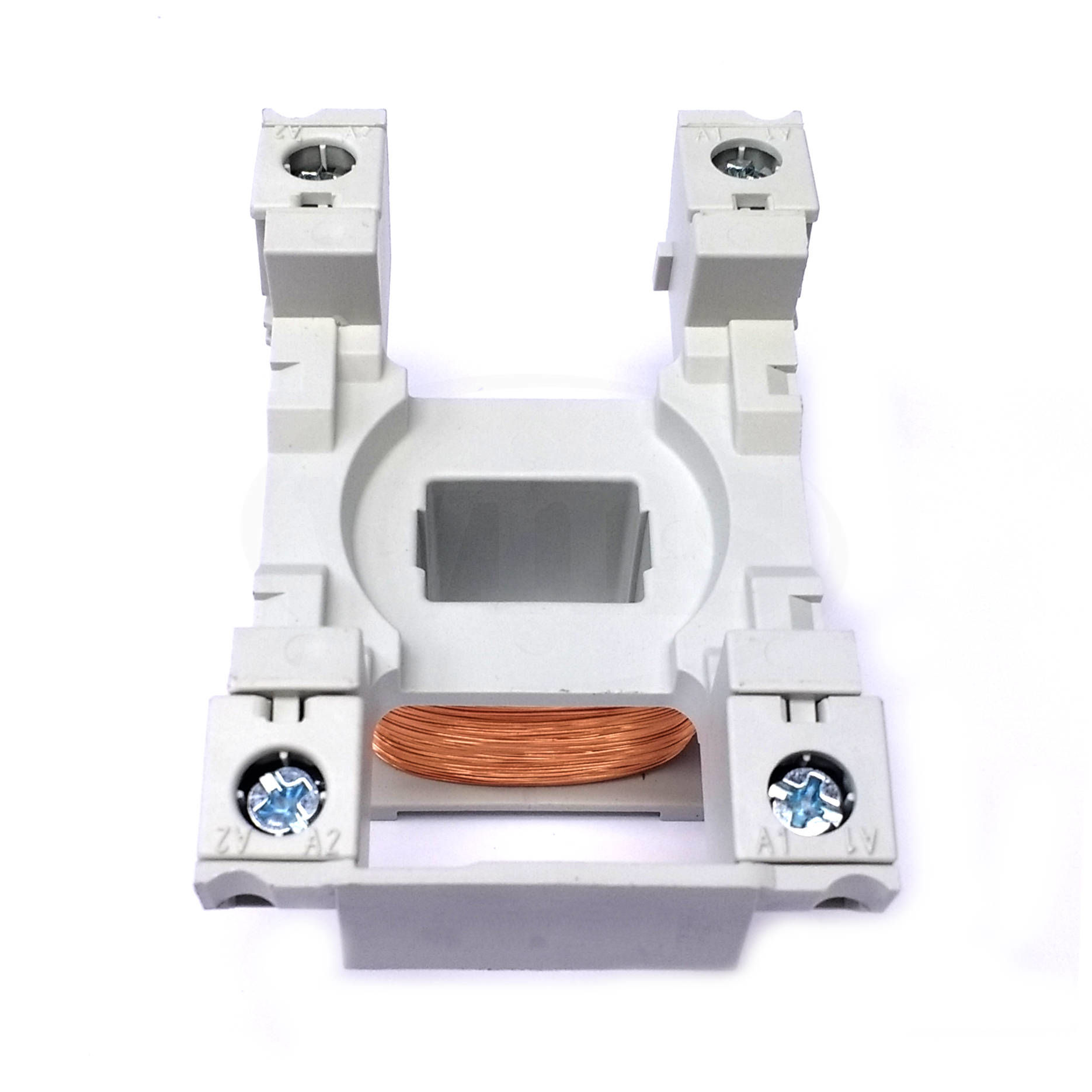

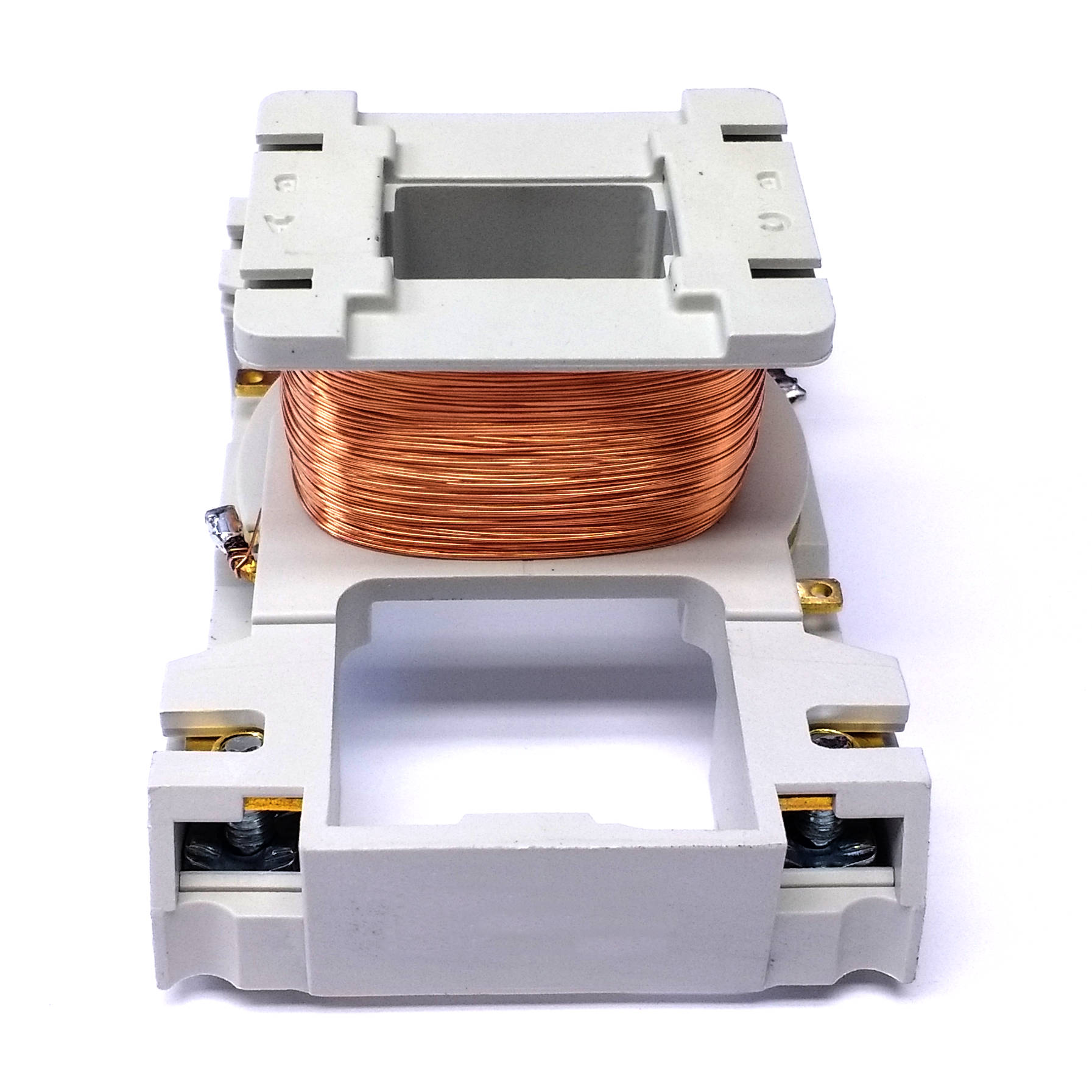

BCA4-40V56 Weg Contactor Coil, 600VAC

MFG: WEG Electric Corporation
MFG Part Number: BCA4-40V56

Selected accessories will also be added to cart
$21.50 / Each
Quantity:
For Use With CWM32-40 and CWMC32

Overview :

Brand WEG
Catalog Number BCA4-40V56
For use on CWM32
CWM32N
CWM40
Number of Terminals 4
Type AC Coil
Voltage 600VAC 60Hz
500VAC 50Hz
UPC 7894171715480
Weight 0.24 lbs

Control Circuit Ratings – AC Coil :

Rated Insulation Voltage (Ui) IEC; VDE 0660: 1000 Volts
UL; CSA: 600 Volts
Rated Operating Voltage (Ue) IEC; VDE 0660: 690 Volts
UL; CSA: 600 Volts
Coil Operating Limits Pick-up xUc: 0.5-0.76
Drop-out xUc: 0.3-0.65
Operating Time Coil Energization – N.O.: 10-19 ms
Coil de-energization – N.O.: 5-25 ms
Coil Consumption Sealed: 6.6-12.5 VA
Inrush: 98 VA
Thermal Power Dissipation 60Hz: 4.3 W
Power Factor Closed: 0.34 Cos phi
Opened: 0.69 Cos phi
Stranded / Solid (UL / CSA) 2x12-10 AWG
