/Products/Electric Motors/3 Phase/Techtop 3-Phase Electric Motors/Oil Pumper/BK3-CI-TF-254T-6-BR-G-7.5 Techtop 7.5HP Oil Pump Electric Motor, 1200RPM
Click Image to Expand

Product ID: BK3CITF254T6BRG7.5

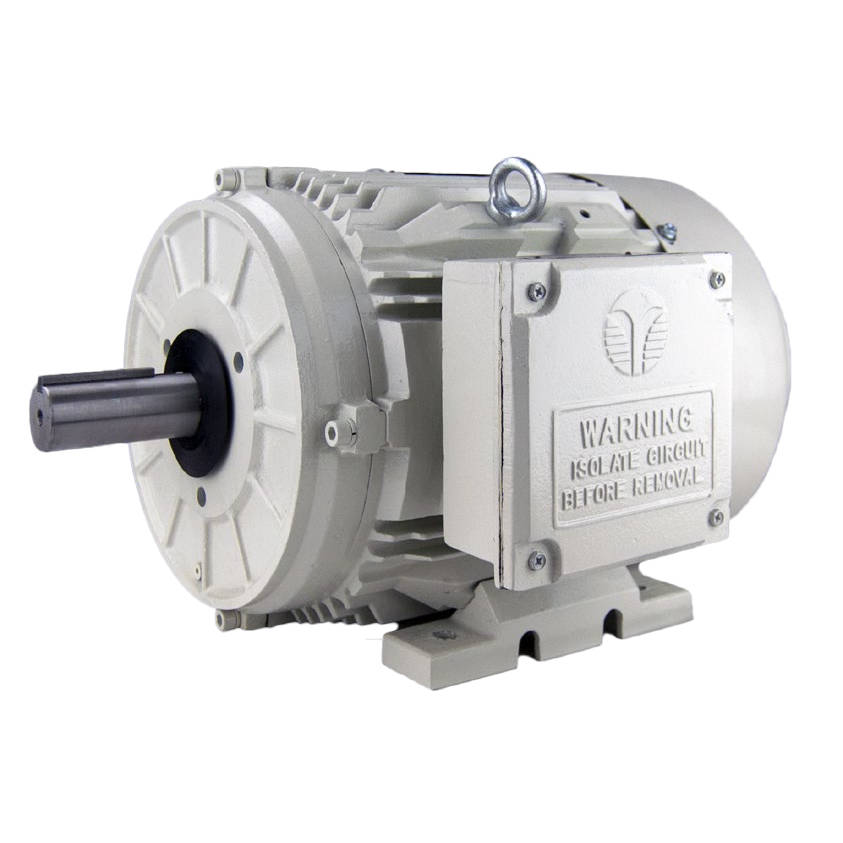

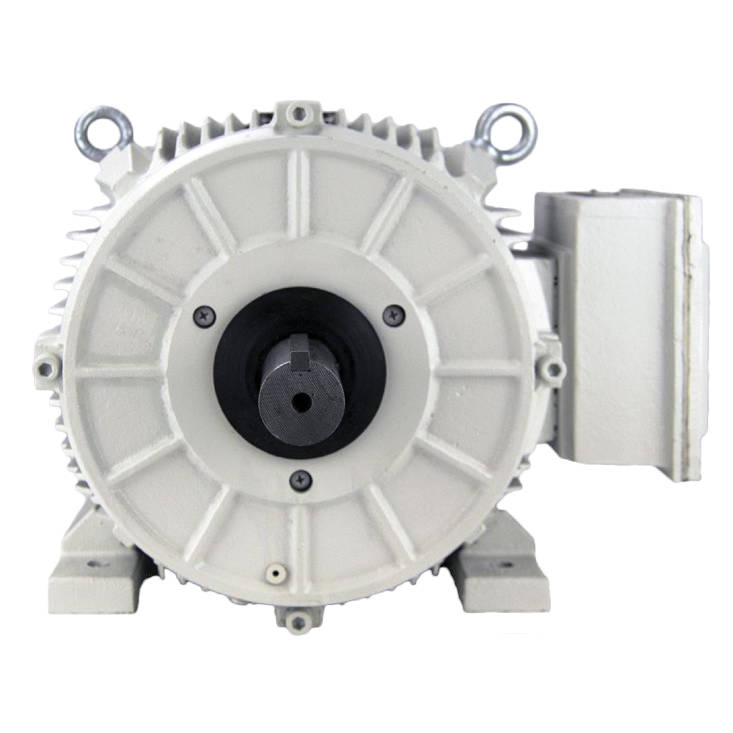

BK3-CI-TF-254T-6-BR-G-7.5 Techtop 7.5HP Oil Pump Electric Motor, 1200RPM

MFG: TechTop Industries, Inc.
MFG Part Number: BK3-CI-TF-254T-6-BR-G-7.

Selected accessories will also be added to cart
$1,069.59 / Each
Quantity:
TEFC, 254T Frame, 230/460/796V 3-Phase 60Hz

Specifications

ManufacturerTechtop
Model NumberBK3-CI-TF-254T-6-BR-G-7.5
Frame Size254T
Power7.5 HP
Speed1200 RPM
Voltage230/460/796V
3-Phase
60Hz
Full Load Amps20.4/10.2/5.89 Amps
EnclosureTEFC
IP55
MountingRigid Base
Frame MaterialCast Iron
Service Factor1.15
Number of Leads12
Insulation ClassF
NEMA DesignD
Weight267 lbs

Standard Features

  • 5% to 8% Slip NEMA Design “D” Operation
  • Double Lip Oil Seals on Both Ends
  • Cast Iron Terminal Box with Gasket
  • Roller Bearing on 404T and Above
  • TEFC Cast Iron Frame
  • Corrosion Resistant Hardware
  • Vacuum Impregnated Stator
  • Mounting Position Convertible F1, F2, F3
  • Class F Insulation System , Class H Stator
  • Tropicalization on Stator Winding
  • One-Way Brass Condensation Drains
  • 24 Month Warranty from Date of Purchase
Type
Electric Motor
Speed
1200RPM
Horsepower
7.5HP
Enclosure
TEFC
Frame
254T
Input Phase
3-Phase
Application
Oil Pump
Input Voltage
230VAC
Input Voltage
460VAC
Input Voltage
796VAC
