/Products/Electric Motors/Single Phase/Century/BL6519 Century 1/4, 1/5, 1/6HP Electric Motor, 1075 RPM
Click Image to Expand

Product ID: BL6519

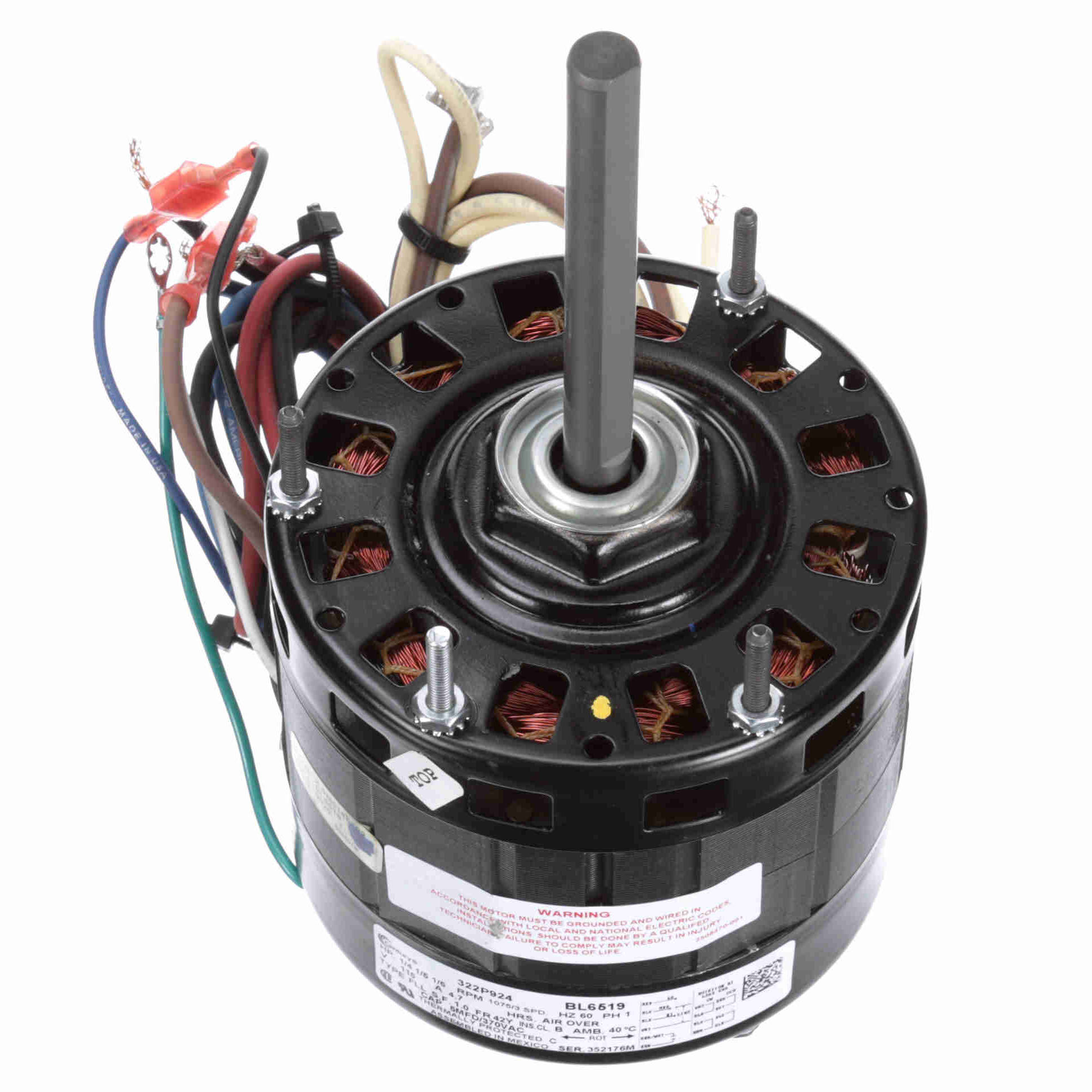

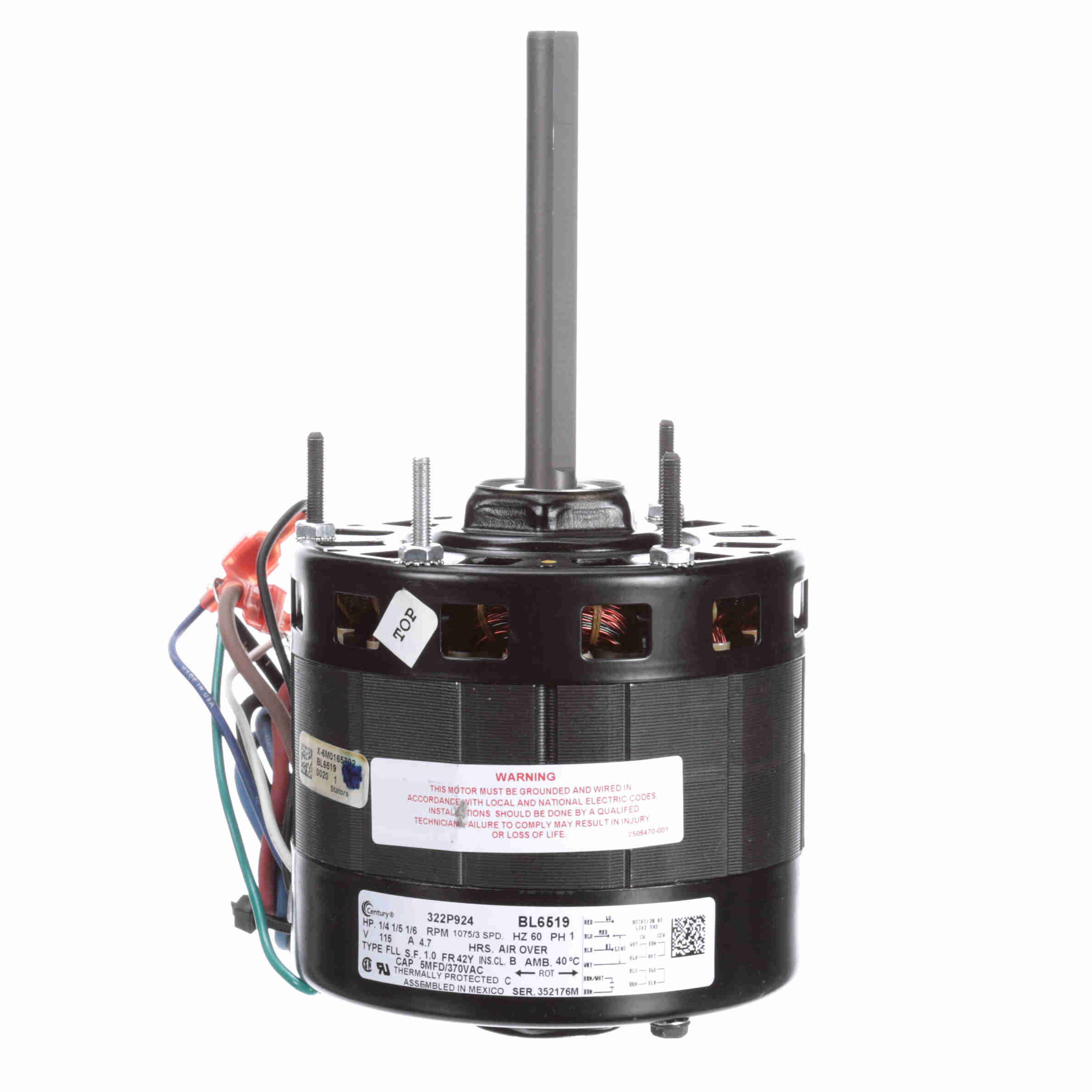

BL6519 Century 1/4, 1/5, 1/6HP Electric Motor, 1075 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: BL6519

Selected accessories will also be added to cart
$272.97 / Each
Quantity:
Open Air Over, 42Y Frame, 115V 1-Phase 60Hz

Features

Features
  • Furnace Blower - Air Handler - Fan Coil - Air Conditioning Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Shaft End End-Frame and Shaft End Shell, Lead End End-Frame Half Open and Lead End Shell Half Open, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 28" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

General Specifications
Model : Catalog No :BL6519
Part Description :MODEL-RFHP-42FR Category :Direct Drive
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/4 1/5 1/6 Hp Frequency :60 Hz
Voltage :115 V Current :4.7 A
Speed :1075 rpm Service Factor :1
Phase :1 Duty :Air Over
Insulation Class :B Frame :42Y
Enclosure :Open Air Over Overload Protector :Automatic
Ambient Temperature :40 °C UL :Recognized
CSA :Y CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Induction Run
Poles :6 Rotation :Reversible
Mounting :Extended Studs Motor Orientation :Horizontal
Drive End Bearing :Sleeve Opp Drive End Bearing :Sleeve
Frame Material :Rolled Steel Shaft Type :Flat
Overall Length :9.83 in Shaft Diameter :0.500 in
Shaft Extension :4.7 in UPC :786674014160
Weight :11.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/6HP
Enclosure
OAO
Frame
42Y
Speed
1075RPM
