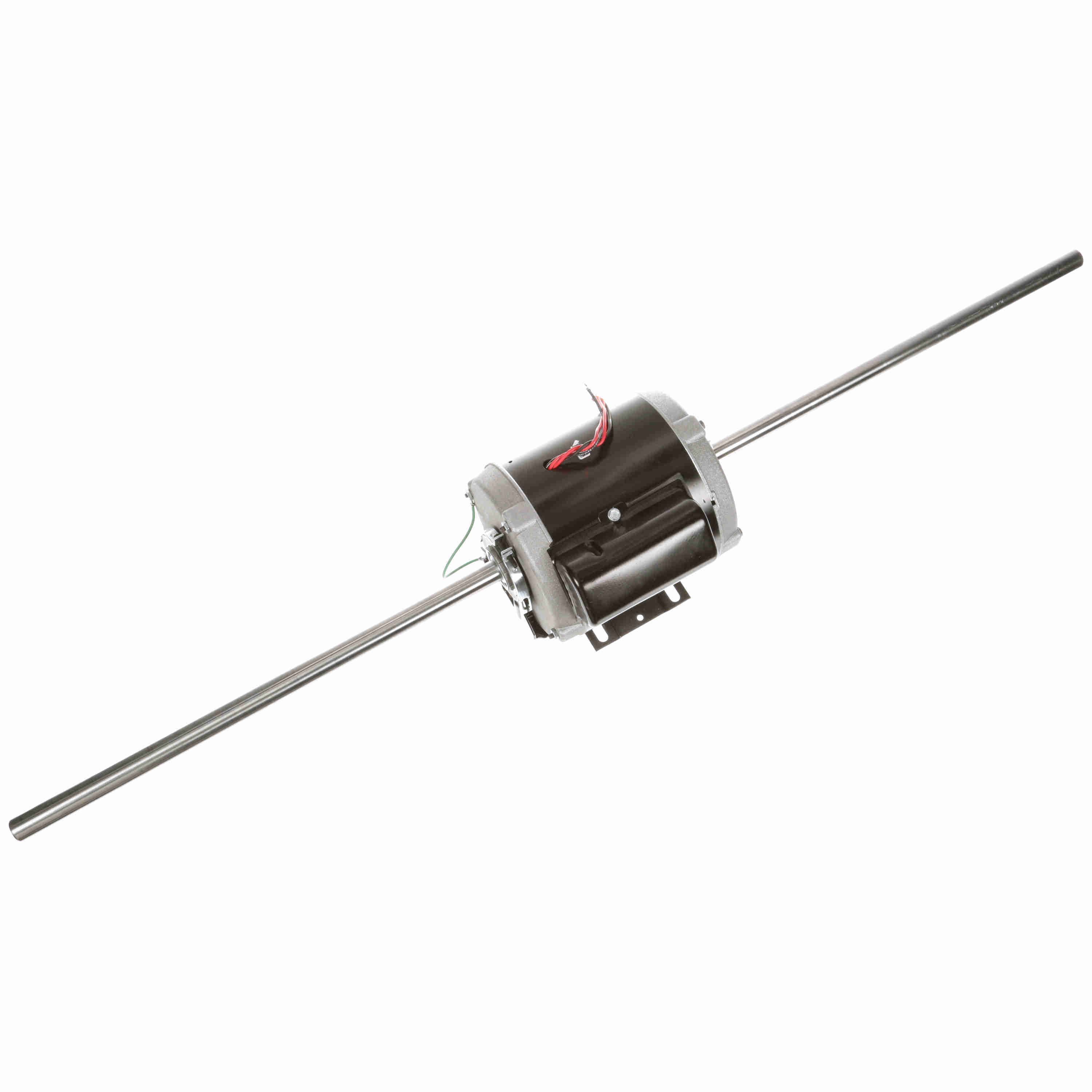

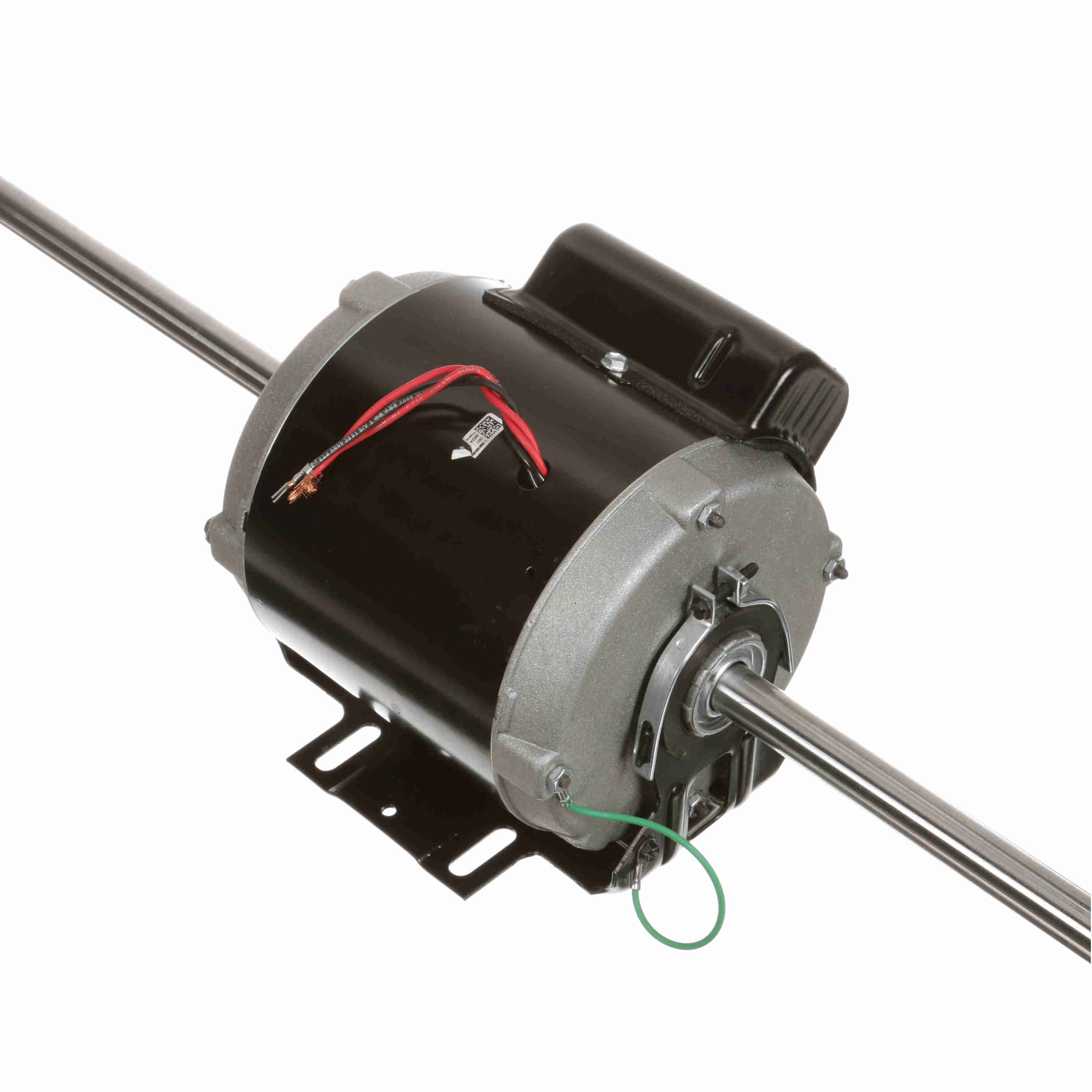

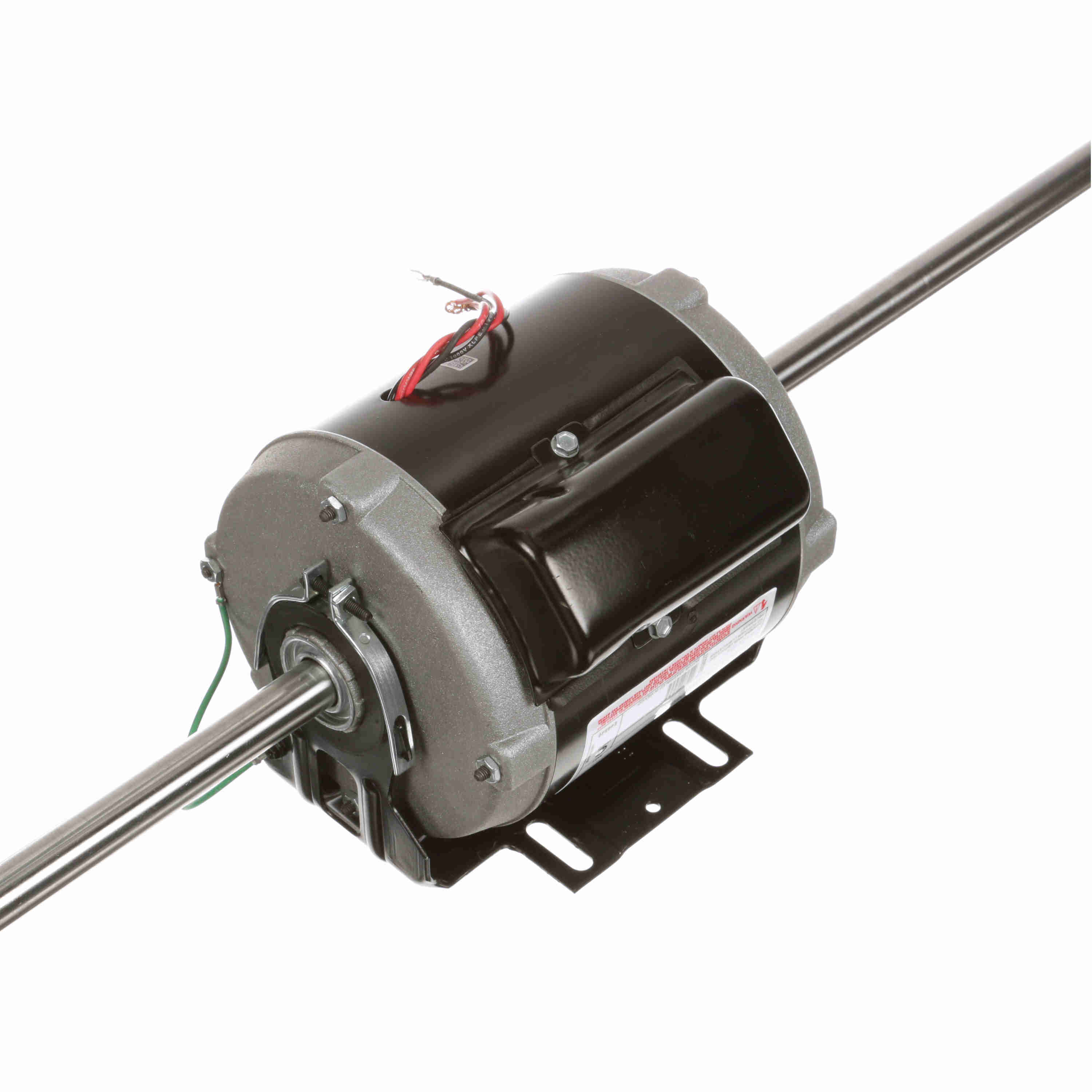

/Products/Electric Motors/Single Phase/Century/HVACR/C031 Century 1/12HP Special Purpose Electric Motor, 715RPM

Click Image to Expand

Previous Next

Selected accessories will also be added to cart

$1,342.92 / Each

Quantity:

TEAO, 56Z Frame, 115V Single Phase 60Hz, ITT Nesbitt HVAC Replacement

Output HP :	1/12 HP	Output KW :	0.06 kW
Frequency :	60 Hz	Voltage :	115 V
Current :	2.0 A	Speed :	715 RPM
Service Factor :	1	Phase :	1
Duty :	Continuous	Insulation Class :	B
Frame :	J56Z	Enclosure :	Totally Enclosed Non Ventilated
Overload Protector :	None	Ambient Temperature :	40 °C
UL :	Recognized	CSA :	Y
CE :	N

Electrical Type :	Permanent Split Capacitor, Single Or Dual Voltage	Starting Method :	Across The Line
Poles :	8	Rotation :	Reversible Counterclockwise
Mounting :	Cushion Base	Drive End Bearing :	Ball
Opp Drive End Bearing :	Ball	Frame Material :	Rolled Steel
Shaft Type :	Special Extension	Overall Length :	41.70 in
Frame Length :	5.13 in	Shaft Diameter :	0.749 in
Shaft Extension :	16.71 in	UPC :	786674014993
Weight :	40.00 LB

Type

Electric Motor

Input Phase

Single Phase

Frame

56Z

Enclosure

TEAO

Horsepower

1/12HP

Speed

715RPM
