/Products/Electric Motors/Single Phase/Century/Ventilation Fan/C044A Century 1/2HP Electric Motor, 1700 RPM
Click Image to Expand

Product ID: C044A

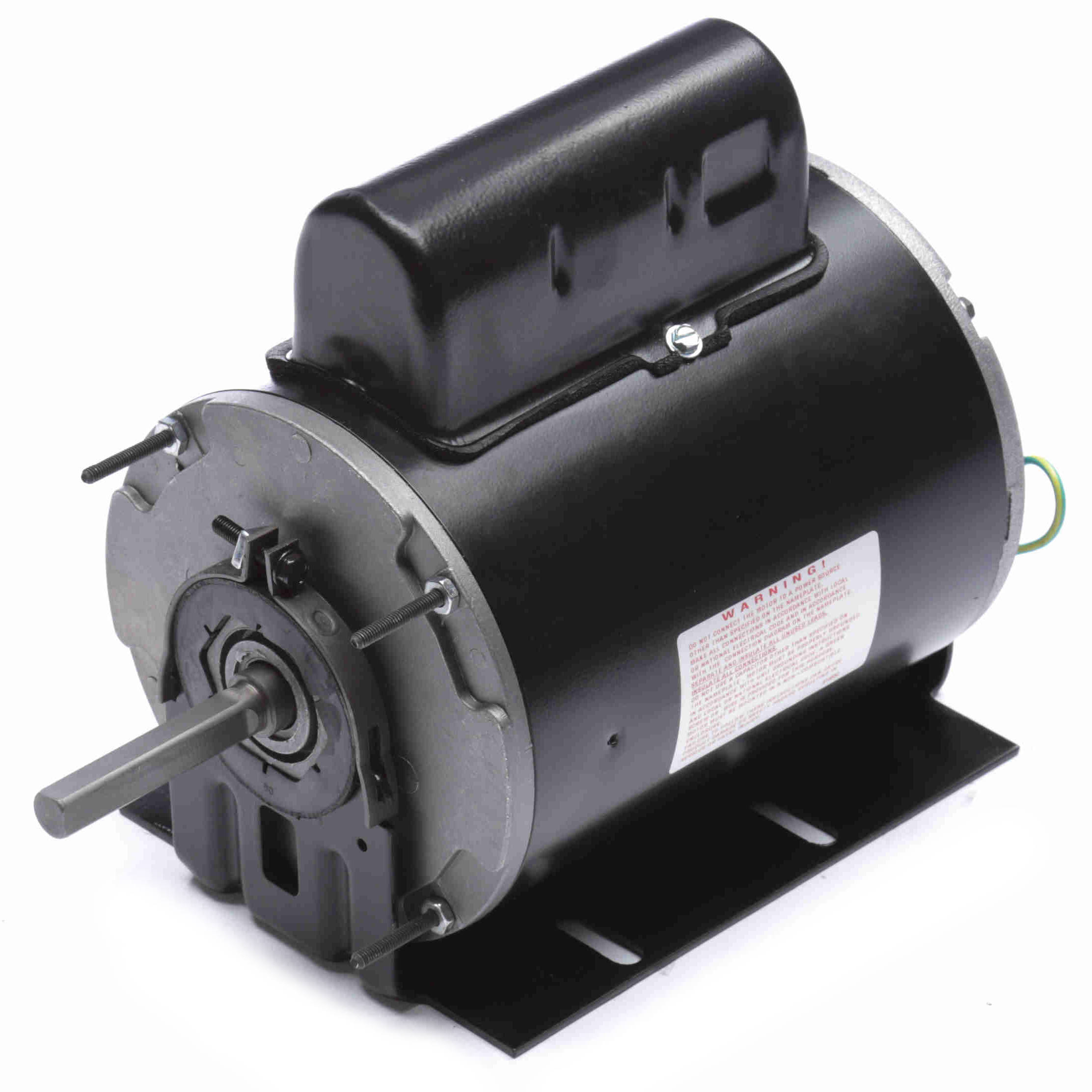

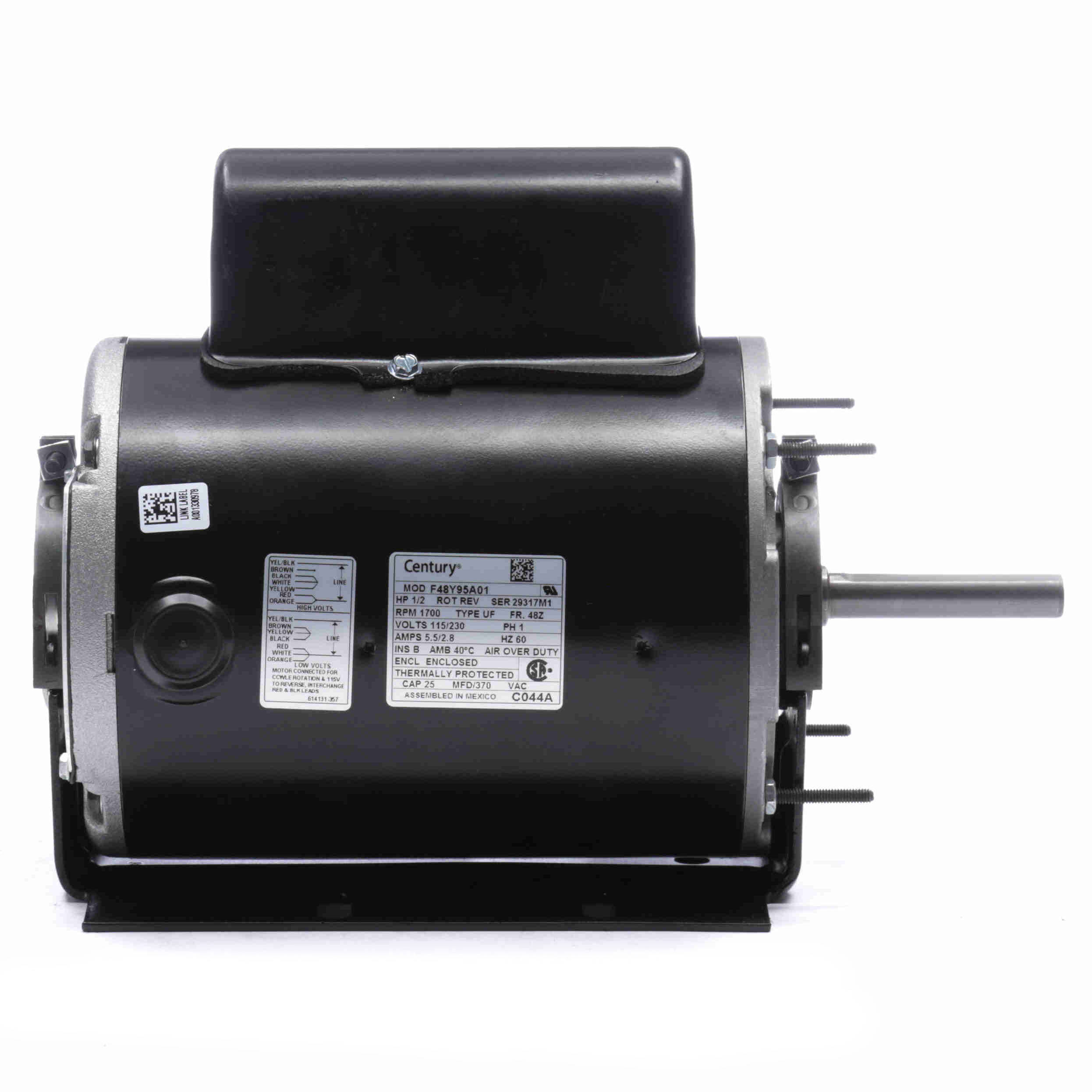

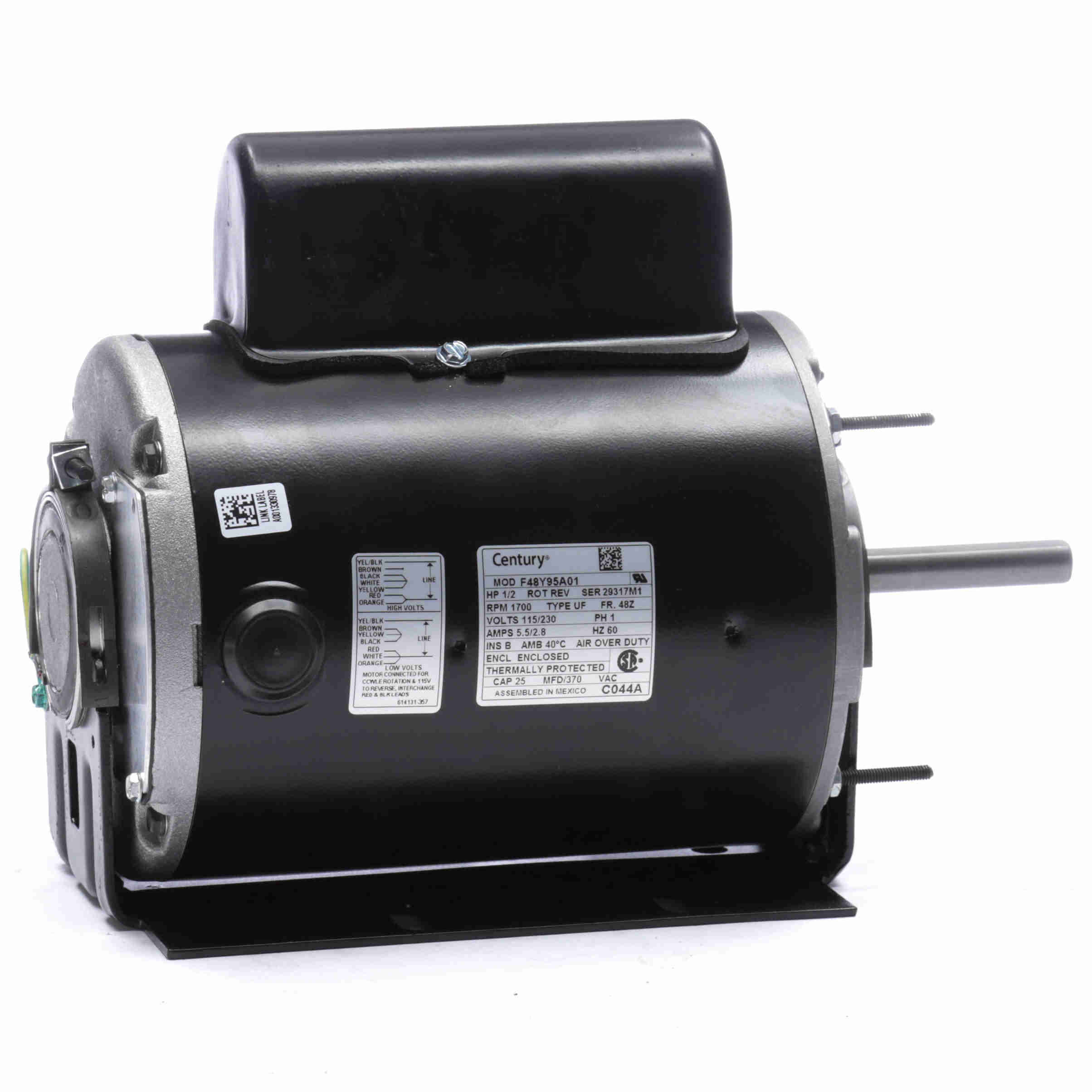

C044A Century 1/2HP Electric Motor, 1700 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C044A

Selected accessories will also be added to cart
$316.97 / Each
Quantity:
Totally Enclosed, F48Z Frame, 115/230VAC 60Hz Single Phase, Resilient Base

Features

Features
  • Double sealed ball bearings
  • Fully gasketed
  • Auto protector

General Specifications

General Specifications
Model : Catalog No :C044A
Part Description :1/2,1700,TE,48Z,1/60/115/230 Category :Direct Drive Fan
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1/2 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :5.5/2.8 A Speed :1700 rpm
Service Factor :1 Phase :1
Duty :Air Over Insulation Class :B
Frame :F48Z Enclosure :Totally Enclosed
Overload Protector :Automatic Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :Resilient Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :11.00 in
Frame Length :6.50 in Shaft Diameter :0.500 in
Shaft Extension :3.14 in UPC :786674015082
Weight :24.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/2HP
Enclosure
TE
Frame
F48Z
Speed
1700RPM
