/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/C241 Century 1/2HP Hot Water Circulator Pump Electric Motor, 1725RPM
Click Image to Expand

Product ID: C241

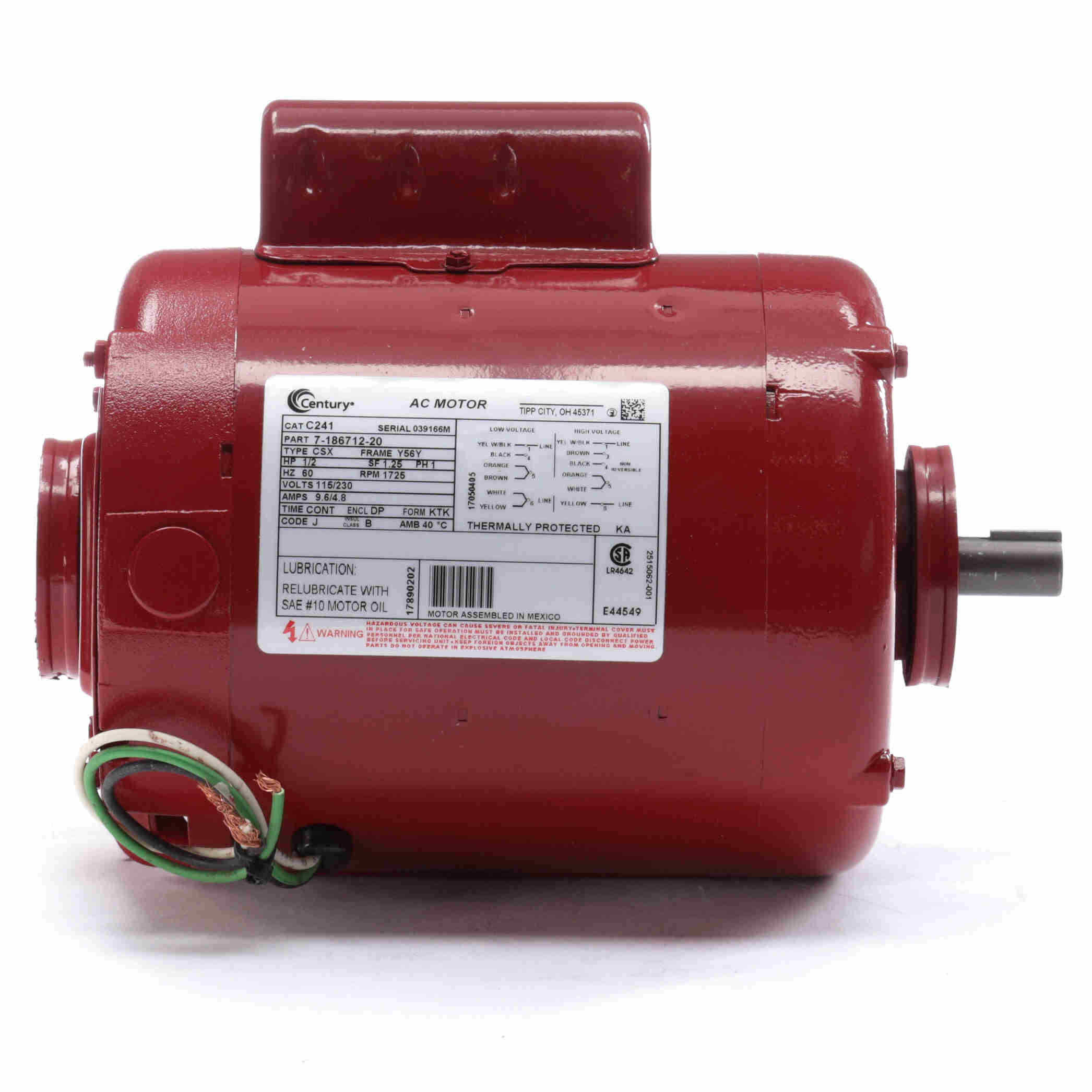

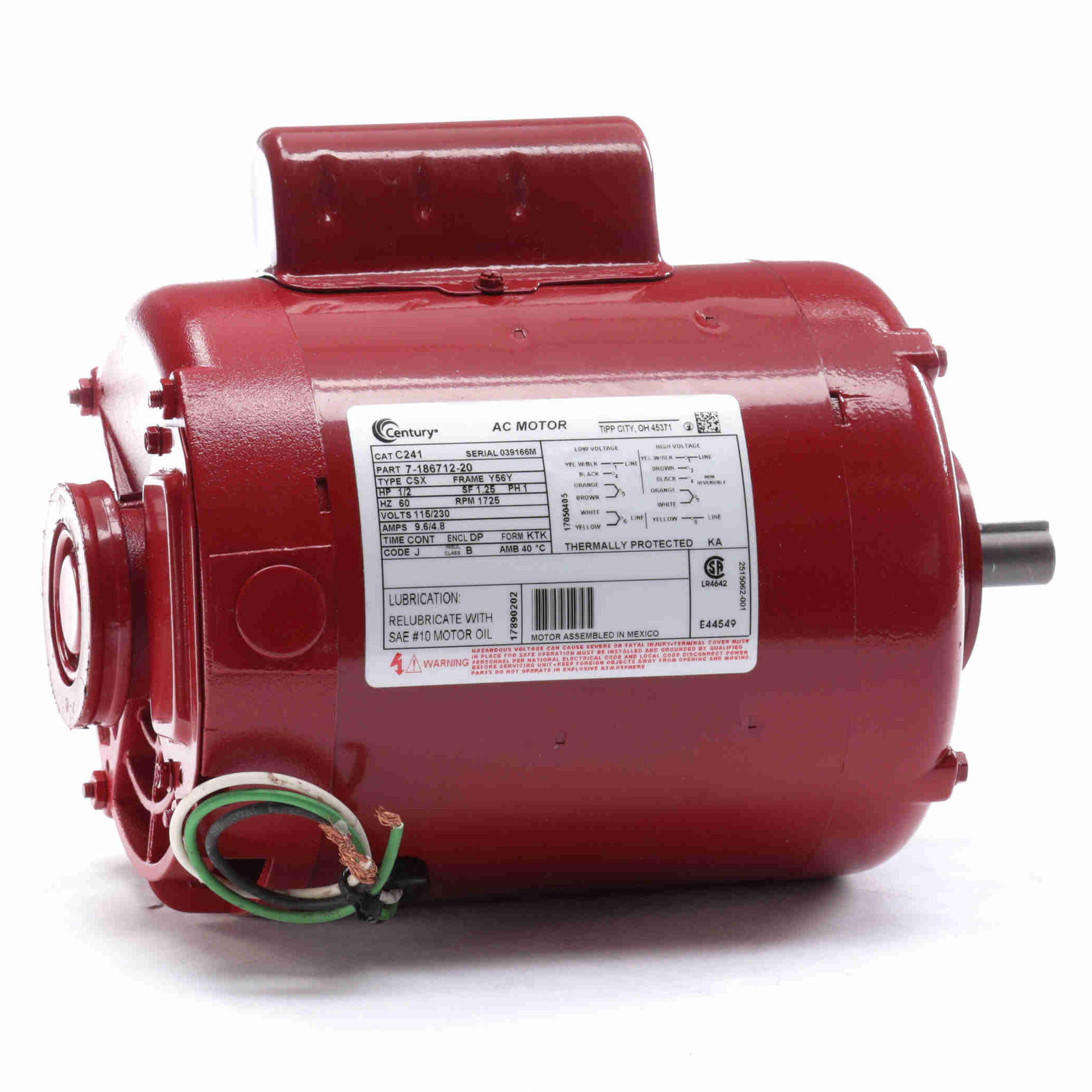

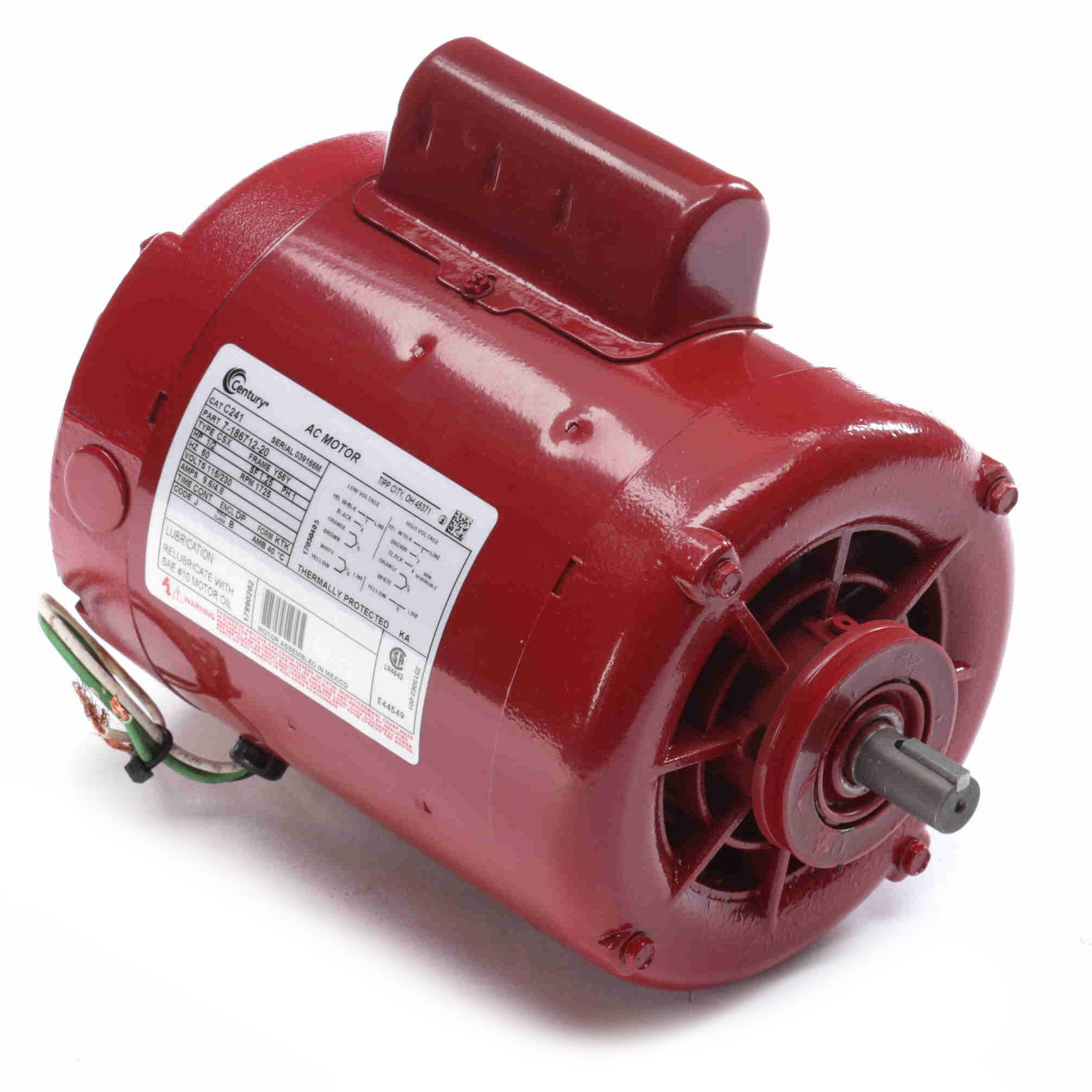

C241 Century 1/2HP Hot Water Circulator Pump Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C241

Selected accessories will also be added to cart
$121.97 / Each
Quantity:
Drip Proof, 56Y Frame, 115/230VAC Single Phase 60Hz, Cushion Ring

Features

Features
  • Automatic reset thermal protector

General Specifications

General Specifications
C241
1/2,1725,DP,56Y,1/60/115/230 Circulator pump
Yes

Nameplate Specifications

Nameplate Specifications
1/2 HP 0.37 kW
60 Hz 115/230 V
9.6/4.8 A 1725 RPM
1.25 1
Continuous B
Y56Y Drip Proof
Thermally Protected 40 °C
    		Recognized Y
    N

    Technical Specifications

    Technical Specifications
    Capacitor Start, Induction Run, Low Starting Torque, Single Or Dual Voltage Across The Line
    4 Clockwise
    Cushion Ring Sleeve
    Sleeve Rolled Steel
    Keyed 10.53 in
    5.29 in 0.625 in
    1.18 in 786674015518
    24.00 LB

    Speed & Load Characteristics

    Type
    Electric Motor
    Input Phase
    Single Phase
    Horsepower
    1/2HP
    Speed
    1725RPM
    Enclosure
    DP
    Frame
    56Y
