/Products/Electric Motors/Single Phase/Century/Hot Water Circulator/C249 Century 1/2HP Circulator Pump Electric Motor, 1800RPM
Click Image to Expand

Product ID: C249

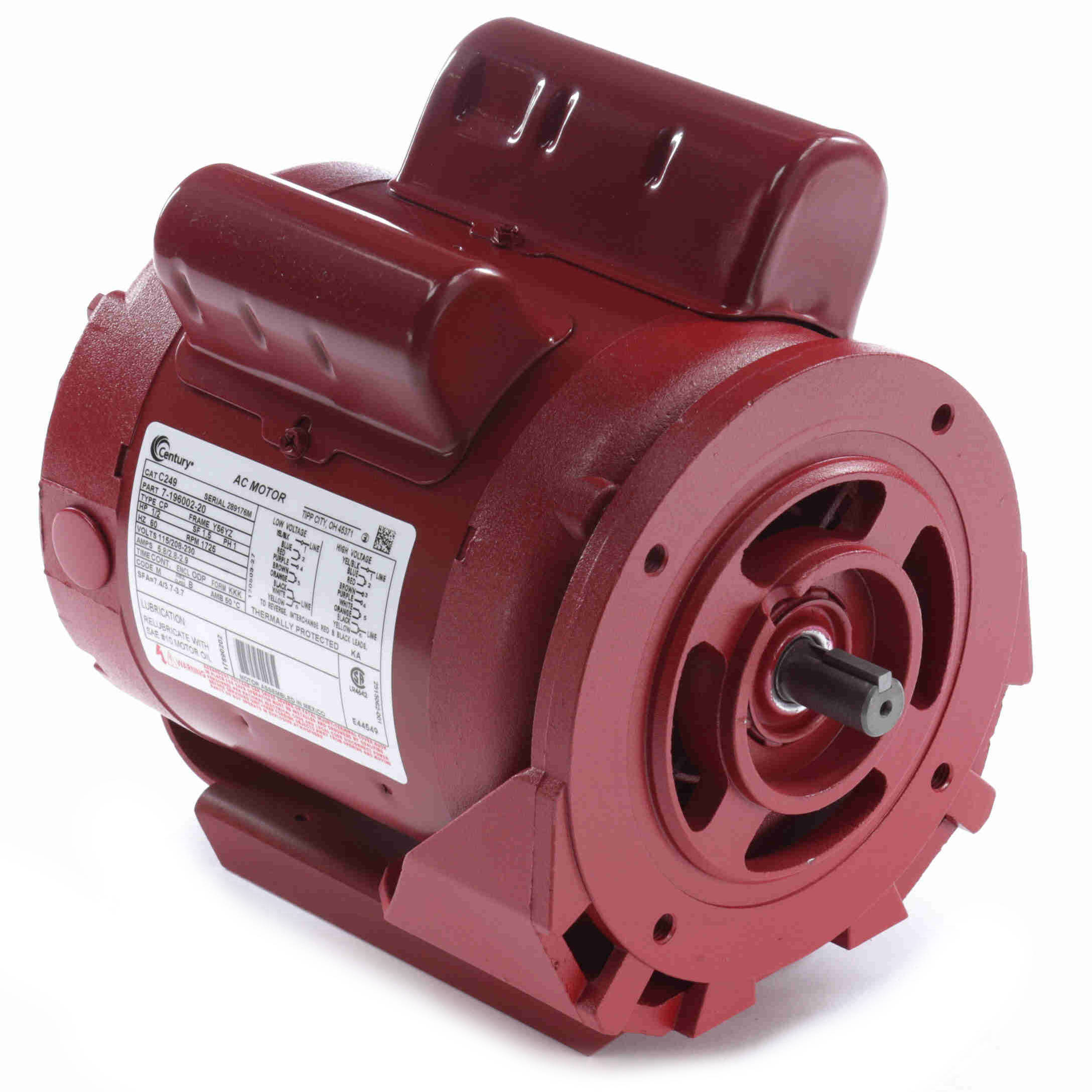

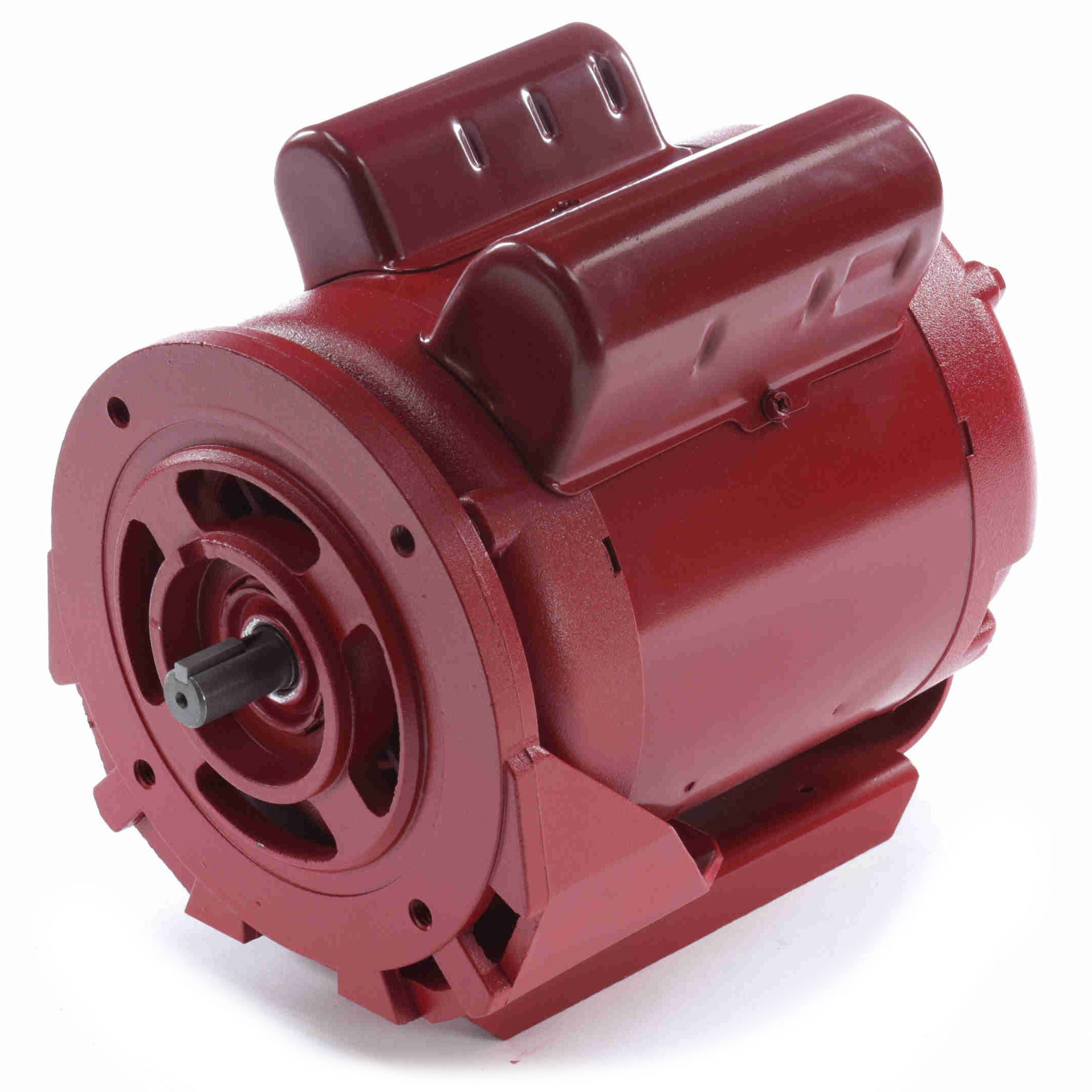

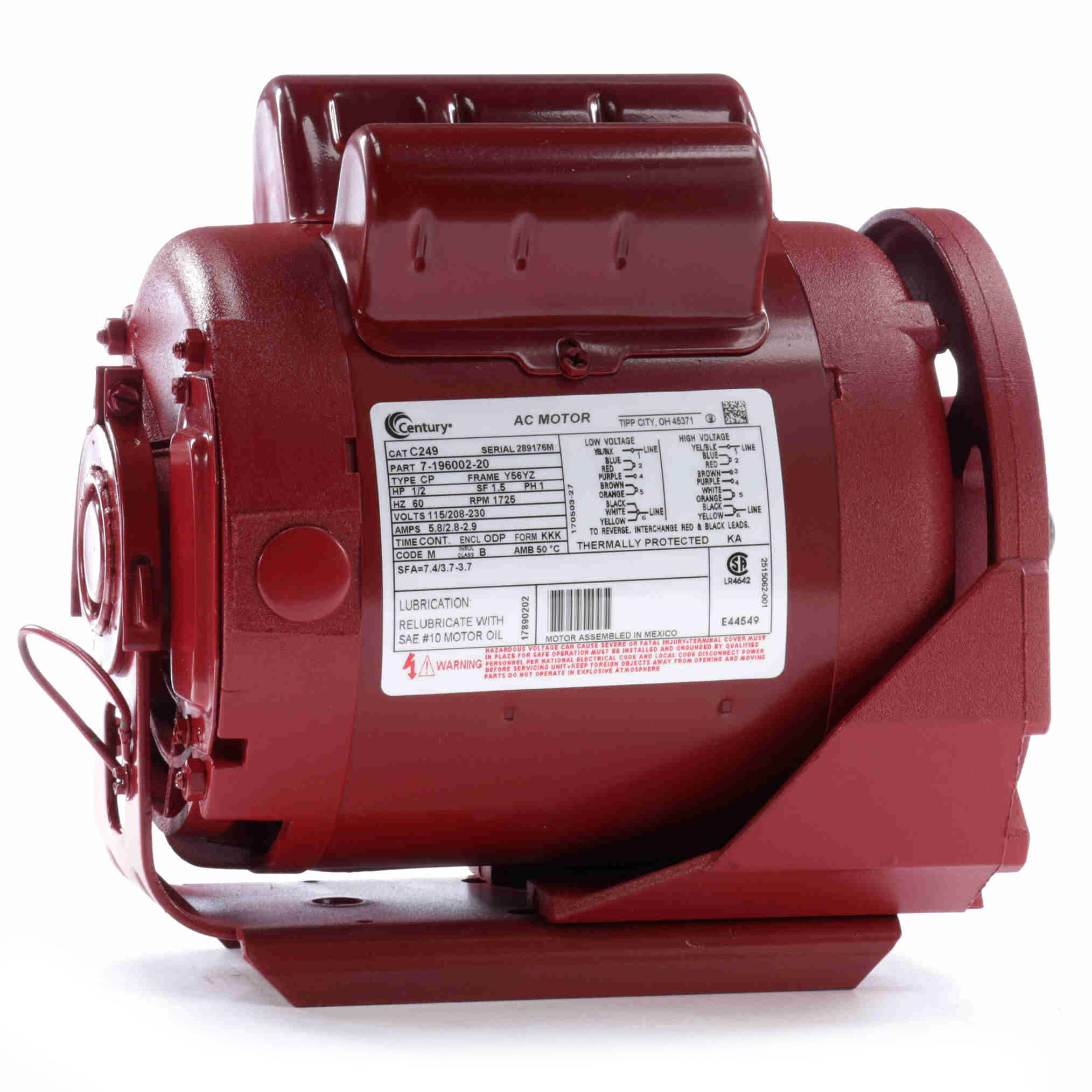

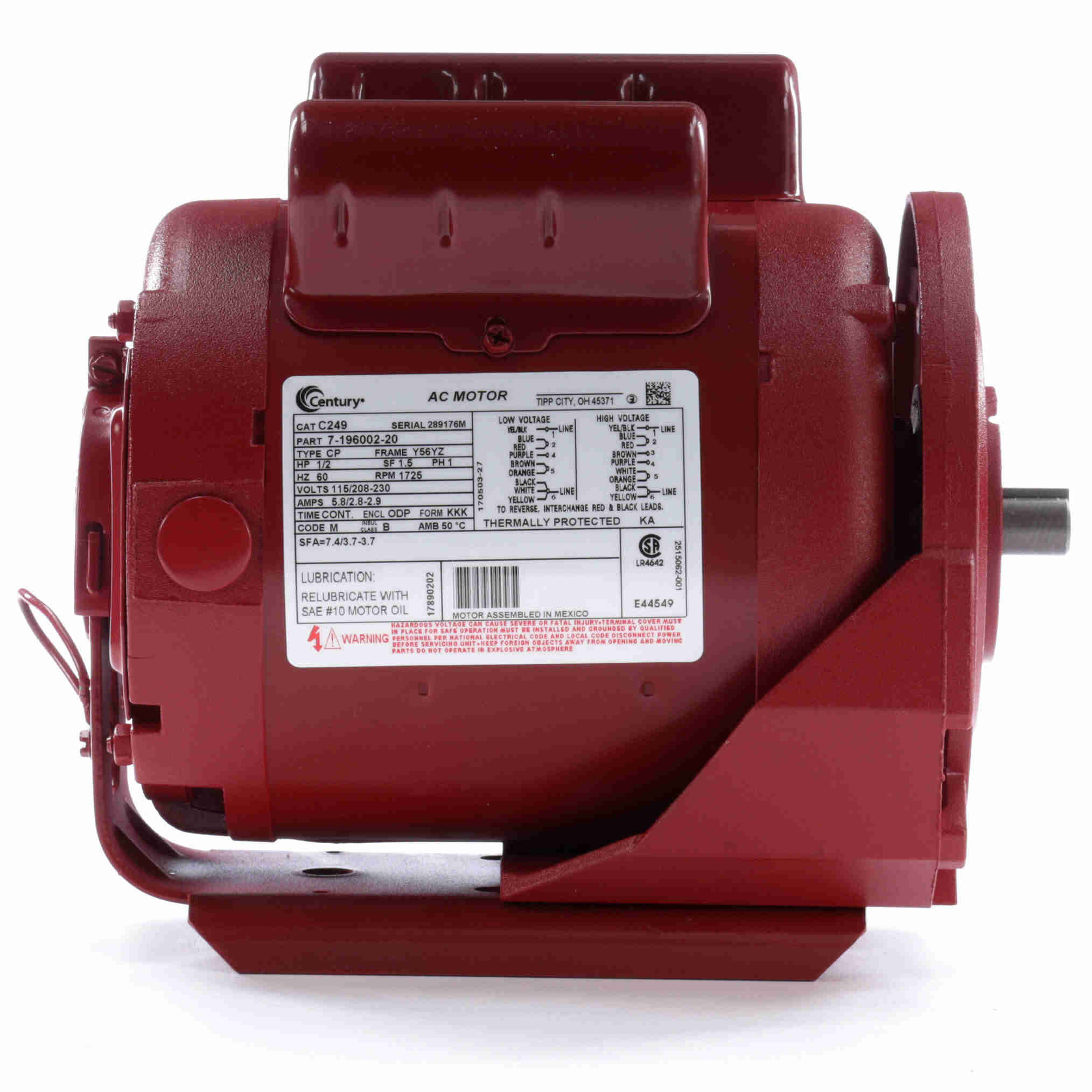

C249 Century 1/2HP Circulator Pump Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C249

Selected accessories will also be added to cart
$473.97 / Each
Quantity:
ODP, 56YZ Frame, 115/208-230VAC Single Phase 60Hz, Cushion Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Automatic reset thermal protector

General Specifications

UPC: 786674015594 Weight: 28.00 LB
Packaged Length: 13 IN Packaged Width: 10 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/2 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 5.8/2.8-2.9 A Speed: 1725 rpm
Service Factor: 1.5 Phase: 1
Duty: Continuous Insulation Class: B
Frame: Y56YZ Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected Ambient Temperature: 50 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Clockwise
Mounting: Cushion Base Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 9.93 in
Frame Length: 4.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.18 in

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
1/2HP
Input Voltage
115VAC
Input Voltage
208VAC
Input Voltage
230VAC
Frame
56YZ
