/Products/Electric Motors/Single Phase/Century/Farm Duty/C313 Century 1HP Farm Duty Electric Motor, 1725RPM
Click Image to Expand

Product ID: C313

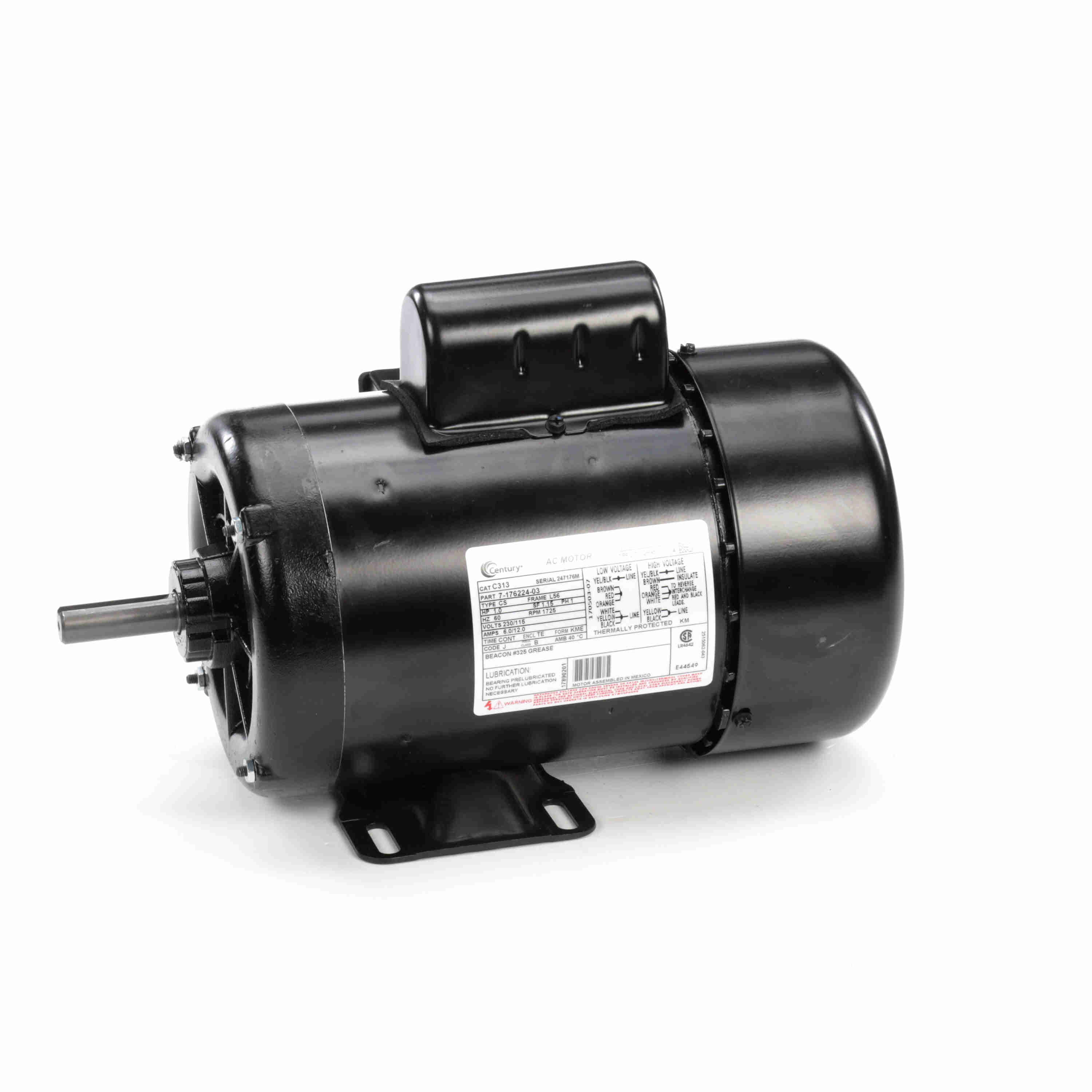

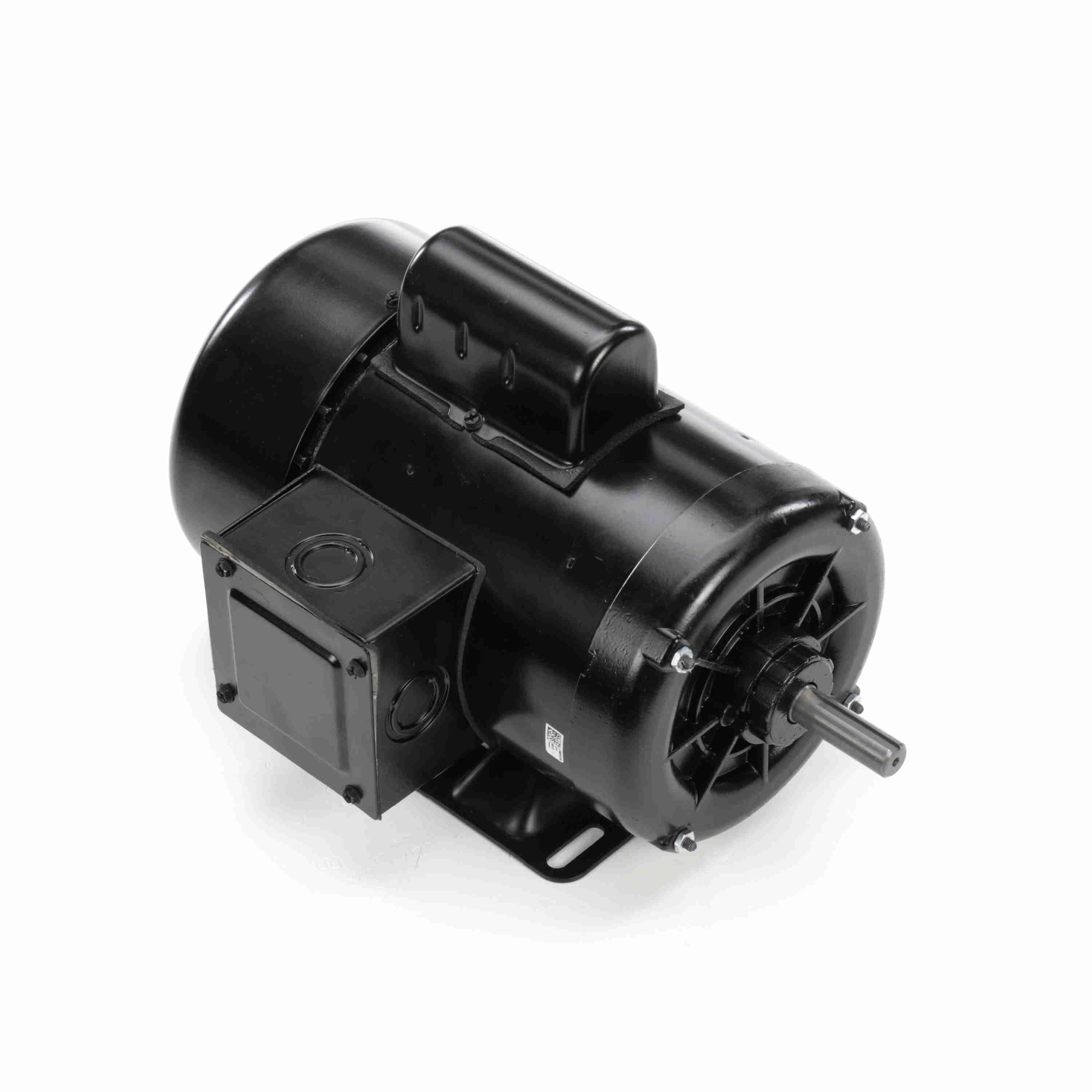

C313 Century 1HP Farm Duty Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C313

Selected accessories will also be added to cart
$412.97 / Each
Quantity:
TEFC, 56 Frame, 115/230VAC Single Phase 60Hz, Foot Mount, Rolled Steel

Features

Features
  • Shaft end mechanically locked on C-face models
  • Shaft slinger
  • Low temperature manual reset thermal protector
  • Condensate drains

General Specifications

General Specifications
C313
1,1725,TEFC,56,1/60/230/115 Single Phase
Yes

Nameplate Specifications

Nameplate Specifications
1.0 HP 0.75 kW
60 Hz 230/115 V
6.0/12.0 A 1725 RPM
1.15 1
Continuous B
L56 Totally Enclosed Fan Cooled
Thermally Protected 40 °C
Recognized Y
Y

Technical Specifications

Technical Specifications
Capacitor Start, Induction Run, Single Or Dual Voltage Across The Line
4 Reversible Counterclockwise
Rigid Base Ball
Ball Rolled Steel
Keyed 13.36 in
6.25 in 0.625 in
1.94 in 786674015693
36.00 LB

Speed & Load Characteristics

Type
Electric Motor
Input Phase
Single Phase
Application
Farm Duty
Enclosure
TEFC
Horsepower
1HP
Speed
1725RPM
Frame
56
