/Products/Electric Motors/Single Phase/Century/Farm Duty/Grain Stirring/C317V1 Century 1.5HP Grain Stirring Electric Motor, 1800RPM
Click Image to Expand

Product ID: C317V1

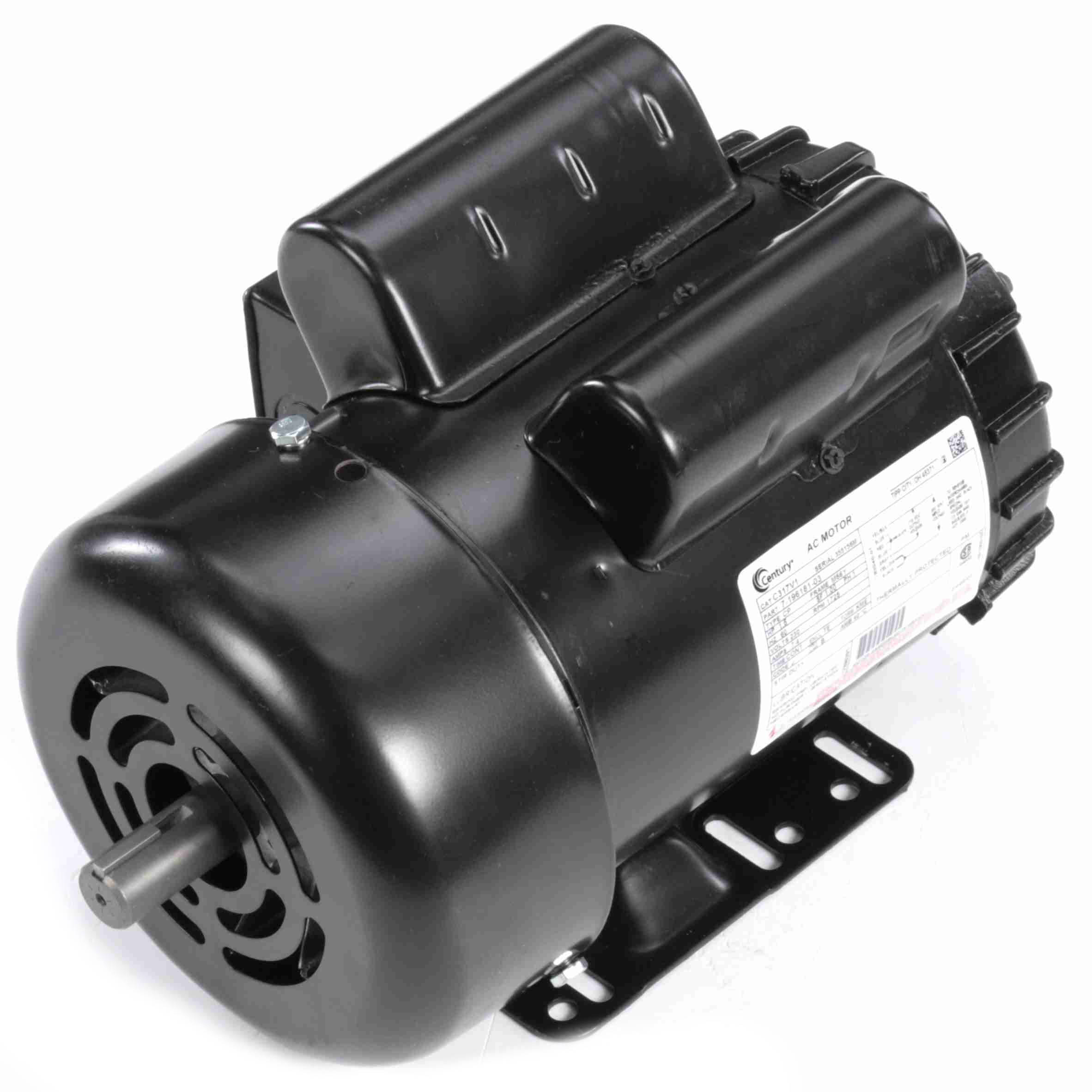

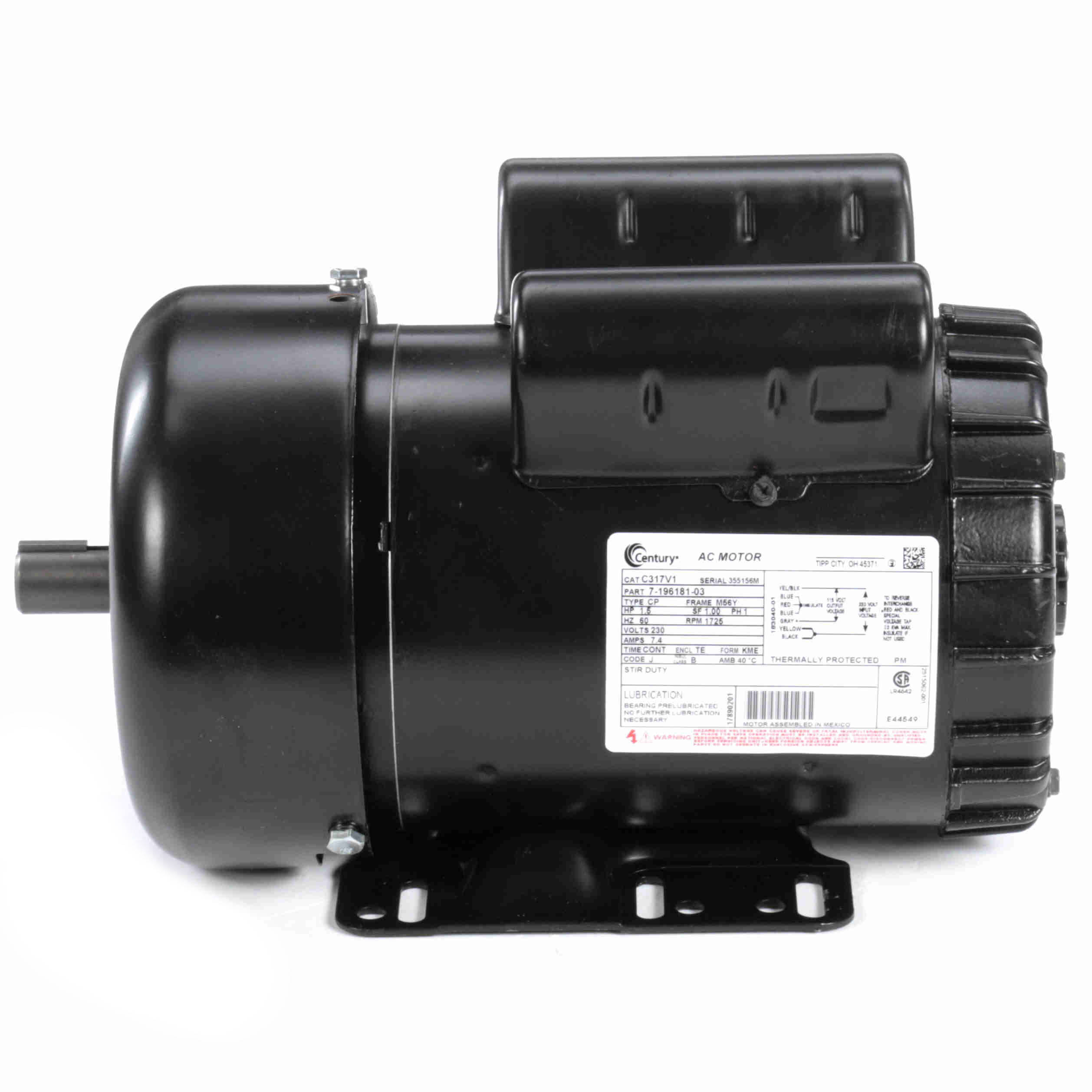

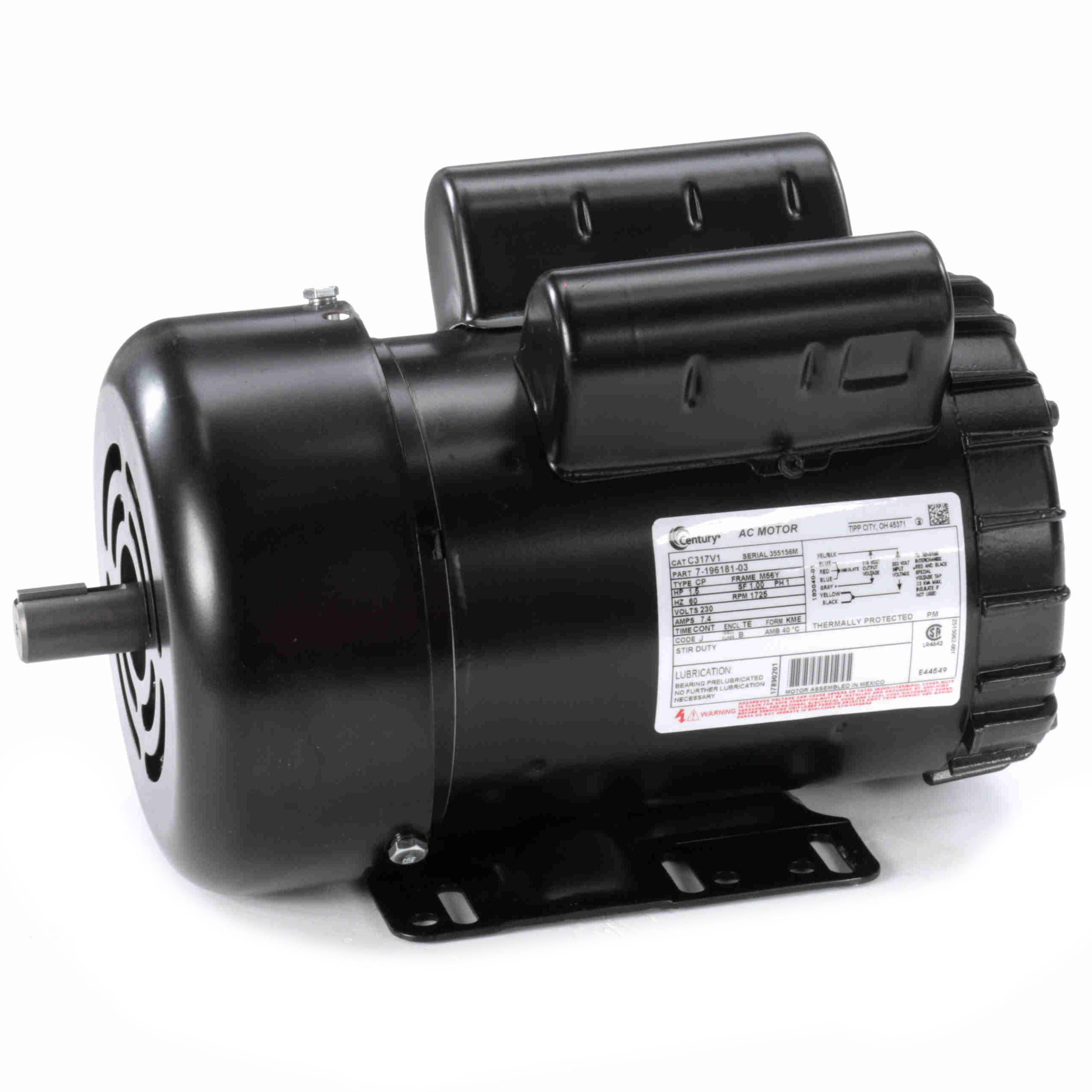

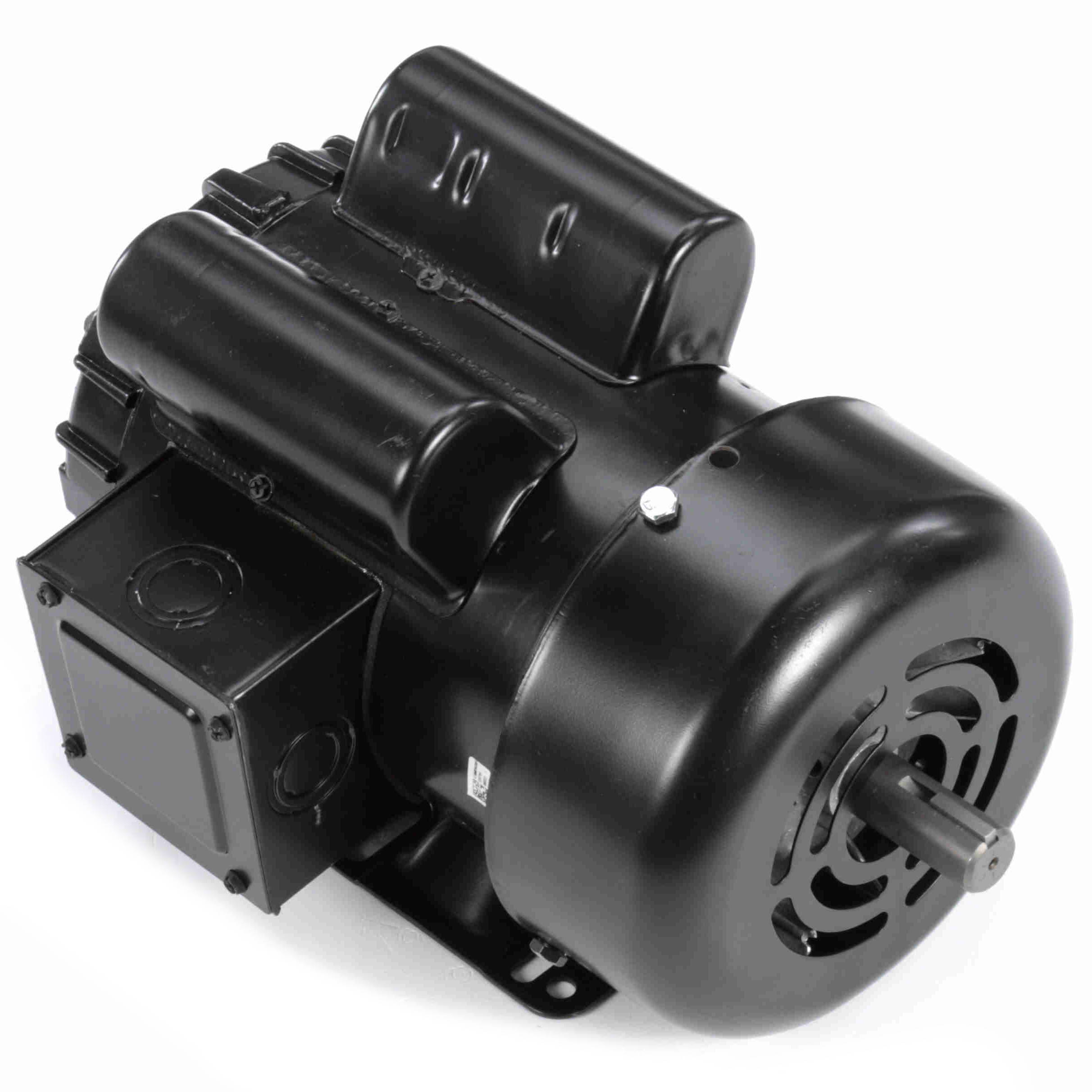

C317V1 Century 1.5HP Grain Stirring Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C317V1

Available Stock: 2
Selected accessories will also be added to cart
$497.97 / Each
Quantity:
TEFC, 56Y Frame, 230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

  • Fully gasketed construction to keep grain dust out
  • Fan/fan guard on shaft end keeps grain dust out of motor
  • Durable powder coat paint
  • Manual reset thermal protector

General Specifications

UPC: 786674015754 Weight: 32.00 LB
Packaged Length: 17 IN Packaged Width: 11 IN
Packaged Height: 11 IN

Nameplate Specifications

Output HP: 1.5 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230 V
Current: 7.4 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: M56Y Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 13.28 in
Frame Length: 6.75 in Shaft Diameter: 0.875 in
Shaft Extension: 1.44 in
Type
Electric Motor
Input Phase
Single Phase
Speed
1800RPM
Enclosure
TEFC
Enclosure
TEFC
Horsepower
1.5HP
Frame
56Y
