/Products/Electric Motors/3 Phase/Century 3-Phase Electric Motors/Farm Duty/C347 Century 3/4HP Auger Drive Electric Motor, 1800RPM
Click Image to Expand

Product ID: C347

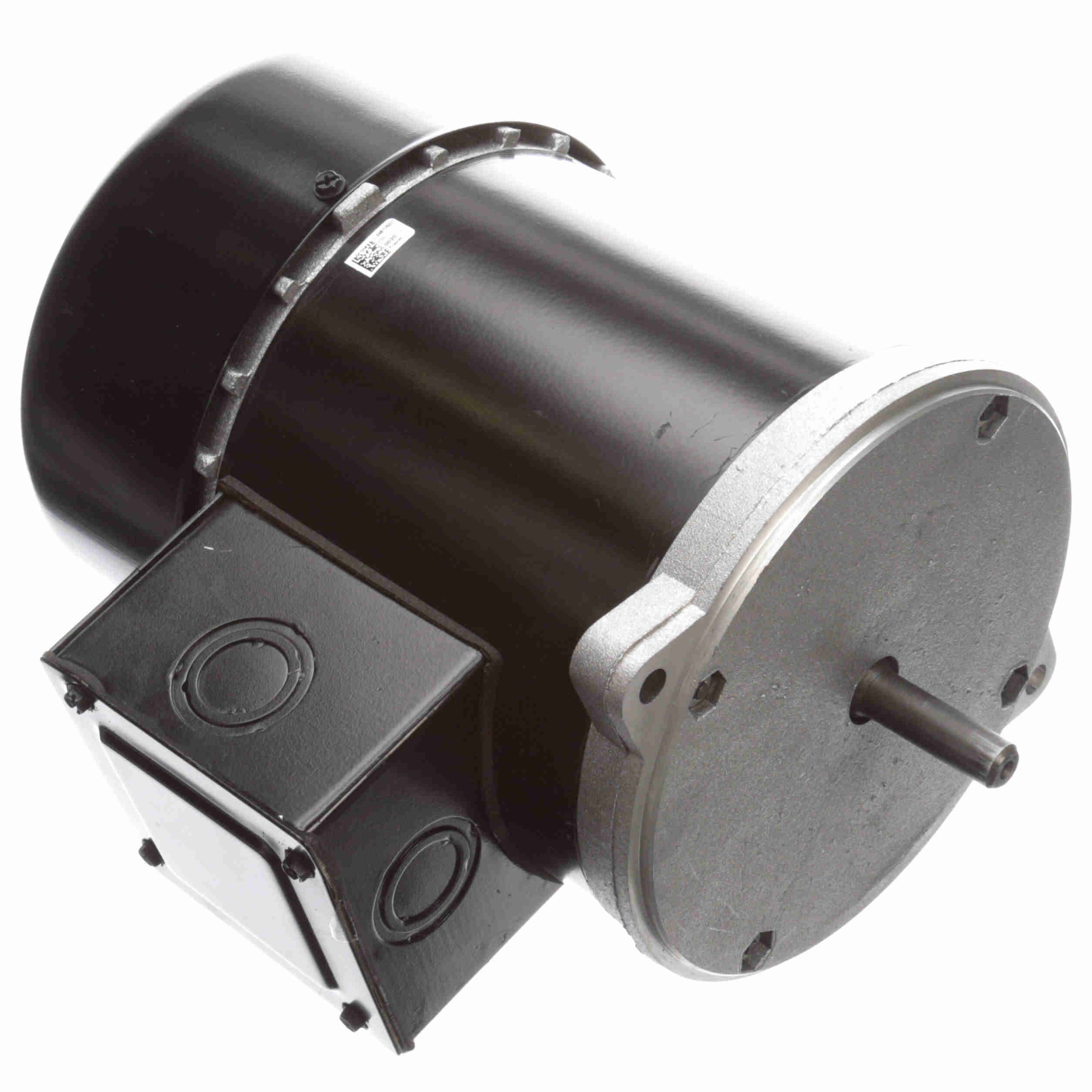

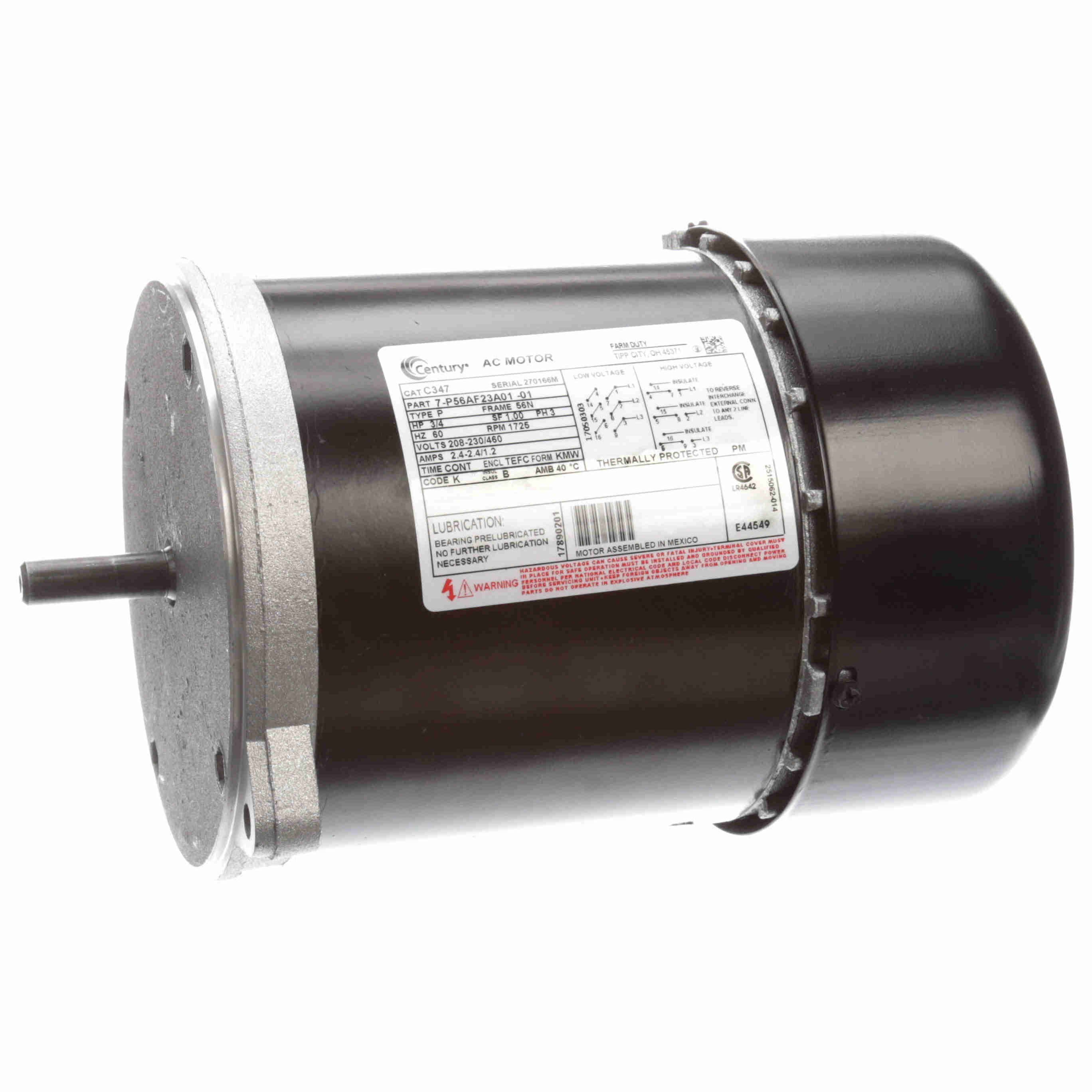

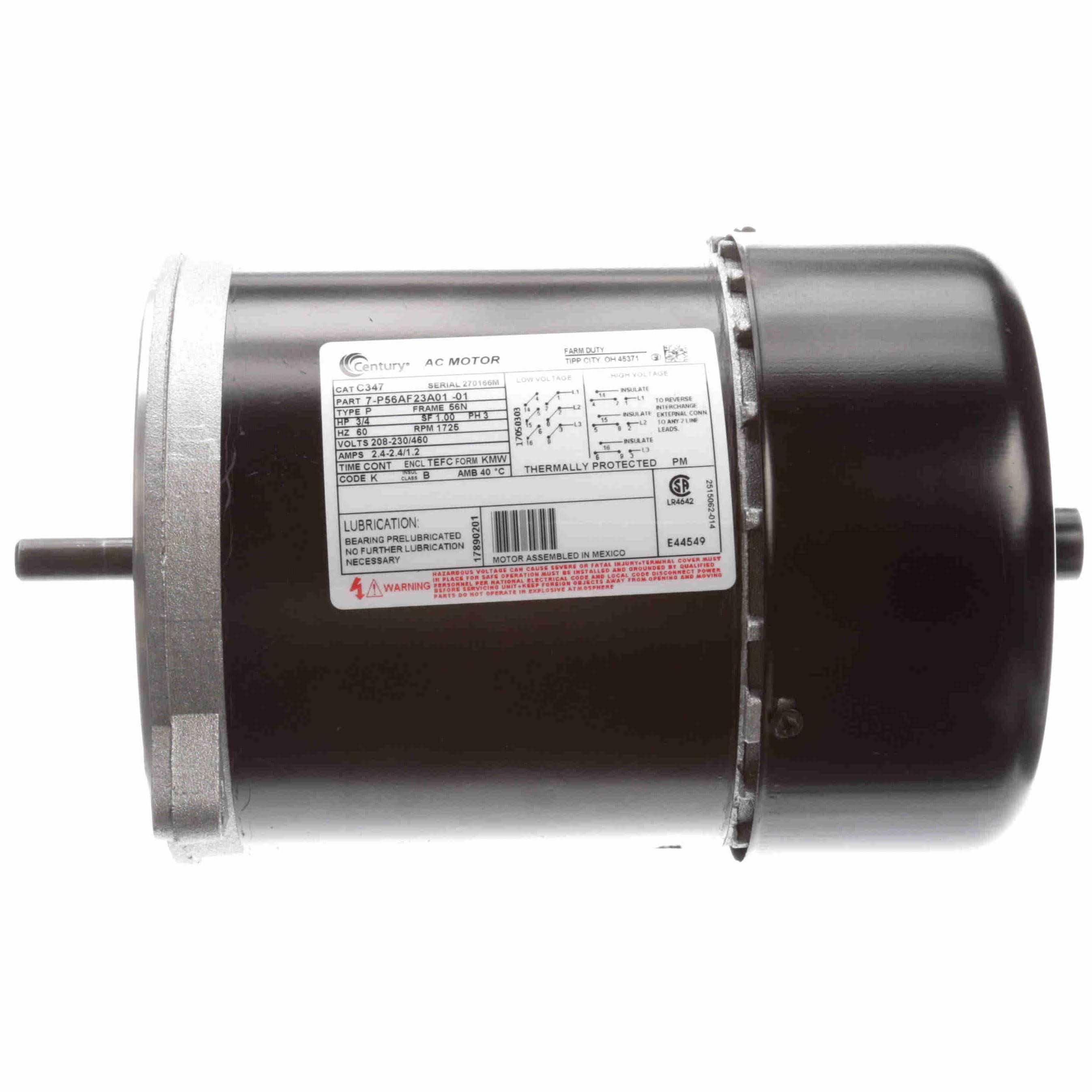

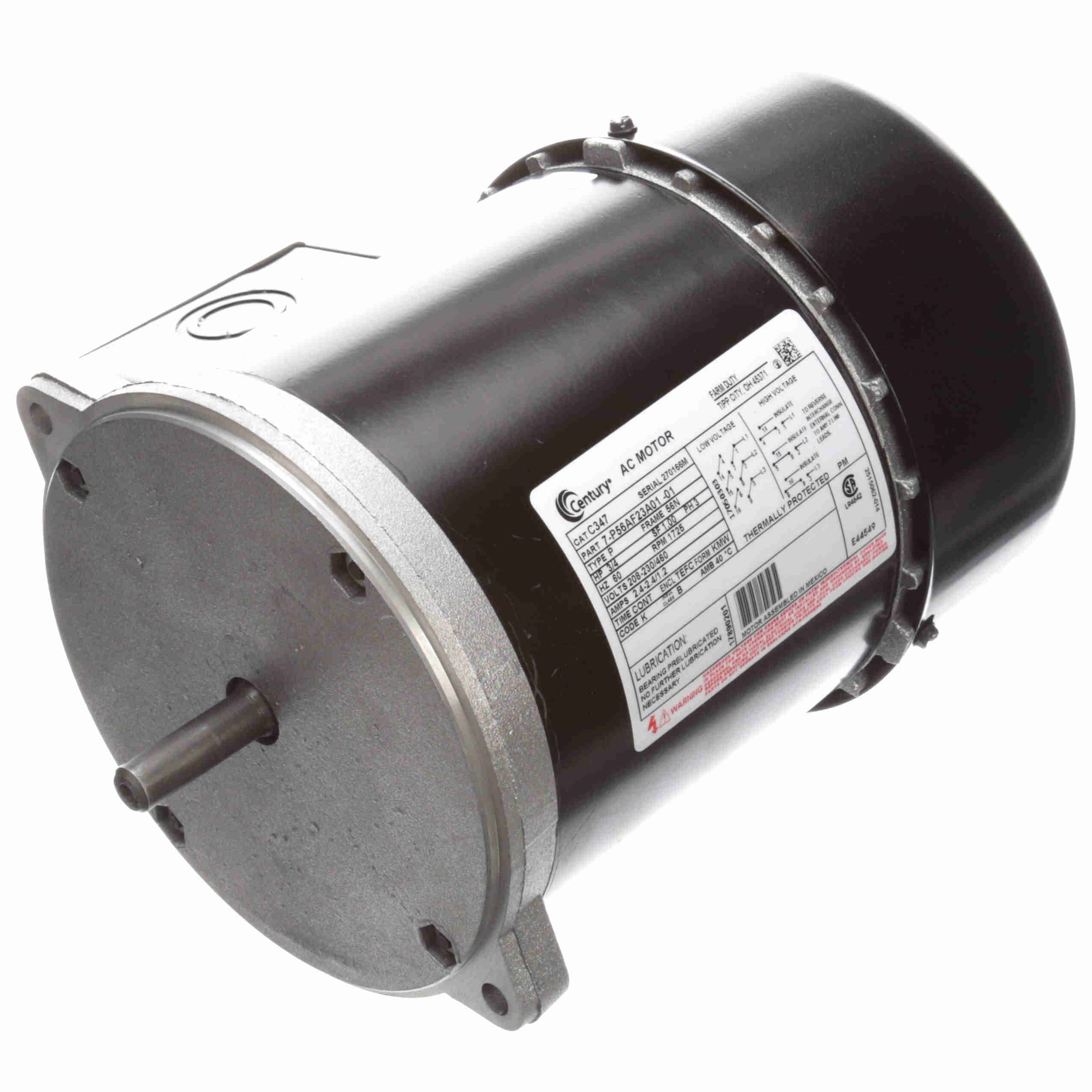

C347 Century 3/4HP Auger Drive Electric Motor, 1800RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C347

Selected accessories will also be added to cart
$129.97 / Each
Quantity:
TEFC, 56N Frame, 208-230/460VAC 60Hz 3-Phase, Rolled Steel, Round Body, 1/2" Shaft

Features

  • High starting torque
  • Manual reset thermal protector
  • Torque switch and governor

General Specifications

UPC: 786674061362 Weight: 25.00 LB
Packaged Length: 12.88 IN Packaged Width: 9.81 IN
Packaged Height: 9.81 IN

Nameplate Specifications

Output HP: 3/4 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.4-2.4/1.2 A Speed: 1725 rpm
Service Factor: 1 Phase: 3
Duty: Continuous Insulation Class: B
Frame: 56N Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Polyphase Starting Method: Across The Line
Poles: 4 Rotation: Reversible Counterclockwise
Mounting: Round Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Flat Overall Length: 10.78 in
Frame Length: 5.13 in Shaft Diameter: 0.500 in
Shaft Extension: 1.75 in
Type
Electric Motor
Speed
1800RPM
Horsepower
3/4HP
Enclosure
TEFC
Input Phase
3-Phase
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Application
Auger Drive
Frame
56N
