/Products/Electric Motors/Single Phase/Century/Farm Duty/Cow Cooler/C593 Century 1HP Cow Cooler Electric Motor, 1725RPM
Click Image to Expand

Product ID: C593

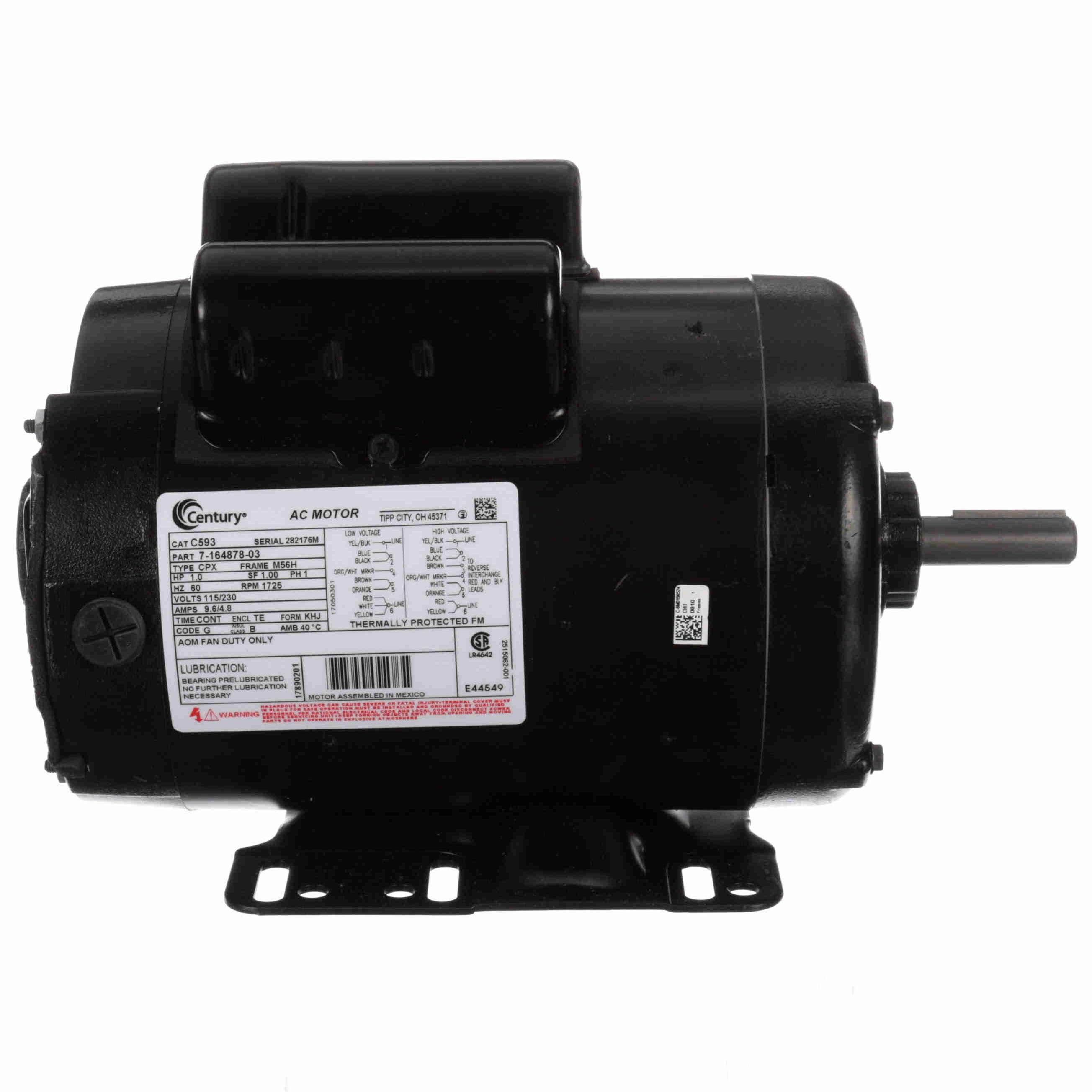

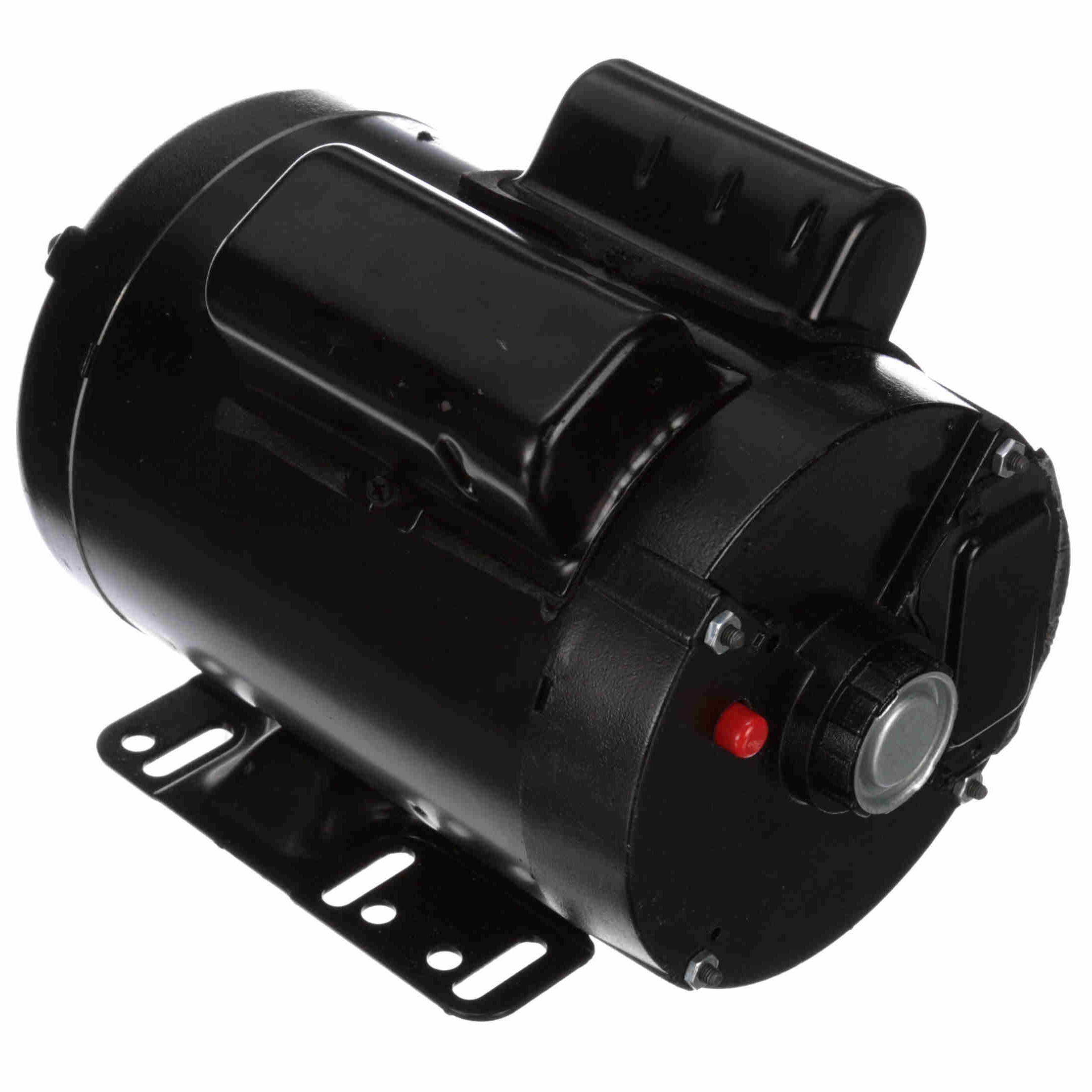

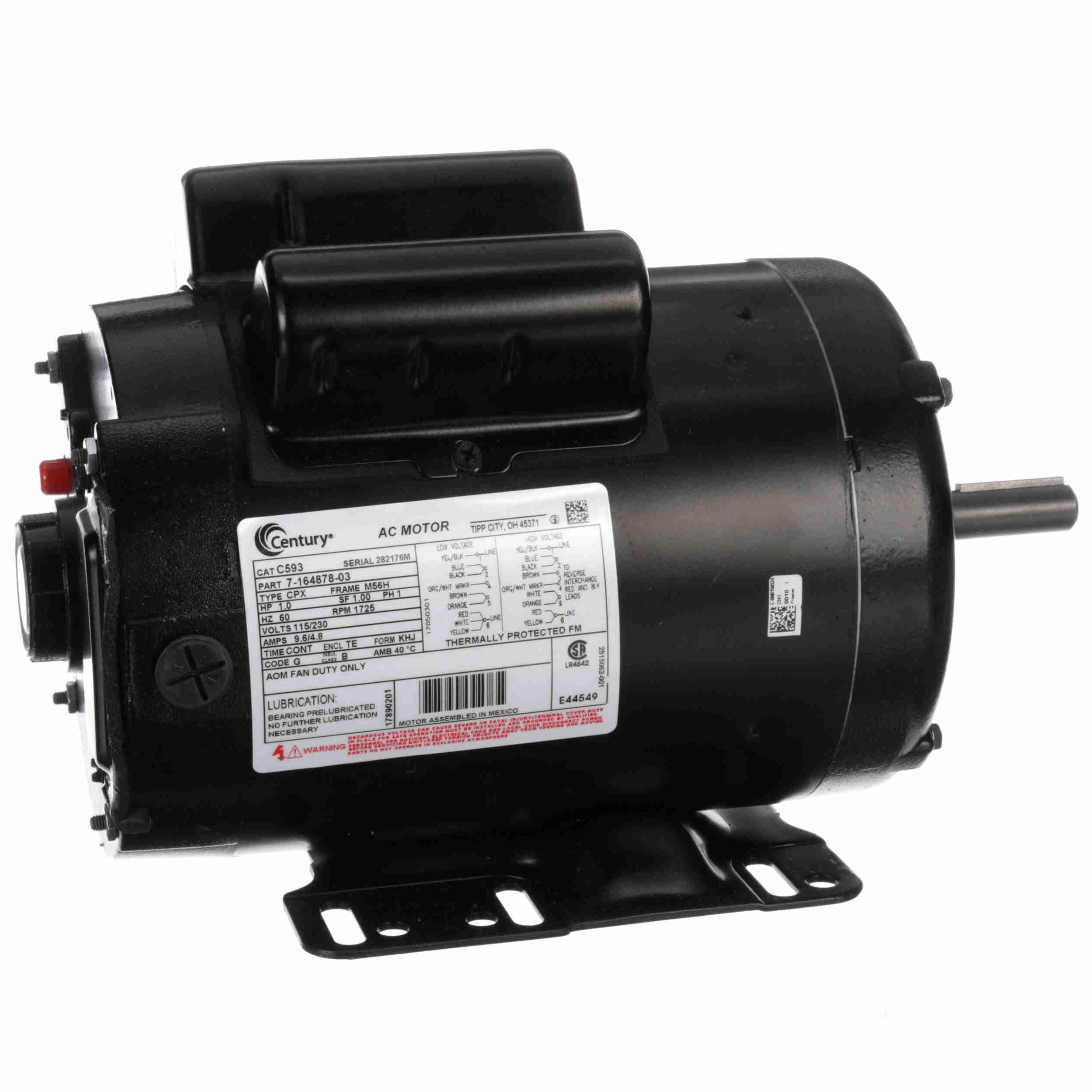

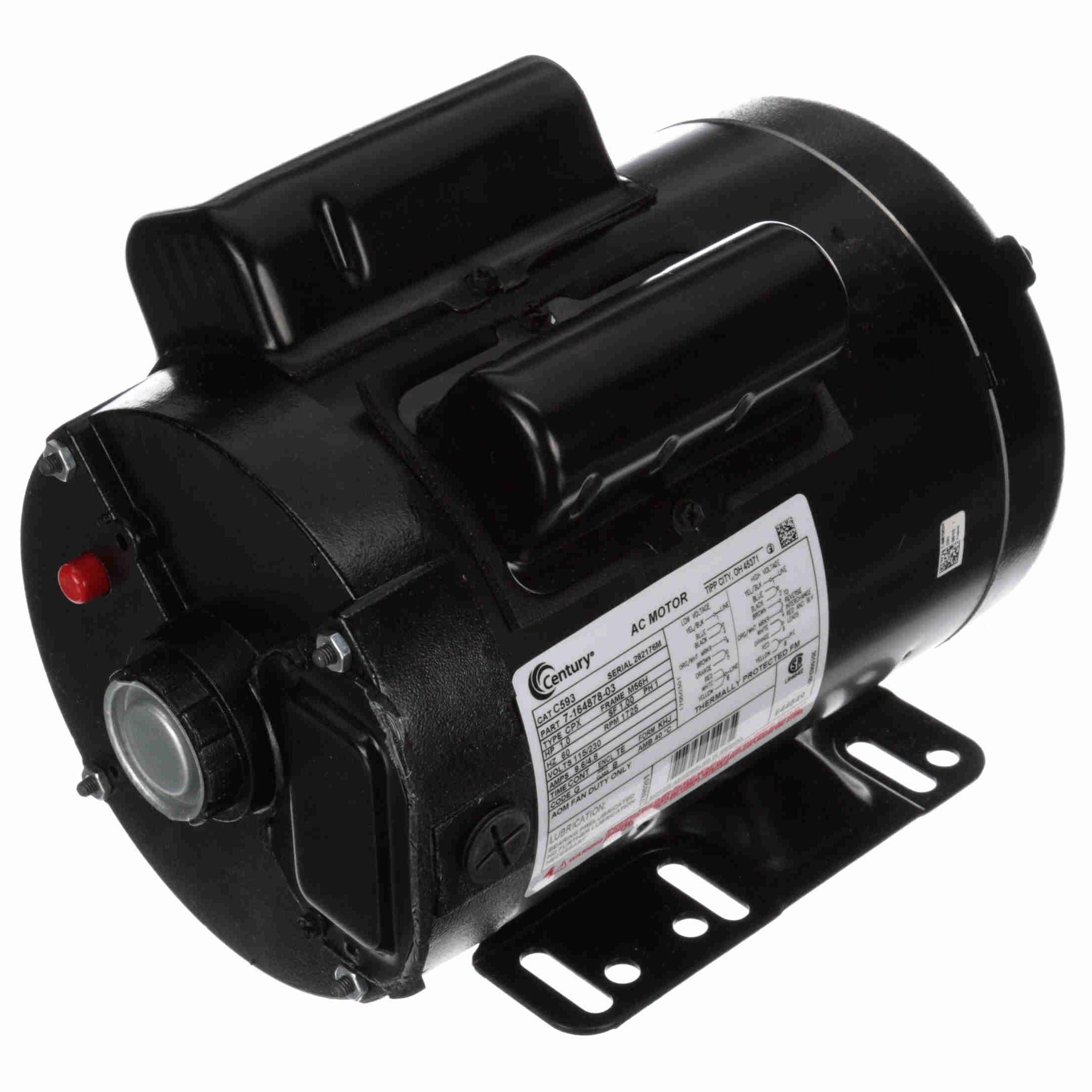

C593 Century 1HP Cow Cooler Electric Motor, 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C593

Selected accessories will also be added to cart
$431.97 / Each
Quantity:
TEAO, M56H Frame, 115/230VAC 60Hz Single Phase, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Low starting torque
  • Energy efficient

General Specifications

UPC: 786674016317 Weight: 38.00 LB
Packaged Length: 16 IN Packaged Width: 8 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1.0 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 115/230 V
Current: 9.6/4.8 A Speed: 1725 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: M56H Enclosure: Totally Enclosed Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Capacitor Start, Capacitor Run, Low Starting Torque, Single Or Dual Voltage Starting Method: Across The Line
Poles: 4 Rotation: Reversible Clockwise
Mounting: Rigid Base Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Keyed Overall Length: 12.69 in
Frame Length: 6.75 in Shaft Diameter: 0.625 in
Shaft Extension: 1.94 in
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1HP
Speed
1725RPM
Enclosure
TEAO
Frame
M56H
