/Products/Electric Motors/Single Phase/Century/Farm Duty/Cow Cooler/C597 Century 1/0.29HP 2-Speed Cow Cooler Electric Motor, 1725 RPM
Click Image to Expand

Product ID: C597

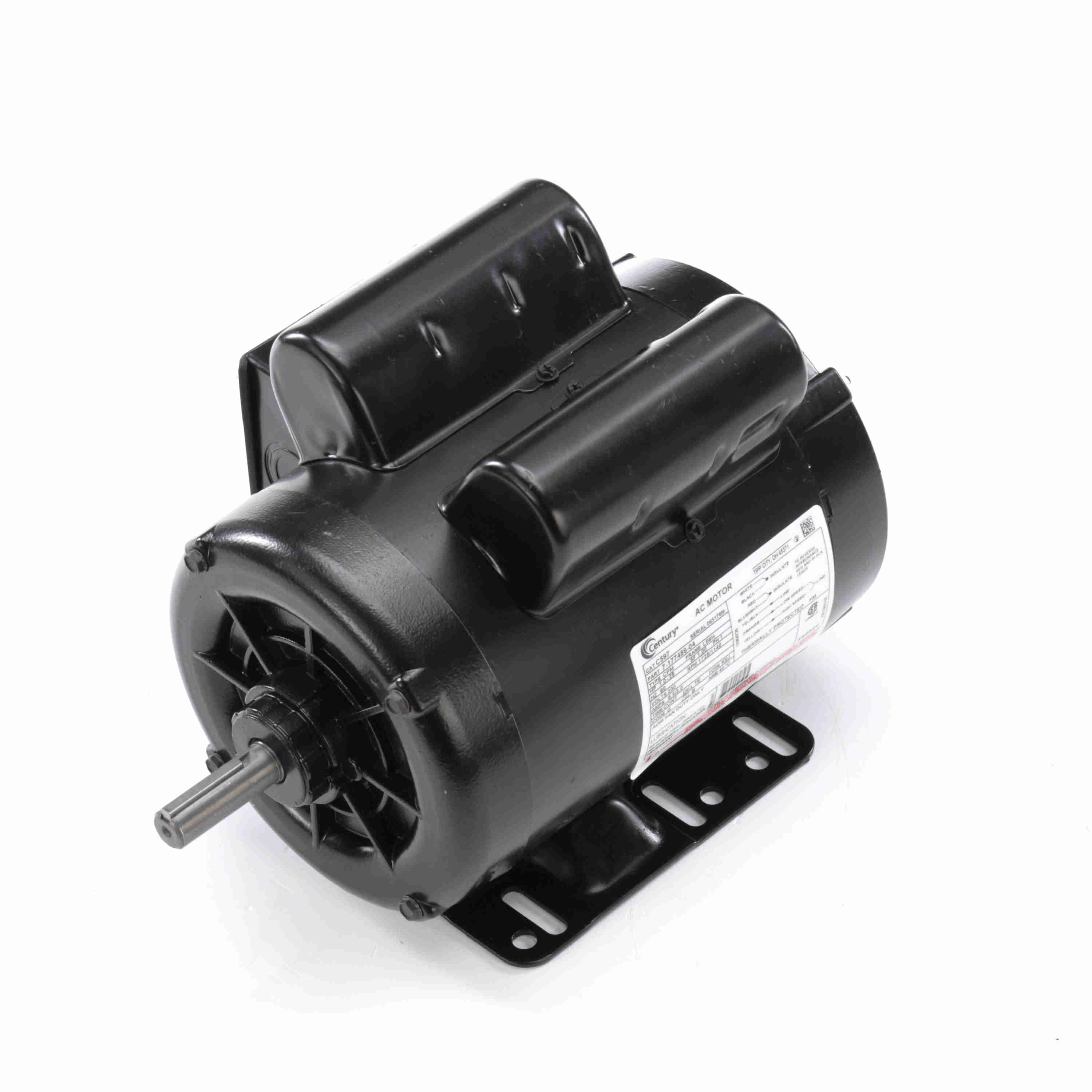

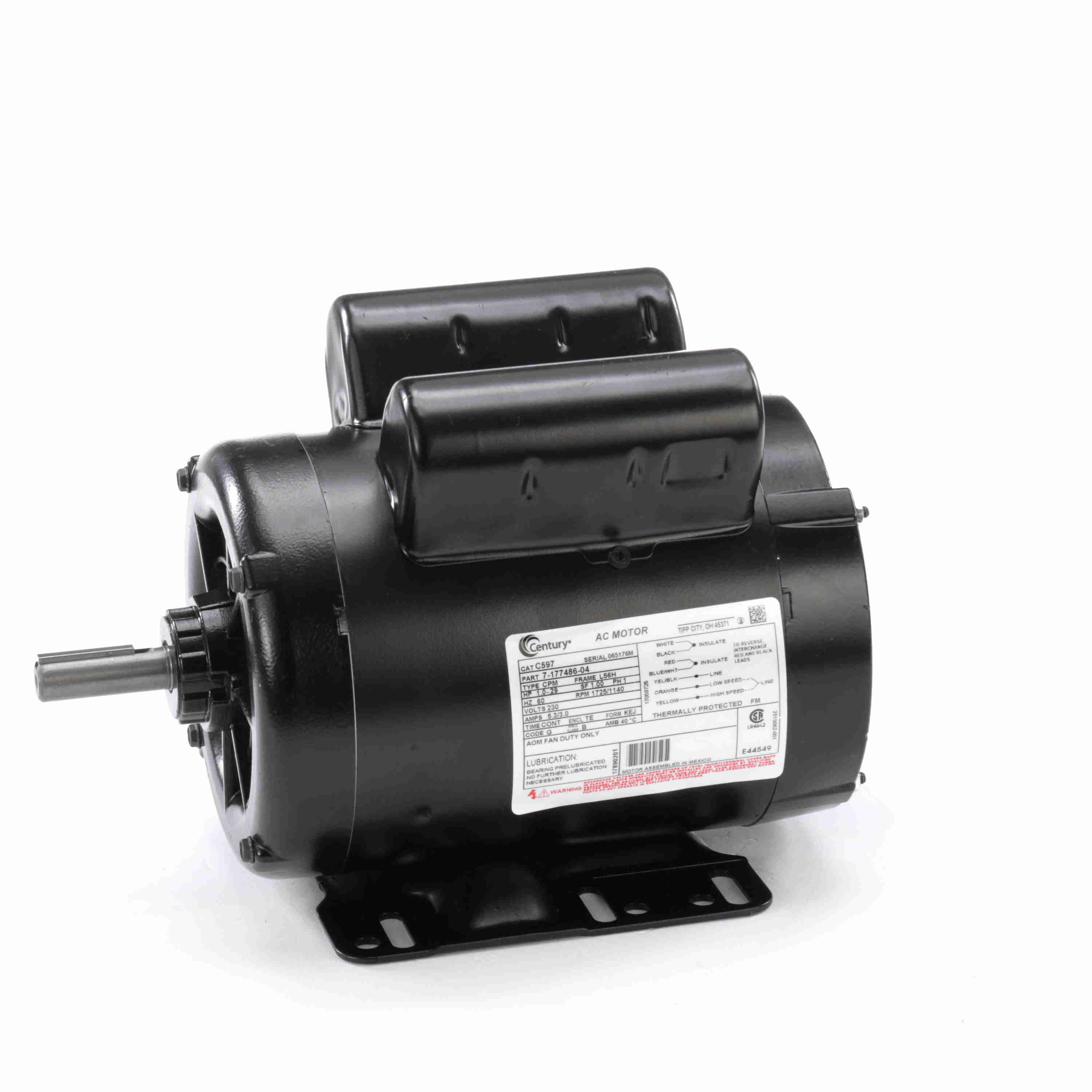

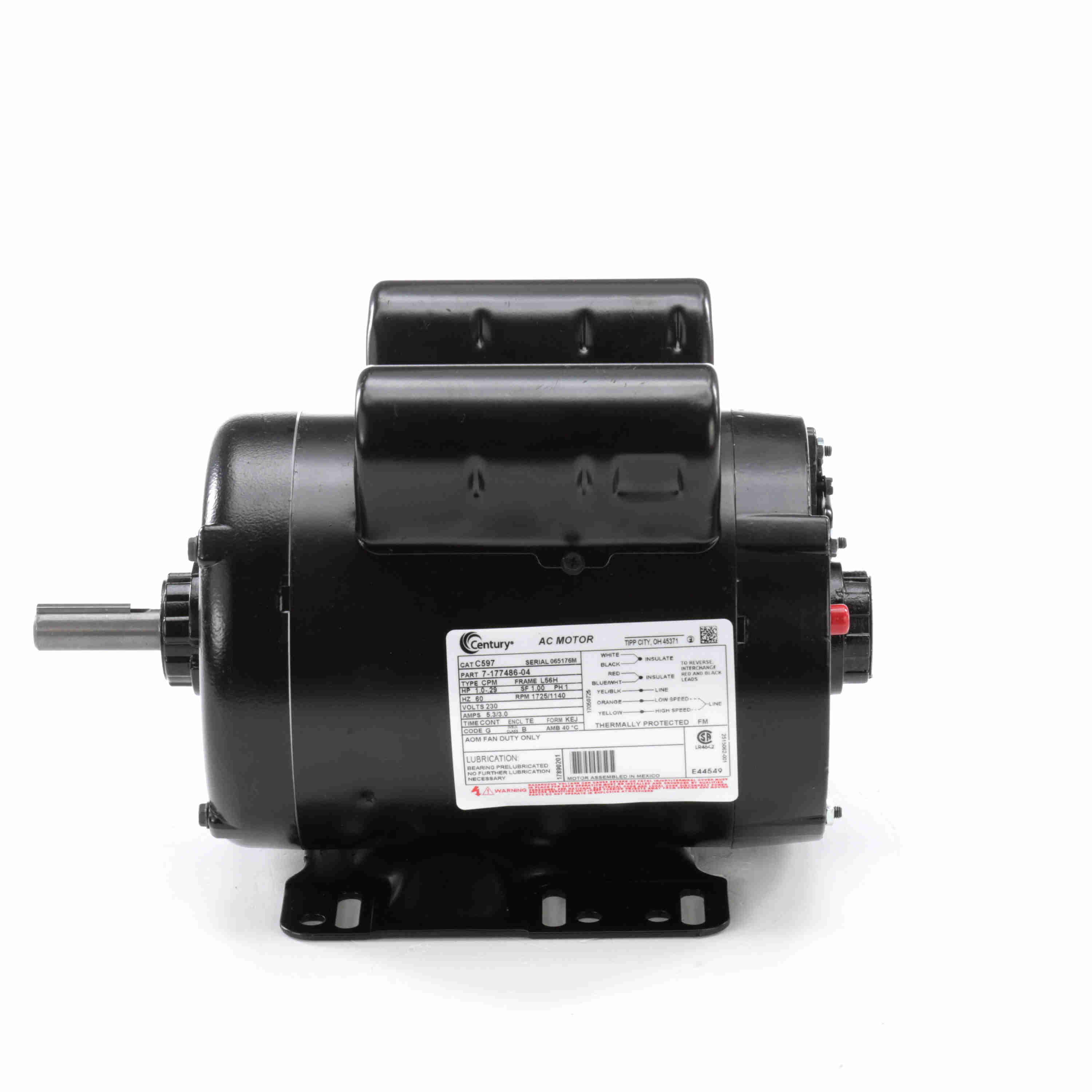

C597 Century 1/0.29HP 2-Speed Cow Cooler Electric Motor, 1725 RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: C597

Selected accessories will also be added to cart
$553.97 / Each
Quantity:
TEAO, L56H Frame, 230V Single Phase 60Hz

Features

Features
  • Low starting torque
  • Energy efficient

General Specifications

General Specifications
Model : Catalog No :C597
Part Description :1-.29,1725,TEAO,56H,1/60/230 Category :Cow Cooler
Stock :Yes

Nameplate Specifications

Nameplate Specifications
Output HP :1.0-.29 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230 V
Current :5.3/3.0 A Speed :1725/1140 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :L56H Enclosure :Totally Enclosed Air Over
Overload Protector :Thermally Protected Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start, Capacitor Run, MultiSpeed Starting Method :Across The Line
Poles :4/6 Rotation :Reversible Counterclockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :12.19 in
Frame Length :6.25 in Shaft Diameter :0.625 in
Shaft Extension :1.94 in UPC :786674016355
Weight :35.00 LB
Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEAO
Horsepower
1HP
Horsepower
0.29HP
Frame
L56H
Speed
1725RPM
