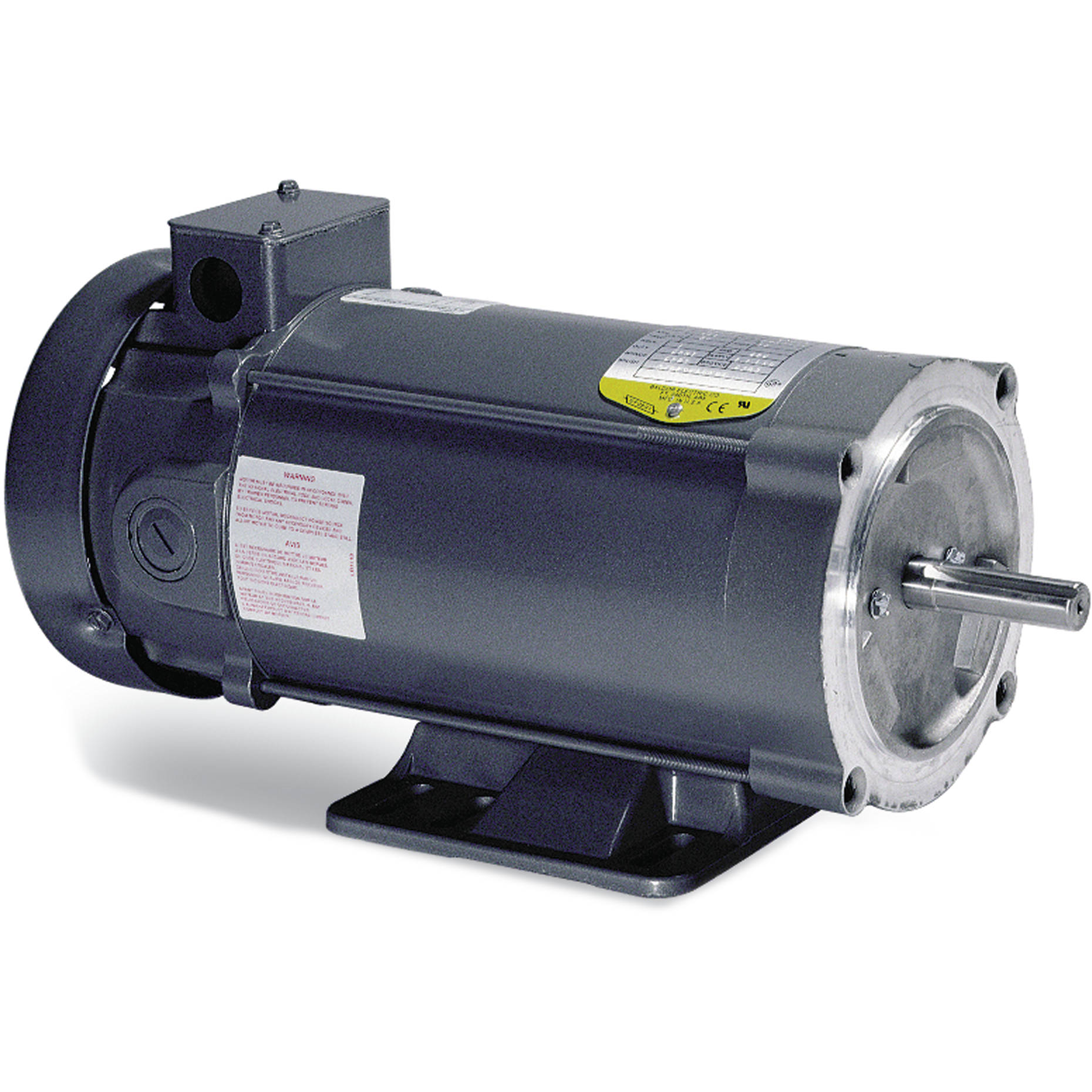

CD3476 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM
Enlarge Photo
Product ID: CD3476
CD3476 Baldor 3/4HP Shunt Wound DC Electric Motor, 1750RPM
MFG: Baldor Electric Company
MFG Part Number: CD3476
Selected accessories will also be added to cart
$1,299.97 / Each
Quantity:
TEFC, 56C Frame, 100/200VDC Field, 180VDC Armature, 3428D, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft
Details
Specs
Specifications
Specs
Armature Voltage
180 V
Base Speed
1750 rpm
Enclosure
TEFC
Field Voltage
100 V
200 V
Frame
56C
Frame Material
Steel
Output Power
0.750 HP
XP Class and Group
None
Agency Approvals
CSA
UR
Ambient Temperature
40 °C
Armature Current
3.9 a
Armature Inertia
6.552 lb-ft2
Base Indicator
Rigid
Bearing Grease Type
Polyrex EM (-20F +300F)
Drip Cover
No Drip Cover
Duty Rating
CONT
Feedback Device
NO FEEDBACK
Field Winding Type
SHUNT
Heater Indicator
No Heater
Insulation Class
F
Lifting Lugs
No Lifting Lugs
Motor Lead Exit
Ko Box
Motor Lead Termination
Flying Leads
Motor Lead Quantity/Wire Size
2 @ 14 AWG
4 @ 18 AWG
Mounting Arrangement
F3
Overall Length
14.84 IN
Product Family
General Purpose
Pulley End Bearing Type
Sealed Bearing
Service Factor
1.00
Shaft Diameter
0.625 IN
Shaft Extension Location
Pulley End
Shaft Ground Indicator
No Shaft Grounding
Shaft Rotation
Reversible
Shaft Slinger Indicator
No Slinger
Motor Standards
NEMA
XP Division
Not Applicable
Applications
Conveyors
Printing and textile equipment
Machine tools
Features
Designed for use with NEMA type K SCR control
20:1 constant torque speed range
NEMA C-face and removable base
NEMA 182 frame and larger – normally closed thermostat on field winding
Class F insulation
1.0 Service Factor
Type
Electric Motor
Frame
56C
Horsepower
3/4HP
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
