/Products/Electric Motors/DC/Baldor/Permanent Magnet/CDP3320 Baldor 1/3HP Permanent Magnet DC Electric Motor, 1750RPM
CDP3320 Baldor 1/3HP Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDP3320

CDP3320 Baldor 1/3HP Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3320

Selected accessories will also be added to cart
$949.97 / Each
Quantity:
TENV, 56C Frame, 90VDC, SCR Drive, 3327P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage90 V
Base Speed1,750 rpm
Frame56C
Frame MaterialSteel
Output Power0.33 hp
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current3.2 A
Armature Inertia10.535lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 18 AWG, A
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length13.19 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger

Applications

  • Conveyors
  • Mixers
  • Packaging machinery

Features

  • NEMA C-face with removable base
  • Tachometer adaptable
  • Class F insulation
  • Double sealed bearings
  • 20:1 constant torque speed range
  • UL and CSA recognized

Nameplate

Nameplate

CAT.NO.CDP3320
SPEC.33-2024Z102
HP.33ENCLTENV
RPM1750
FRAME56CTYPE3327P
ARM V90ARM A3.2
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLY1.3
BRG/DE6203BRG/ODE6203

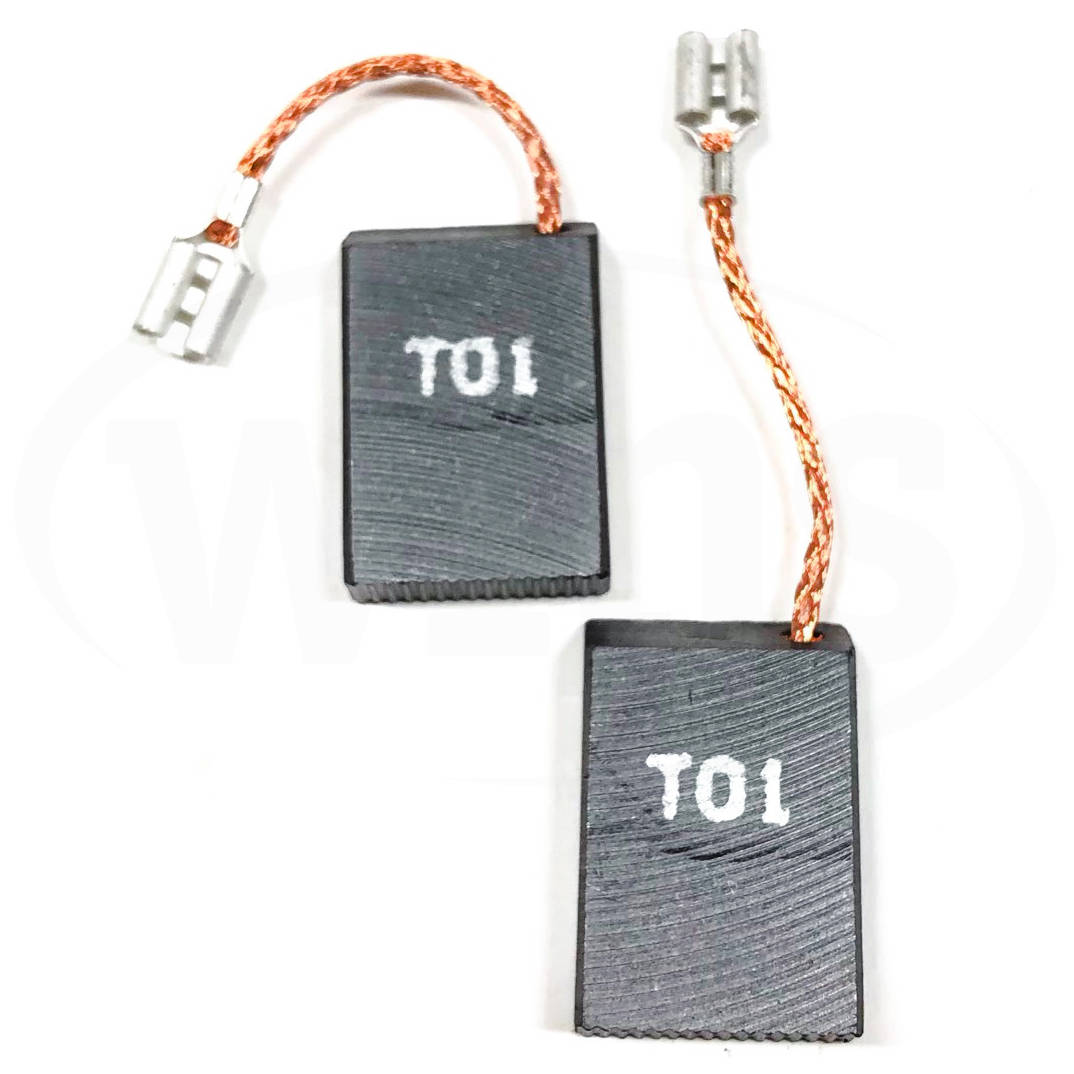

BRUSHES2/BP5011T01
BLANK
SER.
BLANK
APRV-CEYAPRV-CSAYAPRV-ULY
NP0891L

Performance

Performance

Performance at 90 Arm V, 0.33 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.250.851.552.252.93.34.2
RPM1831179617451703166516271592
Torque00.230.490.740.991.231.47

Performance Curves

Type
Electric Motor
Frame
56C
Enclosure
TENV
Horsepower
1/3HP
Input Voltage
90VDC
Input Phase
DC
Speed
1750RPM
