CDP3420-V12 Baldor 1/3HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

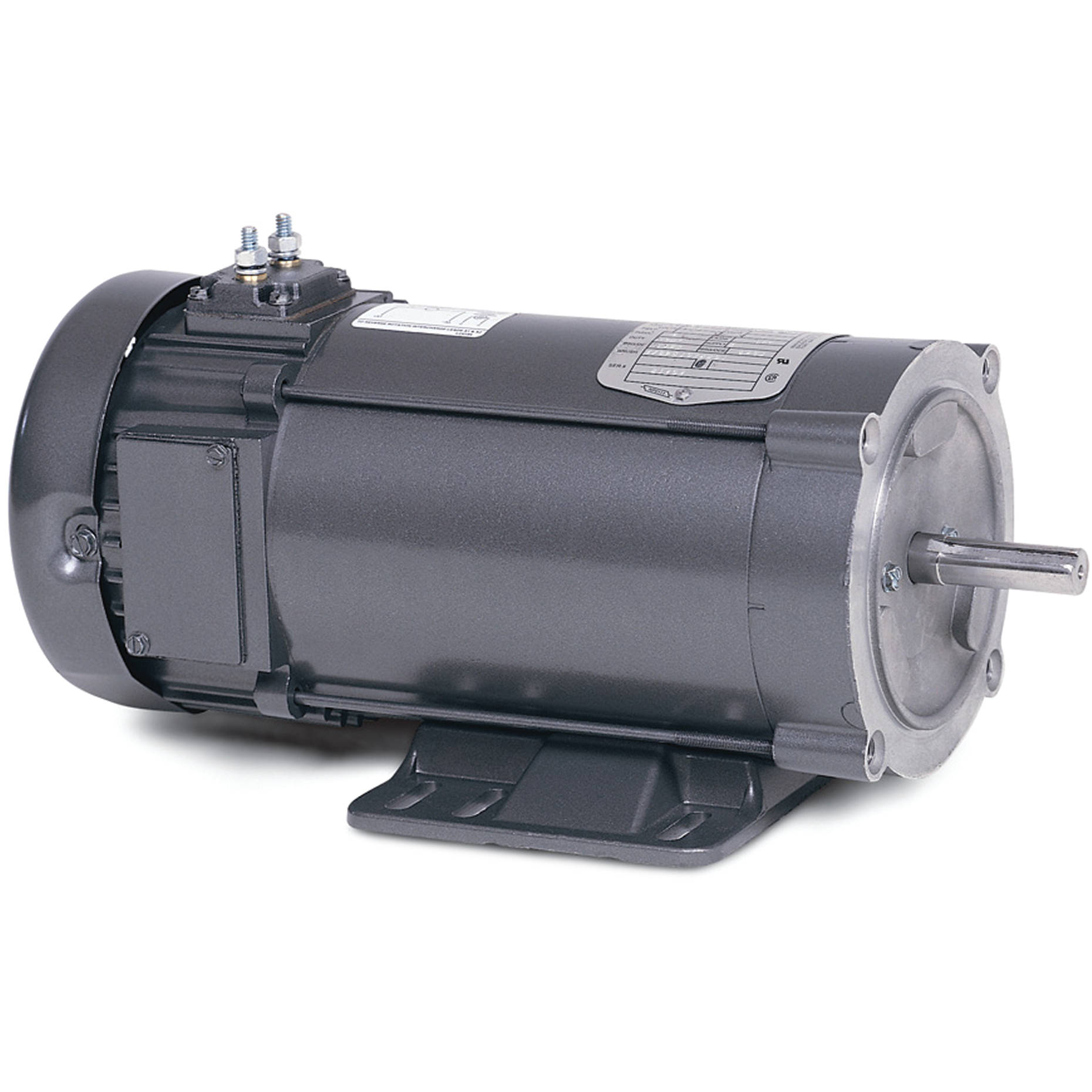

Enlarge Photo

Product ID: CDP3420-V12

CDP3420-V12 Baldor 1/3HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3420-V12

Selected accessories will also be added to cart
$949.97 / Each
Quantity:
TENV, 56C Frame, 12VDC Armarture, 3416P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage12 V
Base Speed1800 rpm
EnclosureTENV
Frame56C
Frame MaterialSteel
Output Power0.330 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current28.6 a
Armature Inertia5.510 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 14 AWG
Mounting ArrangementF1
Overall Length11.60 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO.CDP3420-V12
SPEC.34-6943Z608G2
HP.33ENCLTENV
RPM1800
FRAME56CTYPE3416P
ARM V12ARM A28.6
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLYA
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5104BV01
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L
Type
Electric Motor
Speed
1800RPM
Frame
56C
Enclosure
TENV
Horsepower
1/3HP
Input Phase
DC
Input Voltage
12VDC
