/Products/Electric Motors/DC/Baldor/Low Voltage Permanent Magnet/CDP3430-V24 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

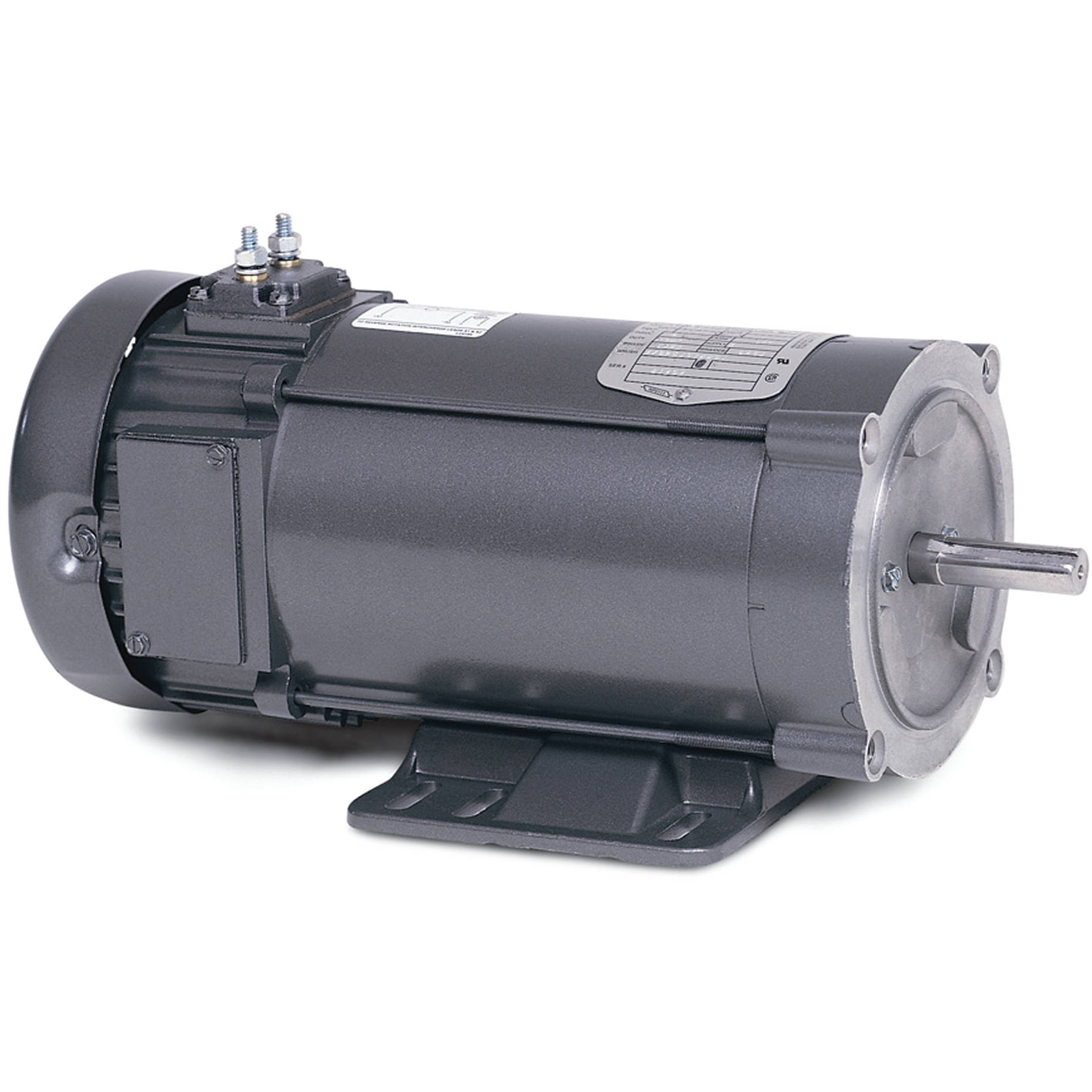

CDP3430-V24 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3430-V24

CDP3430-V24 Baldor 1/2HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3430-V24

Selected accessories will also be added to cart
$939.97 / Each
Quantity:
TENV, 56C Frame, 24VDC Armature, 3424P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage24 V
Base Speed1800 rpm
EnclosureTENV
Frame56C
Frame MaterialSteel
Output Power0.500 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current19.6 a
Armature Inertia8.264 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 12 AWG
Mounting ArrangementF1
Overall Length12.60 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO.CDP3430-V24
SPEC.34-6943Z611G2
HP.5ENCLTENV
RPM1800
FRAME56CTYPE3424P
ARM V24ARM A19.6
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLYA
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5104BV01
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L
Type
Electric Motor
Speed
1800RPM
Frame
56C
Enclosure
TENV
Horsepower
1/2HP
Input Phase
DC
Input Voltage
24VDC
