/Products/Electric Motors/DC/Baldor/Low Voltage Permanent Magnet/CDP3440-V12 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

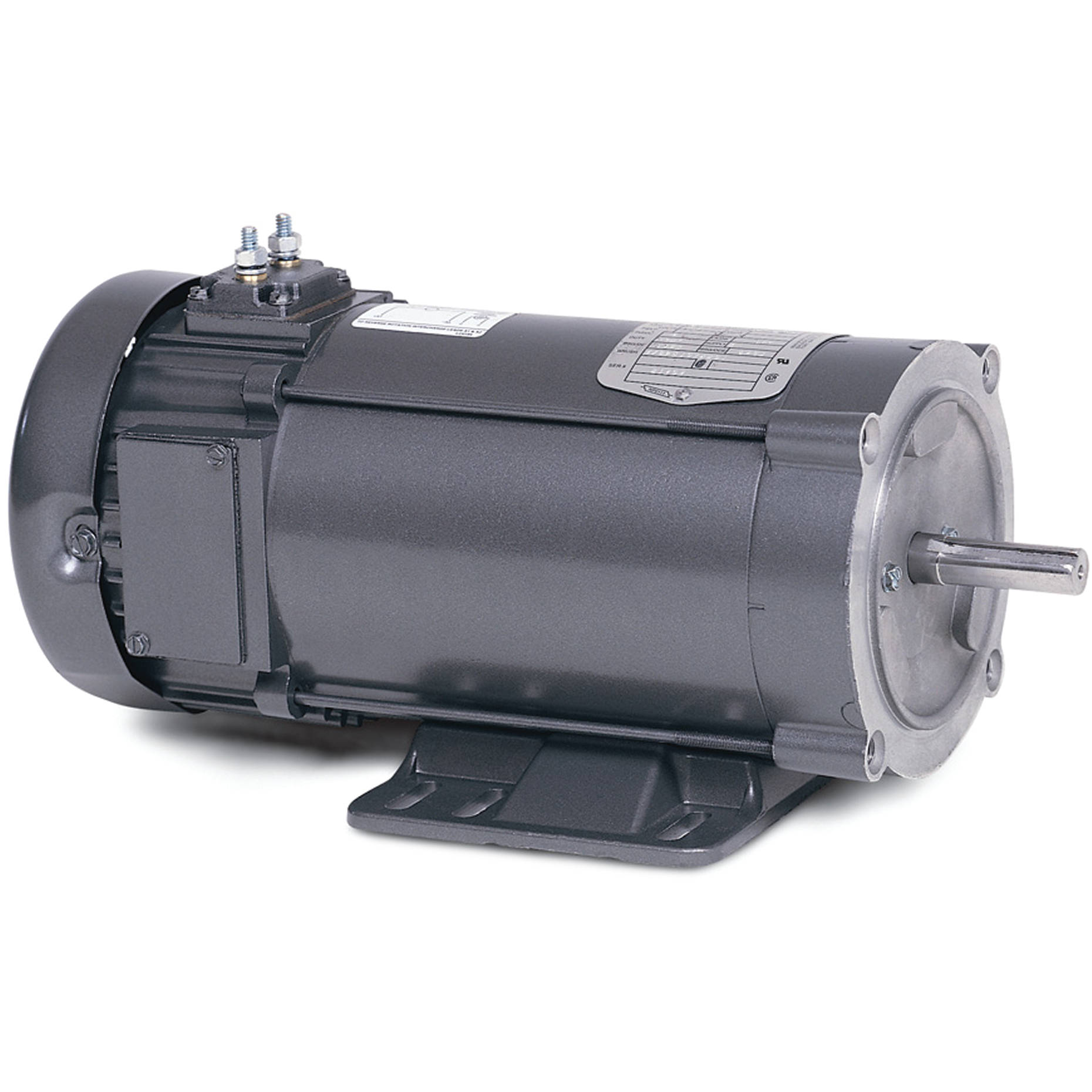

CDP3440-V12 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3440-V12

CDP3440-V12 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3440-V12

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
TEFC, 56C Frame, 12VDC Armature, 3430P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage12 V
Base Speed1800 rpm
EnclosureTEFC
Frame56C
Frame MaterialSteel
Output Power0.750 HP
XP Class and GroupNone
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current66.0 a
Armature Inertia10.330 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitSPECIAL (OLD)
Motor Lead TerminationRing Terminals
Motor Lead Quantity/Wire Size2 @ 8 AWG
Mounting ArrangementF3
Overall Length15.26 IN
Product FamilyGeneral Purpose
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO.CDP3440-V12
SPEC.34-7074Z618
HP.75ENCLTEFC
RPM1800
FRAME56CTYPE3430P
ARM V12ARM A66
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLYA
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5112AU01
BLANK
SER.
BLANK
APRV-CSAAPRV-UL
NP0111L
Type
Electric Motor
Speed
1800RPM
Frame
56C
Horsepower
3/4HP
Input Phase
DC
Enclosure
TEFC
Input Voltage
12VDC
