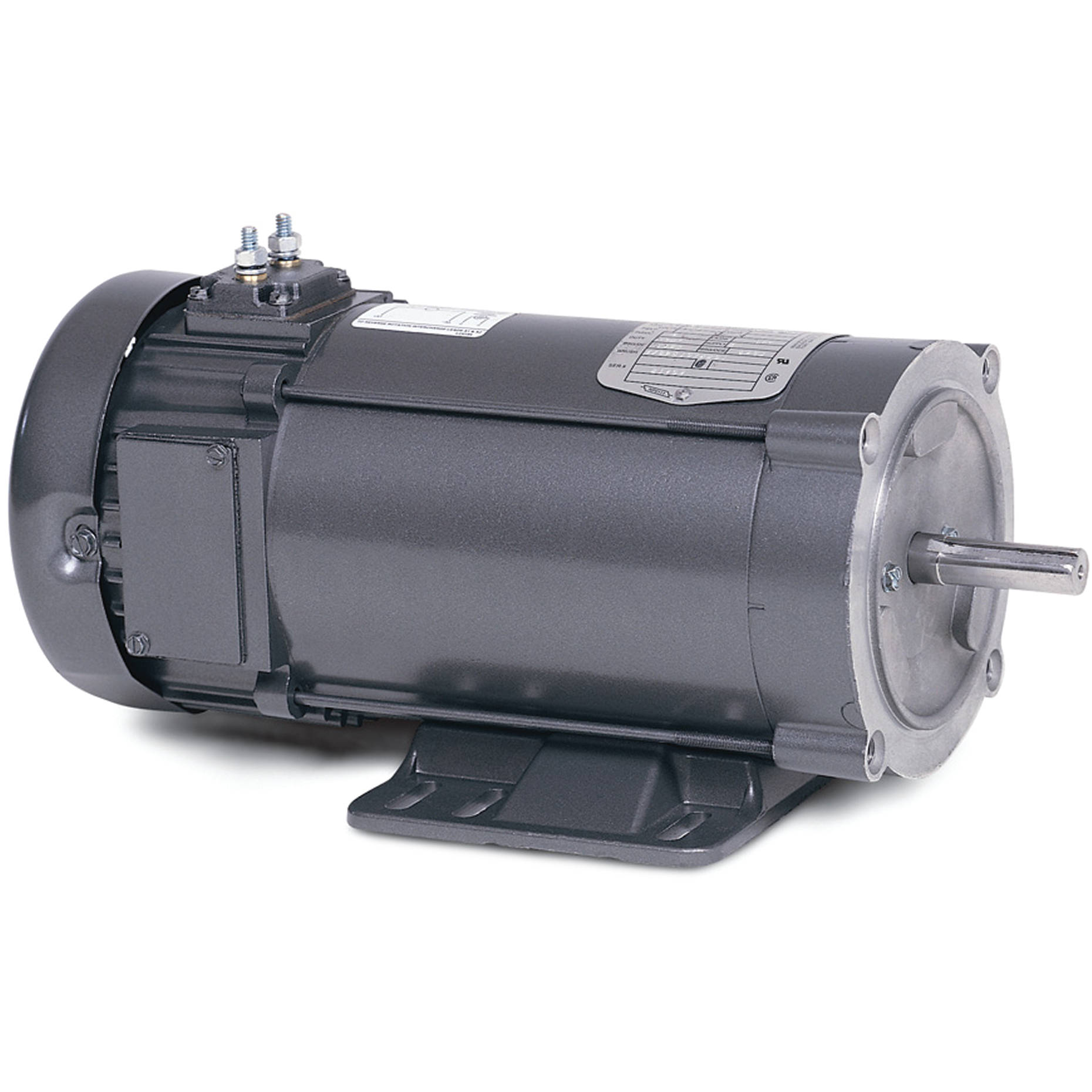

CDP3440-V24 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM
Enlarge Photo

Product ID: CDP3440-V24

CDP3440-V24 Baldor 3/4HP Low Voltage Permanent Magnet DC Electric Motor, 1800RPM

MFG: Baldor Electric Company
MFG Part Number: CDP3440-V24

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
TEFC, 56C Frame, 24VDC Armature, 3424P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage24 V
Base Speed1,800 rpm
Frame56CZ
Frame MaterialSteel
Output Power0.75 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCSA
UR
Ambient Temperature40 °C
Armature Current29.4 A
Armature Inertia8.264lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassH
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 12 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length14.51 in
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
XP DivisionNot Applicable

Applications

  • Battery operation for portable pumps
  • Fans
  • Augers
  • Winches
  • Lifts

Features

  • NEMA C-face
  • Class F insulation
  • Double sealed ball bearings
  • Top-mounted terminal studs for power connection on ratings of 40 Amps and above

Nameplate

Nameplate

CAT.NO.CDP3440-V24
SPEC.34-6893Z611
HP.75ENCLTEFC
RPM1800
FRAME56CZTYPE3424P
ARM V24ARM A29.4
FLD VFLD A
INSULHAMB.40
DUTYCONTSUPPLYA
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5104BV01
BLANK
SER.
BLANK---
APRV-CSAAPRV-UL
NP0111L

Performance

Performance

Performance at 24 Arm V, 0.75 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.0933 ohms
Series Winding Resistance
Armature Inductance0.7493 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia8.2643 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps2.288.0514.0519.825.831.6837
RPM1900184317721709163515741493
Torque00.551.11.652.22.753.3
