/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3310 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

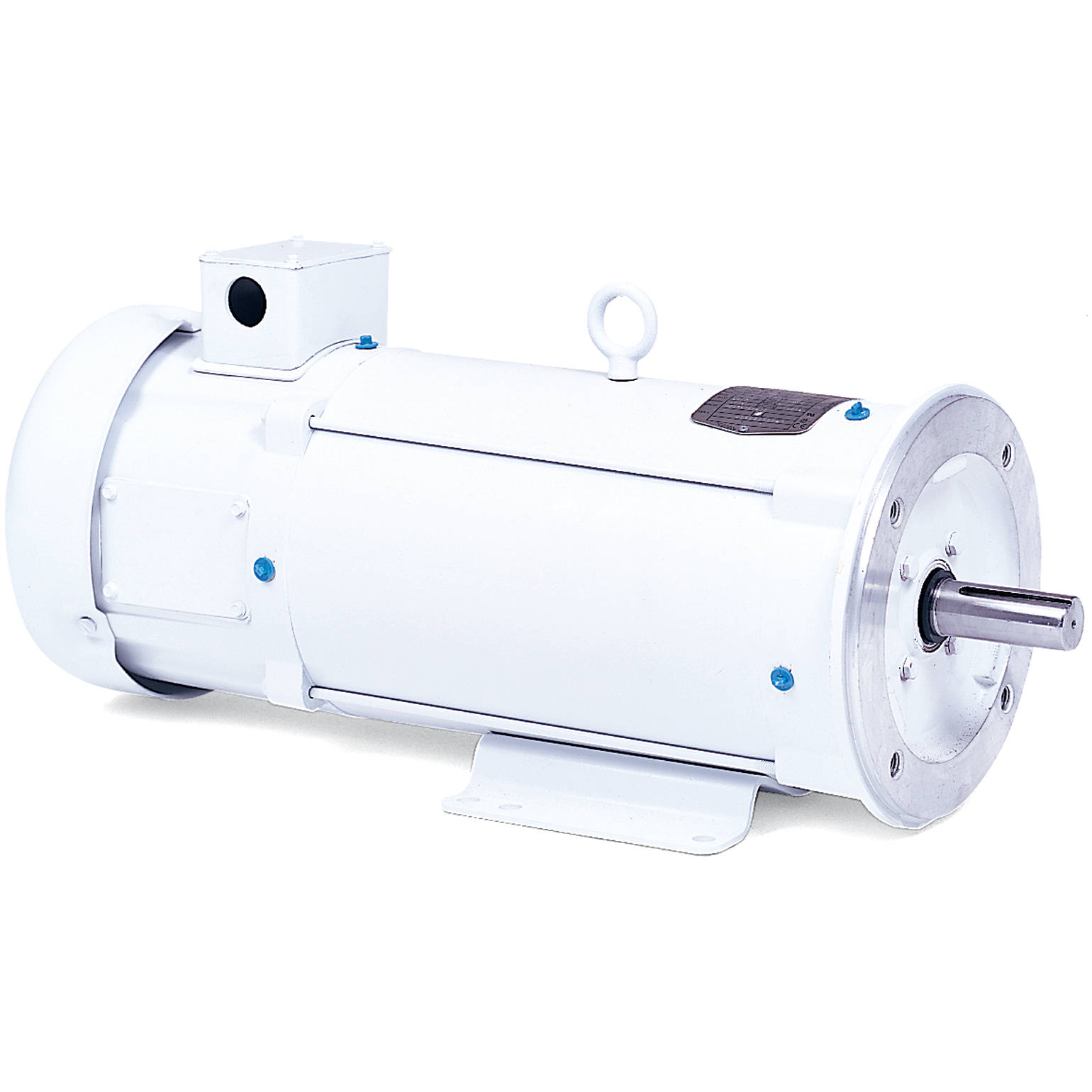

CDPWD3310 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3310

CDPWD3310 Baldor 1/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3310

Selected accessories will also be added to cart
$999.97 / Each
Quantity:
TENV, 56C Frame, 90VDC, SCR Drive, C-Face, Base Mount

Specifications

Specs

Armature Voltage90 V
Base Speed1,750 rpm
Frame56C
Frame MaterialSteel
Output Power0.25 hp
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current2.5 A
Armature Inertia7.804lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 18 AWG, A
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length12.25 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3310
SPEC.33-2142Z118
HP.25ENCLTENV
RPM1750
FRAME56CTYPE3320P
ARM V90ARM A2.5
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLY1.3
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5011T01
BLANK
SER.
BLANK
APRV-CSAAPRV-ULAPRV-CE
NP1509

Performance

Type
Electric Motor
Frame
56C
Enclosure
TENV
Input Voltage
90VDC
Input Phase
DC
Horsepower
1/4HP
Speed
1750RPM
