/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3316 Baldor 1/3HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

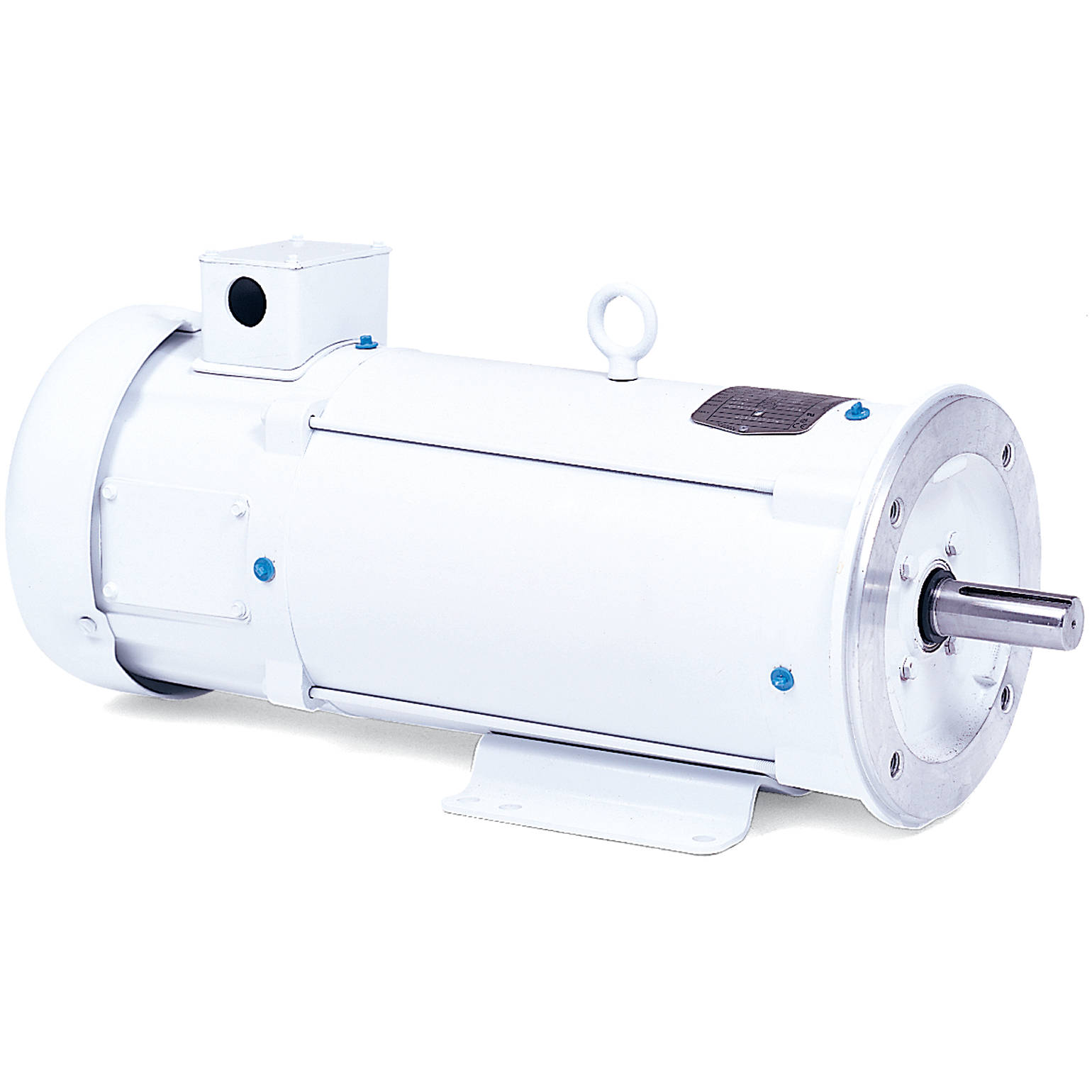

CDPWD3316 Baldor 1/3HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3316

CDPWD3316 Baldor 1/3HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3316

Selected accessories will also be added to cart
$1,099.97 / Each
Quantity:
TENV, 56C Frame, 180VDC, 3327P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage180 V
Base Speed1750 rpm
EnclosureTENV
Frame56C
Frame MaterialSteel
Output Power0.330 HP
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current1.6 a
Armature Inertia6.318 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 18 AWG
Mounting ArrangementF1
Overall Length13.19 IN
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Motor StandardsNEMA

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3316
SPEC.33-2154Z131
HP.33ENCLTENV
RPM1750
FRAME56CTYPE3327P
ARM V180ARM A1.6
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLY1.3
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5011CV01
IP55BLANKIC410
SER.
BLANKKW.25 KG12 1/MIIN
APRV-CSAYAPRV-ULYAPRV-CEY
NP1509
Type
Electric Motor
Frame
56C
Enclosure
TENV
Horsepower
1/3HP
Input Phase
DC
Speed
1750RPM
Input Voltage
180VDC
