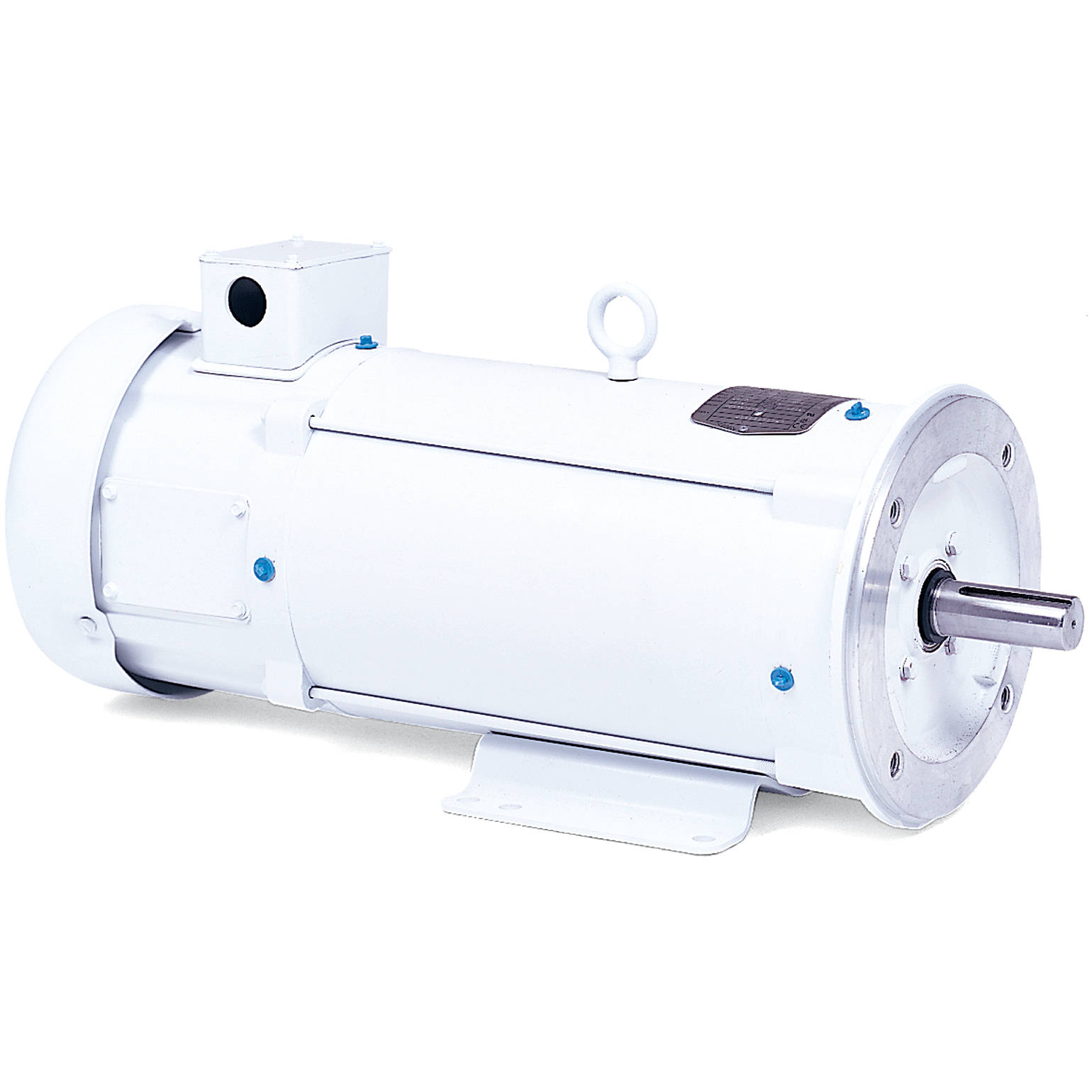

CDPWD3440 Baldor 3/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3440

CDPWD3440 Baldor 3/4HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3440

Selected accessories will also be added to cart
$1,499.97 / Each
Quantity:
TEFC, 56C Frame, 90VDC, SCR Drive, 3428P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage90 V
Base Speed1,750 rpm
Frame56C
Frame MaterialSteel
Output Power0.75 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current7.6 A
Armature Inertia10.926lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 14 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length14.59 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3440
SPEC.34-6418-3662
HP.75ENCLTEFC
RPM1750
FRAME56CTYPE3428P
ARM V90ARM A7.6
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLY1.5
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5000BK08
BLANK
SER.
BLANK
APRV-CSAAPRV-ULAPRV-CE
NP1509

Performance

Performance

Performance at 90 Arm V, 0.75 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance0.7344 ohms
Series Winding Resistance
Armature Inductance6.683 mH
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia10.9256 LI²
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.92.154.525.837.699.611.13
RPM1933188918511825179817591720
Torque00.561.121.682.252.813.38

Performance Curves

Type
Electric Motor
Frame
56C
Horsepower
3/4HP
Input Voltage
90VDC
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
