/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3445 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
CDPWD3445 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3445

CDPWD3445 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3445

Selected accessories will also be added to cart
$1,799.97 / Each
Quantity:
TEFC, 56C Frame, 90VDC, 3435P, Rolled Steel, Rigid Base, C-Face, 5/8" Keyed Shaft

Specifications

Specs

Armature Voltage90 V
Base Speed1750 rpm
EnclosureTEFC
Frame56C
Frame MaterialSteel
Output Power1.000 HP
XP Class and GroupNone
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current10.0 a
Armature Inertia13.657 lb-ft2
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNO FEEDBACK
Heater IndicatorNo Heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKo Box
Motor Lead TerminationFlying Leads
Motor Lead Quantity/Wire Size2 @ 14 AWG, A
Mounting ArrangementF1
Overall Length15.46 IN
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusROHS COMPLIANT
Service Factor1.00
Shaft Diameter0.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Motor StandardsNEMA
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3445
SPEC.34-6418-3675
HP1ENCLTEFC
RPM1750 1/MIN
FRAME56CTYPE3435P
ARM V90ARM A10
FLD VFLD A
INSULFAMB.40
DUTYS1 CONTSUPPLY1.5
BRG/DE6203BRG/ODE6203

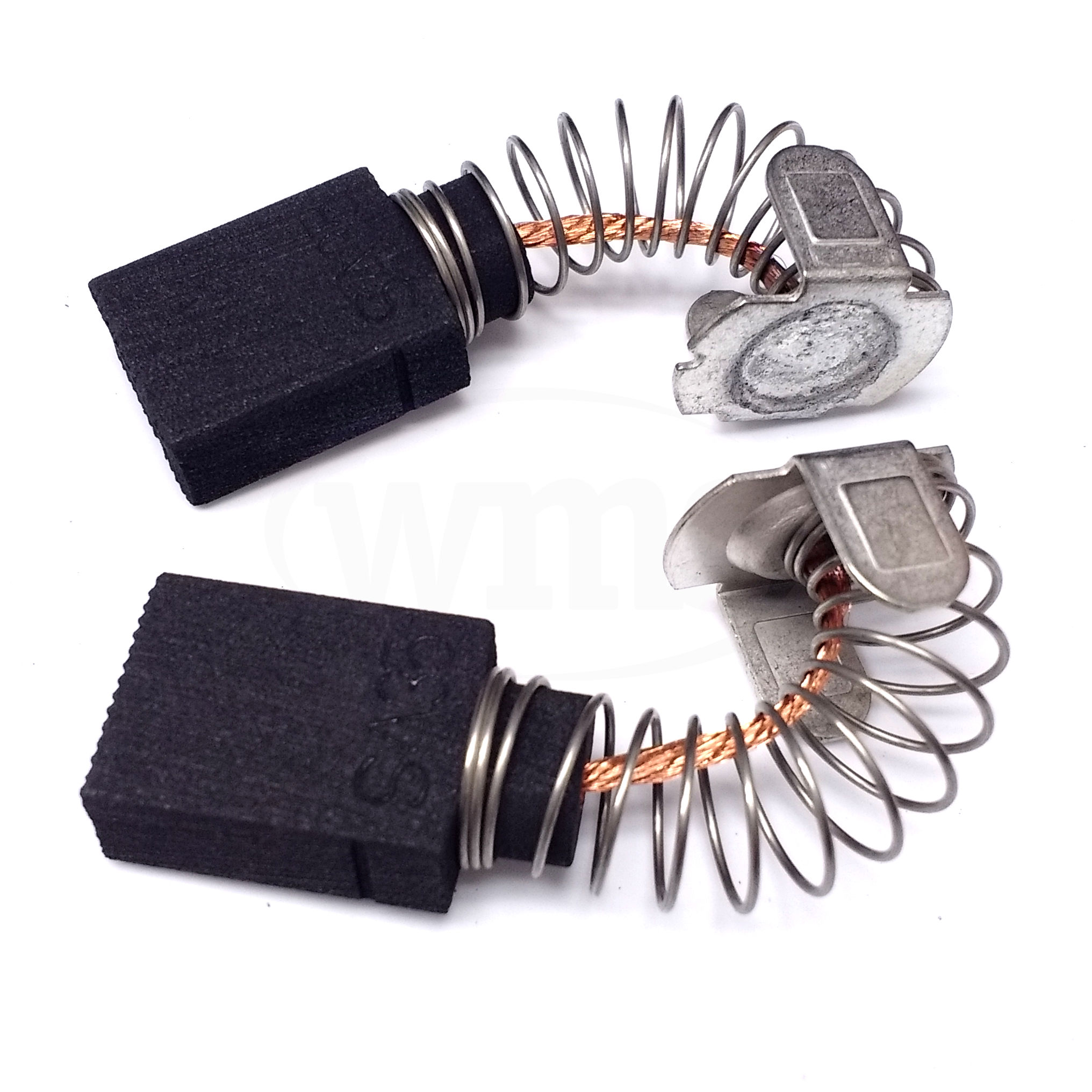

BRUSHES2/BP5000BK08
BLANKIP55
SER.
BLANKKW.74 KG20 IC411
APRV-CSAYAPRV-ULYAPRV-CEY
NP1509
Type
Electric Motor
Frame
56C
Horsepower
1HP
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
Input Voltage
90VDC
