/Products/Electric Motors/DC/Baldor/Washdown Permanent Magnet/CDPWD3455 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

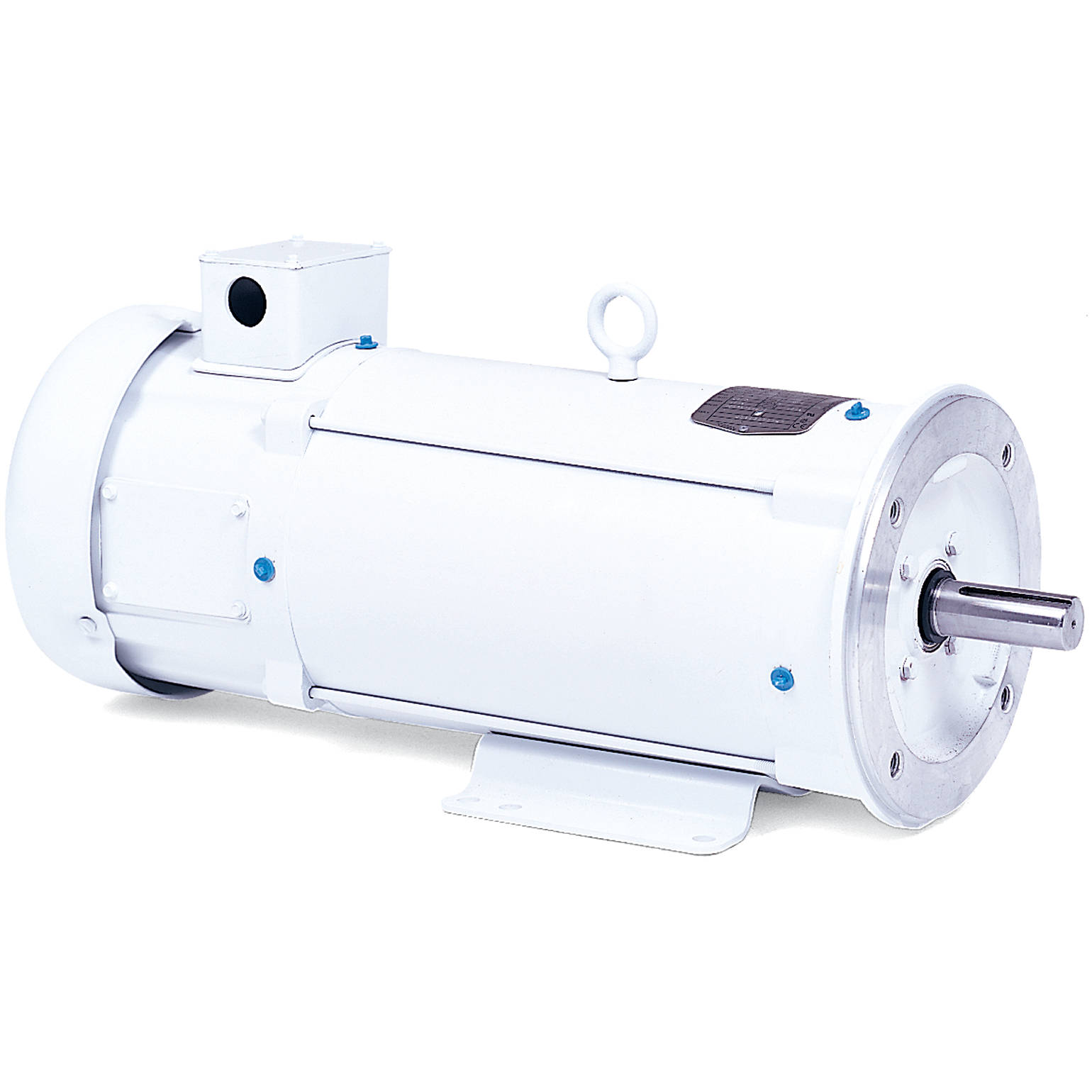

CDPWD3455 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM
Enlarge Photo

Product ID: CDPWD3455

CDPWD3455 Baldor 1HP Washdown Permanent Magnet DC Electric Motor, 1750RPM

MFG: Baldor Electric Company
MFG Part Number: CDPWD3455

Selected accessories will also be added to cart
$1,799.97 / Each
Quantity:
TEFC, 56C Frame, 180VDC, SCR Drive, 3435P, C-Face, Foot Mount

Specifications

Specs

Armature Voltage180 V
Base Speed1,750 rpm
Frame56C
Frame MaterialSteel
Output Power1 hp
XP Class and GroupNONE
BrandBaldor-Reliance
Agency ApprovalsCE
CSA
UR
WEEE
Ambient Temperature40 °C
Armature Current5.0 A
Armature Inertia13.657lb-ft2
Base IndicatorRigid
Bearing Grease TypePOLYREX EM (-20F +300F)
Drip CoverNo Drip Cover
Duty RatingCONT
Feedback DeviceNo feedback
Heater IndicatorNo heater
Insulation ClassF
Lifting LugsNo Lifting Lugs
Motor Lead ExitKO Box
Motor Lead Quantity/Wire Size2 @ 14 AWG, A
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Overall Length15.46 in
Product FamilyWash Down
Pulley End Bearing TypeSealed Bearing
RoHS StatusRoHS Compliant
Service Factor1.00
Shaft Diameter0.625 in
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
XP DivisionNot Applicable

Applications

  • Food processing conveyors
  • Feeders

Features

  • Moisture sealant on bolt heads between frame and endplates
  • Neoprene gasketed conduit box
  • Double sealed bearings
  • Forsheda® running contact V-Ring slinger
  • Stainless steel shaft
  • Class F Insulation
  • Tachometer adaptable
  • Suitable for high pressure washdown

Nameplate

Nameplate

CAT.NO.CDPWD3455
SPEC.34-6418-3865
HP1ENCLTEFC
RPM1750
FRAME56CTYPE3435P
ARM V180ARM A5
FLD VFLD A
INSULFAMB.40
DUTYCONTSUPPLY1.5
BRG/DE6203BRG/ODE6203
BRUSHES2/BP5000AW14
BLANK
SER.
BLANK
APRV-CSAAPRV-ULAPRV-CE
NP1509

Performance

Performance

Performance at 180 Arm V, 1 HP

Typical performance; not guaranteed values.

General Characteristics

Armature Resistance1.9971 ohms
Series Winding Resistance
Armature Inductance
Maximum Rated RPM With Field Weakening
Commutating Winding Resistance
Shunt Winding Resistance
Armature Inertia
Maximum Allowable Inrush Amps

Load Characteristics

Load Point1234567
Armature Amps0.231.412.523.664.837.059.26
RPM1870182917941755172016431590
Torque00.751.512.263.054.556.03

Performance Curves

Type
Electric Motor
Frame
56C
Horsepower
1HP
Input Voltage
180VDC
Input Phase
DC
Enclosure
TEFC
Speed
1750RPM
