/Products/Electric Motors/3 Phase/Baldor 3-Phase Electric Motors/TE - C-Face, Foot Mounted/CEM4316T Baldor Reliance 75 HP, 3-Phase, 1780RPM Industrial Electric Motor
Click Image to Expand

Product ID: CEM4316T

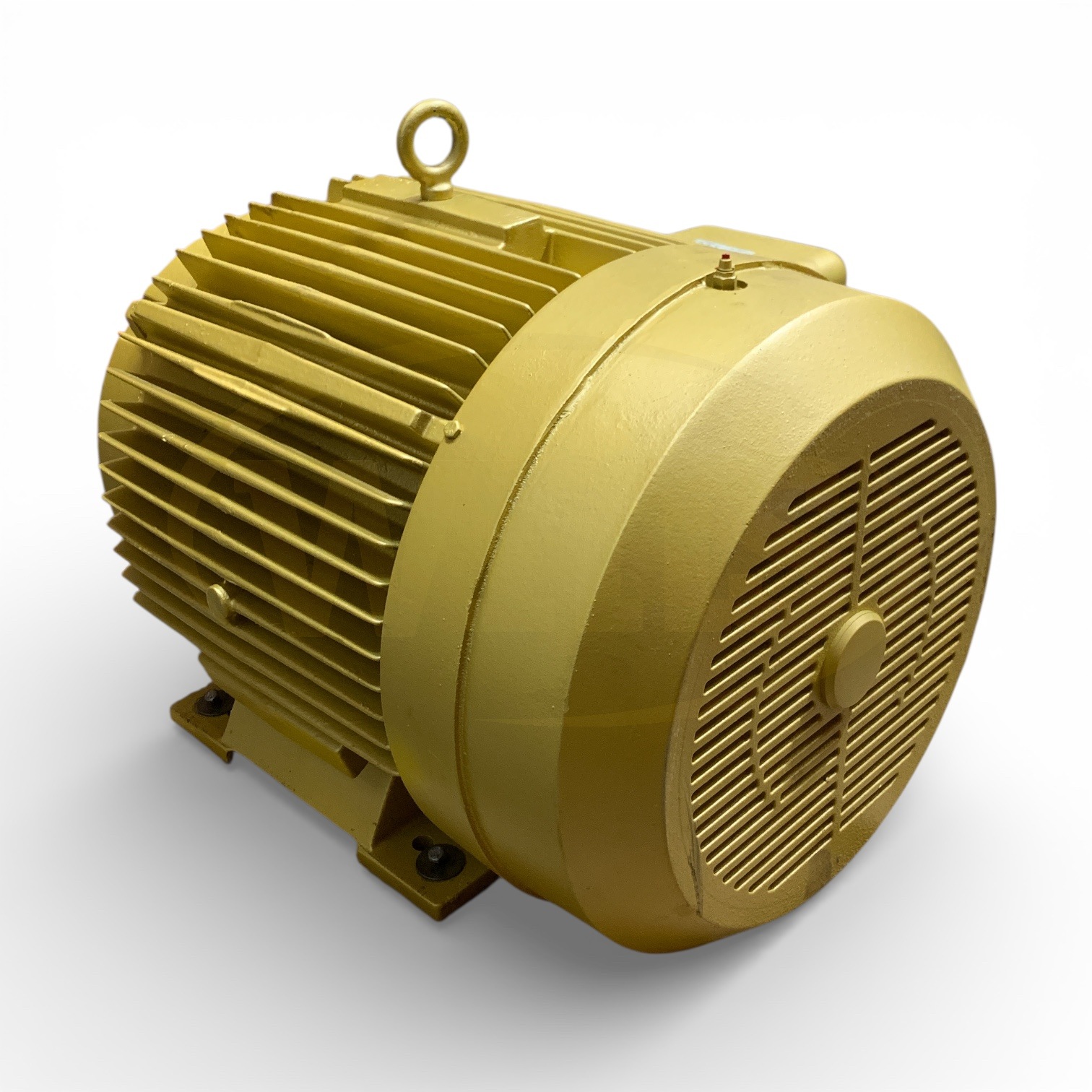

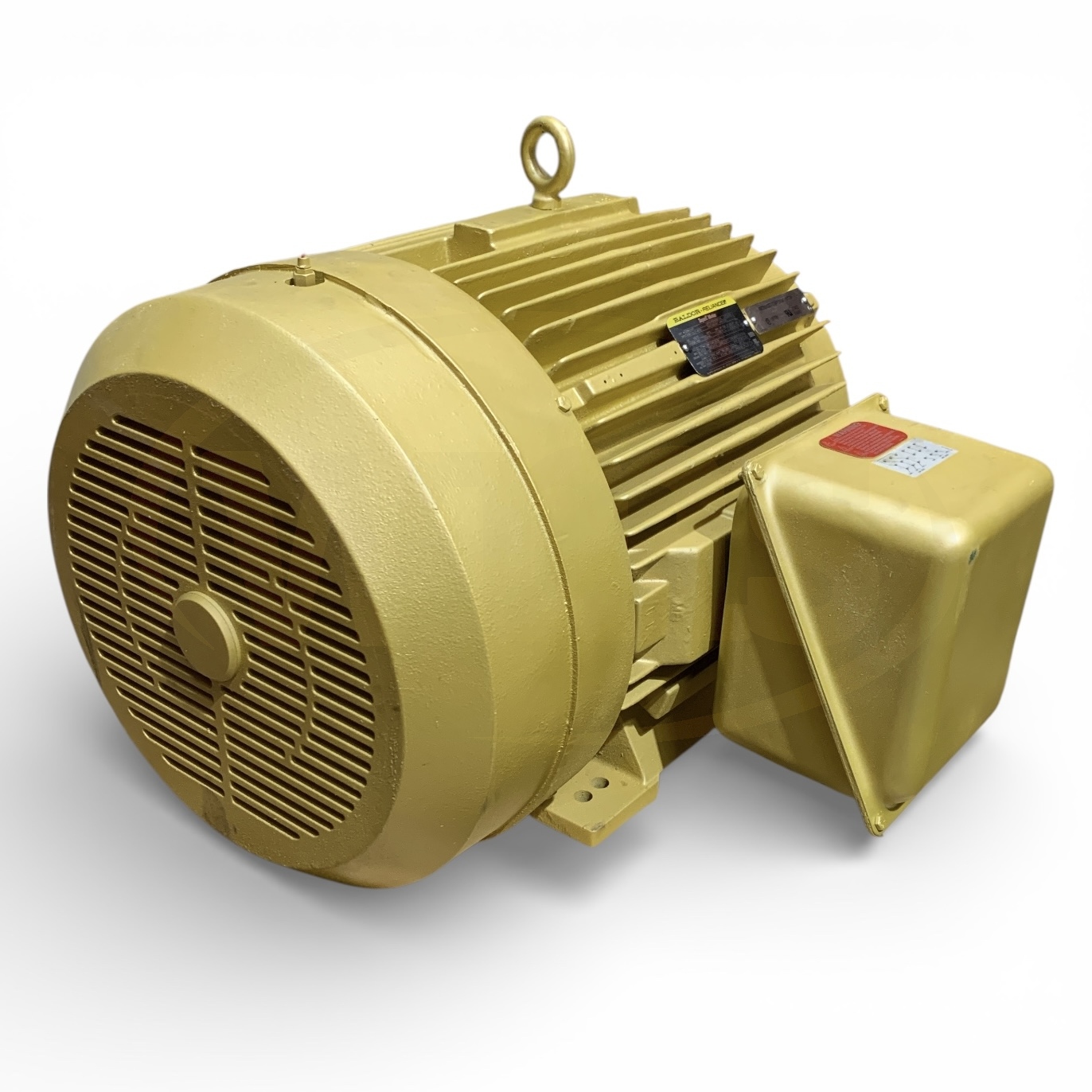

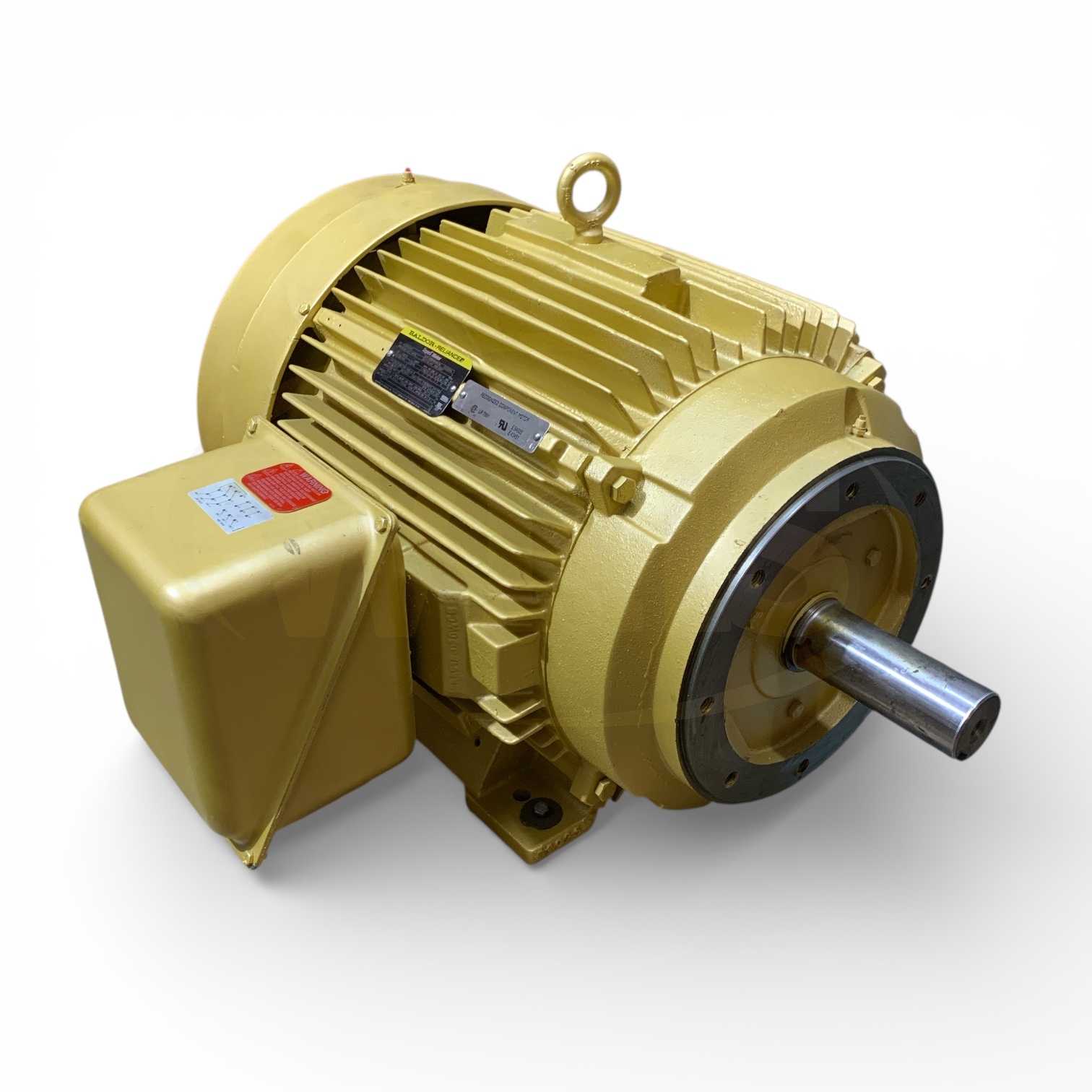

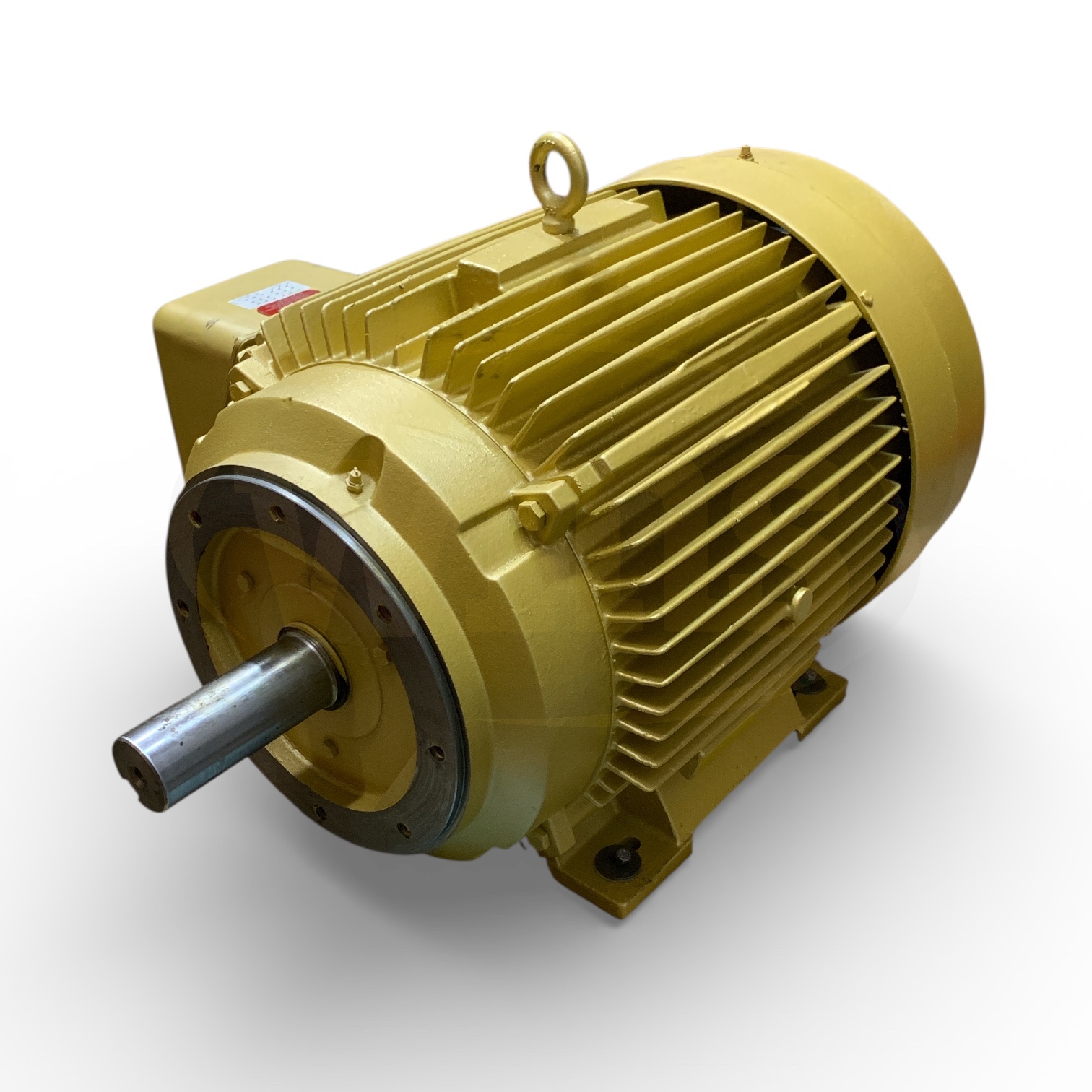

CEM4316T Baldor Reliance 75 HP, 3-Phase, 1780RPM Industrial Electric Motor

MFG: Baldor Electric Company
MFG Part Number: CEM4316T

Available Stock: 1
Selected accessories will also be added to cart
$12,867.97 / Each
Quantity:
TEFC, 365TC Frame, 230/460VAC 60Hz 3 Phase, A36070M, Cast Iron Frame, Rigid Base, C-Face, 2-3/8" Keyed Shaft

Specifications

Specs

Catalog NumberCEM4316T
EnclosureTEFC
Frame365TC
Frame MaterialIron
Frequency60.00 Hz
Output @ Frequency75.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency460.0 V @ 60 HZ
230.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsUR
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Base IndicatorRigid
Bearing Grease TypePolyrex EM (-20F +300F)
Current @ Voltage187.000 A @ 208.0 V
Design CodeB
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load95.4 %
Enclosure ModificationSevere Duty Features
Feedback DeviceNO FEEDBACK
High Voltage Full Load Amps86.0 a
Heater IndicatorNo Heater
Insulation ClassF
Inverter CodeInverter Ready
IP RatingNONE
KVA CodeG
Lifting LugsNo Lifting Lugs
Max Speed2700 rpm
Motor Lead Quantity/Wire Size3 @ 4 AWG
Motor TypeA3670M
Mounting ArrangementF1
Number of Poles4
Overall Length33.44 IN
Power Factor86
Pulley End Bearing TypeBall
Pulley Face CodeP-Base
Service Factor1.15
Shaft Diameter2.374 IN
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorNo Slinger
Speed1780 rpm
Speed CodeSingle Speed
Motor StandardsNEMA
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone

Applications

Features

Nameplate

Nameplate

CAT #CEM4316TSERCC010A
SPECA36-1117-4076RATING40C AMB-CONT
HZ VOLTS AMPS RPM HPCODESFDESPFNEMA NOM. EFF
60230/460172/86178075G1.15B86%95.4%
-%%
PH3CLFMAX CORR KVAR15.8USABLE AT 208V188A
BRGDE6313ODE6313ENCLTEFCFR365TCIP54
GREASEPOLYREX EMMTR WT923LBS
USABLE AT50HZ 60HP 190/380V 168/84ASF1.0
INVERTER DUTYCT15-60HZ4:1VT3-60HZ20:1CHP60-90HZ1.5:11.0 SF VPWM
MAX RPM2700
NP3979LUA
Type
Electric Motor
Horsepower
75HP
Enclosure
TEFC
Input Phase
3-Phase
Frame
365TC
Speed
1780RPM
Color
Gold
Input Voltage
230VAC
Input Voltage
460VAC
