/Products/Electric Motors/Single Phase/Century/Convection Oven/Century F266 Convection Oven Motor, 1/3HP 1725RPM
Click Image to Expand

Product ID: F266

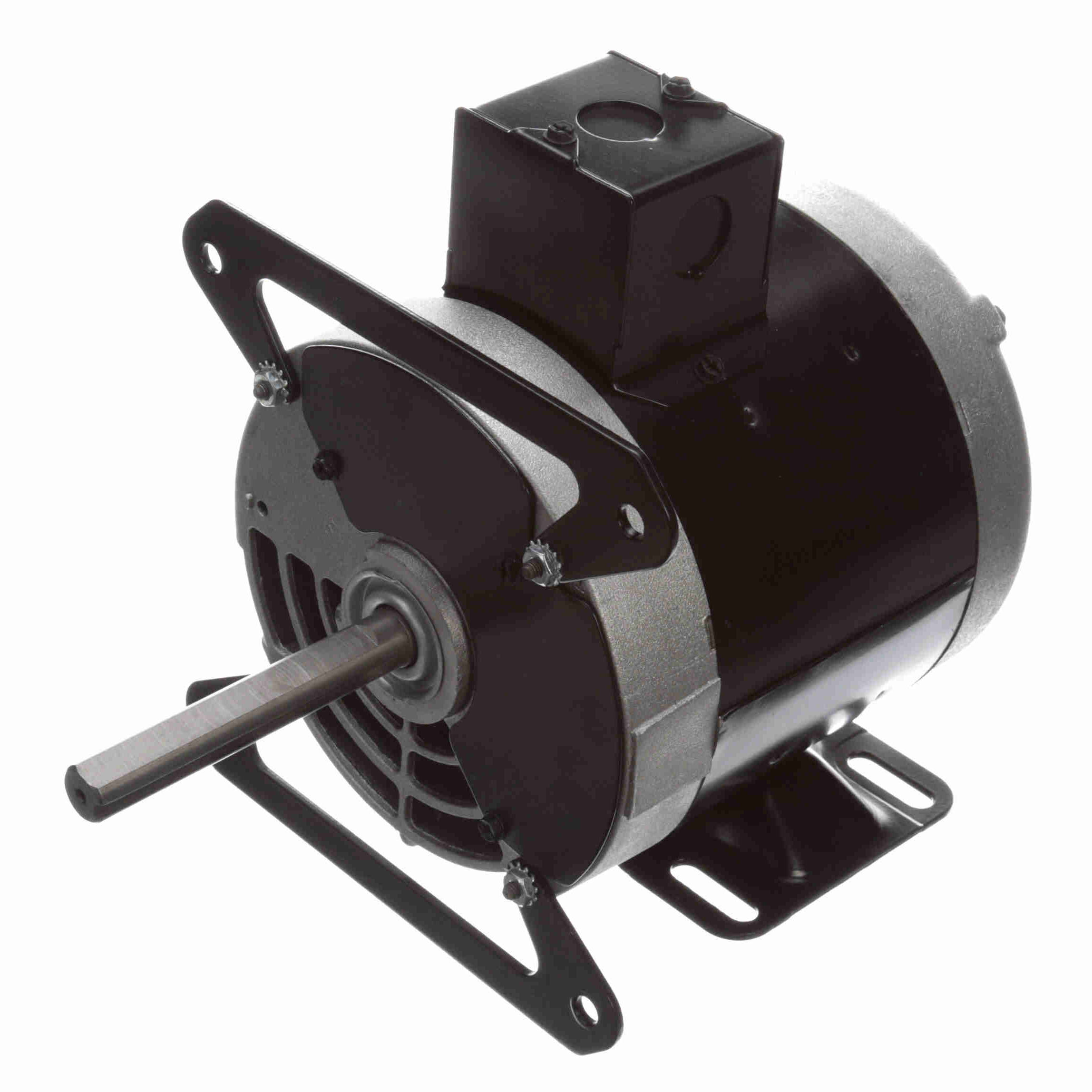

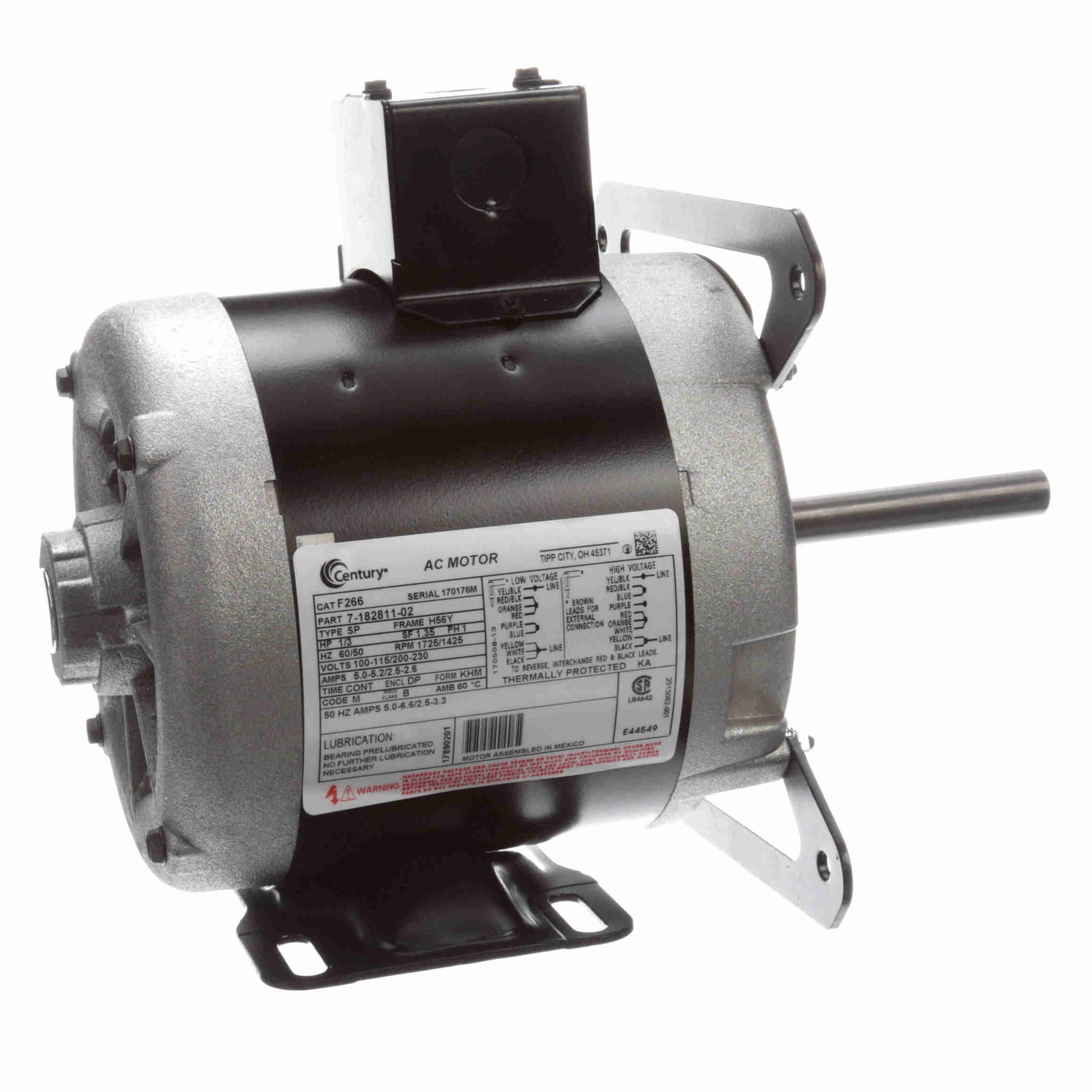

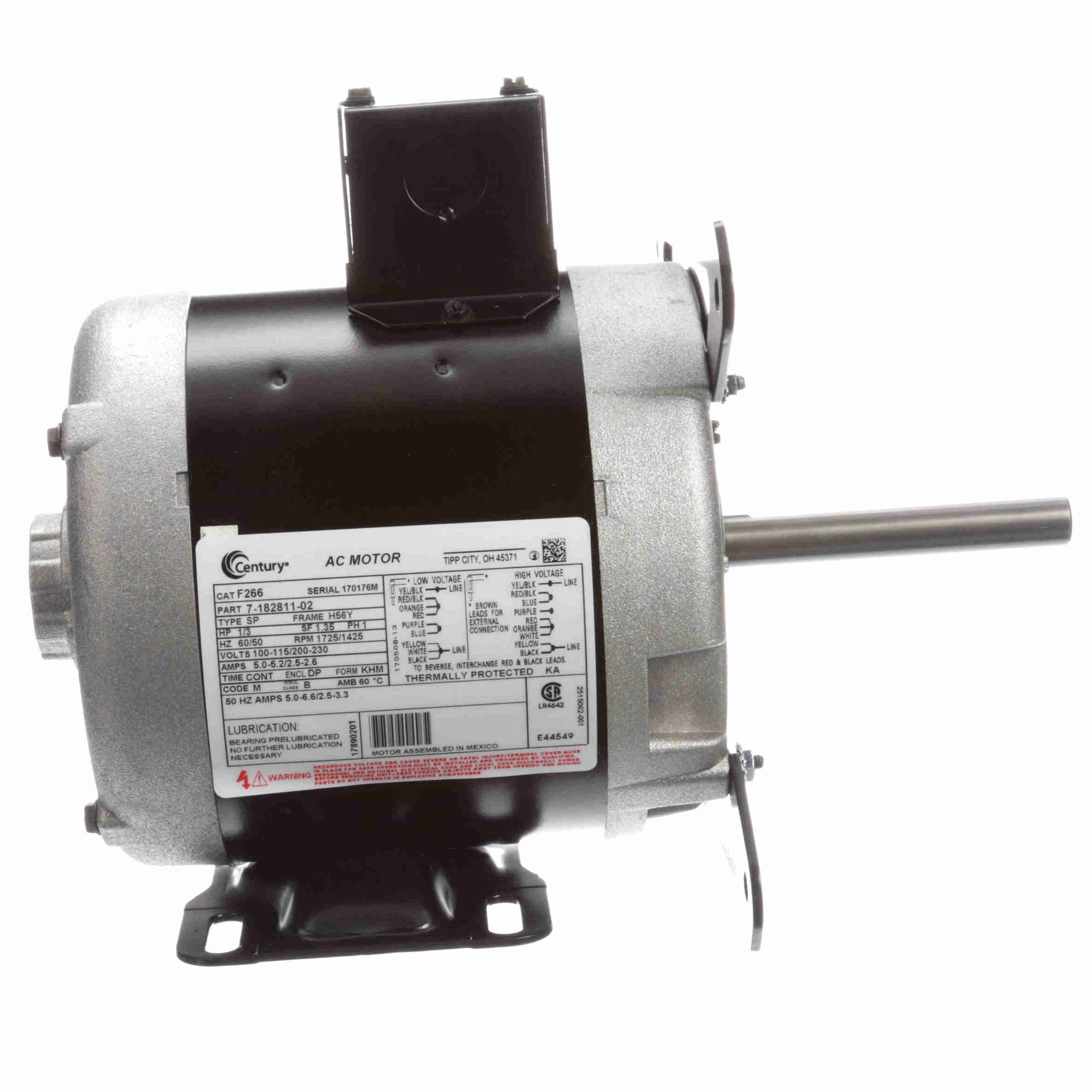

Century F266 Convection Oven Motor, 1/3HP 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: F266

Available Stock: 1
Selected accessories will also be added to cart
$605.97 / Each
Quantity:
H56Y Frame, 100-115/200-230V 60Hz 1-Phase, Drip Proof
Features
  • Double sealed ball bearings
  • Automatic reset overload protector
  • Proofing switch included
General Specifications
Model : Catalog No :F266
Part Description :1/3,1725,DP,56Y,1/60/100-115/200-230 Category :Convection and Pizza Oven
Stock :Yes
Nameplate Specifications
Output HP :1/3 Hp Output KW :0.25 kW
Frequency :60 Hz Voltage :100-115/200-230 V
Current :5.0-5.2/2.5-2.6 A Speed :1725/1425 rpm
Service Factor :1.35 Phase :1
Duty :Continuous Insulation Class :B
Frame :H56Y Enclosure :Drip Proof
Overload Protector :Thermally Protected Ambient Temperature :60 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Split Phase, Induction Run, Single Or Dual Voltage Starting Method :Across The Line
Poles :4 Rotation :Reversible Clockwise
Mounting :Rigid Base Drive End Bearing :Ball
Opp Drive End Bearing :Ball Frame Material :Rolled Steel
Shaft Type :Keyed Overall Length :11.62 in
Frame Length :4.13 in Shaft Diameter :0.625 in
Shaft Extension :4 in UPC :786674019868
Weight :25.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/3HP
Frame
H56Y
Enclosure
DP
