/Products/Electric Motors/Single Phase/Century/Oil Burner/Century OL1052DS Oil Burner Motor, 1/2HP 3450RPM
Click Image to Expand

Product ID: OL1052DS

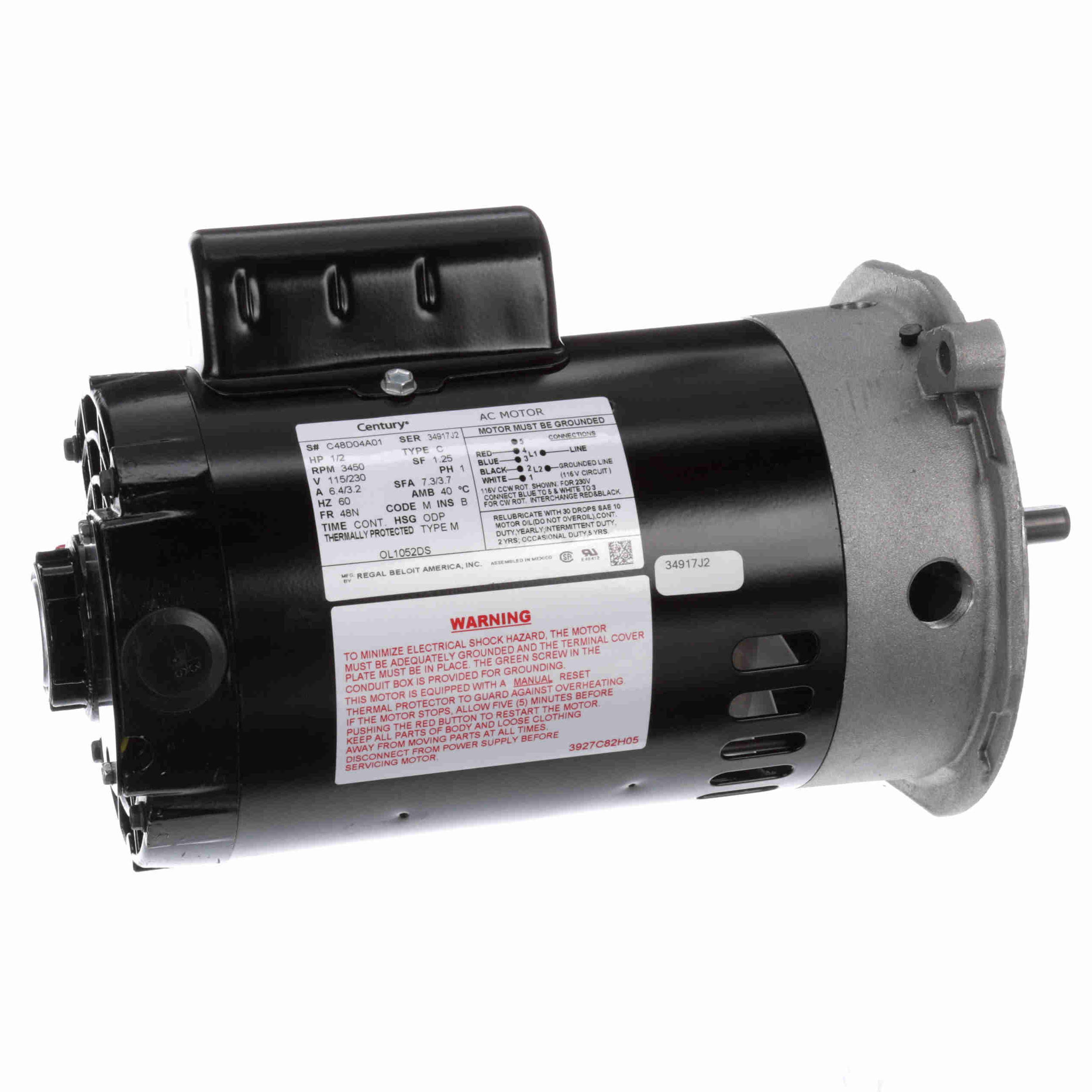

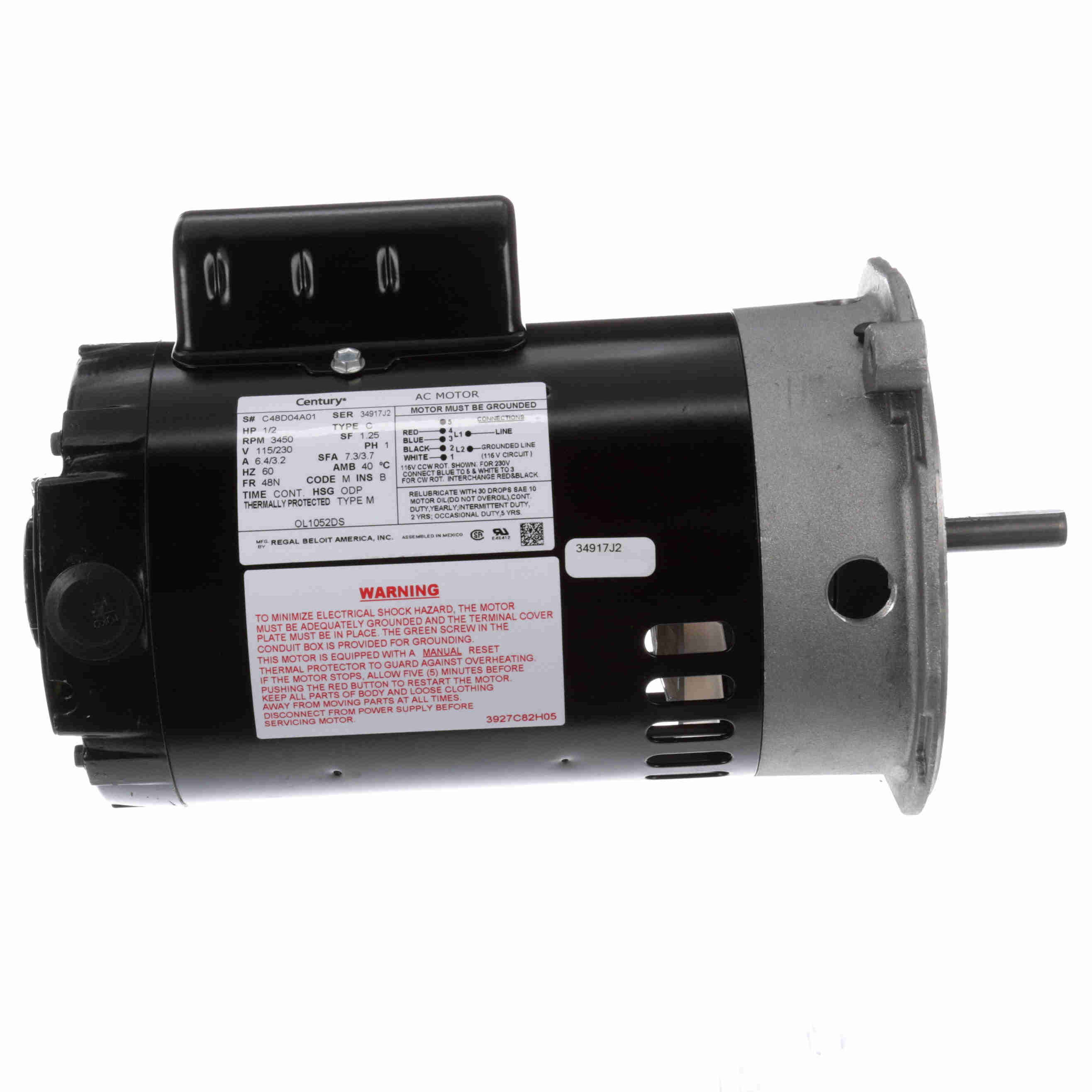

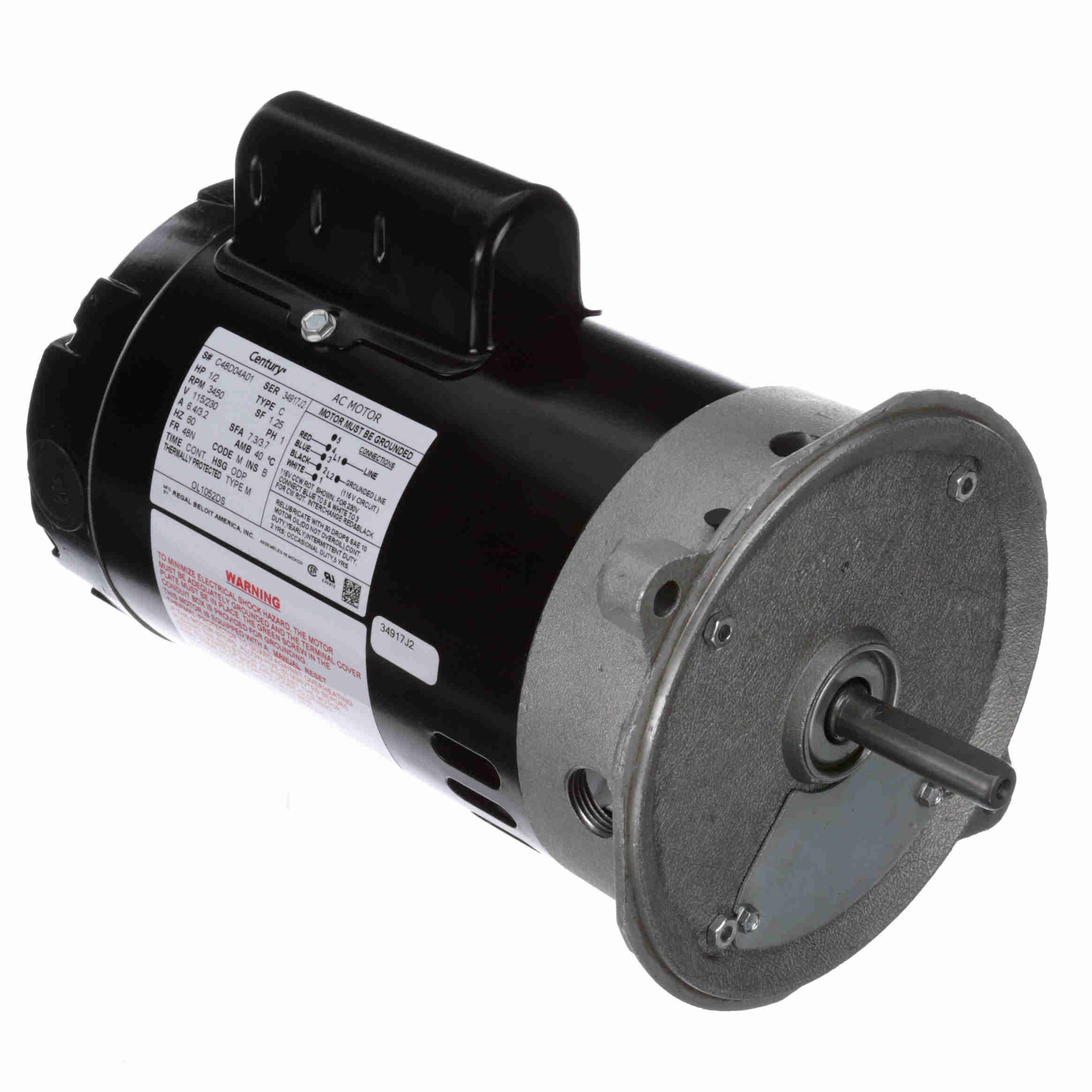

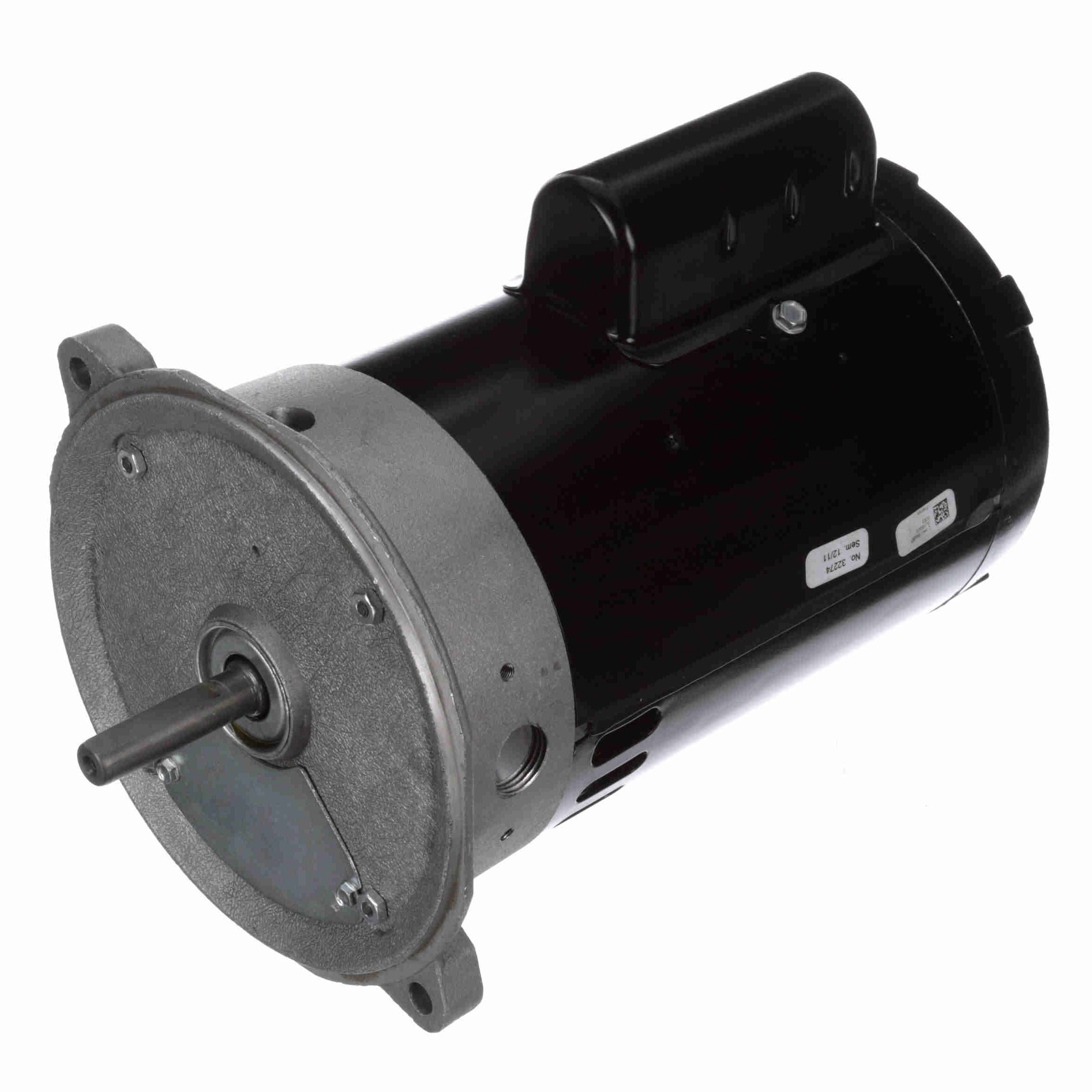

Century OL1052DS Oil Burner Motor, 1/2HP 3450RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: OL1052DS

Selected accessories will also be added to cart
$598.97 / Each
Quantity:
New, Surplus Stock
Features
  • Sleeve bearing
  • "Quick connect" terminal board
General Specifications
Model : Catalog No :OL1052DS
Part Description :1/2,3450,ODP,48N,1/60/115/230 Category :Oil Burner
Stock :Yes
Nameplate Specifications
Output HP :1/2 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :6.4/3.2 A Speed :3450 rpm
Service Factor :1.25 Phase :1
Duty :Continuous Insulation Class :B
Frame :48N Enclosure :Open Drip Proof
Overload Protector :Manual Ambient Temperature :40 °C
UL :Recognized CSA :Y
CE :N
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Reversible
Mounting :N Drive End Bearing :Sleeve
Opp Drive End Bearing :Sleeve Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :12.41 in
Frame Length :6.94 in Shaft Diameter :0.500 in
Shaft Extension :2 in UPC :786674027795
Weight :23.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/2HP
Speed
3450RPM
Application
Oil Burner
Frame
48N
