/Products/Electric Motors/Single Phase/Century/Oil Burner/Century XEL2014 Oil Burner Motor, 1/6HP 1725RPM
Click Image to Expand

Product ID: XEL2014

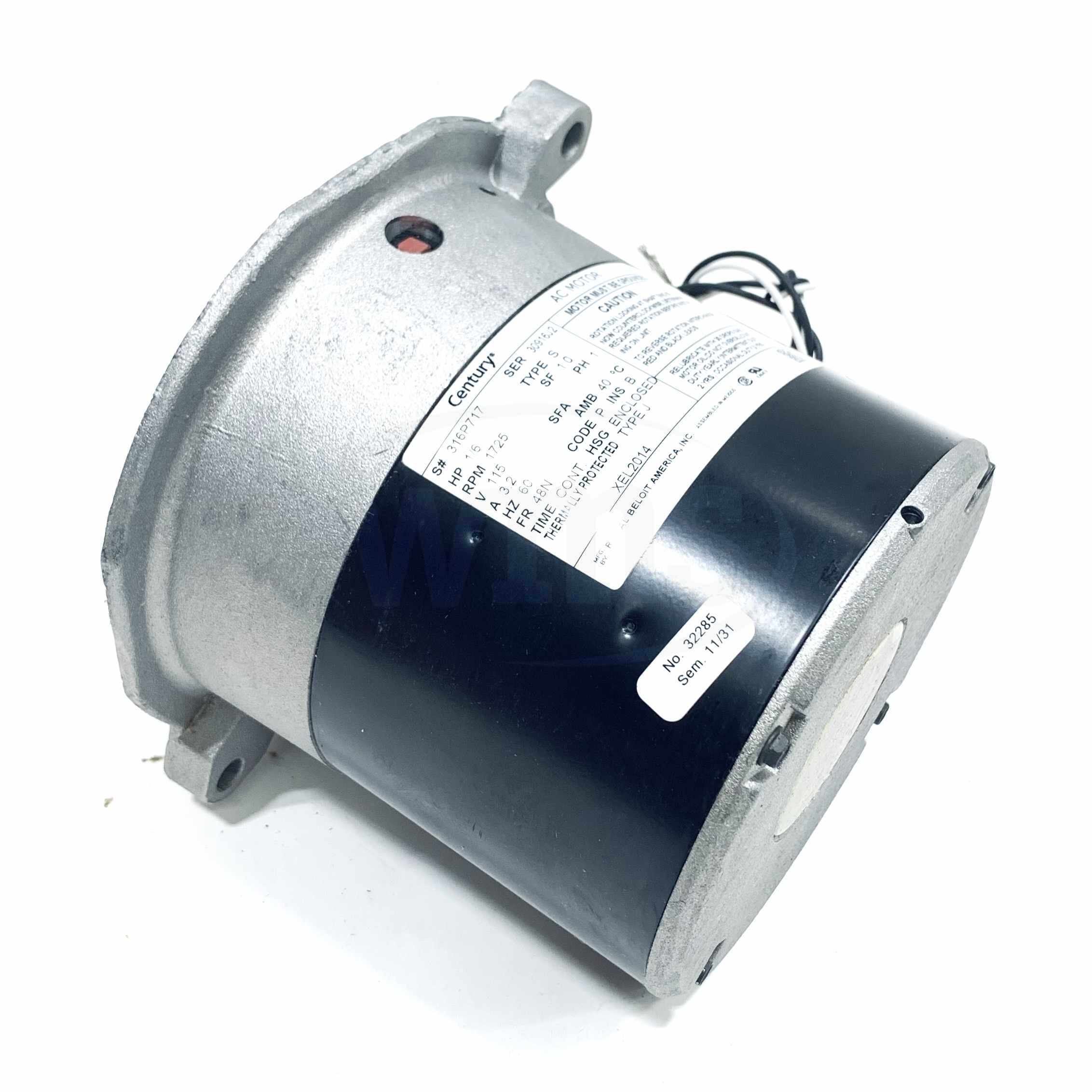

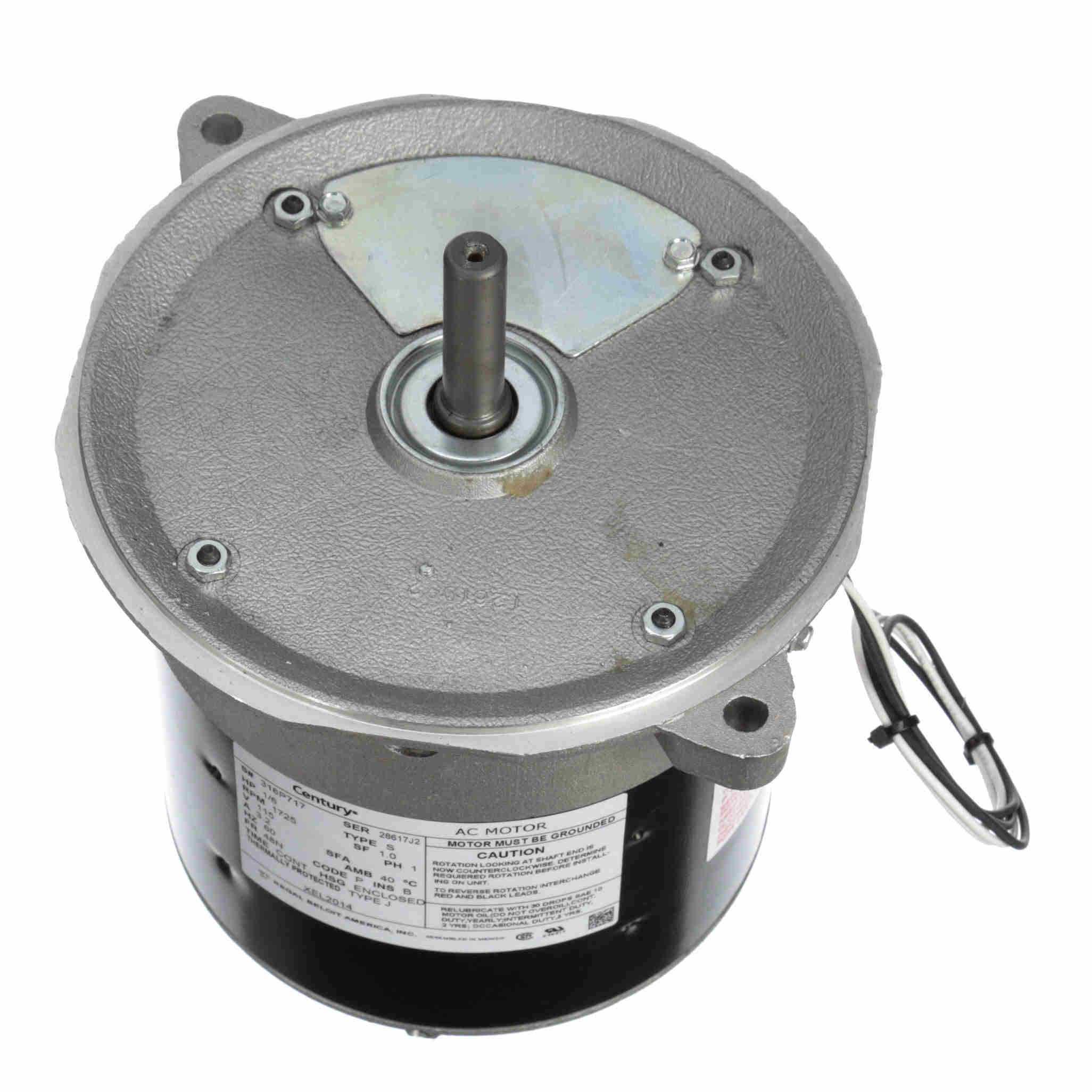

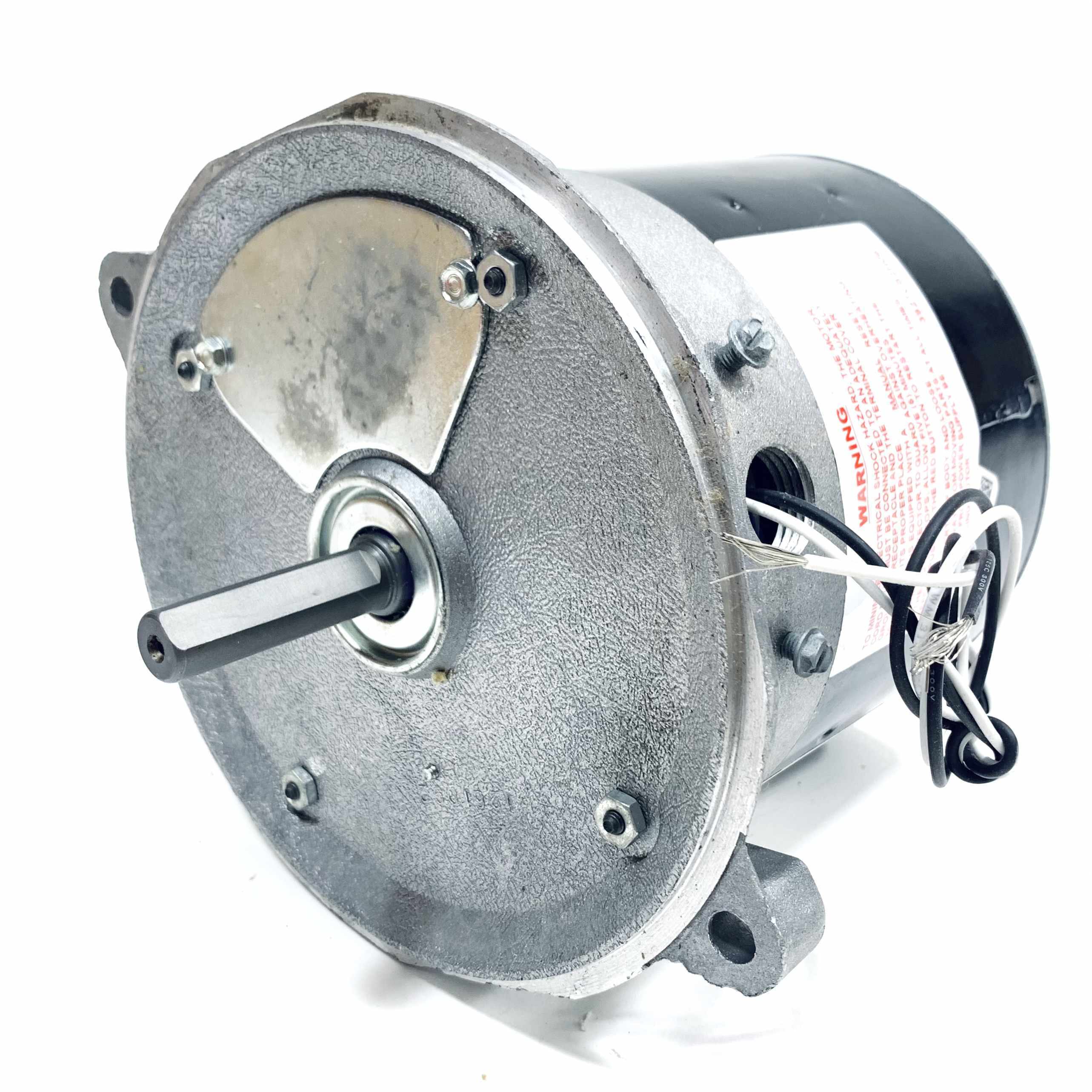

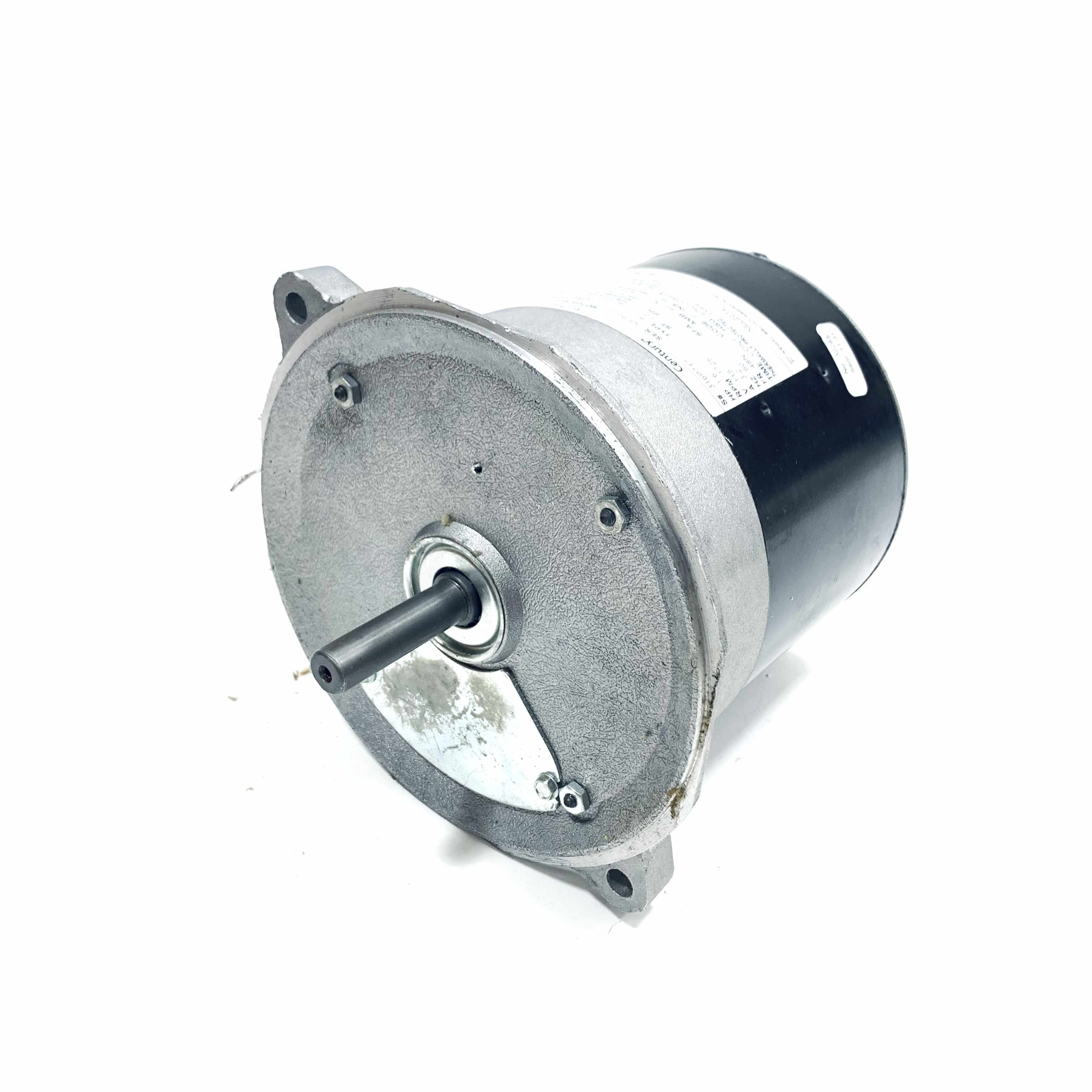

Century XEL2014 Oil Burner Motor, 1/6HP 1725RPM

MFG: Century Electric Motor (Regal Rexnord)
MFG Part Number: XEL2014

Available Stock: 2
Selected accessories will also be added to cart
$270.97 / Each
Quantity:
48N Frame, 115V 60Hz 1-Phase, Totally Enclosed
Features
  • Sleeve bearing
General Specifications
Model : Catalog No :XEL2014
Part Description :1/6,1725,TE,48N,1/60/115 Category :Oil Burner
Stock :Yes
Nameplate Specifications
Output HP :1/6 Hp Output KW :0.13 kW
Frequency :60 Hz Voltage :115 V
Current :3.2 A Speed :1725 rpm
Service Factor :1 Phase :1
Duty :Continuous Insulation Class :B
Frame :48N Enclosure :Totally Enclosed
Overload Protector :Manual Ambient Temperature :40 °C
UL :No CSA :N
CE :N
Technical Specifications
Electrical Type :Split Phase Starting Method :Across The Line
Poles :4 Rotation :Reversible
Mounting :N Drive End Bearing :Sleeve
Opp Drive End Bearing :Sleeve Frame Material :Rolled Steel
Shaft Type :Flat Overall Length :7.66 in
Frame Length :3.69 in Shaft Diameter :0.500 in
Shaft Extension :1.82 in UPC :786674033901
Weight :13.00 LB
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/6HP
Enclosure
TE
Frame
48N
Speed
1725RPM
Application
Oil Burner
