/Products/Phase Converters/Maxiphase/230 Volt, CNC, ODP/CNC 3 Maxiphase Rotary Phase Converter
Click Image to Expand

Product ID: CNC 3

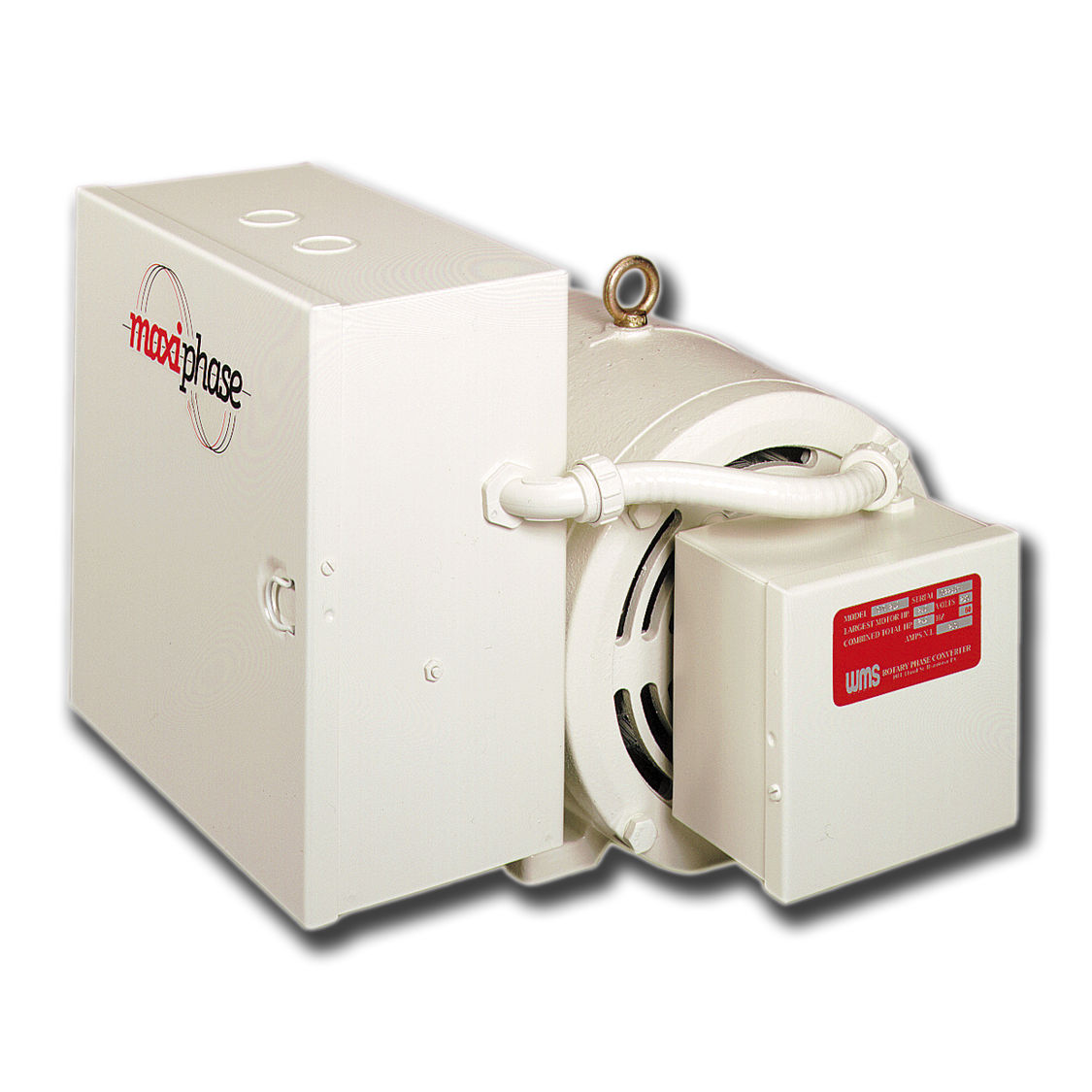

CNC 3 Maxiphase Rotary Phase Converter

MFG: Maxiphase Converters
MFG Part Number: CNC 3

Selected accessories will also be added to cart
$1,575.00 / Each
Quantity:
Largest HP: 3, Combined HP: 3, N.L. Amps: 8.0

Specifications

ModelCNC 3
Largest Single Load3 HP
Maximum Combined Load3 HP
Voltage230 Volts
Frequency60Hz
No Load Amperage8.0 Amps
"a" Dimension17 Inches
"b" Dimension15 Inches
"c" Dimension19 Inches
Motor EnclosureODP
Open Drip Proof
Motor Frame Size
Input Circuit Breaker Rating30 Amp
Input Wire Size#10 Minimum
Approximate Weight205 lbs
Notes

Product Information Links:

WMS Rotary Phase Converters are an economical alternative to commercial three phase power!

  • Easy installation, reliabile performance and low maintenance make rotary units an attractive solution for three phase power needs.
  • WMS Phase Converters are available from electric motor shops, machinery dealers and electrical supply stores across the nation.
  • WMS has developed a proven product through years of experience in the manufacturing and installation of phase converters.
  • Quick start-up using electrolytic start capacitors and a positive mechanical centrifugal switch!
  • 1 Year Warranty
WMS Maxiphase
Enclosure
ODP
Input Voltage
230VAC
Series
CNC
Horsepower
3HP
