$90.63 / Each

Quantity:

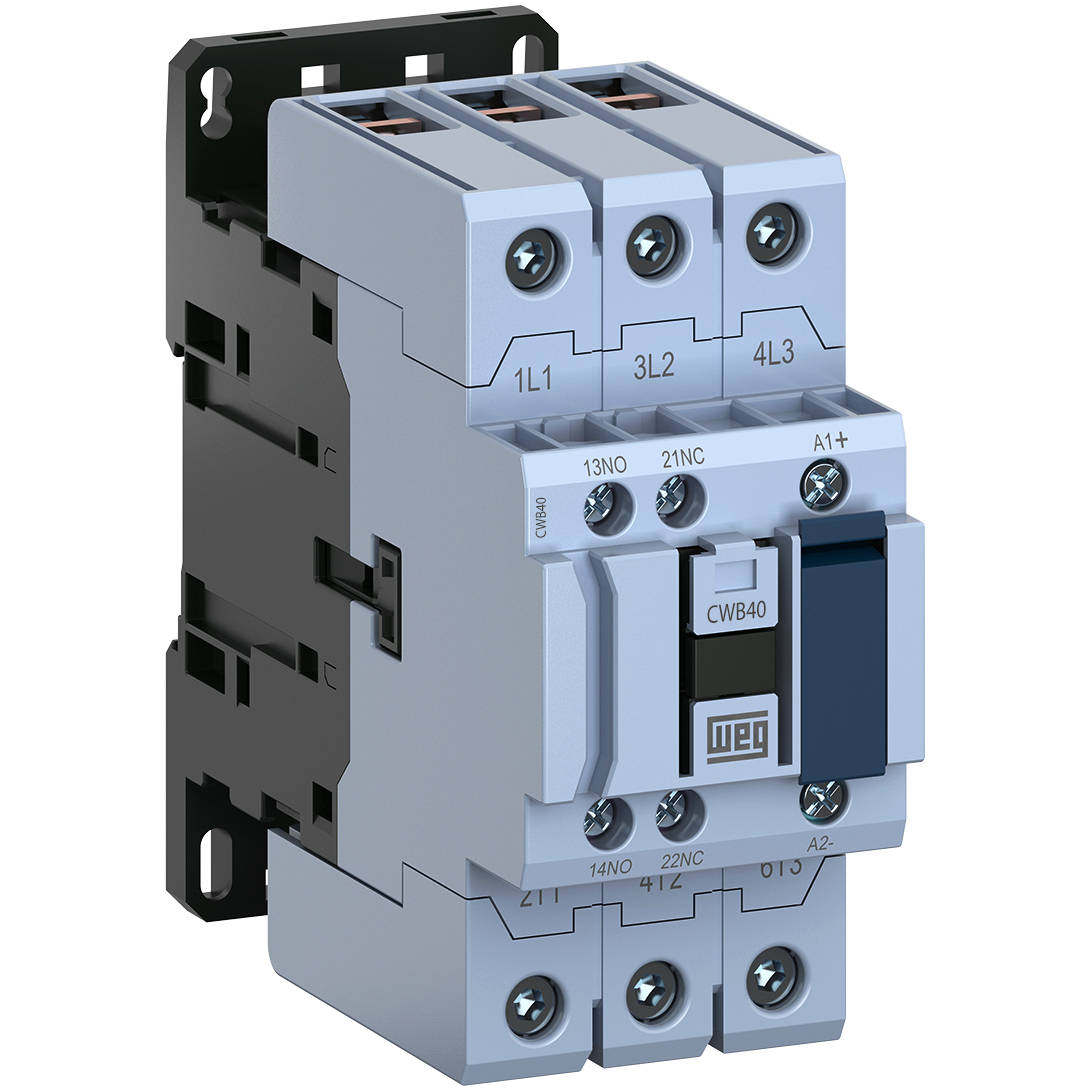

24VAC 50/60Hz Coil, 1 NO / 1 NC Auxiliary Contacts

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
Mechanical lifespan (AC)	6 million
Mechanical lifespan (DC)	6 million
Electrical lifespan	1.6 million
Degree of protection IP (IEC 60529) - Main circuit	IP10
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current	40 A
Rated current In - AC-4	18,5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC)	60 A
Rated operational voltage Ue - IEC 60947-4-1	1000 V
Rated operational voltage Ue - UL/CSA	600 V
Height	115 mm (4.53 in)
Width	54 mm (2.13 in)
Depth	120.7 mm (4.75 in)
Gross weight	0.91 kg

13909651, for CWB40 to CWB80 & CWBN2
Available Stock: 2

BRB-80D02

$21.97 / Each

Number of Poles

Current

40 Amp
