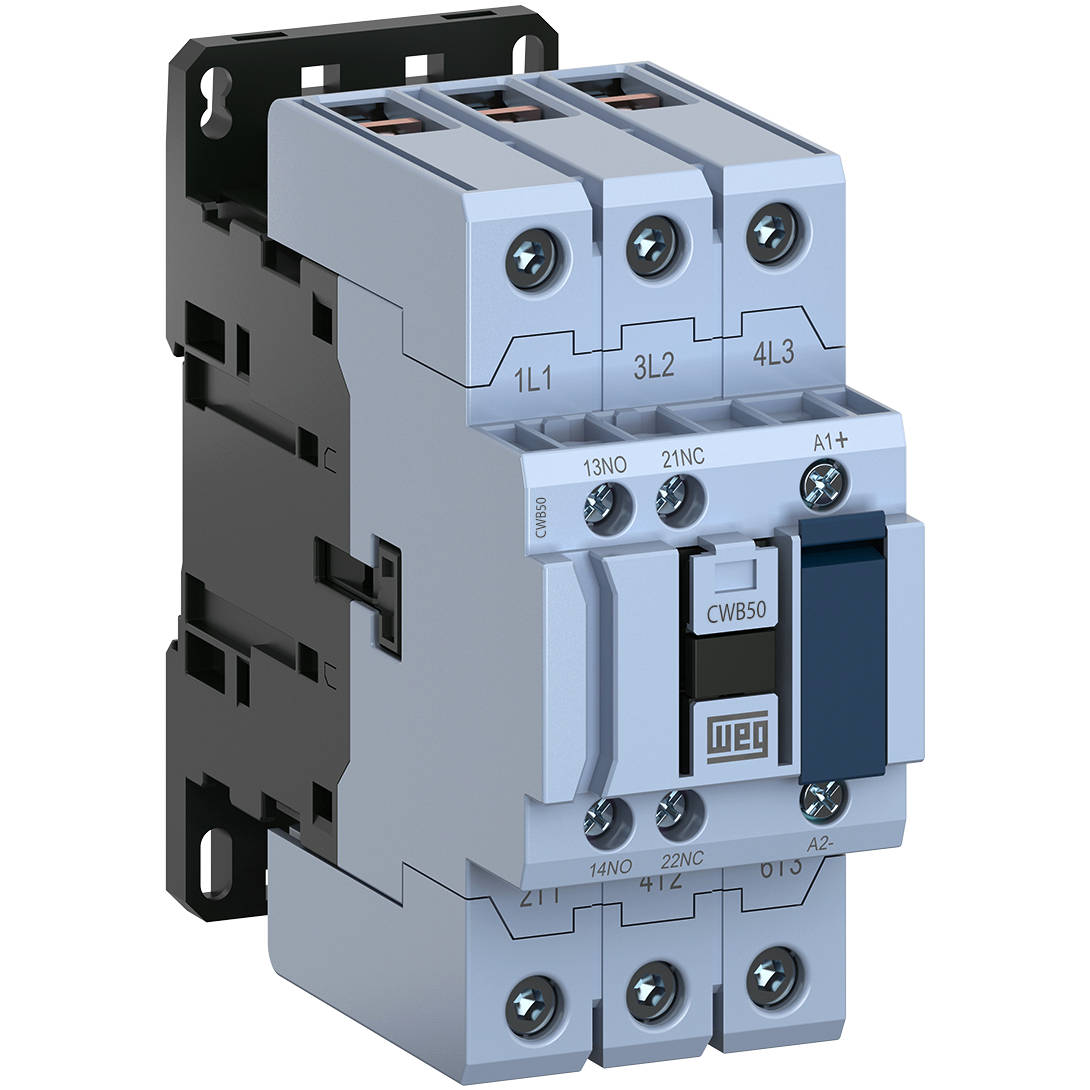

CWB50-11-30D02 WEG Low Voltage Contactor, 50 Amp, 3 NO Power Poles
Enlarge Photo

Product ID: CWB50-11-30D02

CWB50-11-30D02 WEG Low Voltage Contactor, 50 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWB50-11-30D02

Selected accessories will also be added to cart
$124.34 / Each
Quantity:
24VAC 50/60Hz Coil, 1NO/1NC Auxiliary Contacts
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-11000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA600 V
Rated operational frequency - minimum25 Hz
Rated operational frequency - maximum400 Hz
Mechanical lifespan (AC)6 million
Mechanical lifespan (DC)6 million
Electrical lifespan1.6 million
Degree of protection IP (IEC 60529) - Main circuitIP10
Degree of protection IP (IEC 60529) - Control circuitIP20
Rated current50 A
Rated current In - AC-418,5 A
Rated operational Current Ie AC-1 (? = 55 ?C)90 A
Rated operational voltage Ue - IEC 60947-4-11000 V
Rated operational voltage Ue - UL/CSA600 V
Height115 mm (4.53 in)>
Width54 mm (2.13 in)
Depth120.7 mm (4.75 in)
Gross weight0.91 kg
Number of Poles
3
Current
50 Amp
