/Products/Electrical Components/WEG Electrical Components/WEG Contactors/Compact Contactors (CWC)/CWC025/CWC025-00-30V56 WEG Miniature Contactor, 3 NO Power Poles, 25 Amp

Product ID: CWC025-00-30V56

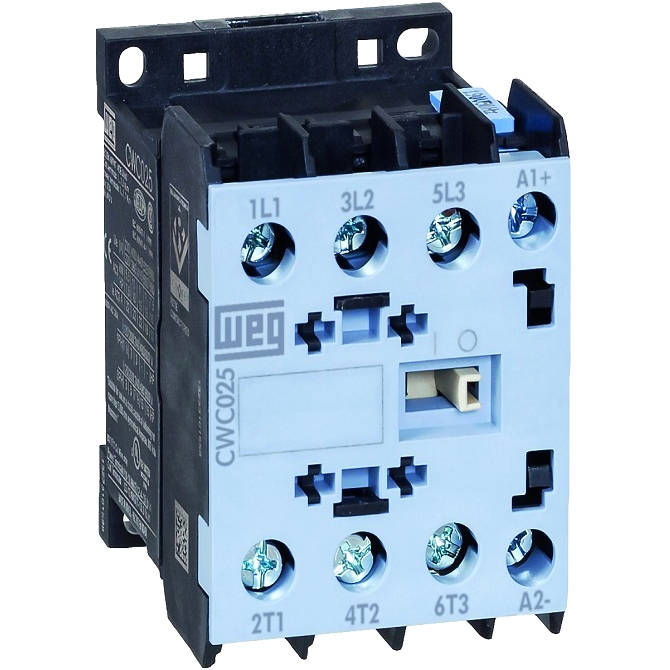

CWC025-00-30V56 WEG Miniature Contactor, 3 NO Power Poles, 25 Amp

MFG: WEG Electric Corporation
MFG Part Number: CWC025-00-30V56

Selected accessories will also be added to cart

$38.72 / Each

Quantity:

12679941, 500VAC 50Hz / 600VAC 60Hz Coil, No Auxiliary Contacts, Screw Terminals

Details
Specs

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
Mechanical lifespan (AC)	3 million
Mechanical lifespan (DC)	Not available
Electrical lifespan	0,6 million
Degree of protection IP (IEC 60529) - Main circuit	IP20
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current	22 A
Rated current In - AC-4	9 A
Rated operational Current Ie AC-1 (¿ = 55 ºC)	32 A
Rated operational voltage Ue - IEC 60947-4-1	690 V
Rated operational voltage Ue - UL/CSA	600 V
Height	58,1 mm (2.29 in)
Width	45 mm (1.77 in)
Depth	56 mm (2.20 in)
Gross weight	202 g

Type

Contactor

Series

CWC

Number of Poles

3

Current

25 Amp
