/Products/Electrical Components/WEG Electrical Components/WEG Contactors/Compact Contactors (CWC)/CWC09/CWC09-10-30V47 WEG Miniature Contactor, 9 Amp, 3 NO Power Poles

Product ID: CWC09-10-30V47

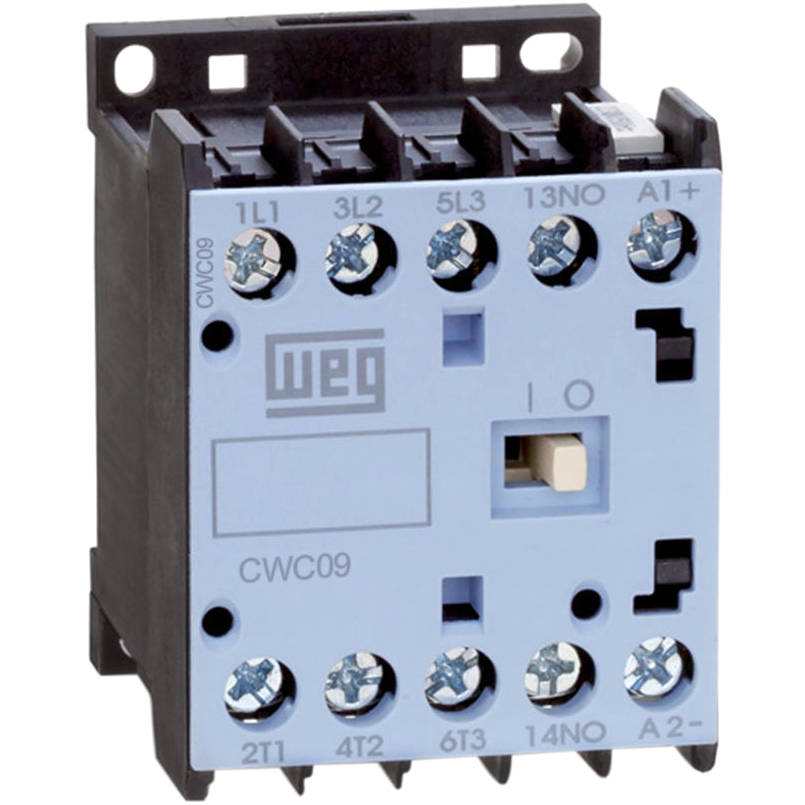

CWC09-10-30V47 WEG Miniature Contactor, 9 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWC09-10-30V47

Selected accessories will also be added to cart

$25.16 / Each

Quantity:

12679916, 400-415VAC 50Hz / 480VAC 60Hz Coil, 1 NO Auxiliary Contact, Screw Terminals

Details
Specs

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
Mechanical lifespan (AC)	10 million
Mechanical lifespan (DC)	12 million
Electrical lifespan	1,3 million
Degree of protection IP (IEC 60529) - Main circuit	IP20
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current	9 A
Rated current In - AC-4	3,5 A
Rated operational Current Ie AC-1 (¿ = 55 ºC)	20 A
Rated operational voltage Ue - IEC 60947-4-1	690 V
Rated operational voltage Ue - UL/CSA	600 V
Height	58 mm (2.28 in)
Width	45 mm (1.77 in)
Depth	52 mm (2.05 in)
Gross weight	194 g

Type

Contactor

Series

CWC

Number of Poles

3

Current

9 Amp
