/CWCA0-40-00V18 WEG Mini Contactor, 10 Amps, 4 NO Power Poles

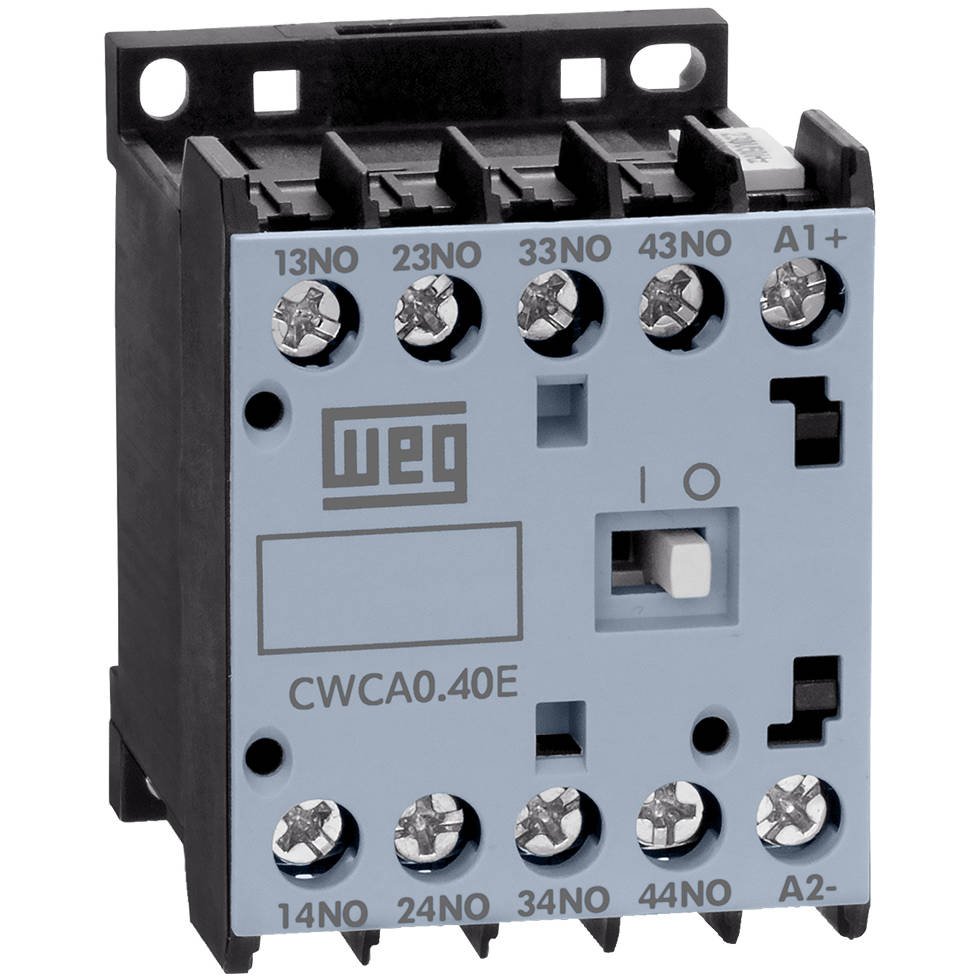

CWCA0-40-00V18 WEG Mini Contactor, 10 Amps, 4 NO Power Poles
Enlarge Photo

Product ID: CWCA0-40-00V18

CWCA0-40-00V18 WEG Mini Contactor, 10 Amps, 4 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWCA0-40-00V18

Selected accessories will also be added to cart
$21.78 / Each
Quantity:
12680509, 110VAC 50Hz / 120VAC 60Hz Coil
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 690 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 12 million
Electrical lifespan Not available
Degree of protection IP (IEC 60529) - Main circuit IP20
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 10 A
Rated current In - AC-4 Not available
Rated operational Current Ie AC-1 (¿ = 55 ºC) 10 A
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 58 mm (2.28 in)
Width 45 mm (1.77 in)
Depth 52 mm (2.05 in)
Gross weight 194 g
Number of Poles
4
Current
10 Amp
