$63.24 / Each

Quantity:

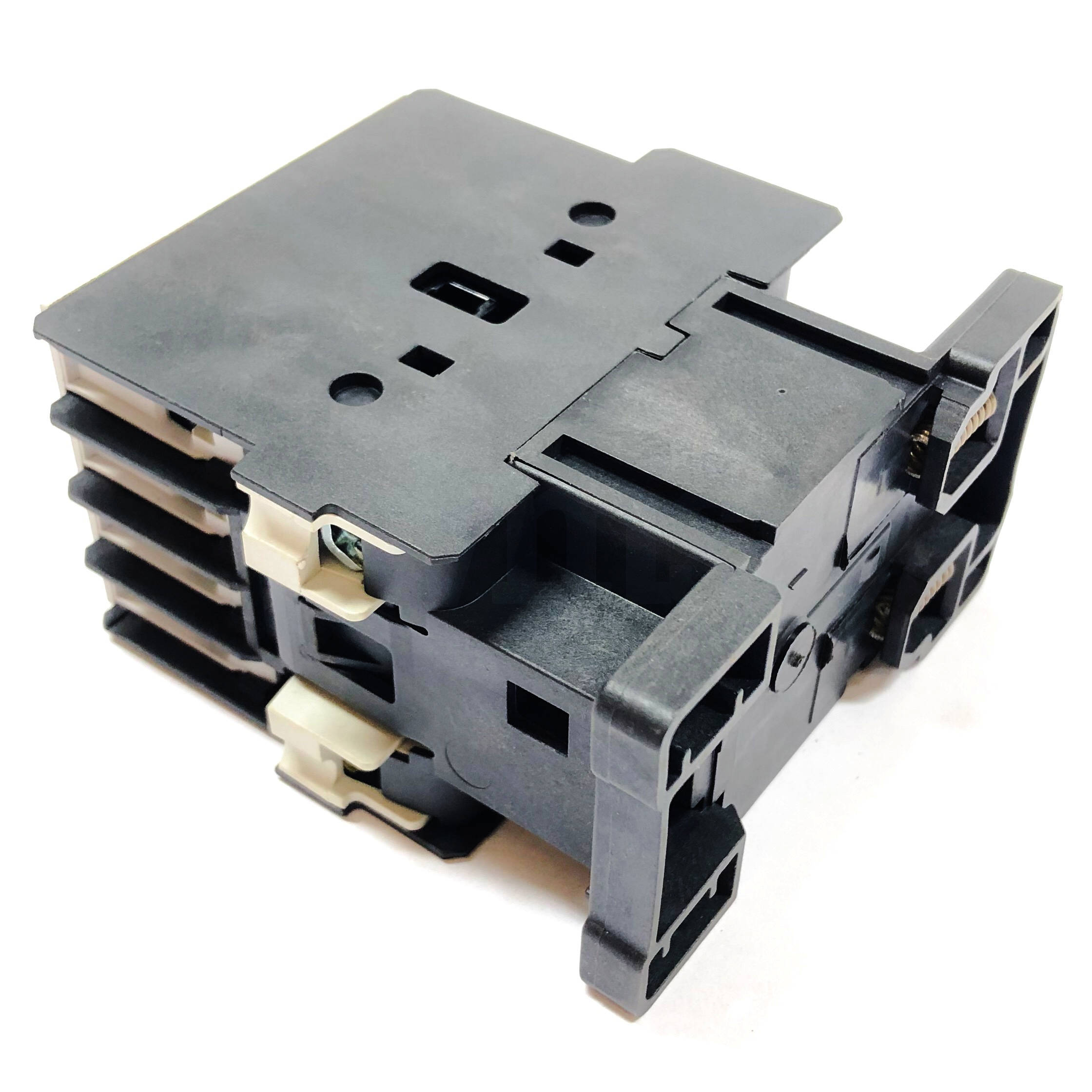

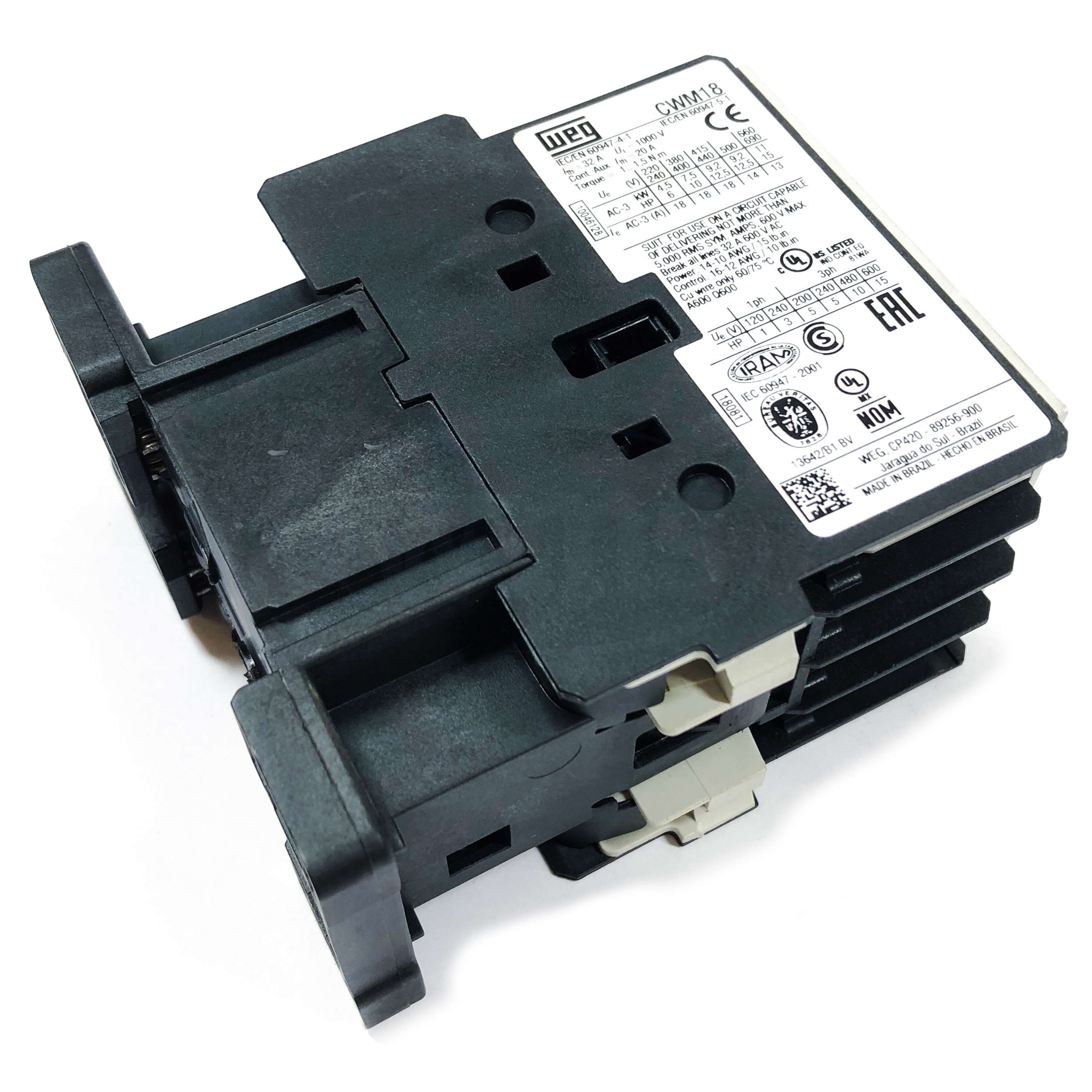

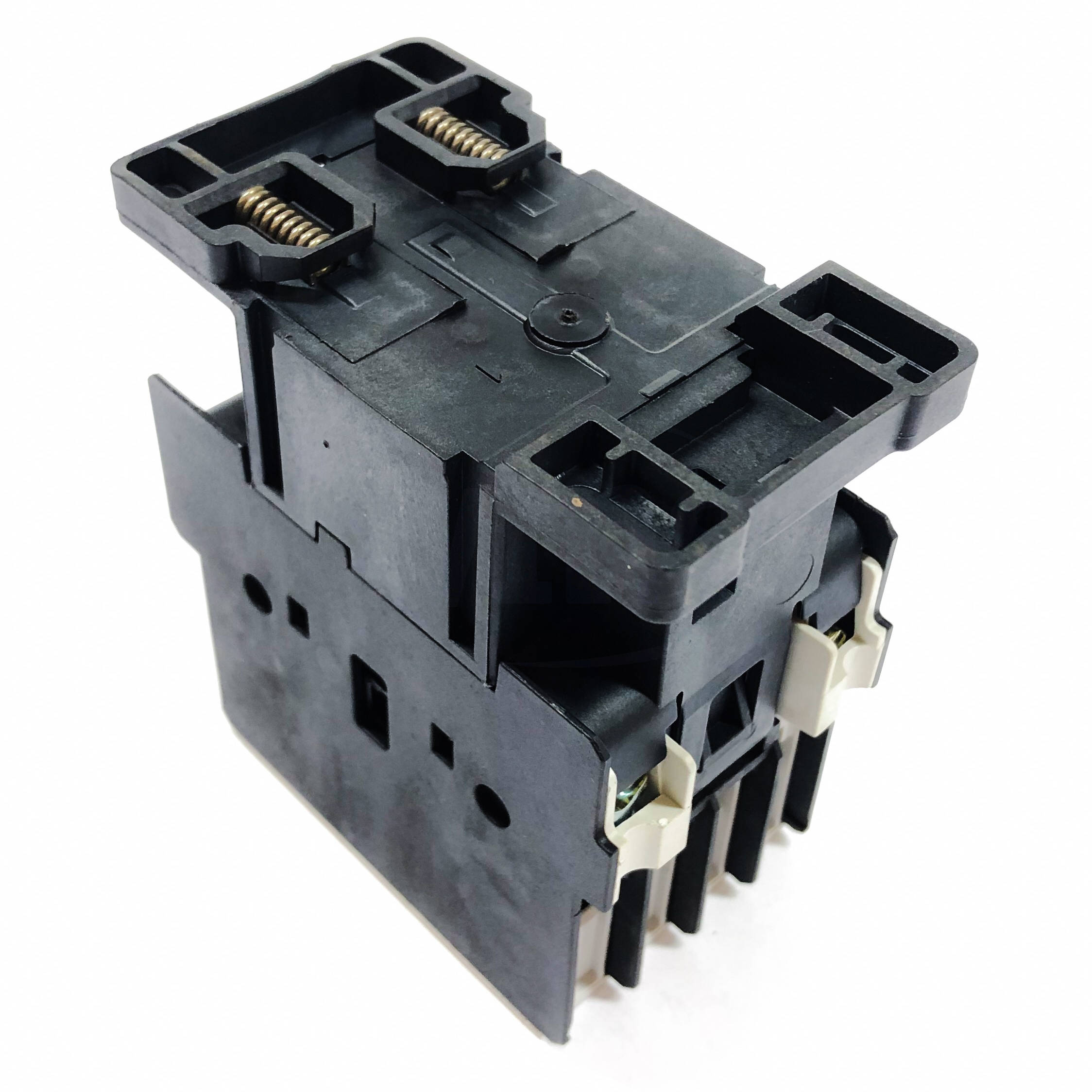

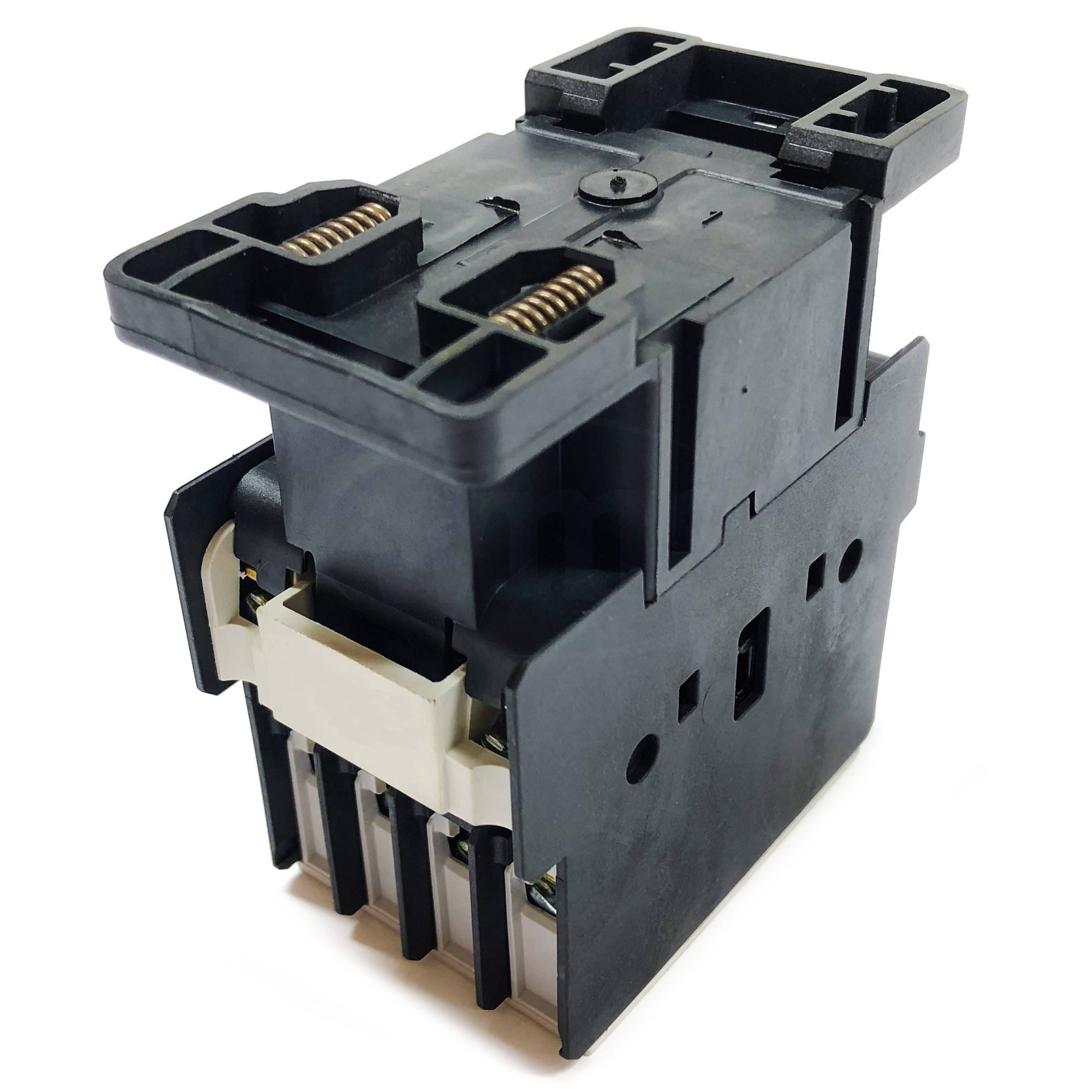

110VAC 50Hz / 120VAC 60Hz Coil, 1 NC Auxiliary Contact

Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1	1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA	600 V
Rated operational frequency - minimum	25 Hz
Rated operational frequency - maximum	400 Hz
MECHANICAL LIFESPAN AC	10 million
MECHANICAL LIFESPAN DC	12 million
Electrical lifespan	1,2 million
Degree of protection IP (IEC 60529) - Main circuit	IP10
Degree of protection IP (IEC 60529) - Control circuit	IP20

Rated current In - AC-3 (Ue = 440 V)	18 A
Rated current In - AC-4	8 A
Rated operational Current Ie AC-1 (¿ = 55 ºC)	32 A
Rated operational voltage Ue - IEC 60947-4-1	690 V
Rated operational voltage Ue - UL/CSA	600 V
Height	81 mm (3.19 in)
Width	45 mm (1.77 in)
Depth	87 mm (3.43 in)
Gross weight	300 g

Number of Poles

Current

18 Amp

Series

CWM
