/Products/Electrical Components/WEG Electrical Components/WEG Contactors/IEC Contactors (CWM)/CWM25/CWM25-00-30V04 WEG IEC Contactor, 25 Amp, 3 NO Power Poles
Click Image to Expand

Product ID: CWM25-00-30V04

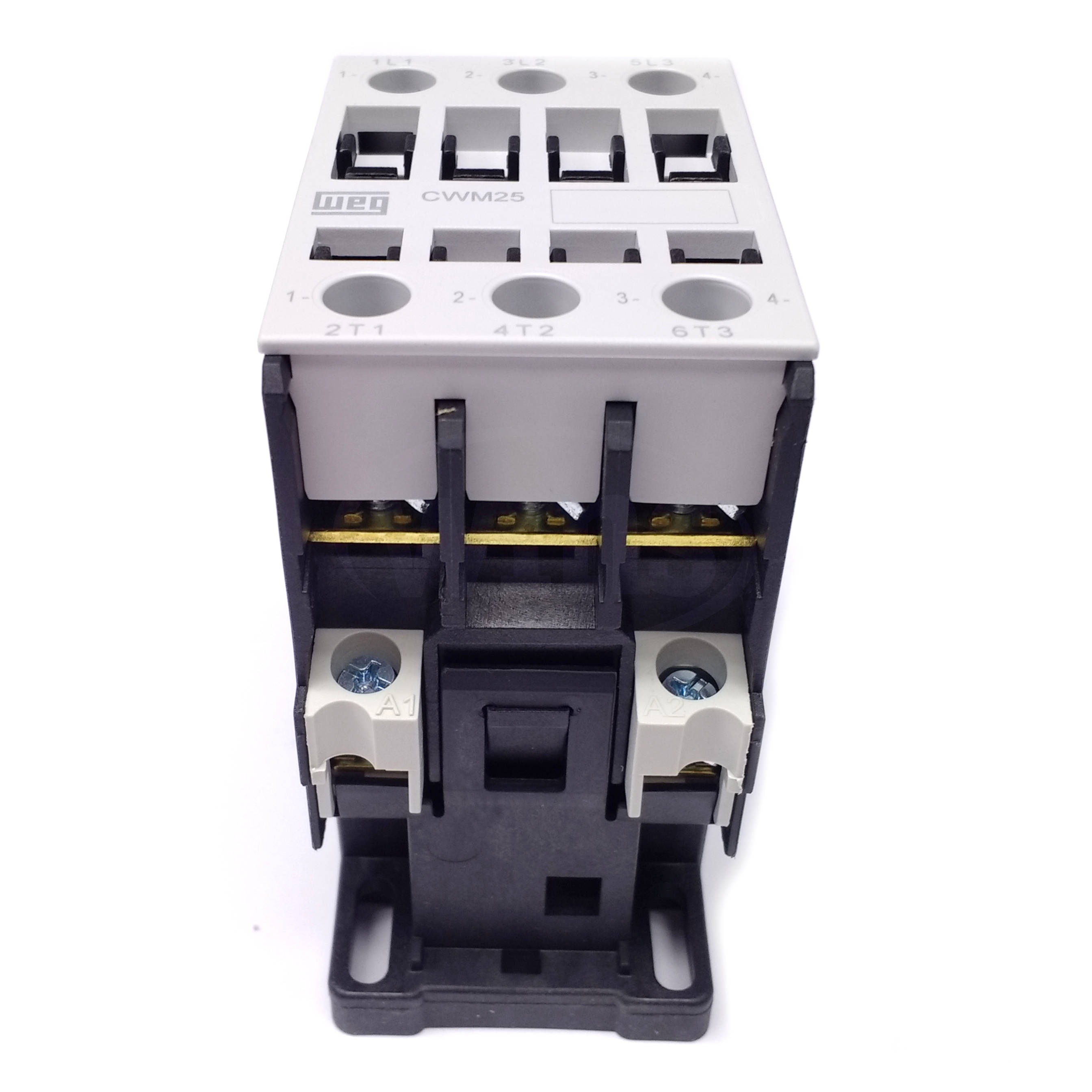

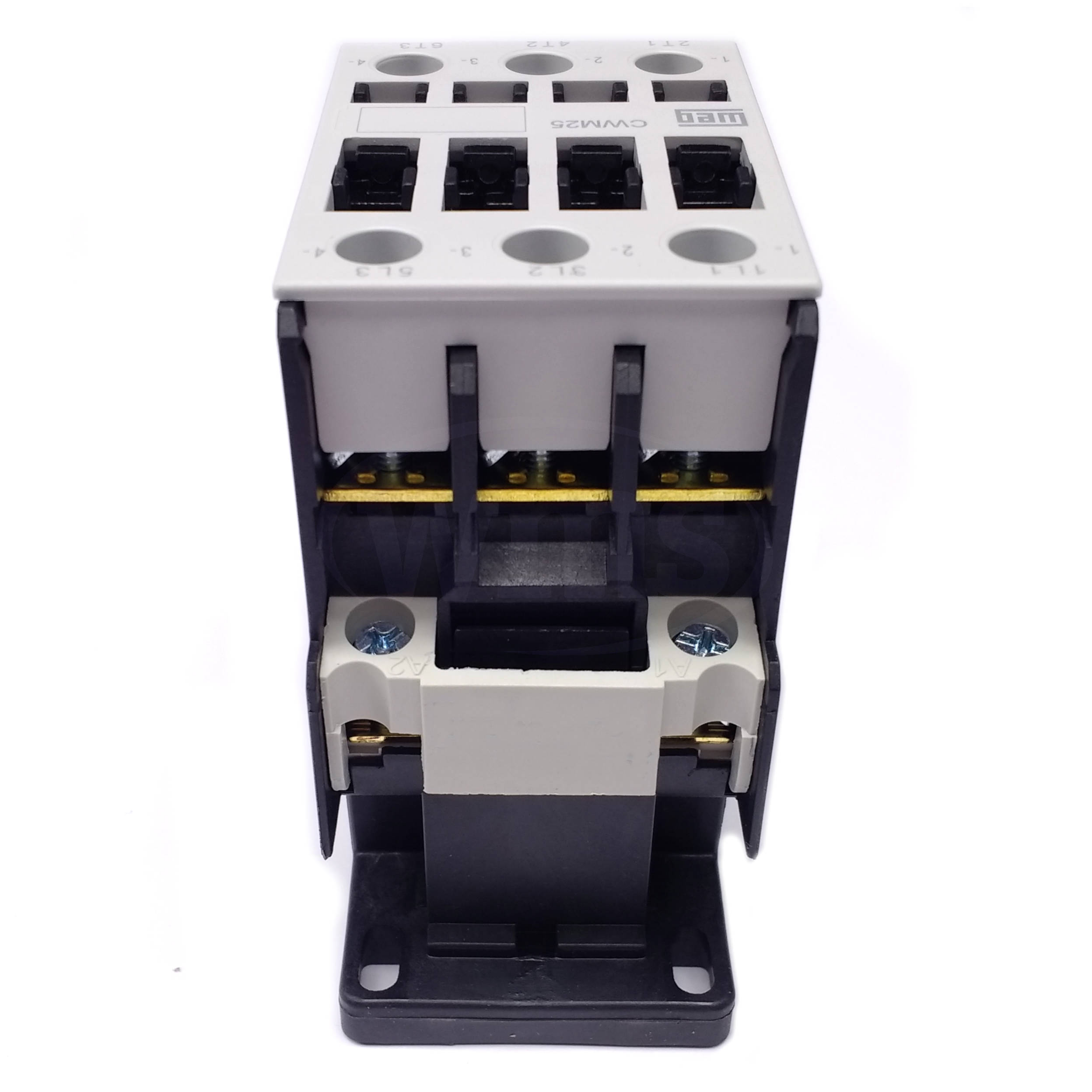

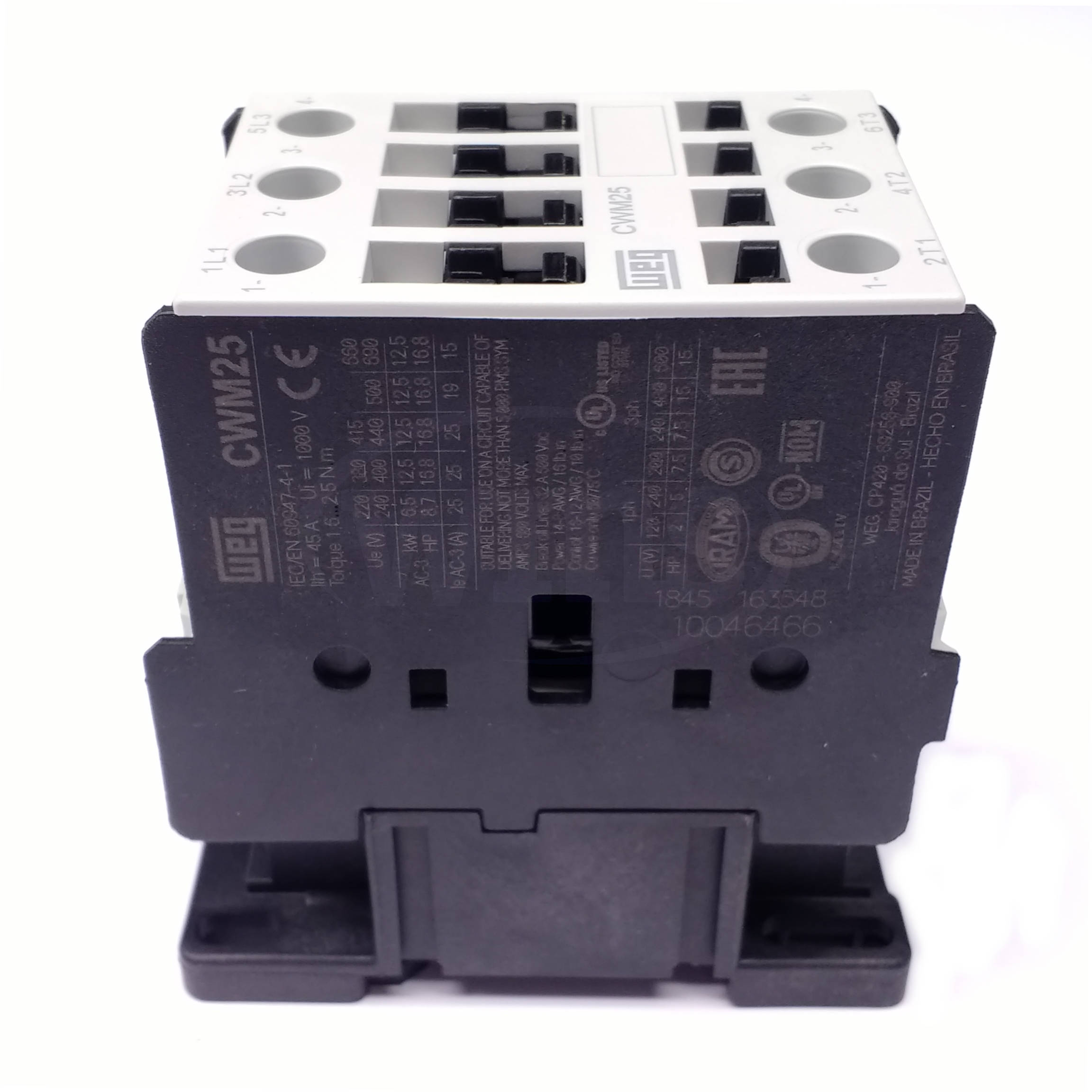

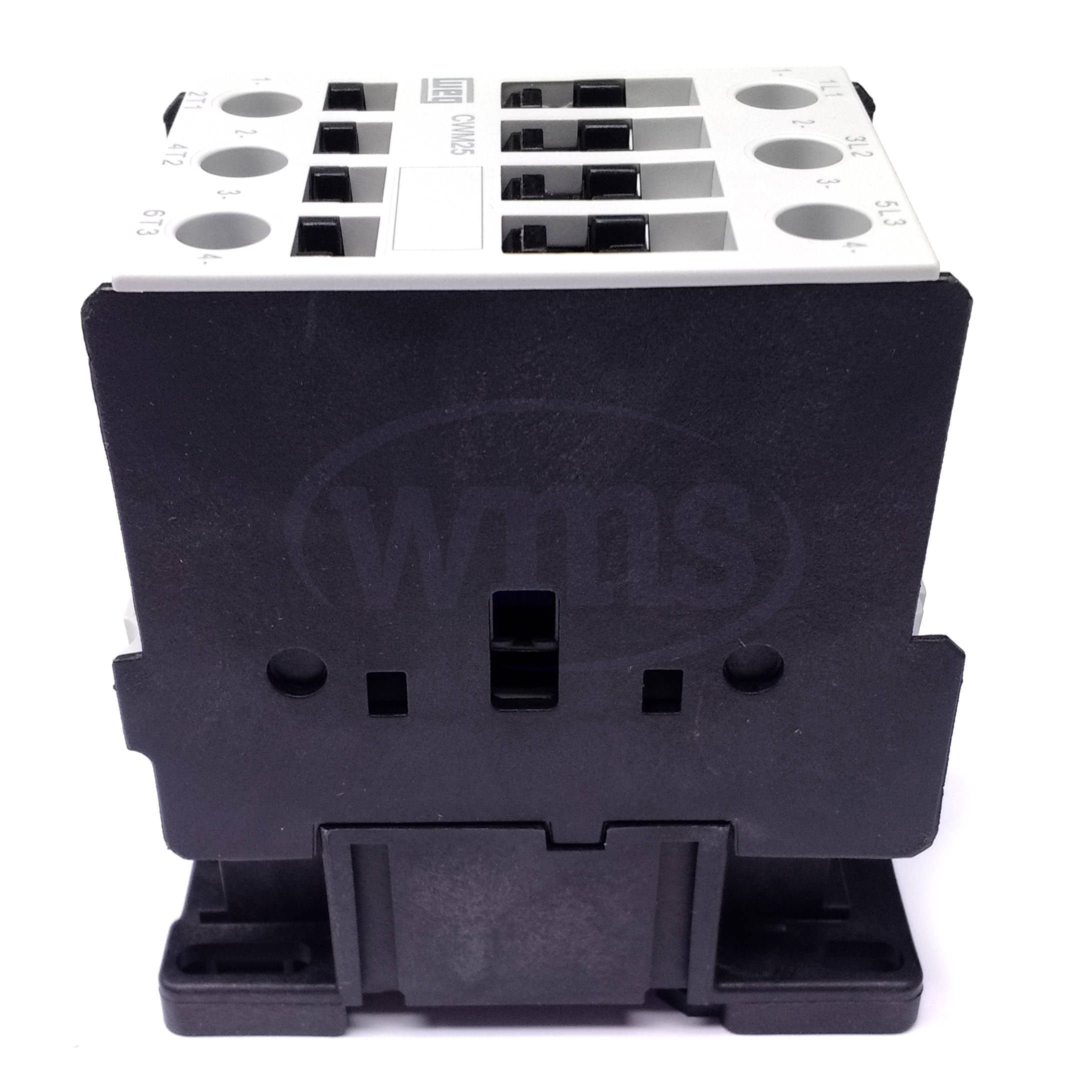

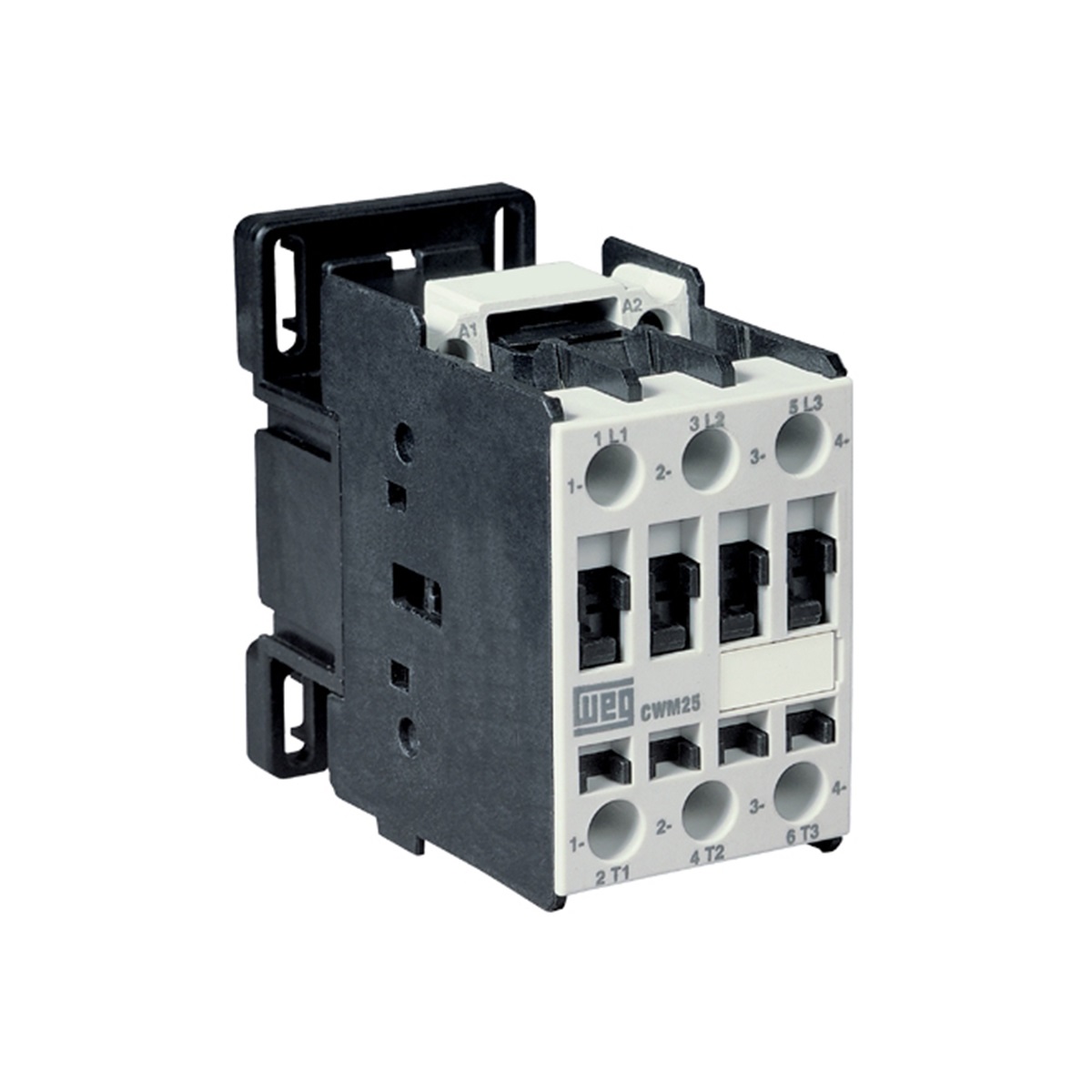

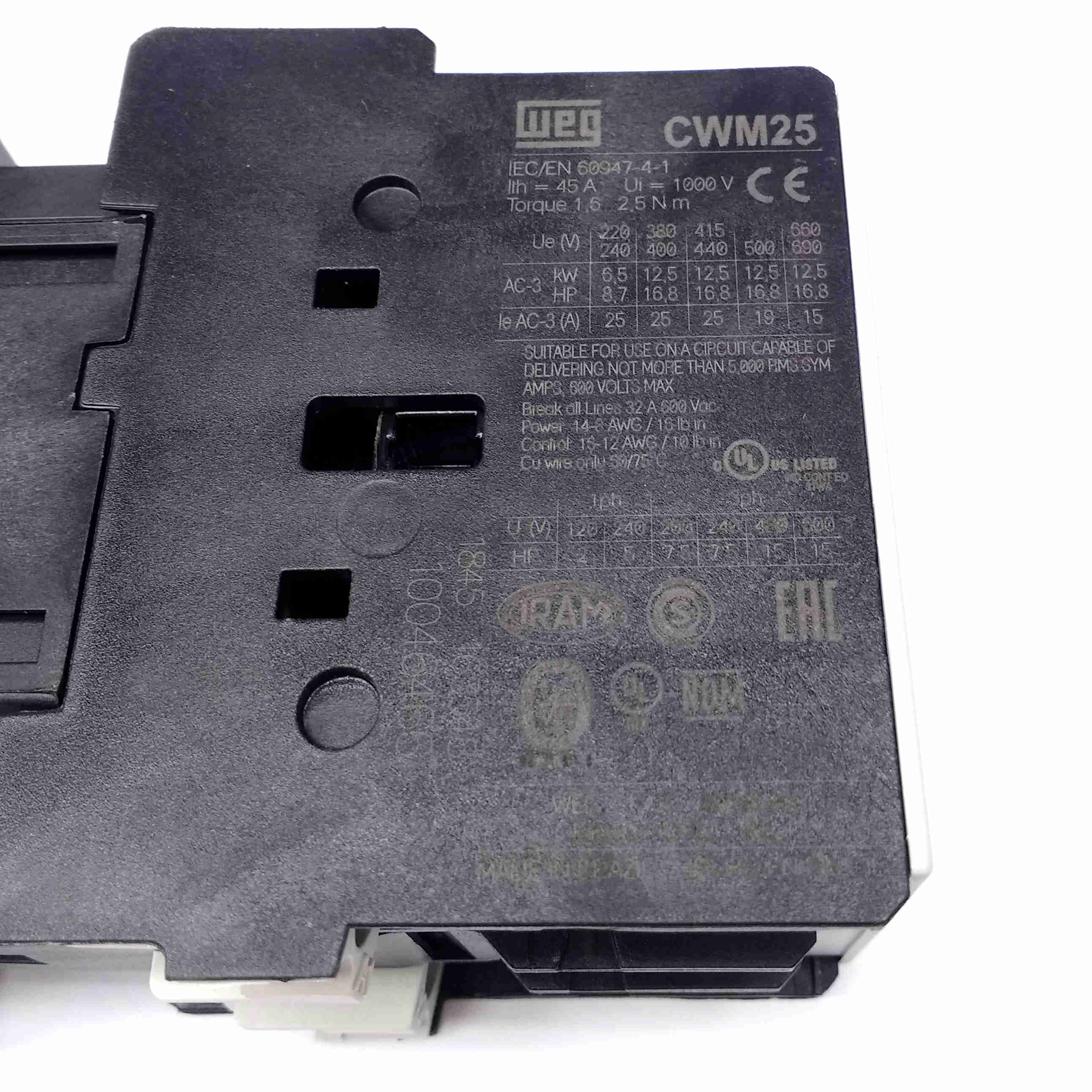

CWM25-00-30V04 WEG IEC Contactor, 25 Amp, 3 NO Power Poles

MFG: WEG Electric Corporation
MFG Part Number: CWM25-00-30V04

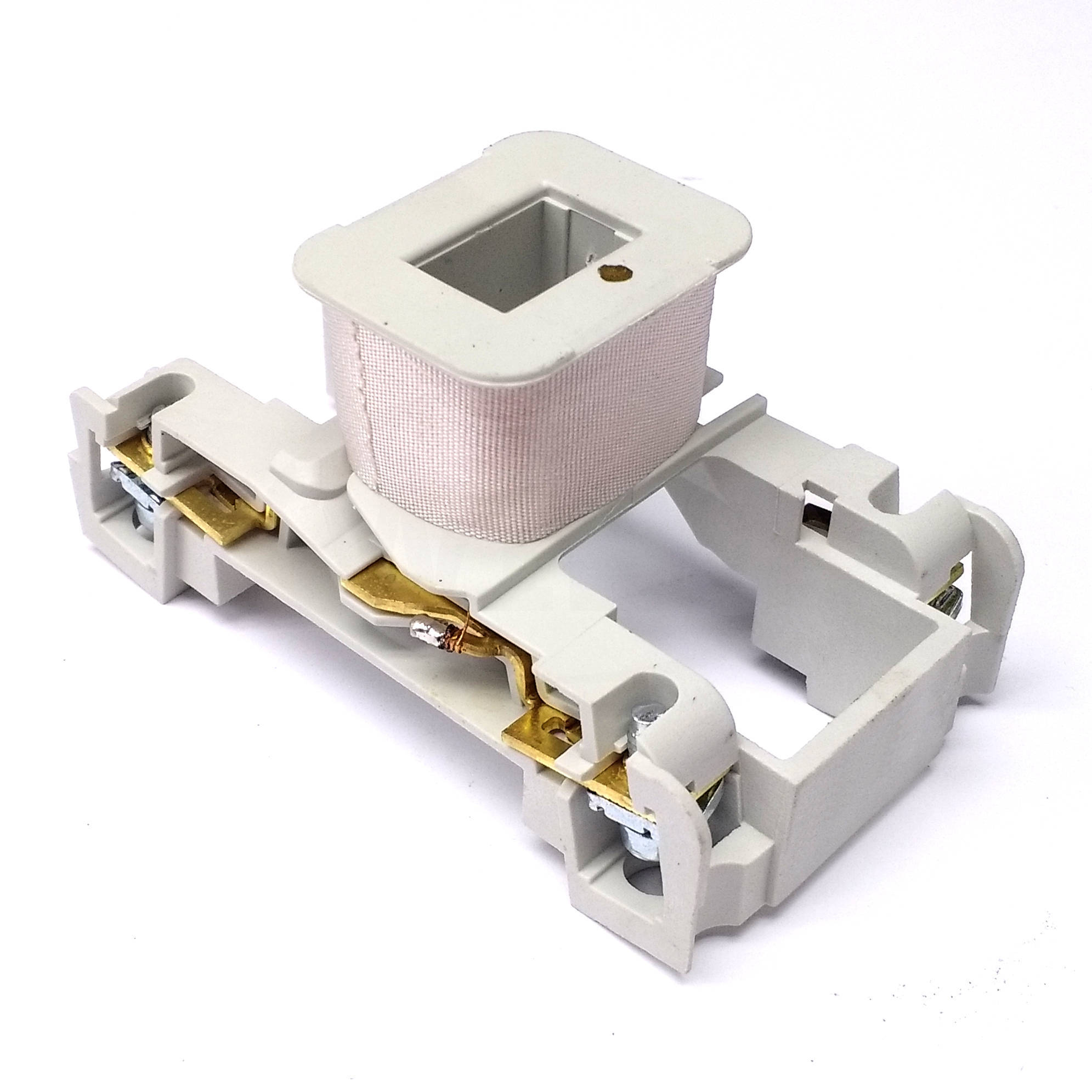

Selected accessories will also be added to cart
$72.46 / Each
Quantity:
20V 50Hz/24V 60Hz Coil, No Auxiliary Contacts

Description :

The CWM Series IEC Contactor was designed as a general purpose contactor taking into consideration the heavy demands and need for high reliability in modern industry. They are rated for inductive loads up to 800 AMPS @ 460V. CWM Contactors are compact in frame size allowing for optimization of valuable internal space within electrical enclosures. Reducing inventory is a “Snap” away with the CWM Series’ common accessories.

Standard Features :

  • Panel mountable or 35mm DIN Rail
  • Front and Side Mounting Auxiliary Contacts
  • Finger-Touch IP20 Protection
  • Wide Coil Voltage Protection AC or DC
  • Mirror Contacts for “Safety-Related” Applications
  • Mechanically linked Auxiliary Contacts

Overview :

Brand WEG
Catalog Number(s) CWM25-00-30V04
Type CWM25
Auxiliary Contacts N/A
Current Rating 25 Amps
Coil Voltage 24VAC 60Hz
Power Poles 3
Operating Temperature -25 to +55°C
-13 to +131°F
Terminals Screwdriver – Philips #2
14.2-26.6 lb-in (1.6-3Nm)
Terminal Capacity Top: 2X18-12 AWG
or Bottom: 2X12-8 AWG
UPC 7890355208076
Weight 0.65 lbs


Standard UL/CSA Ratings :

Rated Operating Voltage 600 Volts
General Purpose Amp Rating (AC-1) 32 Amps
Rated Operational Power, Single Phase, Full Voltage 50/60Hz 2 HP or 24 Amps @ 115VAC
5 HP or 28 Amps @ 230VAC
Rated Operational Power, Three Phase, Full Voltage 50/60Hz 7.5 HP or 25 Amps @ 200VAC
7.5 HP or 22 Amps @ 230VAC
15 HP or 21 Amps @ 460VAC
15 HP or 17 Amps @ 575VAC
Short Circuit Rating 5 kA @ 600V

Standard IEC Ratings (IEC EN 60947) :

Rated Operating Voltage 690 Volts
Rated Thermal Current Ith 45 Amps
Rated Operational Power, Three Phase, AC-3, 50/60Hz 7.5kW or 25 Amps @ 220-240V
11kW or 25 Amps @ 380-400V
11kW or 25 Amps @ 415-440V
15kW or 19 Amps @ 500V
15kW or 15 Amps @ 660-690V
Maximum Switch Rate AC-1: 1,200 ops/hr
AC-3: 1,200 ops/hr
No Load: 9,000 ops/hr
AC-4 (200,000 Operations; 50/60Hz) 3kW/4HP @ 220-230V
5.5kW/7.5HP @ 380-400V
5.5kW/7.5HP @ 415-440V
7.5kW/10HP @ 500V
7.5kW/10HP @ 660-690V
12 Amps @ ≥ 690V
Breaking Capacity Ue=400V: 450 Amps
Ue=500V: 320 Amps
Ue=690V: 170 Amps
Impedance Per Pole 1.65 mW
Power Dissipation per Pole AC-1: 3.34 W
AC-3: 1.03 W
Short Time Current Icw 1 Second: 630 Amps
5 Seconds: 280 Amps
10 Seconds: 200 Amps
30 Seconds: 115 Amps
1 Minute: 80 Amps
3 Minutes: 50 Amps
Rec. Time: 10 minutes
Short Circuit Coordination Coordination Type “1”: 63 gL/gG
Coordination Type “2”: 50 gL/gG
Acc. To UL/CSA: 45 J Type

Control Circuit Ratings – AC Coil :

Rated Insulation Voltage (Ui) IEC; VDE 0660: 1000 Volts
UL; CSA: 600 Volts
Rated Operating Voltage (Ue) IEC; VDE 0660: 690 Volts
UL; CSA: 600 Volts
Coil Operating Limits Pick-up xUc: 0.4-0.76
Drop-out xUc: 0.25-0.65
Operating Time Coil Energization – N.O.: 8-20 ms
Coil de-energization – N.O.: 6-13 ms
Coil Consumption Sealed: 4-7.2 VA
Inrush: 70 VA
Thermal Power Dissipation 60Hz: 2.6 W
Power Factor Closed: 0.28 Cos phi
Opened: 0.85 Cos phi
Stranded / Solid (UL / CSA) 2x12-10 AWG
Number of Poles
3
Current
25 Amp
Series
CWM
