/Products/Electrical Components/WEG Electrical Components/WEG Contactors/Capacitor Switching (CWMC)/50 Amps (CWMC50)/CWMC50-10-30X30 WEG Capacitor Switching Contactor, 3 NO Power Poles, 50 Amps

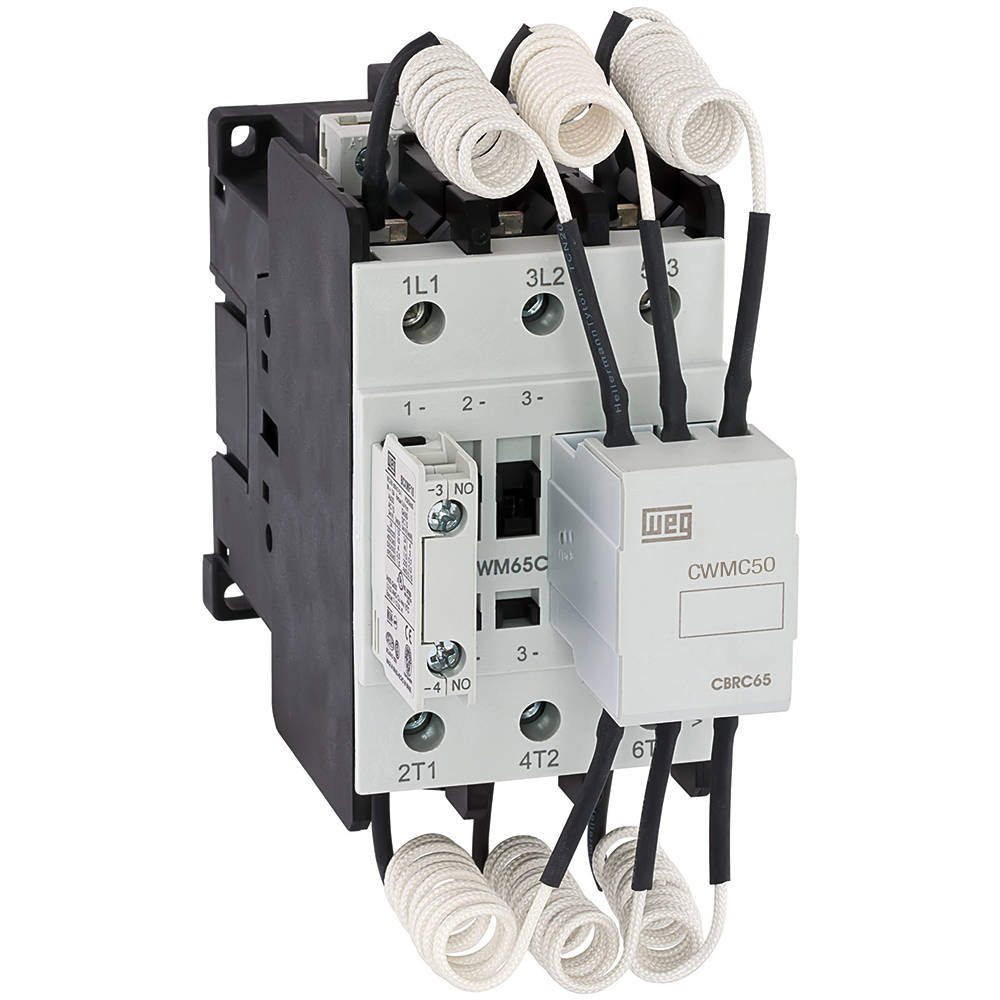

CWMC50-10-30X30 WEG Capacitor Switching Contactor, 3 NO Power Poles, 50 Amps
Enlarge Photo

Product ID: CWMC50-10-30X30

CWMC50-10-30X30 WEG Capacitor Switching Contactor, 3 NO Power Poles, 50 Amps

MFG: WEG Electric Corporation
MFG Part Number: CWMC50-10-30X30

Selected accessories will also be added to cart
$143.42 / Each
Quantity:
11486239, 208VAC 50Hz / 240VAC 60Hz Coil, 1 NO Auxiliary Contact
Rated insulation voltage Ui (pollution degree 3) - IEC 60974-4-1 1000 V
Rated insulation voltage Ui (pollution degree 3) - UL, CSA 600 V
Rated operational frequency - minimum 25 Hz
Rated operational frequency - maximum 400 Hz
Mechanical lifespan (AC) 10 million
Mechanical lifespan (DC) 10 million
Electrical lifespan Not available
Degree of protection IP (IEC 60529) - Main circuit IP10
Degree of protection IP (IEC 60529) - Control circuit IP20
Rated current 50 A / (AC-6b - T = 55°C) 60 A
Rated current In - AC-4 Not available
Rated operational Current Ie AC-1 (¿ = 55 ºC) Not available
Rated operational voltage Ue - IEC 60947-4-1 690 V
Rated operational voltage Ue - UL/CSA 600 V
Height 183 mm (7.20 in)
Width 66 mm (2.60 in)
Depth 158 mm (6.22 in)
Gross weight 1.34 kg
Type
Contactor
Series
CWMC
Number of Poles
3
Current
50 Amp
