/3.3" Diameter/D1164 Fasco 1/25HP General Purpose Electric Motor, 1550RPM
Click Image to Expand

Product ID: D1164

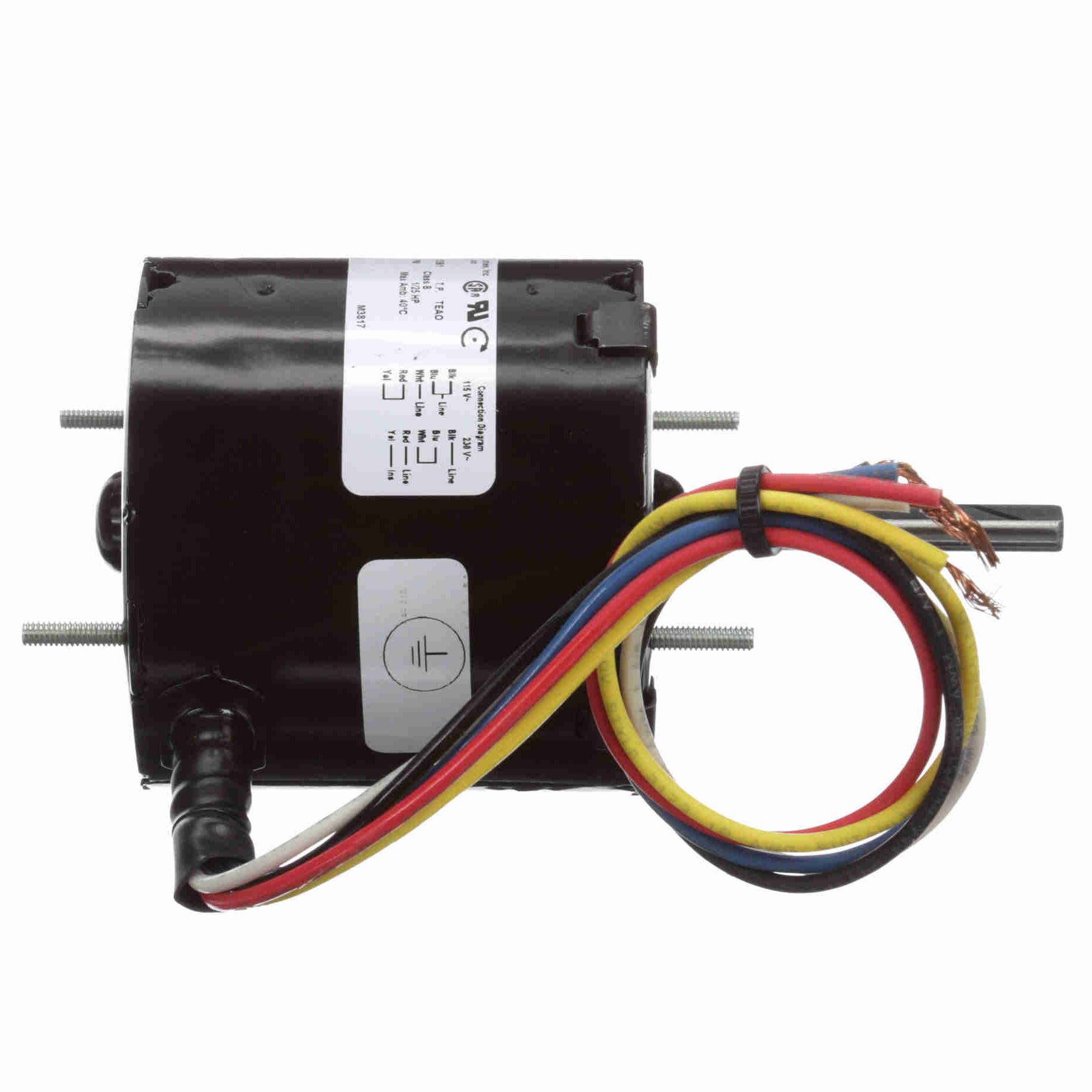

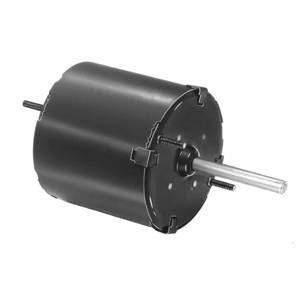

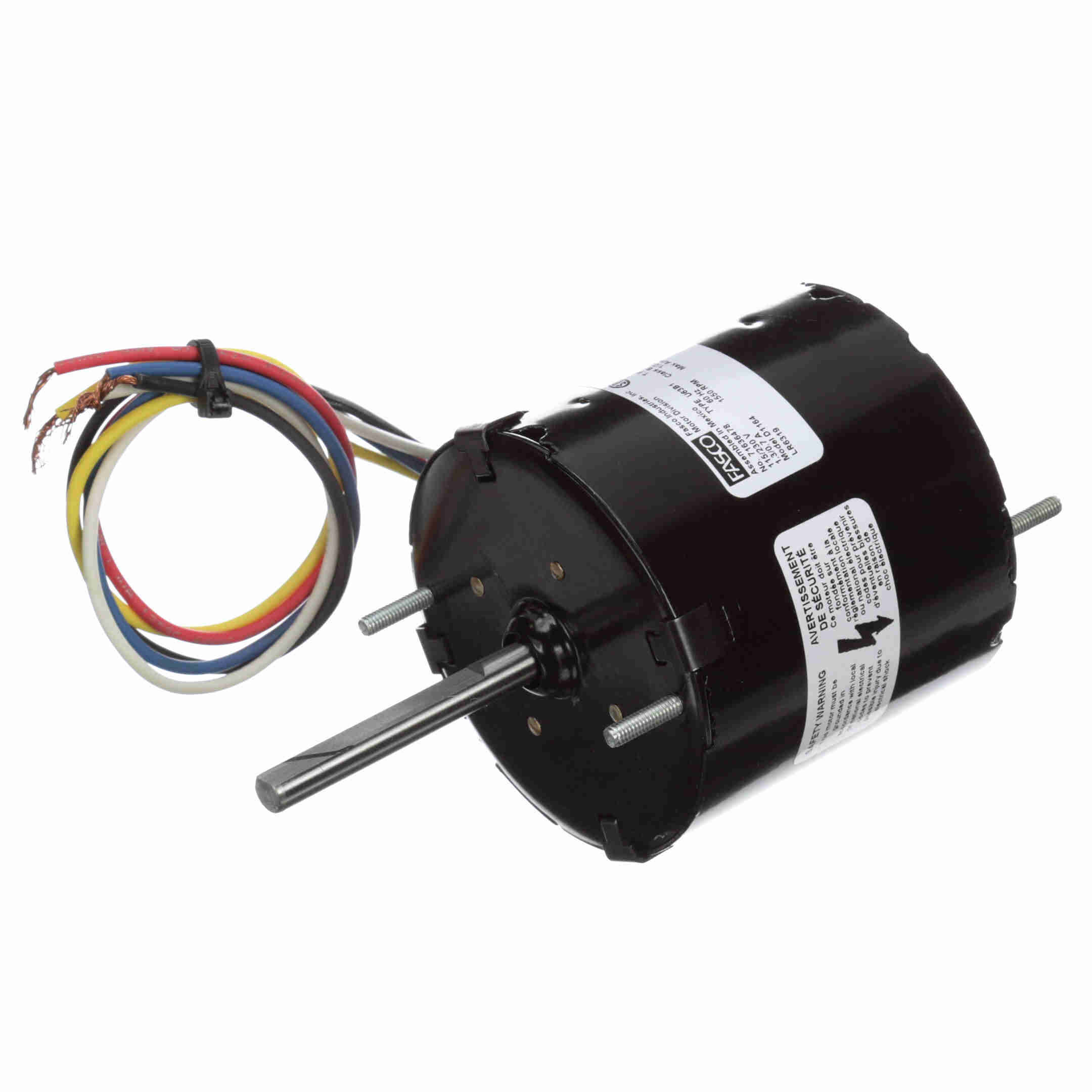

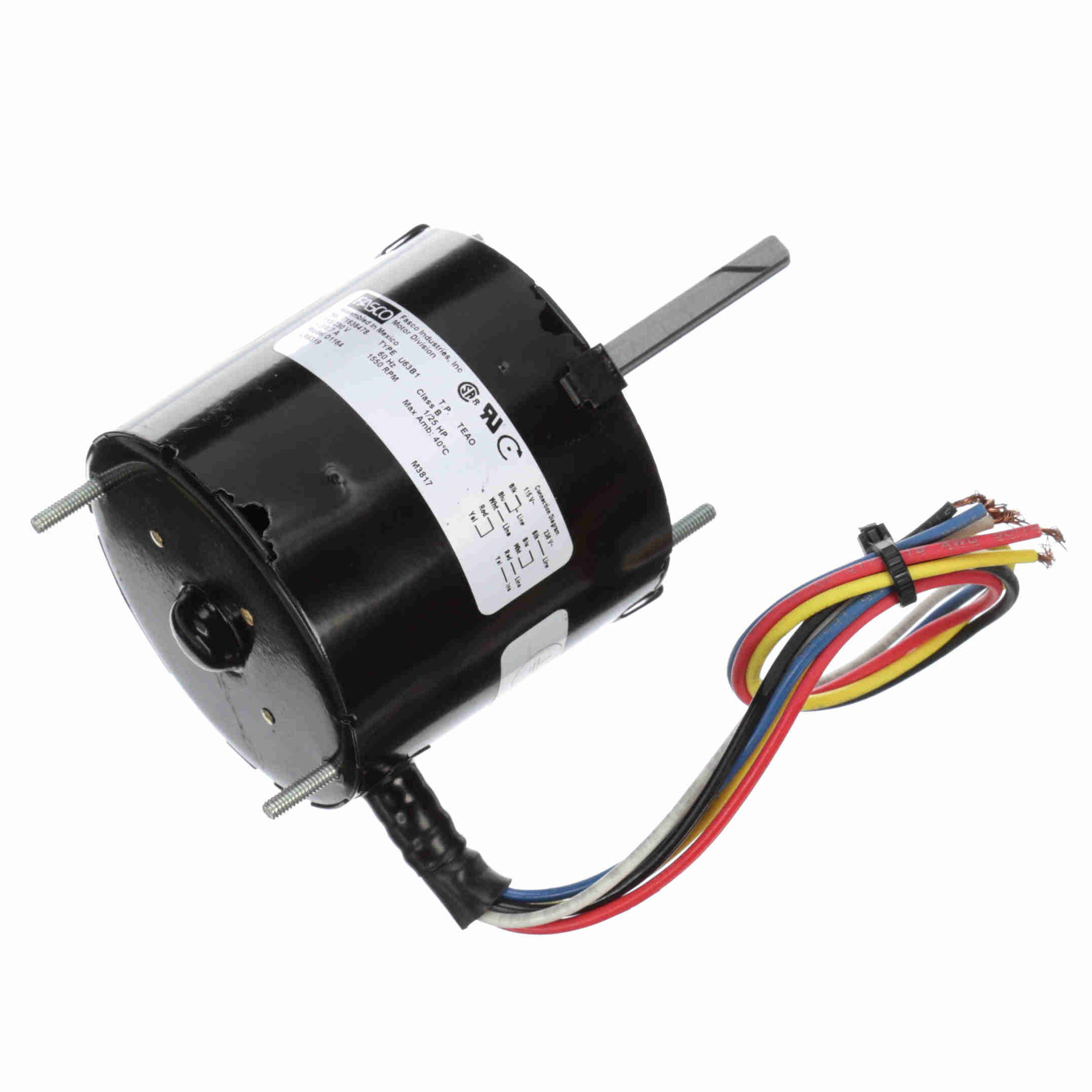

D1164 Fasco 1/25HP General Purpose Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D1164

Selected accessories will also be added to cart
$121.97 / Each
Quantity:
115/230VAC 60Hz, Single Speed, CW

Electrical

HP 1/25 HP
Voltage 115/230 VAC
Frequency 60 Hz
Phase Single Phase
RPM 1550 RPM
Single Speed
Amperage 0.75-0.4 Amps

Specifications

Manufacturer Fasco
Model Number D1164
Diameter 3.3 inches
Rotation Direction CW
Bearing Type Sleeve
Shaft Dimensions 5/16" x 2-1/2"
Stack inches
Notes 85: Air Over
Weight 3.8 lbs
Frame
Type
Enclosure Totally Enclosed
”A” Dimension 3-1/8"

Cross Reference

Singer JA2P091N
JA2P0901N

Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/25HP
Speed
1550RPM
