/5.0" Diameter (42 Frame)/D143 Fasco 1/30, 1/40HP Ventilation Electric Motor, 1050RPM
Click Image to Expand

Product ID: D143

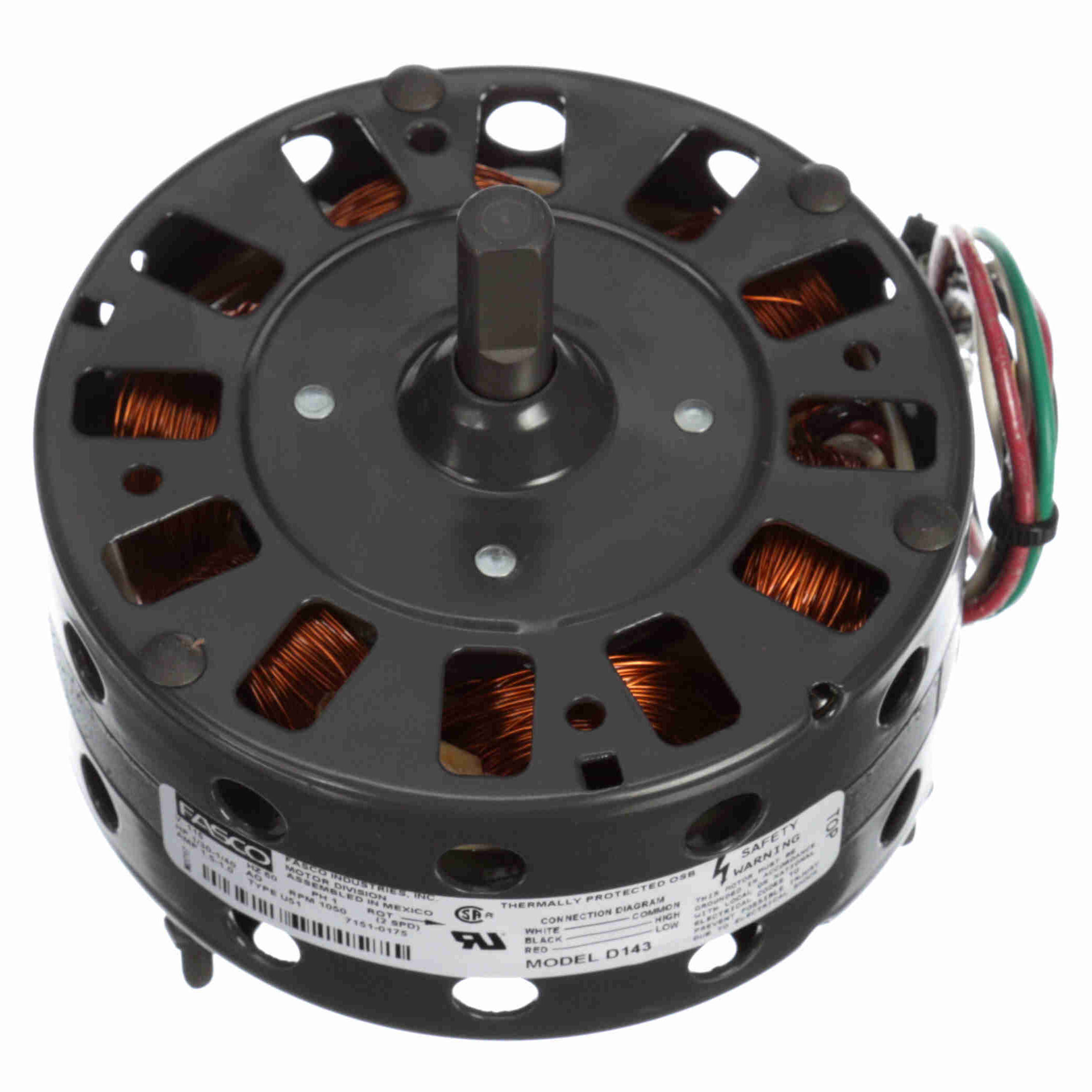

D143 Fasco 1/30, 1/40HP Ventilation Electric Motor, 1050RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D143

Selected accessories will also be added to cart
$222.97 / Each
Quantity:
Open Air Over, 42 Frame, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, CCW Shaft End, 1/2" Shaft

Features

  • Ventilation - Unit Heater Motor
  • 5" Diameter - 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class A Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 10" Leads with Quick Connect Terminal
  • Extended Studs Lead End

General Specifications

UPC: 815585028628 Weight: 5.00 LB
Packaged Length: 5.13 IN Packaged Width: 5.13 IN
Packaged Height: 10 IN

Nameplate Specifications

Output HP: 1/30-1/40 Hp Output KW: 0.02 kW
Frequency: 60 Hz Voltage: 115 V
Current: 1.5/1.0 A Speed: 1050 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 6 Rotation: Counterclockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 4.52 in
Shaft Diameter: 0.500 in Shaft Extension: 1.66 in
Type
Electric Motor
Input Phase
Single Phase
Enclosure
OAO
Horsepower
1/30HP
Horsepower
1/40HP
Speed
1050RPM
