/5.0" Diameter (42 Frame)/D261 Fasco 1/8, 1/15HP Unit Heater Electric Motor, 5" Diameter, 1075RPM
Click Image to Expand

Product ID: D261

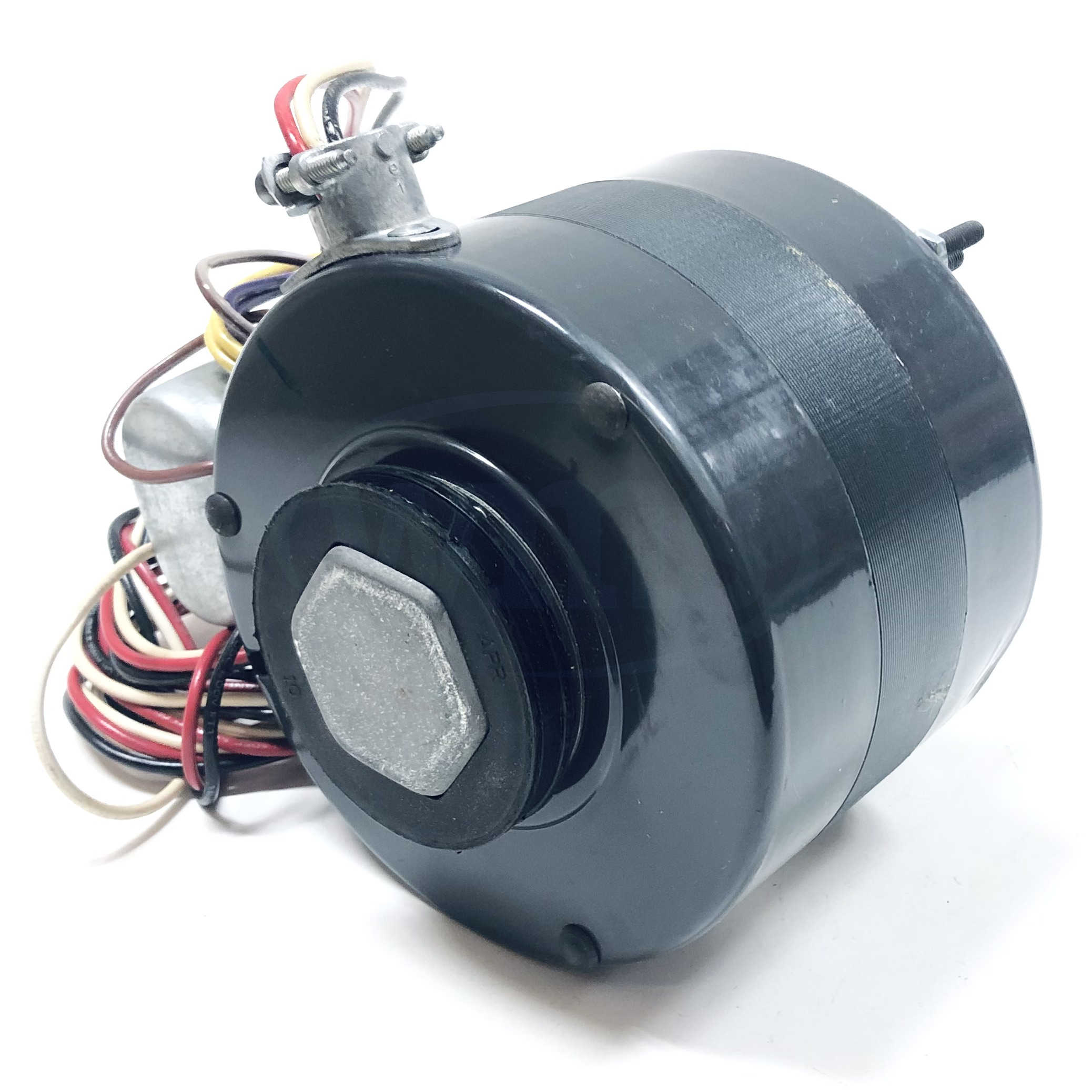

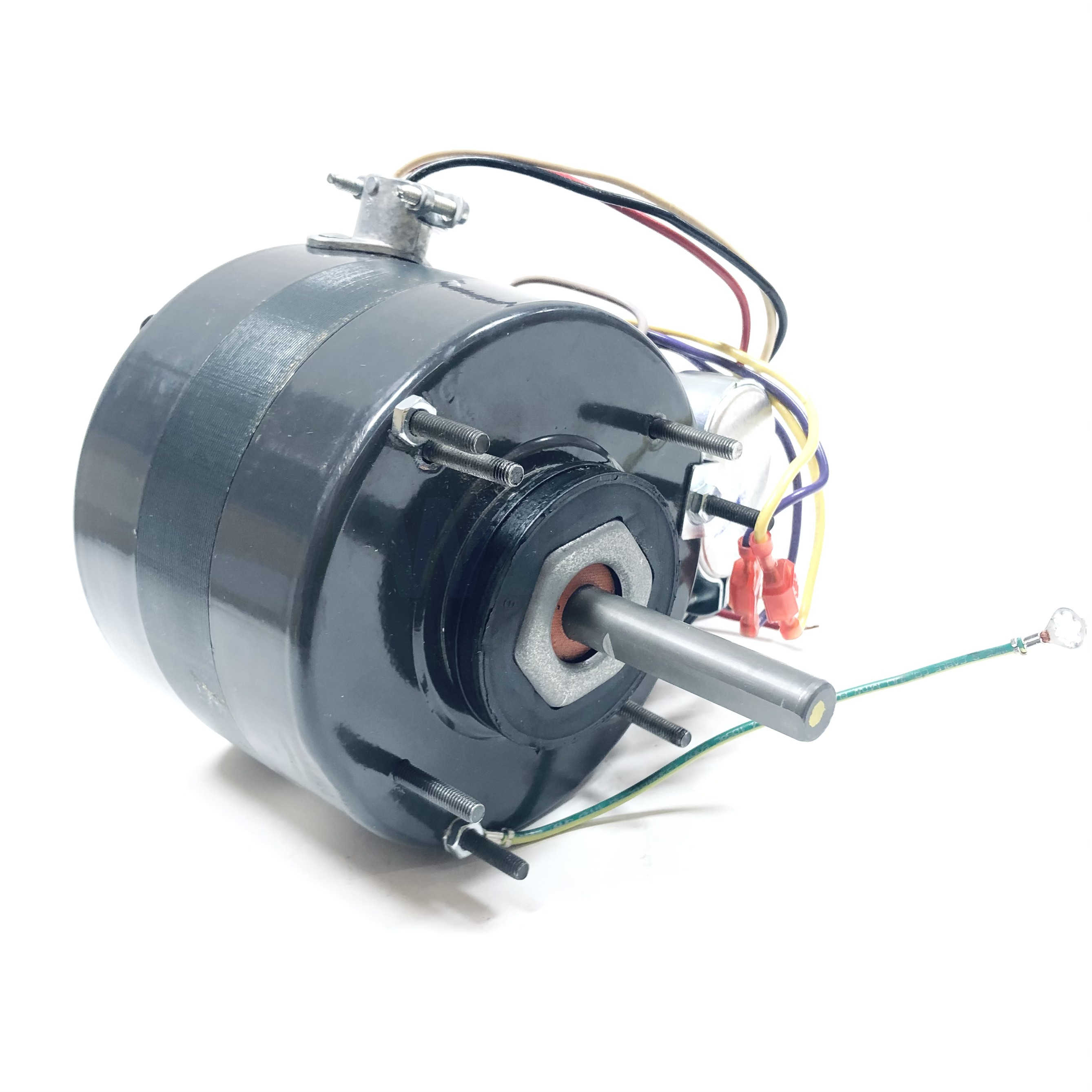

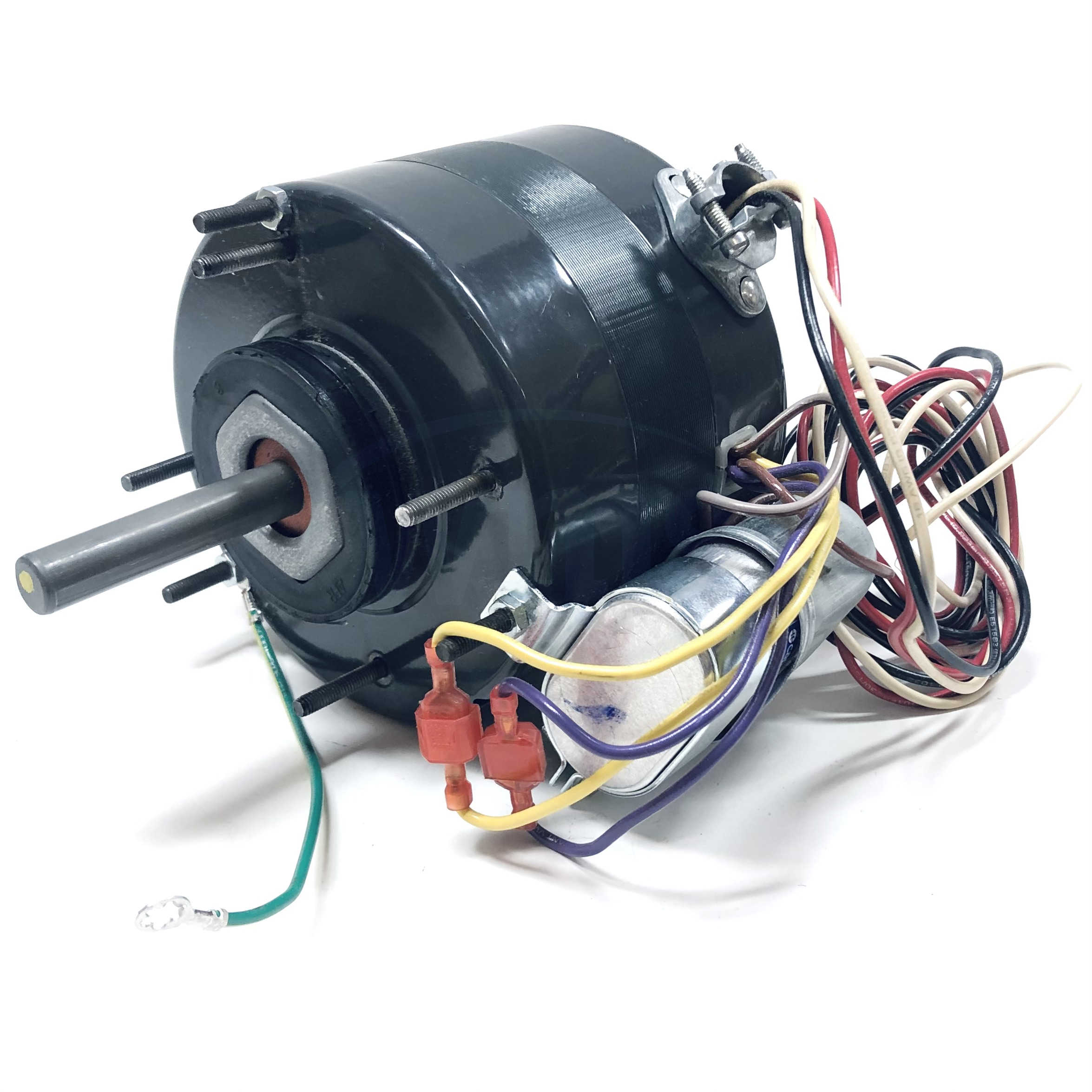

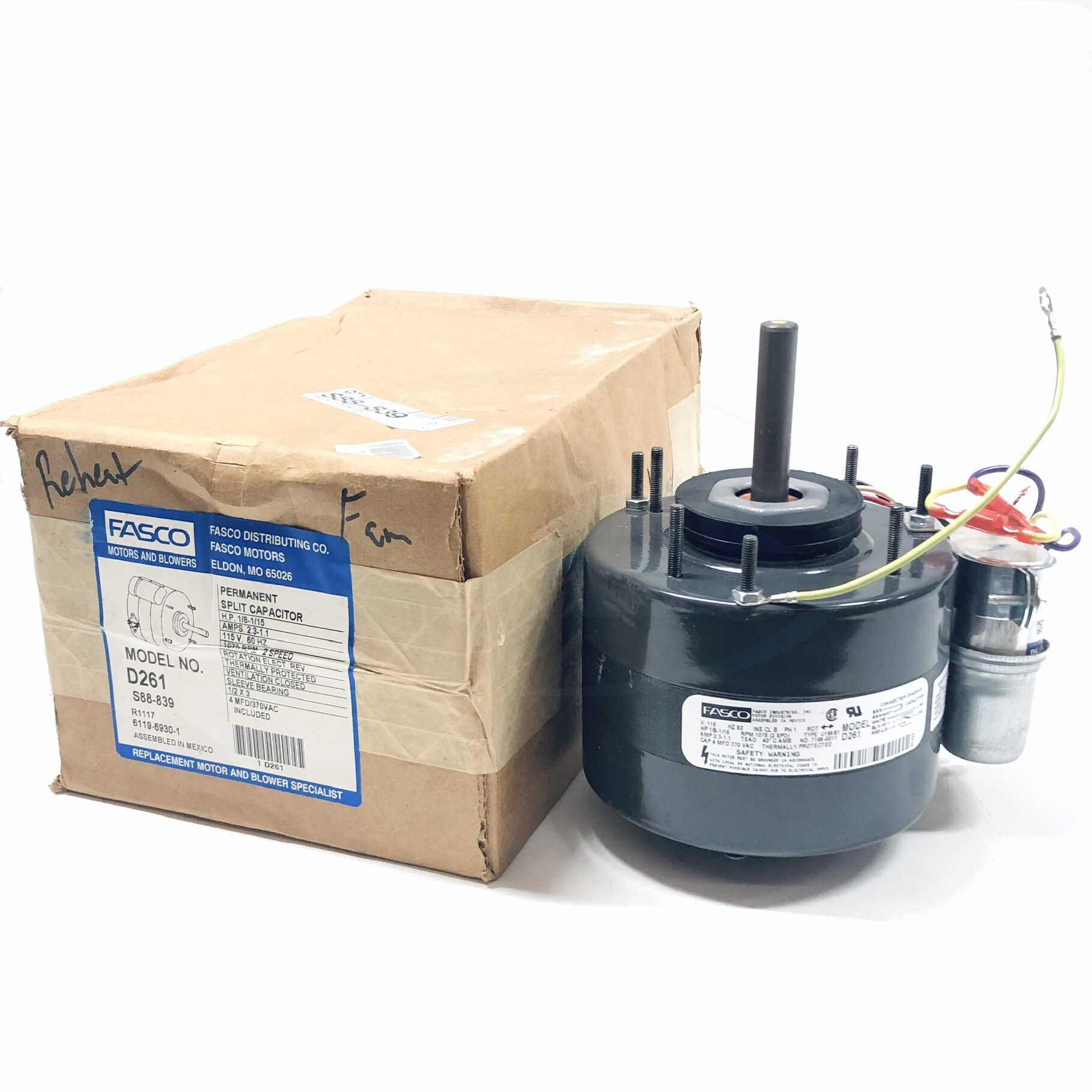

D261 Fasco 1/8, 1/15HP Unit Heater Electric Motor, 5" Diameter, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D261

Selected accessories will also be added to cart
$261.97 / Each
Quantity:
TEAO, 42 Frame, 115VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 1/2" x 3" Shaft, Reversible

Features

  • Ventilation - Unit Heater Motor
  • 5" Diameter - 42 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 58" Leads with .5" Strip
  • Extended Studs Shaft End, Resilient Mounting Ring Shaft end and Lead End

General Specifications

UPC: 815585029366 Weight: 9 LB
Packaged Length: 6.75 IN Packaged Width: 5.63 IN
Packaged Height: 10 IN

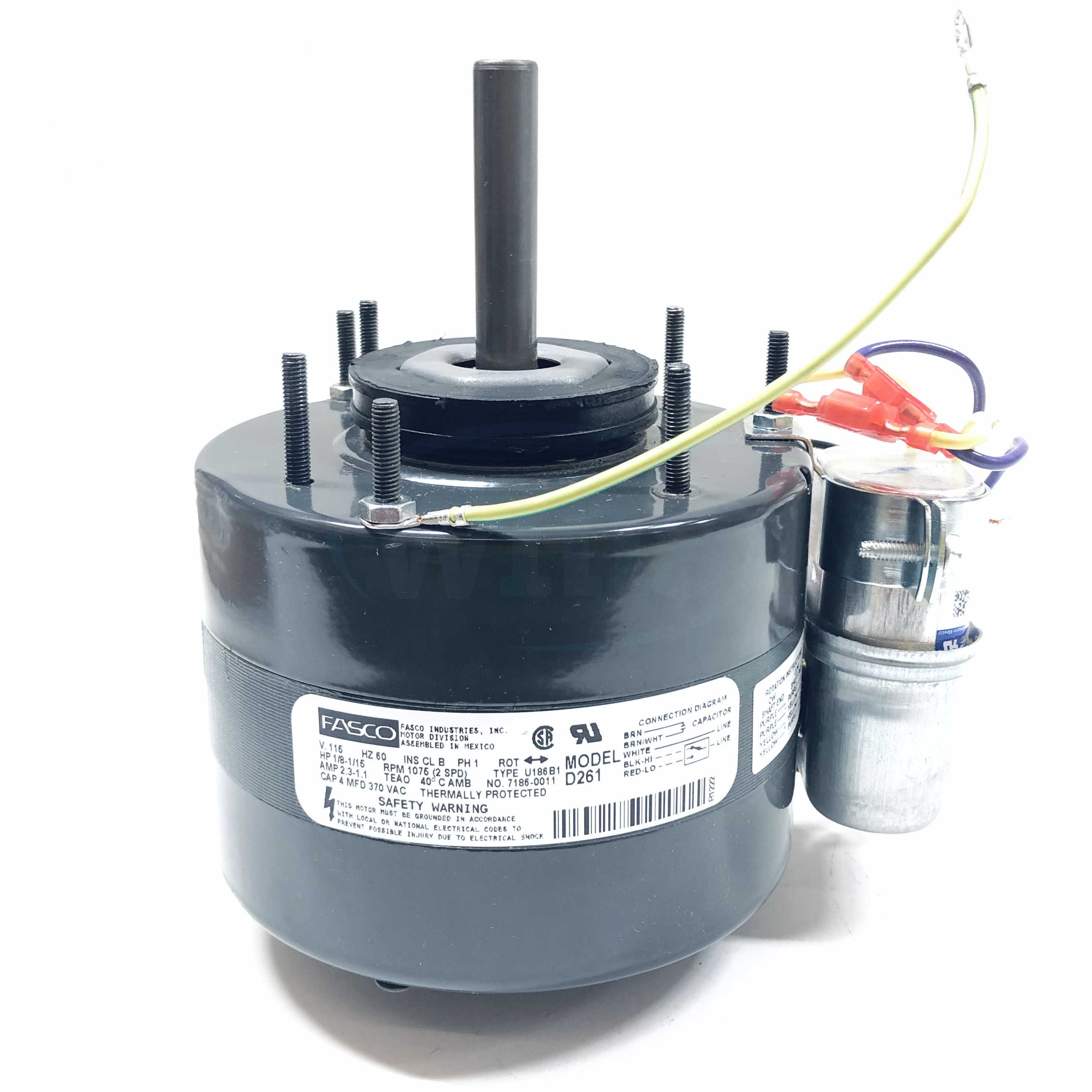

Nameplate Specifications

Output HP: 1/8-1/5 Hp Output KW: 0.10 kW
Frequency: 60 Hz Voltage: 115 V
Current: 2.3/1.1 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 42 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Na
Shaft Type: Flat Overall Length: 7.34 in
Shaft Diameter: 0.500 in Shaft Extension: 3 in
Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEAO
Speed
1075RPM
Horsepower
1/8HP
Horsepower
1/15HP
Frame
42Y
