/5.6" Diameter (48 Frame)/D2840 Fasco 1/5HP OEM Replacement Electric Motor, 1075RPM
Click Image to Expand

Product ID: D2840

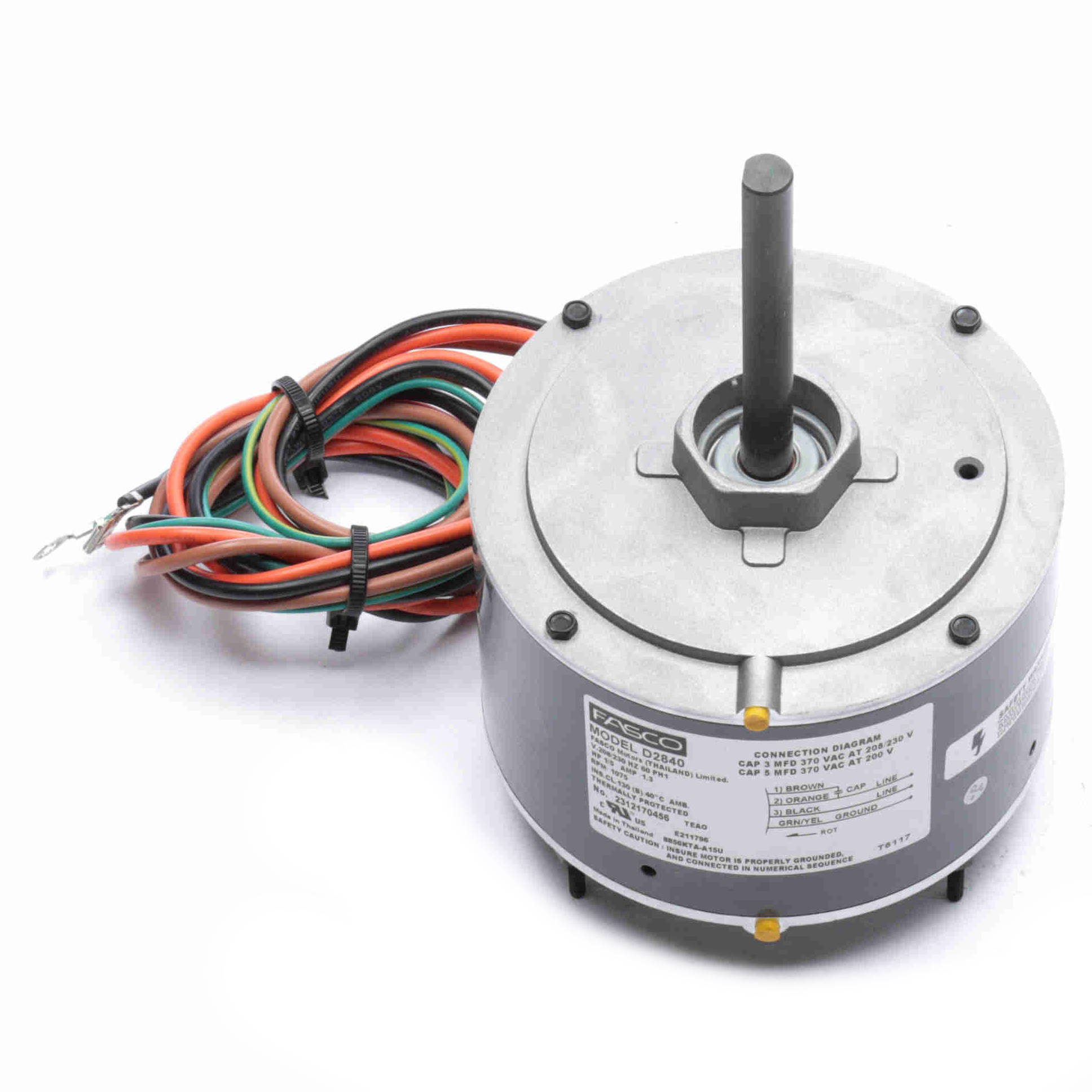

D2840 Fasco 1/5HP OEM Replacement Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D2840

Selected accessories will also be added to cart
$115.97 / Each
Quantity:
TEAO, 48 Frame, 208-230VAC 60Hz Single Phase, Extended Studs, Sleeve Bearings, 1/2" x 4.2" Shaft

Features

  • OEM Direct Replacement Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Flat
  • 42" Leads with Flag Terminal
  • Extended Mounting Studs Lead End, Hex Mounting Hub Shaft End, Shell Mounting Holes

General Specifications

UPC: 818508022369 Weight: 10 LB
Packaged Length: 5.63 IN Packaged Width: 5.63 IN
Packaged Height: 15 IN

Nameplate Specifications

Output HP: 1/5 Hp Output KW: 0.15 kW
Voltage: 208-230 V Current: 1.3 A
Speed: 1075 rpm Service Factor: 1
Phase: 1 Duty: Continuous
Insulation Class: B Frame: 48
Enclosure: Totally Enclosed Air Over Thermal Protection: Automatic
Ambient Temperature: 40 °C UL: Recognized
CSA: Y CE: N

Technical Specifications

Electrical Type: AC Starting Method: PSC
Poles: 6 Rotation: Clockwise Shaft End
Mounting: Extended Studs Motor Orientation: Single Shaft Horizontal/Clockwise De
Drive End Bearing: Sleeve Opp Drive End Bearing: Sleeve
Frame Material: Rolled Steel Shaft Type: Flat
Frame Length: 3.20 in Shaft Diameter: 0.500 in
Shaft Extension: 4.2 in Assembly/Box Mounting: Tie rods
Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEAO
Speed
1075RPM
Horsepower
1/5HP
Frame
48
