/3.3" Diameter/D672B Fasco 1/15HP Refrigeration Electric Motor, 1550RPM
Click Image to Expand

Product ID: D672B

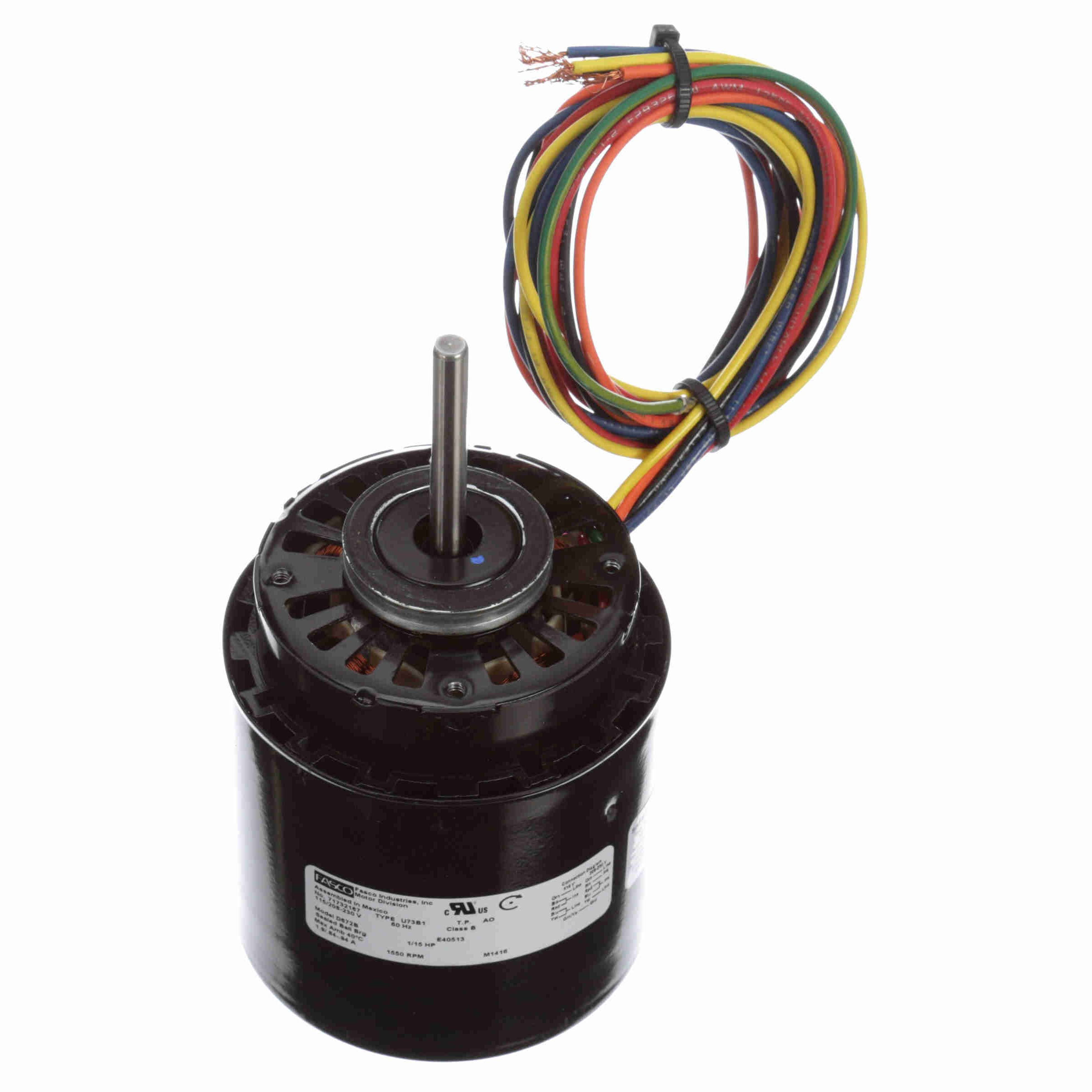

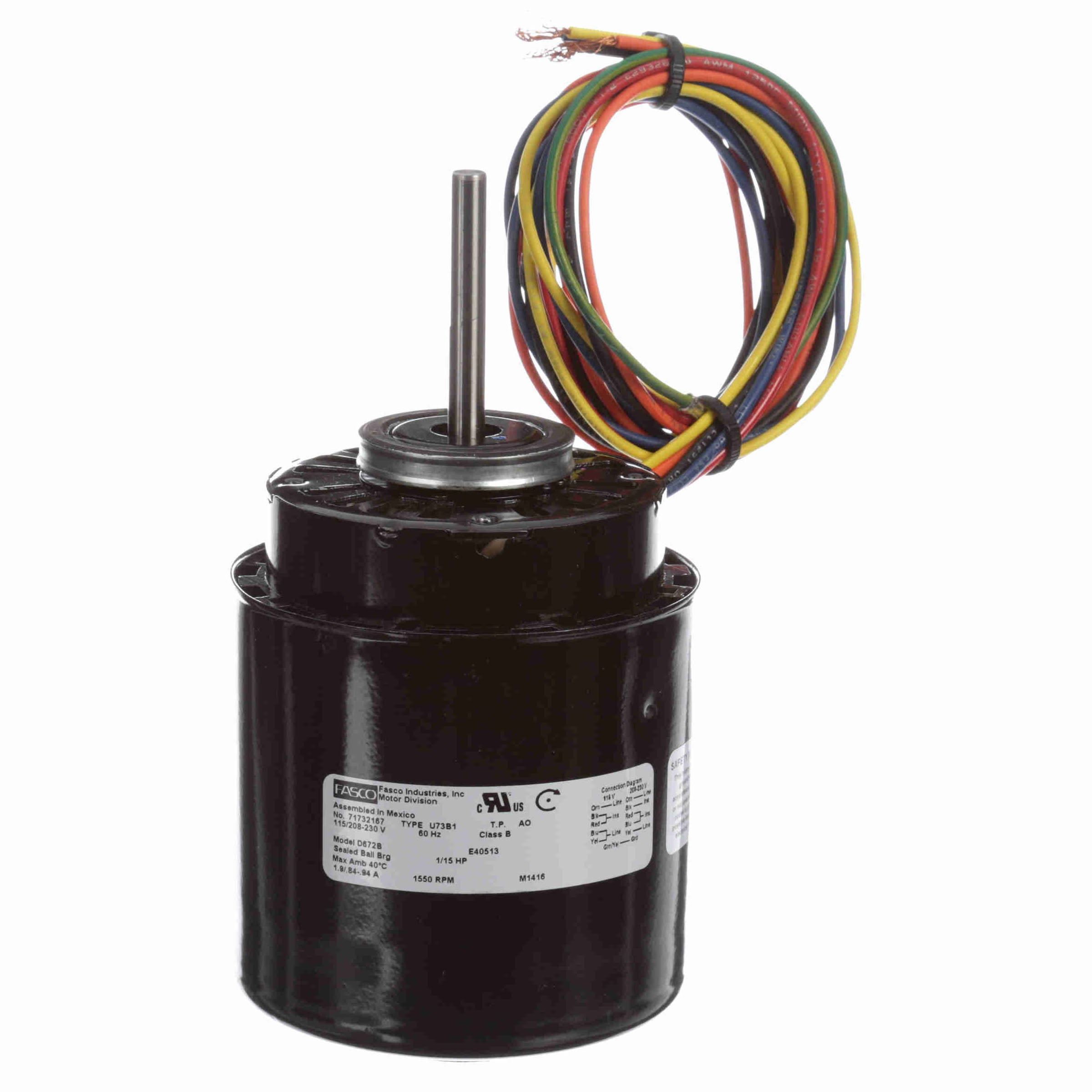

D672B Fasco 1/15HP Refrigeration Electric Motor, 1550RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D672B

Selected accessories will also be added to cart
$150.97 / Each
Quantity:
Semi-Enclosed, 115/208-230VAC 60Hz Single Phase, 3.3" Diameter, 5/16" Shaft with Flat, Ball Bearing

Features

  • General Purpose Motor
  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Shaft End and Lead End End-Frame, Enclosed Shell, Fan Cooled, Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 5/16" Diameter Shaft with Flat
  • 35" Leads
  • Resilient Mounting Ring Shaft End and Opposite Shaft End

General Specifications

UPC: 818508021171 Weight: 5.00 LB
Packaged Length: 8 IN Packaged Width: 3.94 IN
Packaged Height: 3.94 IN

Nameplate Specifications

Output HP: 1/15 Hp Output KW: 0.05 kW
Frequency: 60 Hz Voltage: 115/208-230 V
Current: 1.90/0.84-0.94 A Speed: 1550 rpm
Service Factor: 1 Phase: 1
Duty: Air Over Insulation Class: B
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
UL: Recognized CSA: N
CE: N Number of Speeds: 1

Technical Specifications

Electrical Type: Shaded Pole Starting Method: Across The Line
Poles: 4 Rotation: Clockwise Shaft End
Mounting: Extended Studs Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Steel
Shaft Type: Flat Overall Length: 15.86 in
Frame Length: 3.07 in Shaft Diameter: 0.312 in
Shaft Extension: 2.55 in
Type
Electric Motor
Input Phase
Single Phase
Horsepower
1/15HP
Speed
1550RPM
Application
Refrigeration
