/5.6" Diameter (48 Frame)/D701 Fasco 0.50/0.33/0.25/0.20HP Fan & Blower Electric Motor, 1075RPM
Click Image to Expand

Product ID: D701

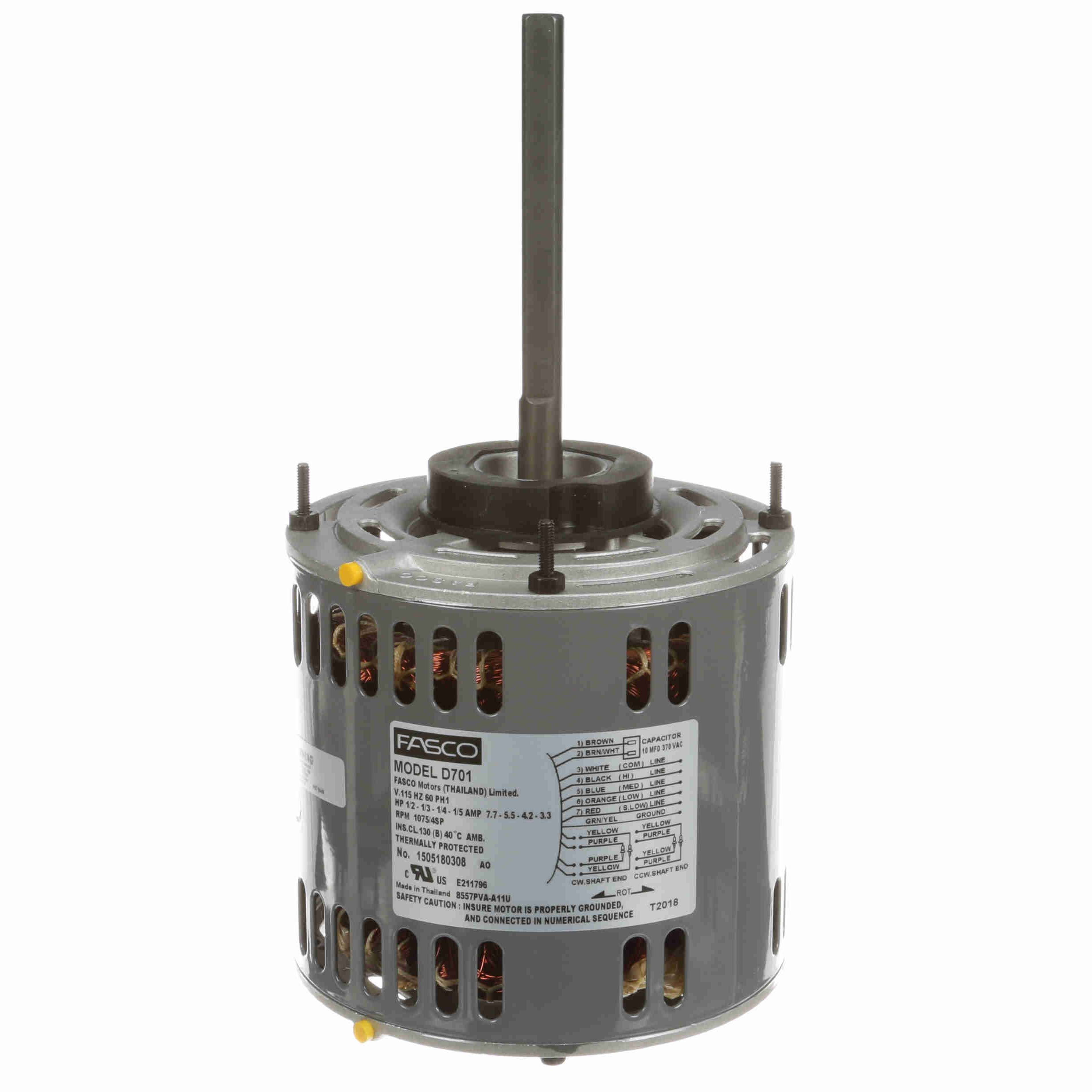

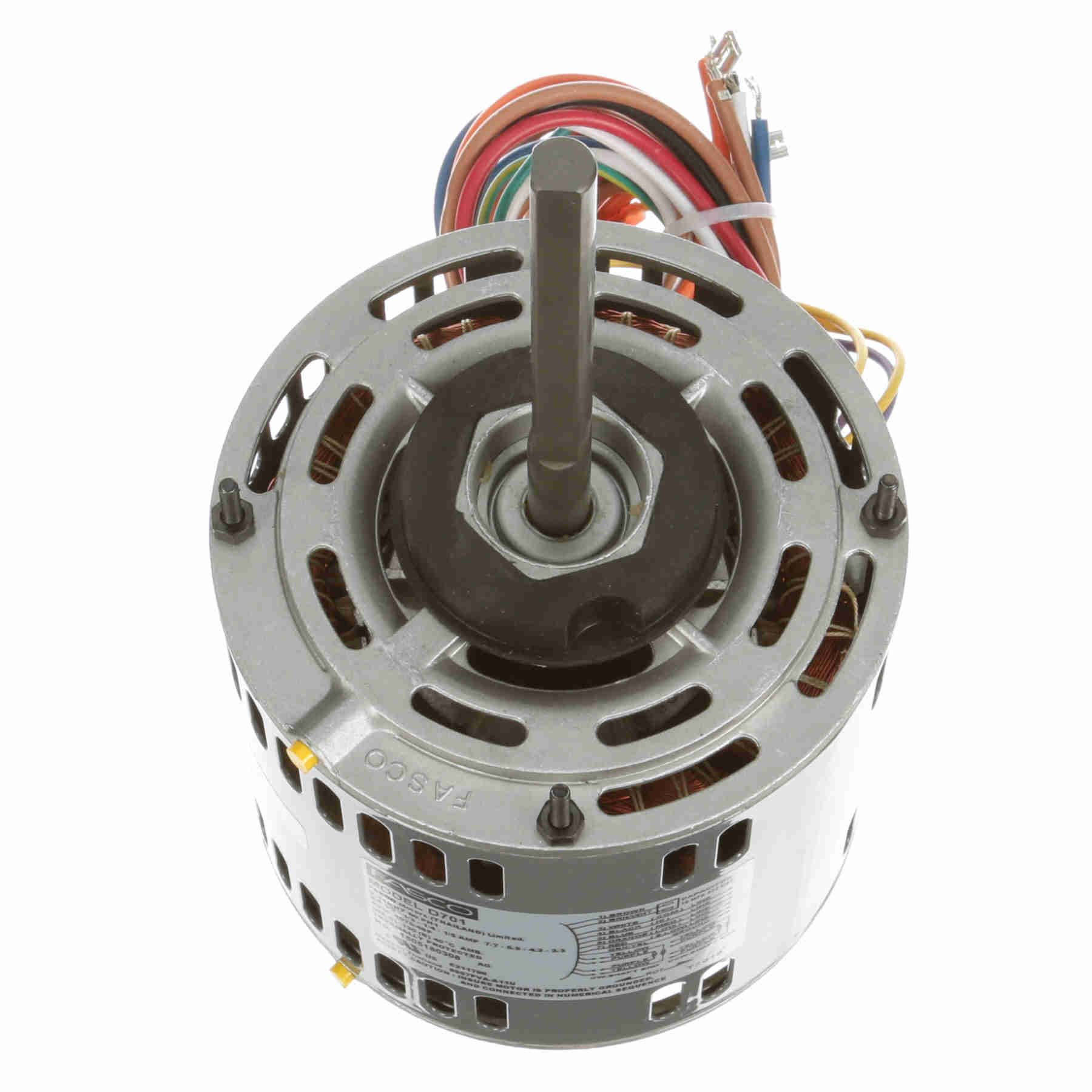

D701 Fasco 0.50/0.33/0.25/0.20HP Fan & Blower Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D701

Selected accessories will also be added to cart
$124.97 / Each
Quantity:
OAO, 48 Frame, 4 Speed, 115VAC 60Hz Single Phase, 5.6" Diameter, Sleeve Bearings, 1/2" Diameter Shaft with Double Flats

Features

  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

UPC: 818508021201 Weight: 15.00 LB
Packaged Length: 15 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN

Nameplate Specifications

Output HP: 1/2-1/3-1/4-1/5 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 115 V
Current: 7.7-5.5-4.2-3.3 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 4

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Double Flat Frame Length: 5.39 in
Shaft Diameter: 0.500 in Shaft Extension: 5.43 in
Type
Electric Motor
Input Phase
Single Phase
Speed
1075RPM
Enclosure
OAO
Horsepower
1/2HP
Horsepower
1/3HP
Horsepower
1/4HP
Horsepower
1/5HP
Frame
48
