/5.6" Diameter (48 Frame)/D923 Fasco 0.33/0.25/0.20HP Fan & Blower Electric Motor, 1075RPM
Click Image to Expand

Product ID: D923

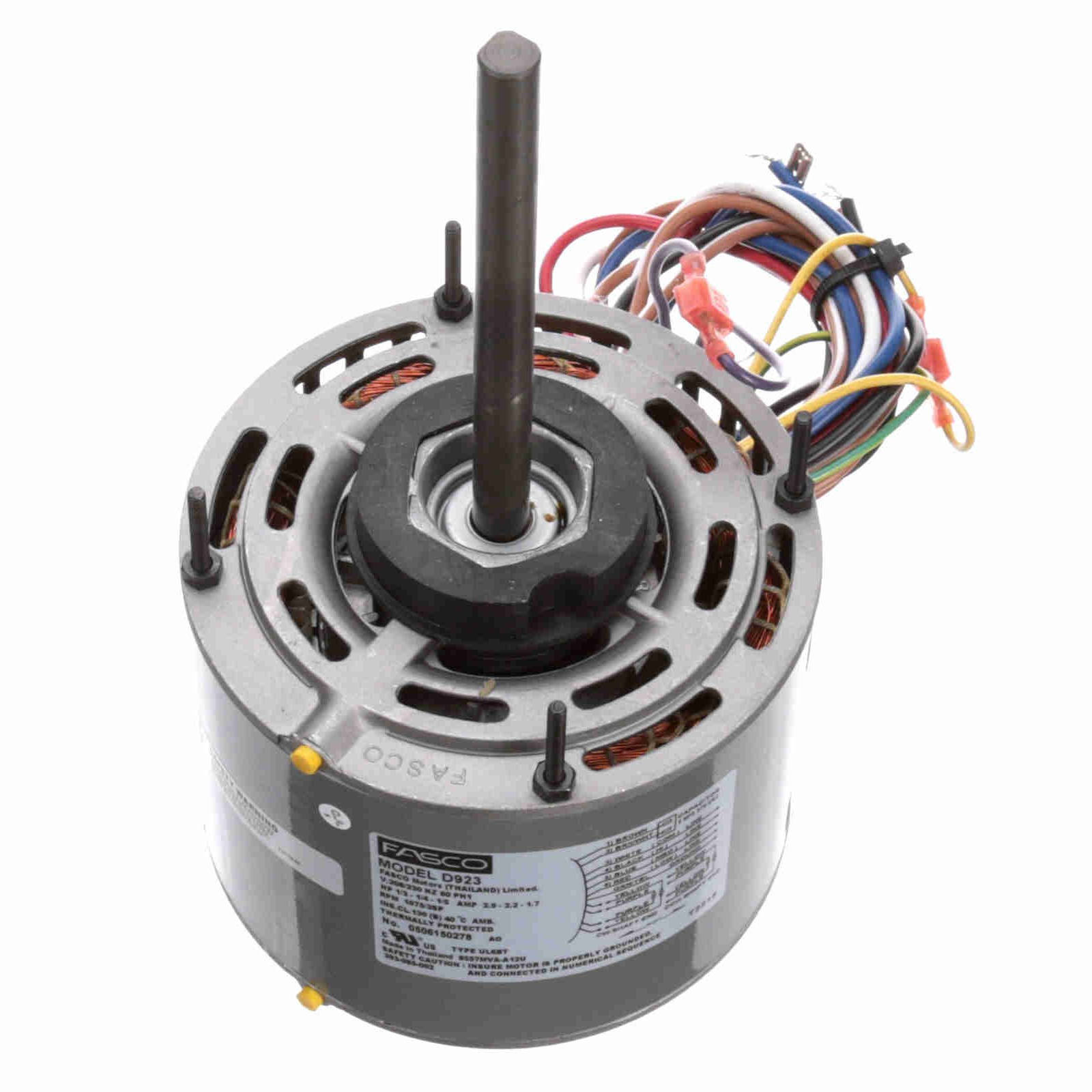

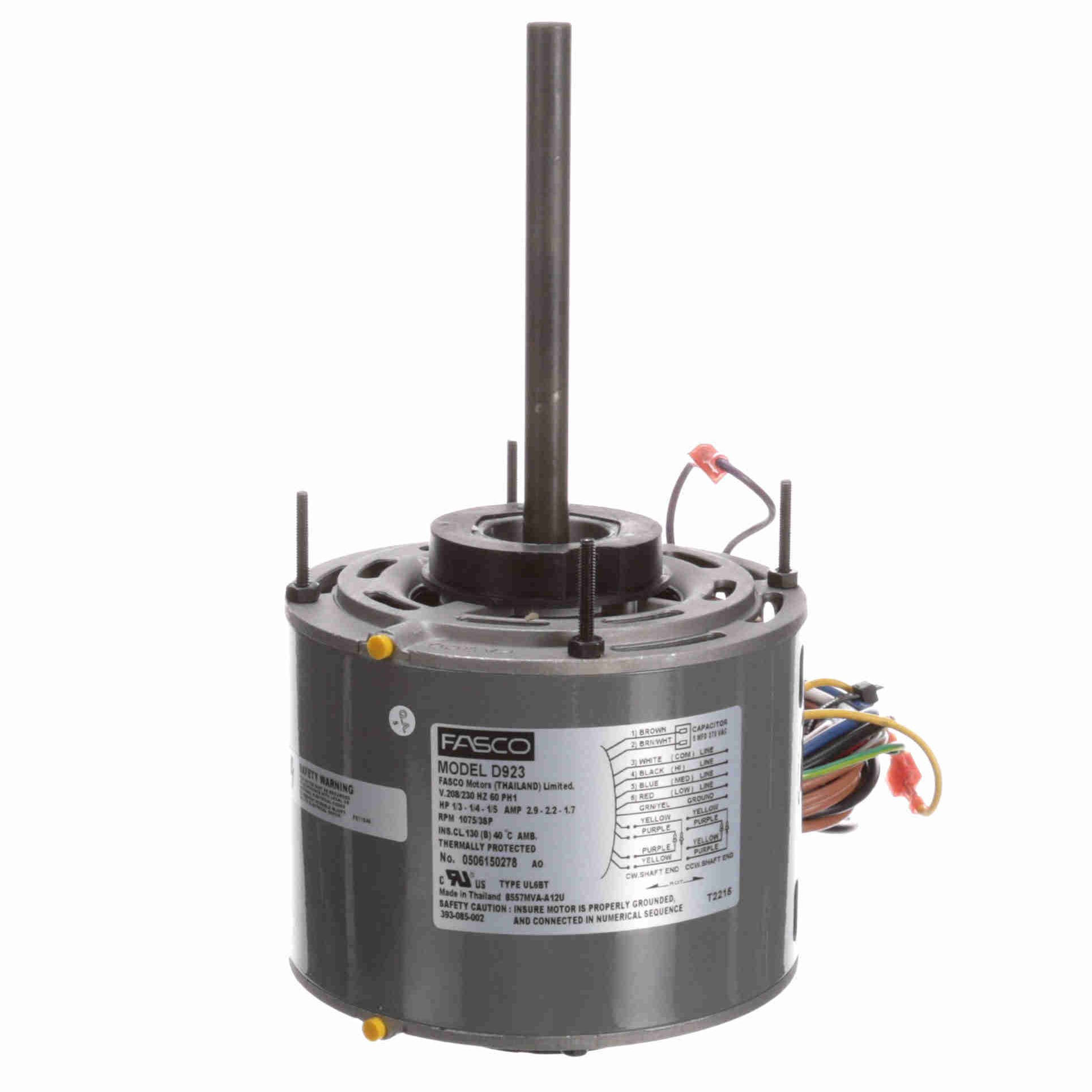

D923 Fasco 0.33/0.25/0.20HP Fan & Blower Electric Motor, 1075RPM

MFG: Fasco (RegalRexnord)
MFG Part Number: D923

Selected accessories will also be added to cart
$115.97 / Each
Quantity:
OAO, 48 Frame, 208-230VAC 60Hz Single Phase, 5.6" Diameter, Sleeve Bearings, 1/2" Shaft with Double Flat

Features

  • Direct Drive Fan and Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Shaft End and Lead End, Shell Half Vented, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting, Belly Band

General Specifications

UPC: 818508020624 Weight: 13.00 LB
Packaged Length: 15 IN Packaged Width: 5.63 IN
Packaged Height: 5.63 IN

Nameplate Specifications

Output HP: 1/3-1/4-1/5 Hp Output KW: 0.25 kW
Frequency: 60 Hz Voltage: 208-230 V
Current: 2.9-2.2-1.7 A Speed: 1075 rpm
Service Factor: 1 Phase: 1
Duty: Continuous Insulation Class: B
Frame: 48 Enclosure: Open Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
UL: Recognized CSA: Y
CE: N Number of Speeds: 3

Technical Specifications

Electrical Type: Permanent Split Capacitor Starting Method: Across The Line
Poles: 6 Rotation: Reversible
Mounting: Extended Studs Drive End Bearing: Sleeve
Opp Drive End Bearing: Sleeve Frame Material: Rolled Steel
Shaft Type: Double Flat Frame Length: 4.45 in
Shaft Diameter: 0.500 in Shaft Extension: 5.94 in
Type
Electric Motor
Input Phase
Single Phase
Speed
1075RPM
Enclosure
OAO
Horsepower
1/3HP
Horsepower
1/5HP
Horsepower
1/4HP
Frame
48
